Spectra LL100N-5 Laser Level with Tripod, HR320 Receiver w/ C59 Rod Clamp
Description
Description
Spectra Precision Laser LL100N-5 Description
The fully automatic, self-leveling Spectra Precision® Laser LL100N sets a new standard in rugged reliability, handling a wide variety of general construction applications. Even in the toughest job site conditions, the LL100N consistently delivers reliable, accurate performance to increase your overall productivity and cost-savings. The LL100N laser mounts on a tripod and sends a 360° plane of laser light over the entire work area, allowing one person to take accurate, self-leveled elevation measurements up to 575 feet (175 m) away with the HR320 laser receiver.

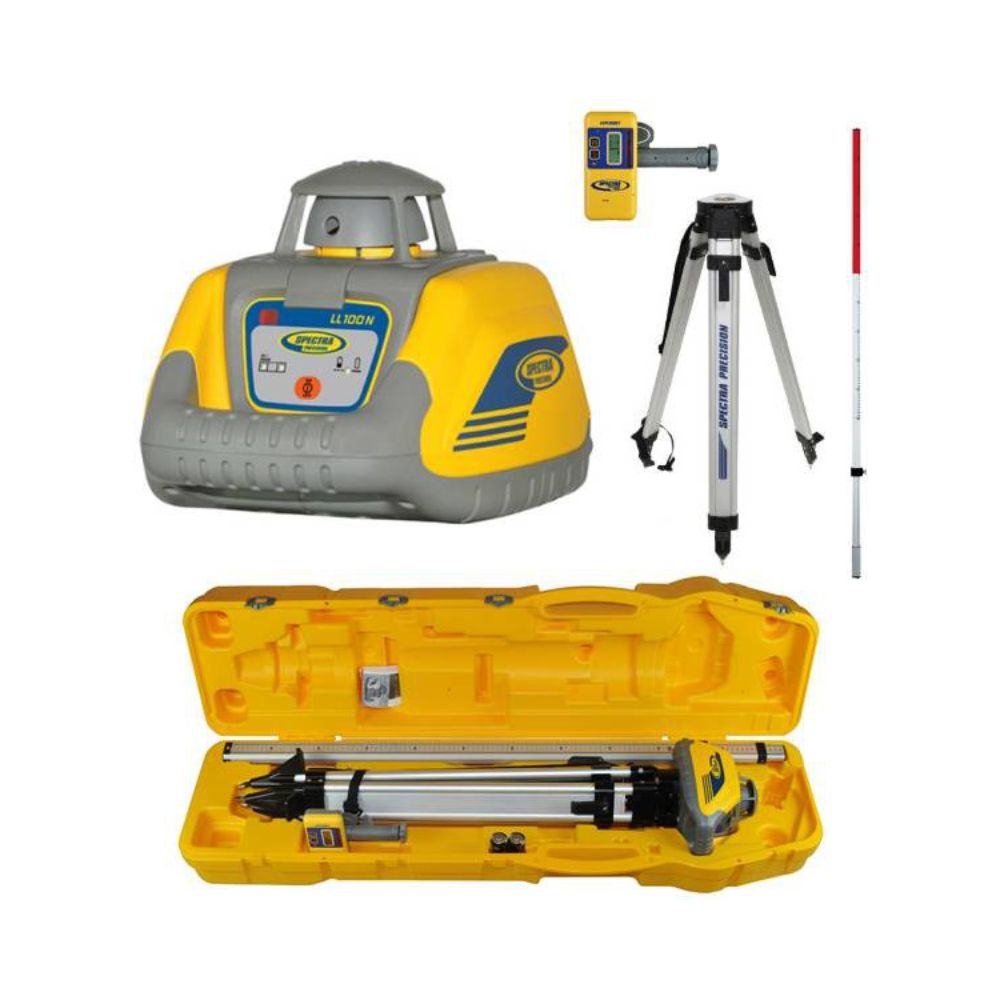

Spectra Precision Laser LL100N-5 Includes
- (1) LL100N Laser Level
- (2) D-Cell Batteries
- (1) HR320 Receiver with Clamp C59
- (1) Q104025 Aluminum Tripod
- (1) Cut/Fill Rod Metric
- (1) 1282-1981 "All in One" Carrying Case
- (1) Multi-Language Operating Manual
Spectra Precision Laser LL100N-5 Features
- Automatic self-leveling
- Accuracy 1/8 inch @ 100 ft (3mm @ 30 m)
- Working range of 1,150 ft (350 m) diameter
- Simple one-button operation for quick start up
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Single axis manual slope mode (with RC601 Remote Control)
- Rotor cage can be removed for precise 360°coverage
- Complete kit available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 2 Years warranty
Spectra Precision Laser LL100N-5 Specifications
| Laser Source | 650 nm Visible - Class 2 |
| Laser Accuracy | ±1/8" at 100' |
| Operating Range | 1150' Diameter with Receiver HR320 |
| Self-leveling Range | ±5 degrees |
| Compensation Method | Electronic Self-Leveling |
| Drop Height on Concrete Performance | 3' |
| Single Axis Manual Slope Mode | Yes |
| Out-of-Level Warning | Rotor Stops, Laser Shuts Off, Red Out-of-Level LED Flashes |
| Power Source | 2 x “D” Alkaline Batteries |
| Battery Life | 80 hours Alkaline |
| Battery Status | LED Flashing Red LED |
| Rotation Speed | 600 RPM |
| Tripod Mount | (Horizontal and Vertical) |
| Operating Temperature | 23 °F to 113 °F |
| Storage Temperature | -4 °F to 158 °F |
| Water Resistant | Yes, and IP54 Sealing |
| HR320 Receiver Two On-Grade Sensitivities | Fine 1/16" (2 mm), Standard 1/4" (6 mm) |
| LCD Channels | 5 |
| Battery Life | 70 hrs |
| Automatic Shutoff | 30 minutes |
| Dust & Waterproof | Yes IP67 |
| Cut/Fill Rod | Yes (Metric) |
| Tripod | Yes |
| Tripod Material | Alumium |
