Spectra LL300N-6 Self-Leveling Laser Level with Tripod and GR153 Grade Rod
Description
Description
Spectra Precision Laser LL300N-6 Description
The automatic, self-leveling Spectra Precision® LL300N Laser Level is the most rugged laser level available, tough enough to handle a wide variety of general and concrete construction applications. Even in harsh jobsite conditions, the LL300N delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged LL300N laser can withstand drops of up to three feet (one meter) onto concrete and tripod tipovers up to five feet (1.5 meters). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. The LL300N laser’s self-leveling capability and optional RC601 remote control result in outstanding accuracy and ease of use. Since the LL300N laser levels itself when turned on, setup is easy with fewer controls to deal with. The RC601 remote control gives you the option of matching slopes or having slopes-ongrade. It also offers single-axis slope including HI warning control with the other axis continuing to level itself.
Spectra Precision Laser LL300N-6 Includes

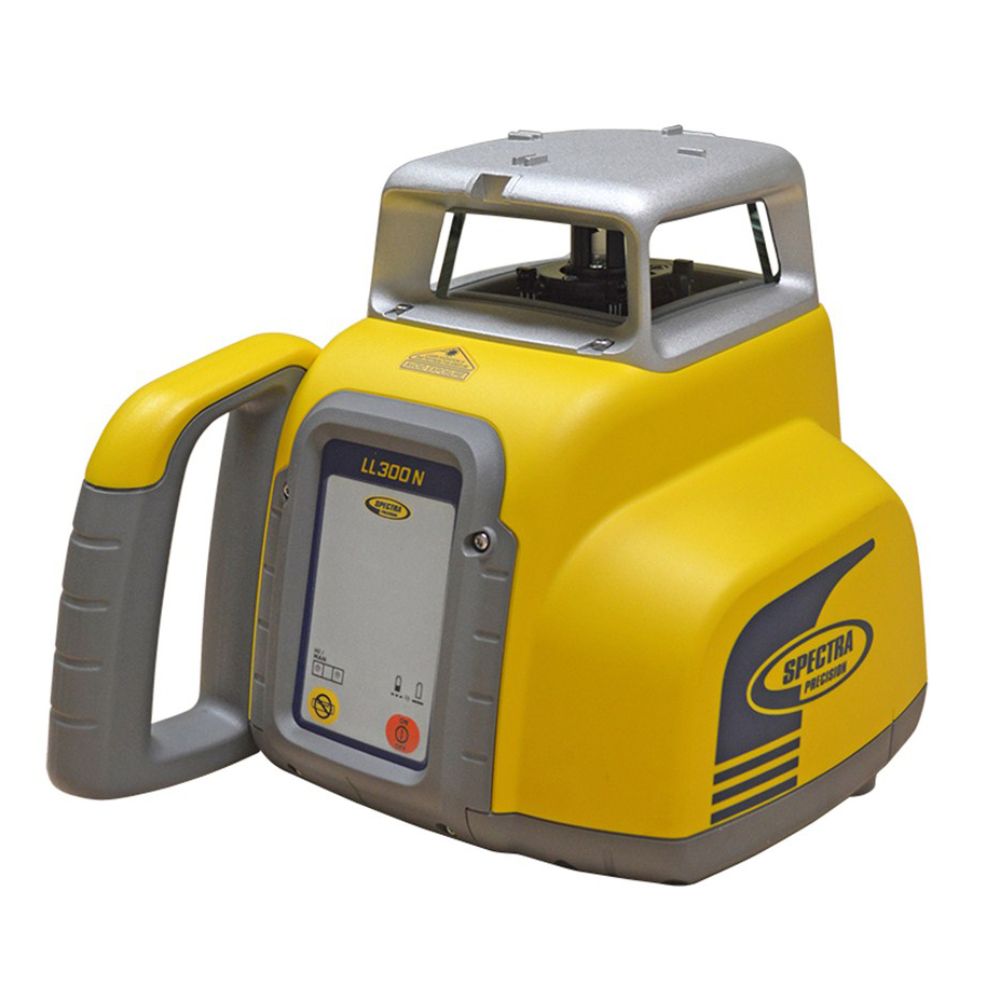

- (1) LL300N Laser Level

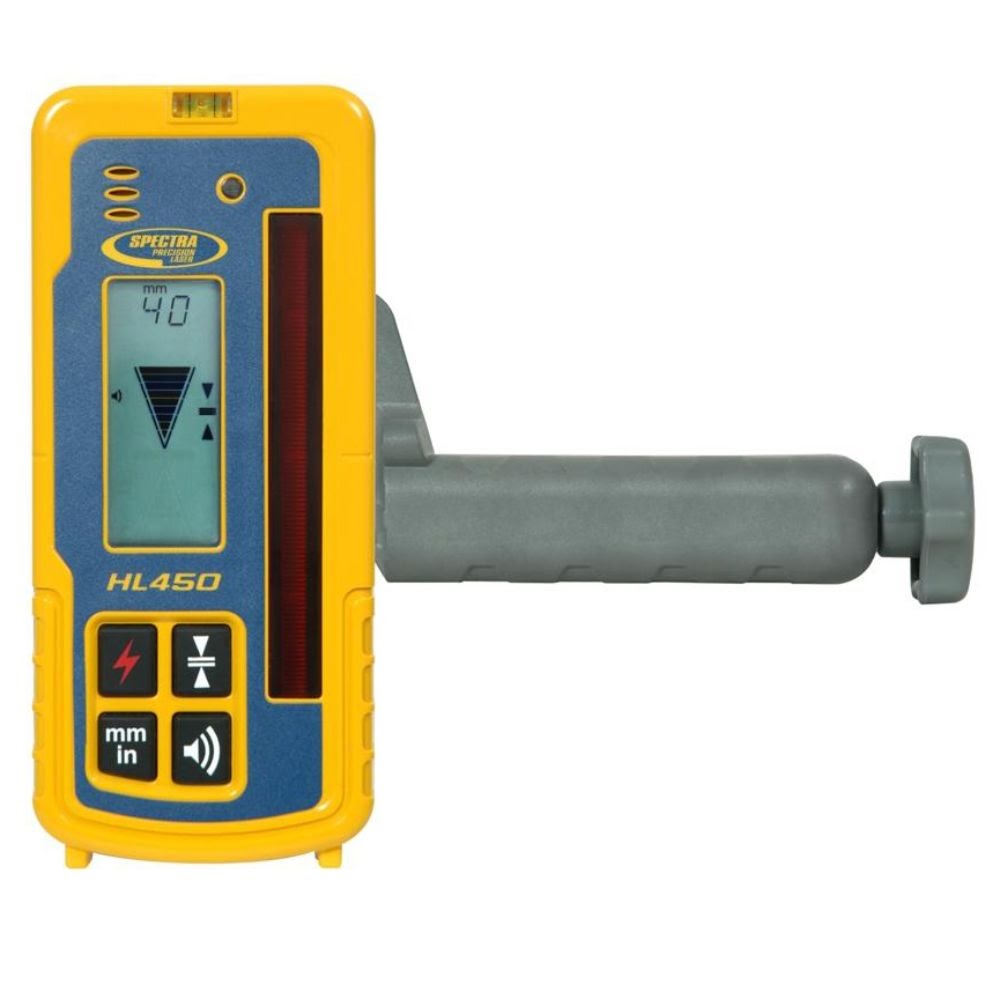

- (1) HL450 Receiver with Clamp C45
- (1) Q103311 NiMH Rechargeable Battery Pack
- (1) 95720-00 Worldwide Charger
- (1) GR153 4.7m Rod

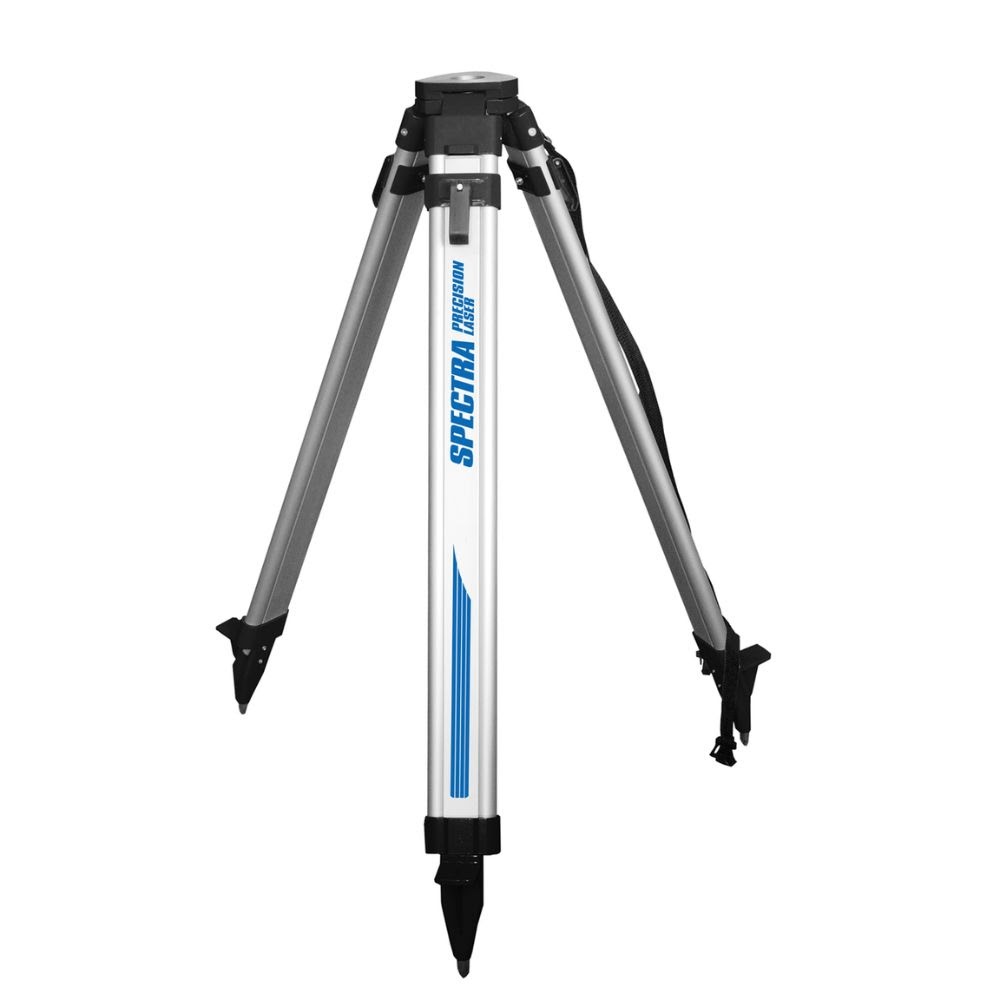

- (1) Q104025 Tripod

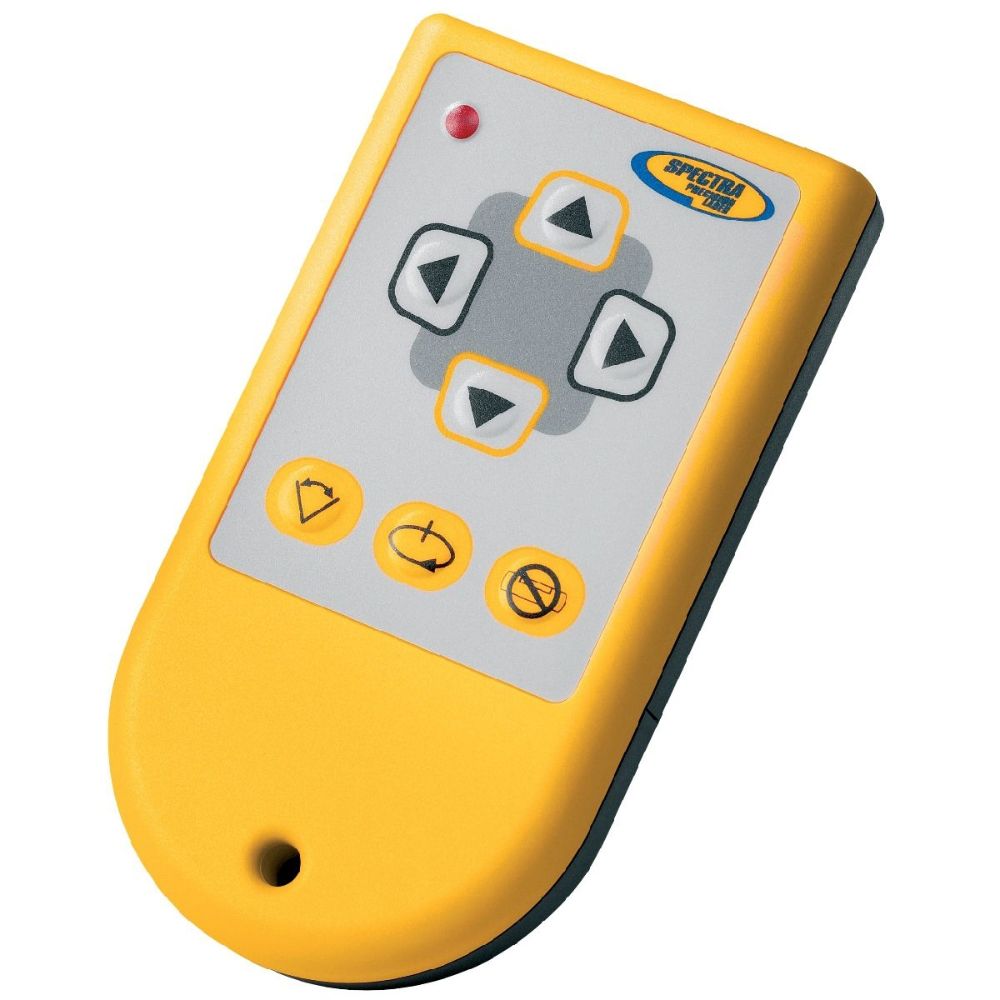

- (1) RC601 Infrared Remote Control

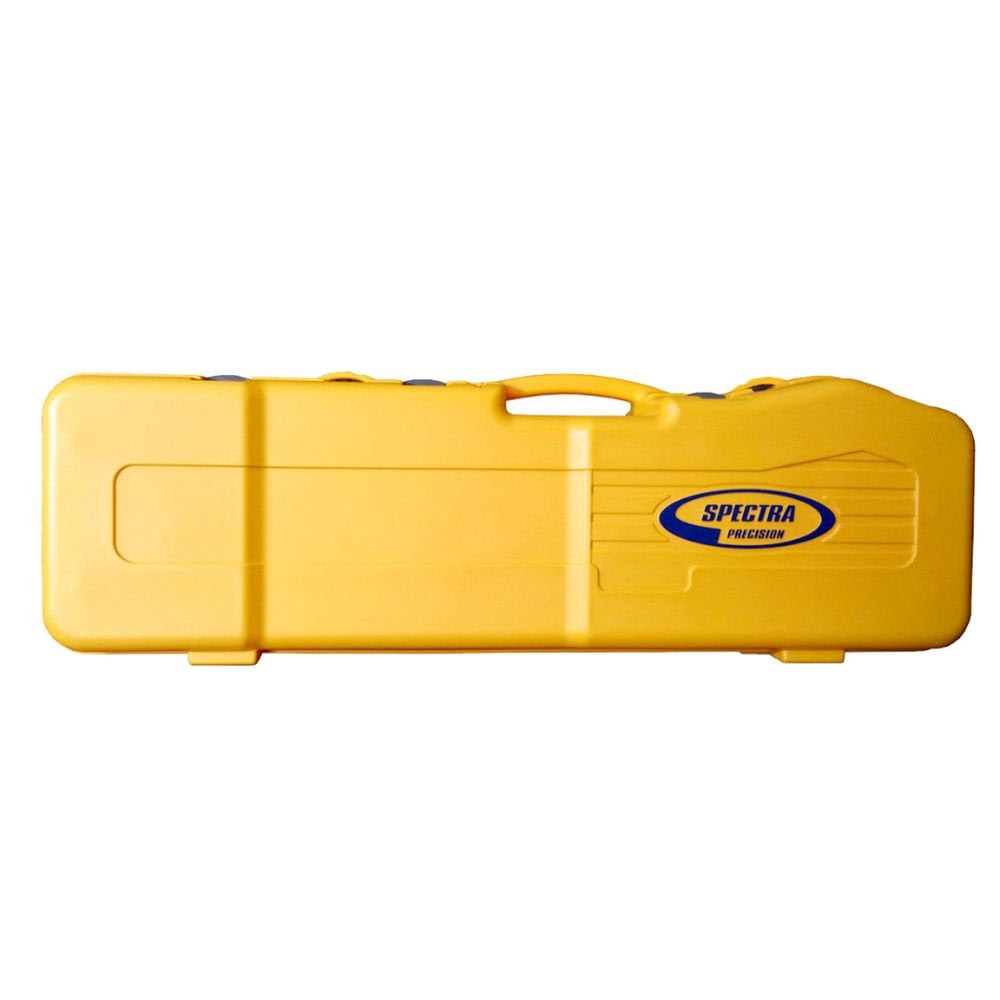

- (1) 5289-0027 "All in One" Carrying Case
- (1) Operating Manual
Spectra Precision Laser LL300N-6 Features
- Available with a choice of system case (with receiver, tripod and choice of grade rod) or small carry case with receiver and clamp.
- Fully automatic self-leveling provides fast and accurate setup
- Rechargeable battery pack or alkaline batteries keeps the unit working with no downtime due to power loss
- Optional RC601 remote control allows easy grade matching using the remote control from rod position
- 1650 ft (500 m) operating diameter
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5m) when pushed over on a tripod means less downtime and cost due to damage caused by an accidental drop or tip-over
- Comes with a choice of HL450 or HR320 receivers allowing you to choose the best option to suit your application
Spectra Precision Laser LL300N-6 Specifications
| Laser Source | 639 nm, Class 2 |
| Laser Accuracy | ±3/32" at 100' (±2.2 mm at 30 m) |
| Operating Range | 1650' (500 m) diameter |
| Self-leveling Range | ±5 degrees |
| Compensation Method | Electronic Self-Leveling |
| Drop Height on Concrete Performance | 3' (1 m) |
| Single Axis Manual Slope Mode | Yes (w/self-leveling mode on the second axis), with Optional RC601 Remote Control |
| Out-of-Level Warning | Rotor Stops, Red Out-of-Level HI-LED Flashes |
| Power Source | 4 x D-Cell NiMH or Alkaline Batteries |
| Battery Life | Rechargeable - 45 hours,Alkaline - 90 hours |
| Battery Status LED | Flashing red LED |
| Rotation Speed | 600 RPM |
| Tripod Mount (Horizontal and Vertical) | 5/8” x 11 |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Water Resistant | Yes, IP66 |
| HL450 Receiver Digital Readout Units | mm, ft, in, frac |
| Reception Height | 4" (102 mm) |
| Three On-grade Sensitivities | - Fine ~1/16" (1 mm), - Medium ~1/4" (5 mm), - Calibration Mode ~1/64" (0.1 mm) |
| Battery Life (2 x AA) | 70+ hrs |
| Automatic Shutoff | 30 minutes |
| Operating Temp. | -4°F to 122°F (-20°C to 50°C) |
| Dust & Waterproof | Yes IP67 |
| Tripod | Yes |
| Rod | 4.7' - Metric |
| RC601 Remote Control | Yes |
