Spectra LT52R-2 Point and Line Laser Rechargeable Batteries and HR1220 Receiver
Description
Description
Spectra Precision Laser LT52R-2 Description
The Spectra Precision® LT52R Laser Tool is an automatic self-leveling multi-purpose tool that can be used in a wide variety of construction applications. It eliminates the need for a contractor to purchase two tools - a 5 beam pointer and a crossline laser - by combining both into one versatile product. For interior building and remodeling, the laser is used for horizontal and vertical alignment, wall layout, acoustic ceiling installation, point transfer up and down, wall and floor tiles, finish carpentry and 90 degree squaring. The lines and points are the brightest in the industry. Robustness is assured with a 3 foot drop

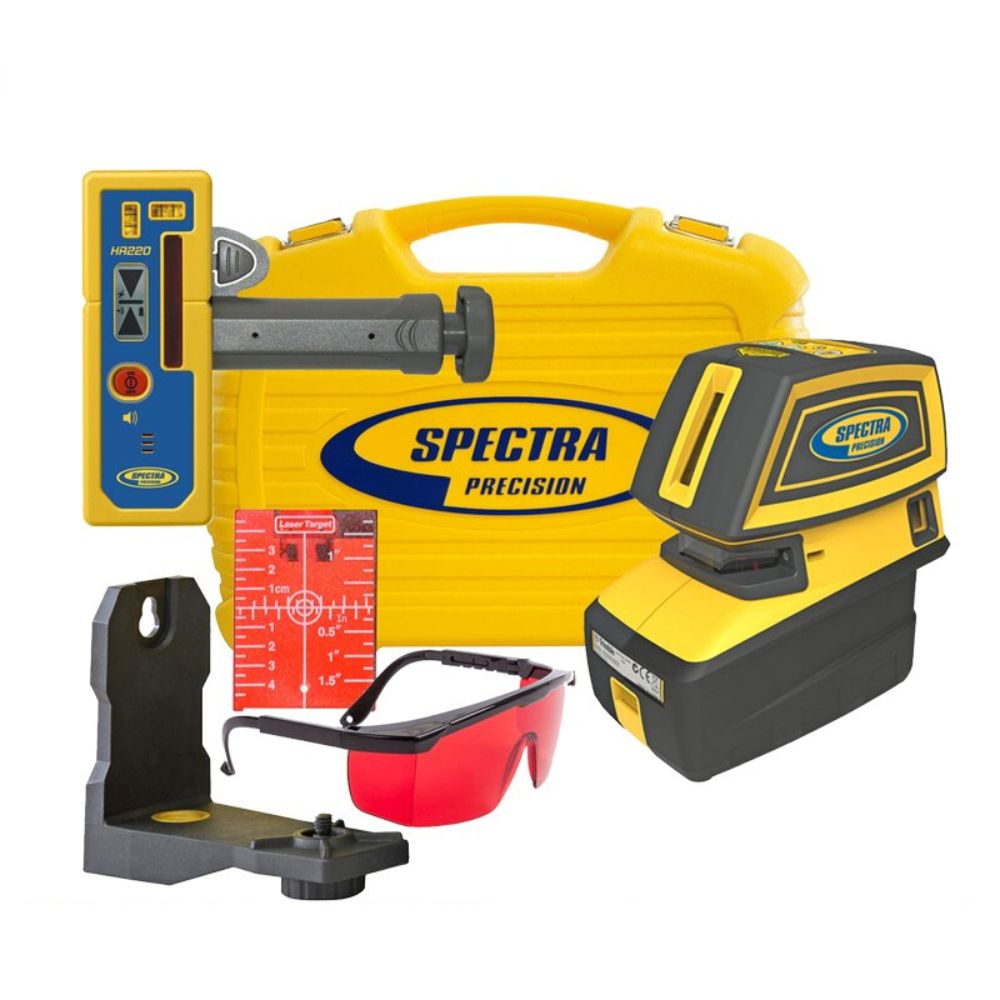

Spectra Precision Laser LT52R-2 Includes
- (1) LT52R 5 Point & 2 Cross Lines Laser
- (1) Magnetic Mount M152
- (1) Laser Receiver and Bracket HR122
- (1) Red Target
- (1) Red Laser Glasses
- (1) Rechargeable Lithium Battery Pack
- (1) Battery Charger 1215-1610
- (1) Protective Case 1215-1740
Spectra Precision Laser LT52R-2 Features
- Eliminates the need for contractors to purchase two tools by combining a 5-beam pointer and a crossline laser into one product
- Automatic self-leveling assures accuracy and fast setup
- Versatile tool does multiple jobs - set it up once and work plumb, level and square in the whole area
- The industry’s brightest crosslines and points for easy viewing in all conditions – points are visible up to 200 feet

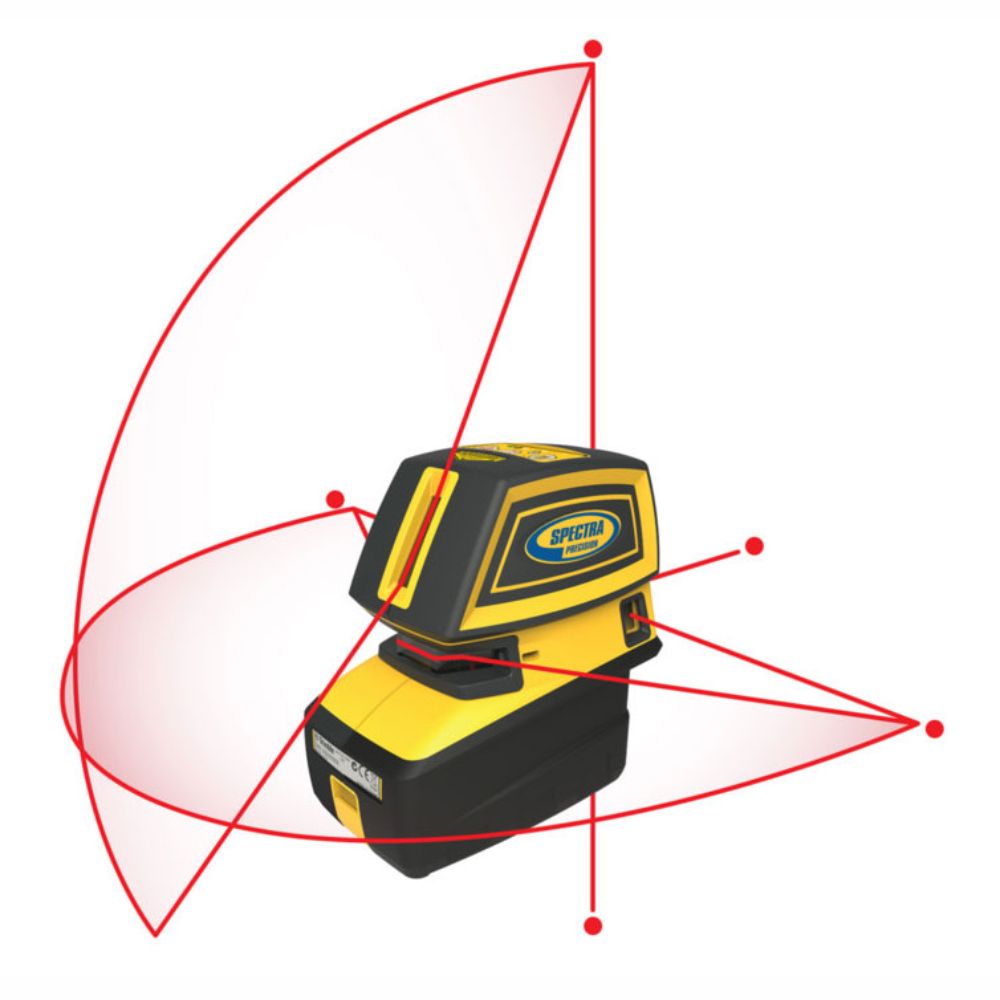

- Wide 210° horizontal line intersects side points; Vertical up beam intersects up point
- Down point clears floor track, no accessory required
- Rechargeable Lithium-Ion battery life – 12 to 16 hours
- In addition the LT52R can be powered on AC for Back-Up
- 3 year instant exchange warranty minimizes downtime
- Water, mud, and shock resistant, able to withstand a 3-foot drop onto concrete... IP54 rated
- Optional HR220 receiver can be added for exterior applications for maximum jobsite versatility
Spectra Precision Laser LT52R-2 Specifications
| Accuracy | 1/8" @ 50 foot |
| Visual Distance - Points | 200' |
| Visual Distance - Lines | 100' |
| Distance with Optional Laser Receiver | 250' |
| Laser Power | Less than 1 mw |
| Laser Class / Wavelength | Class 2 / 520 nm |
| Beam Color | Red |
| Number of Point & Intersections | 6 |
| Number of Planes & Lines | 2 |
| Mounting (2 sizes) | 5/8-11 and 1/4-20 |
| Battery Type | Rechargeable Lithium-Ion Batteries 3.7V, 4800mAh |
| Battery Life | 35 to 40 hours - Points, 12 to 16 hours - Lines |
| Out of Level Indication | Flashing Beam, Triple Flash Every 10 sec |
| Self-Leveling Range | ±3 degrees |
| Dust and Water Resistance | IP54 |
| Operating Temperature | 14° to 113° Fahrenheit |
| Storage Temperature | -4° to 140° Fahrenheit |
| HR1220 Receiver Working Radius (Laser Dependent) | 85 m (275') |
| Laser Detection Height | 127.0 mm (5") |
| Elevation Readout | Front and Eear LCDs |
| Audio Control | Loud / Low / Off |
| Capture Height | 80 mm (3.1") |
| Accuracy | ±1.0 mm (1/16"), ±2.0 mm (1/8") |
| Marking Notches | 60 mm (2.36") Below Top of Receiver |
| Battery Life | 40+ hours |
| Low Battery Indicator | Battery Symbol on LCD |
| Power Supply | 2 AA Alkaline Batteries |
| Operating Temperature | –10 °C to 50 °C (–14 °F to 122 °F) |
| Storage Temperature | –20 °C to 70 °C (–4 °F to 158 °F) |
| Automatic Shut-Off | 30 minutes |
