Spectra LT58G Universal Laser Layout Tool with Green Beams
Description
Description

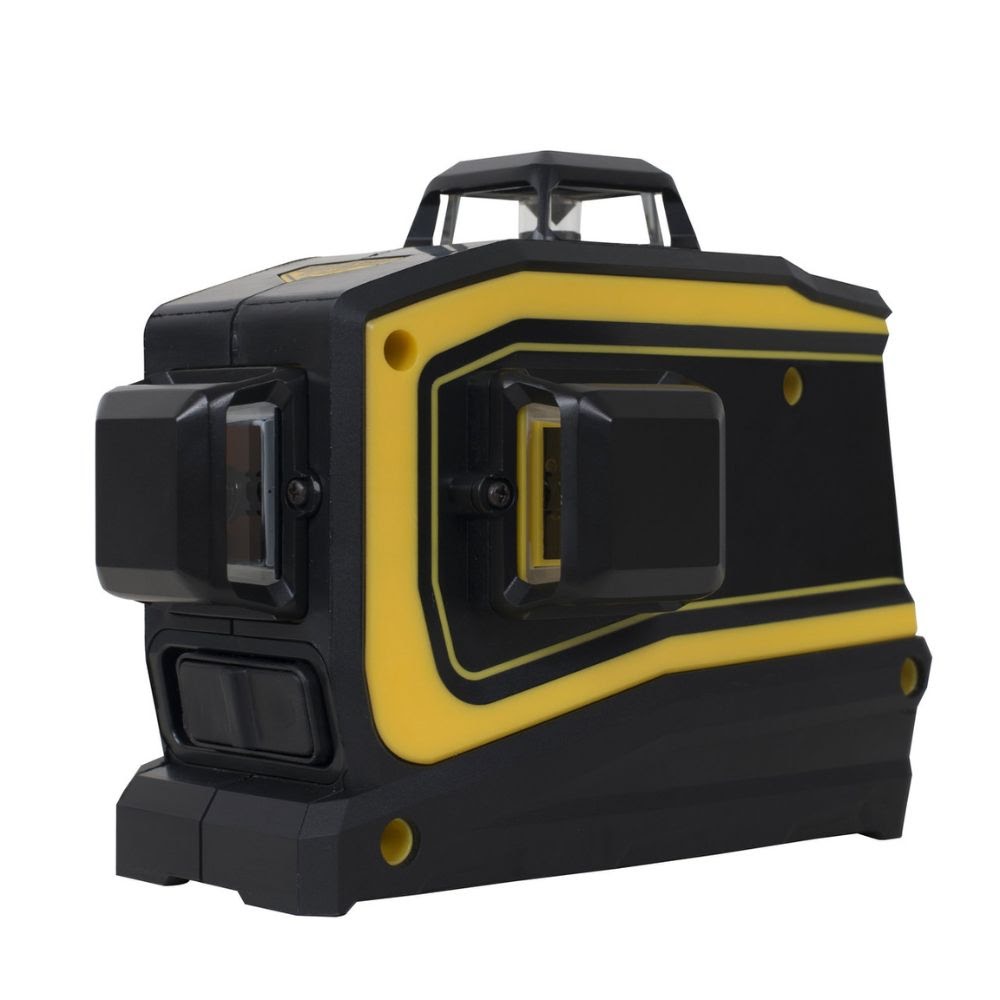

Spectra Precision Laser LT58G Description

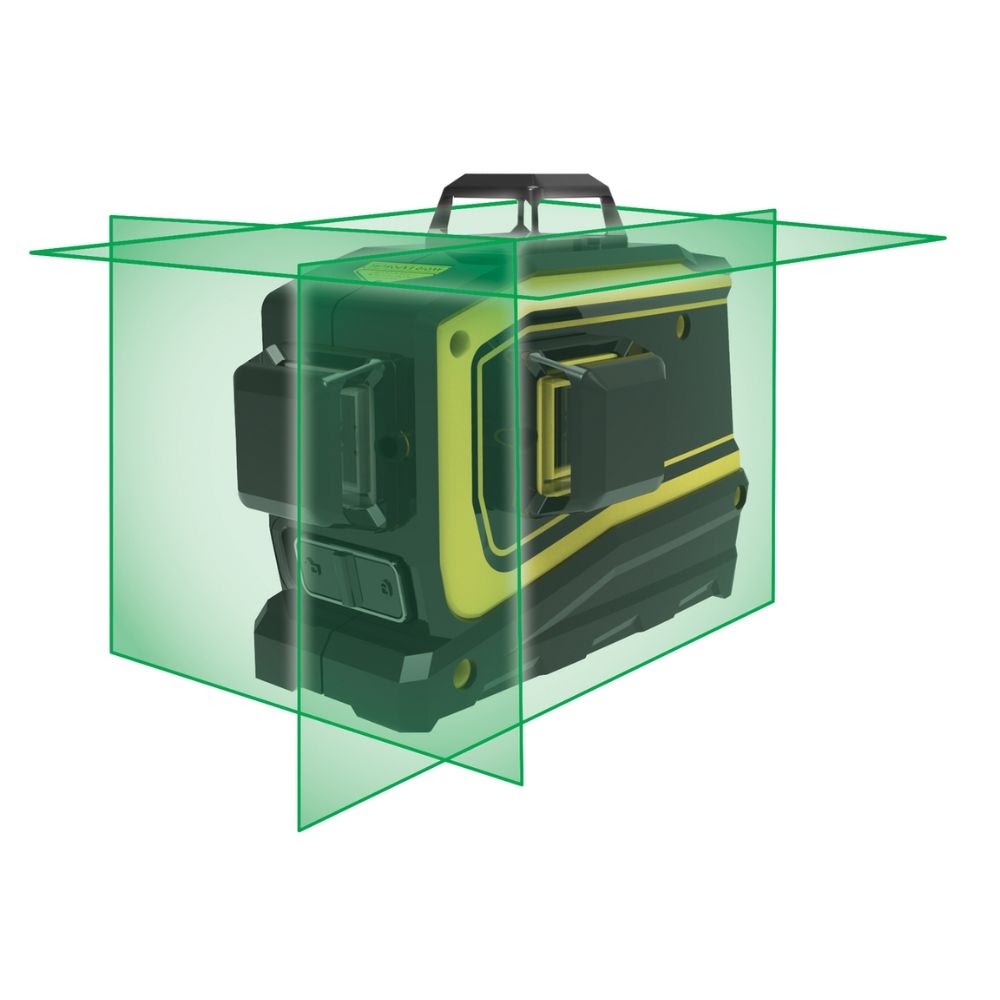

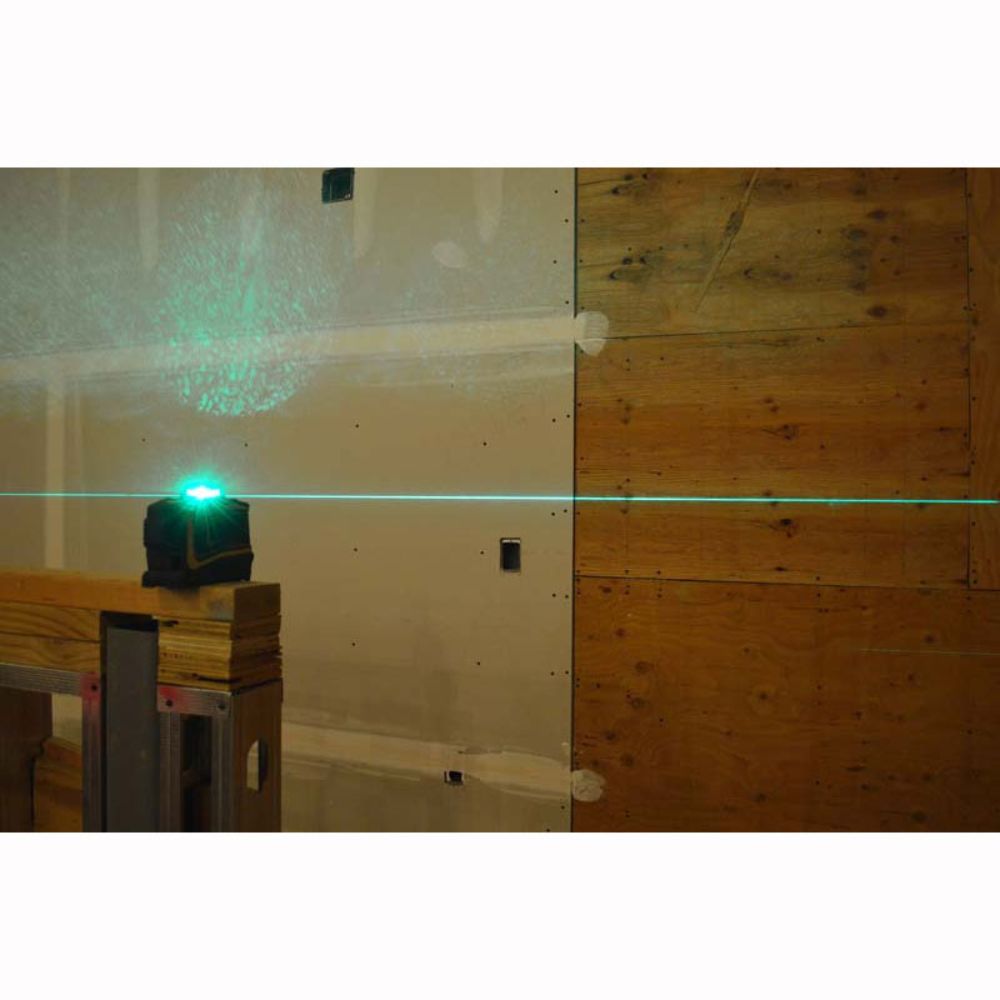

The LT58G Laser Tool provides a bright green 360° laser line for ceiling work. The LT58 is so bright it is even visible at 100 feet in rooms with floor-to-ceiling windows. The green beam is intersected by two vertical Green laser planes spaced 90 degrees apart. These laser planes provide reference for interior layout tasks including wall layout and installation, point transfer, cabinet and chair rail installation, tile layout and horizontal and vertical alignment. To increase their visibility, they have 50% more power than the already bright LT56 vertical red beams. They can be used for 90? layout, plumb work and floor-to-ceiling point transfer. They are also handy to set ceiling tile grid plans that are 45° offset from the walls. The unit is compact, lightweight and easy to use with its ceiling mount. The optimized mount attaches to all types of ceiling track, including shadow track. The mount solves the shadow track problem of alignment to the top of the track rather than to the bottom edge. The Spectra LT58G contains a powerful 7200 mAh rechargeable Lithium-ion battery that provides 19 continuous hours of green beam operation. It also can be operated directly with AC power. This eliminates the cost and waste of replacing alkaline batteries every day. The laser package includes a universal mounting accessory that allows mounting to various sized ceiling track including shadow tracks that require alignment to the top of the track. Mounting to various sized tripods, columns and studs is also possible. The mount has fine vertical height and horizontal rotation adjustments for quick and easy setups. The unit is compact, lightweight and easy to mount. Installations on high ceiling grids will be a quick, easy task compared to conventional heavy rotating lasers and cumbersome mounts. A tough housing is designed to withstand the rigors of the professional construction environment. This rugged tool is specified to withstand a 3 foot drop test.

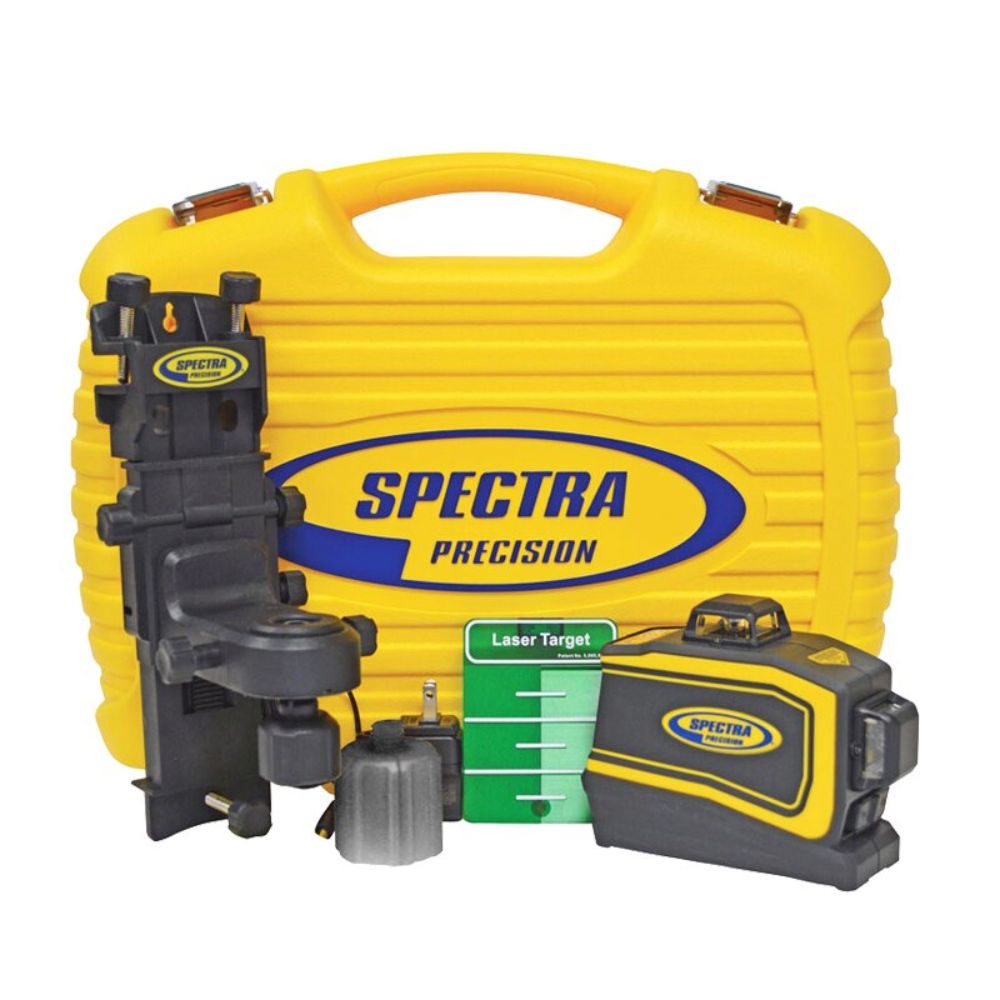

Spectra Precision Laser LT58G Includes
- (1) LT58G 3x360 Degree Laser Planes

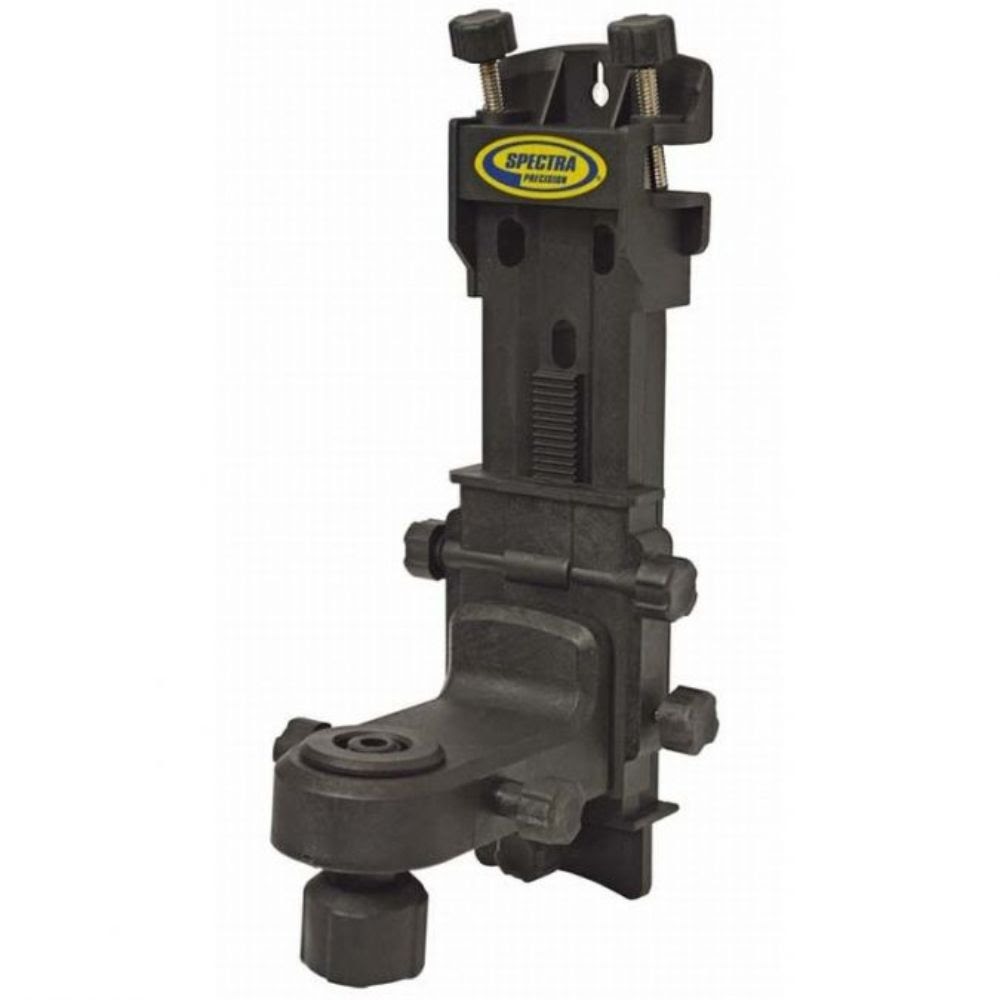

- (1) Universal Accessory 1215-1650
- (1) Spacer Accessory 1215-1550

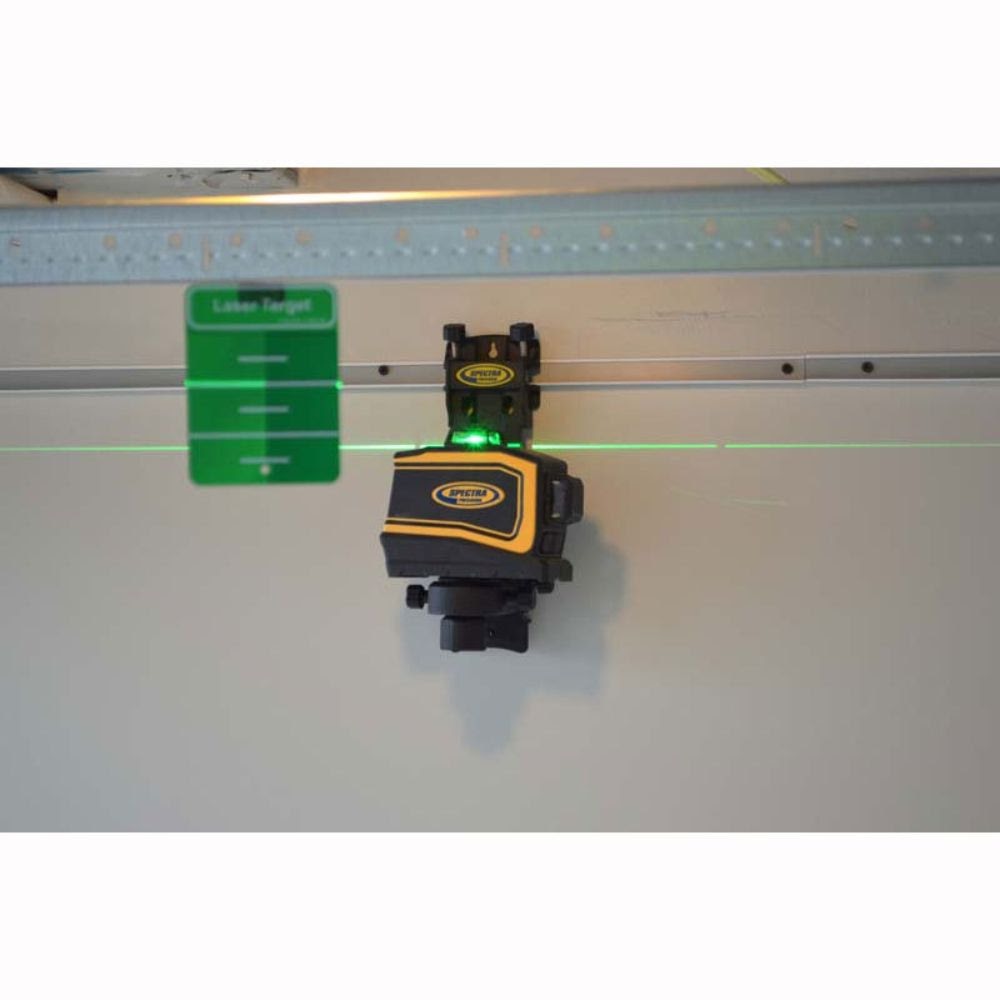

- (1) Green Floor/Ceiling Target 1215-1560
- (1) Charger 2Amp 1215-1610
- (1) Hard Carrying Case
- (1) Multi-Language Operators Guide
Spectra Precision Laser LT58G Features
- Ultra-bright green laser technology – the industryÕs brightest lines for easy viewing in all conditions
- 360° Green beams extend the working range for fewer setups
- Accuracy of 1/8" @ 50' (2.5 mm @ 15 m)
- Lithium-Ion batteries provide up to 25 hours operating time – huge savings on battery cost compared to alkaline models and are ecologically friendly
- Rugged and durable – 3' (1m) drop specification means the LT58G can keep working even after minor accidents
- Automatic self-leveling assures accuracy and fast setup

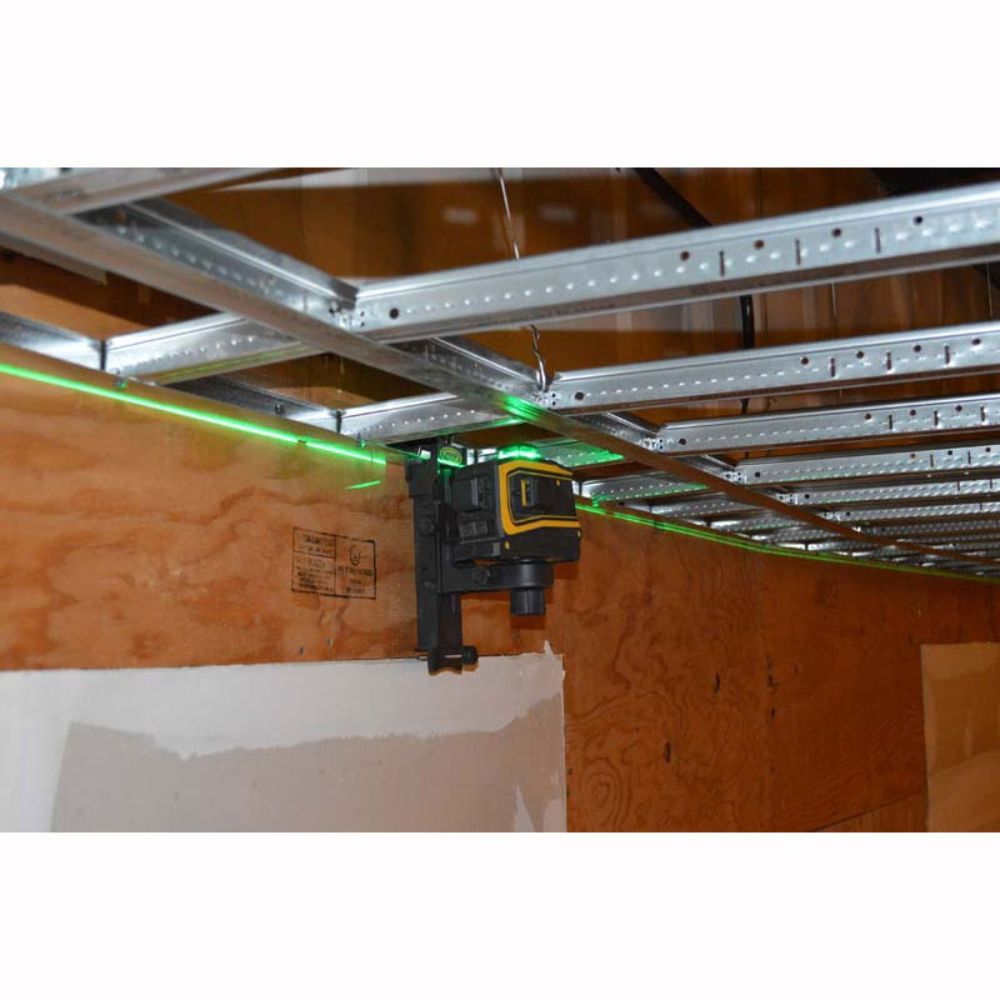

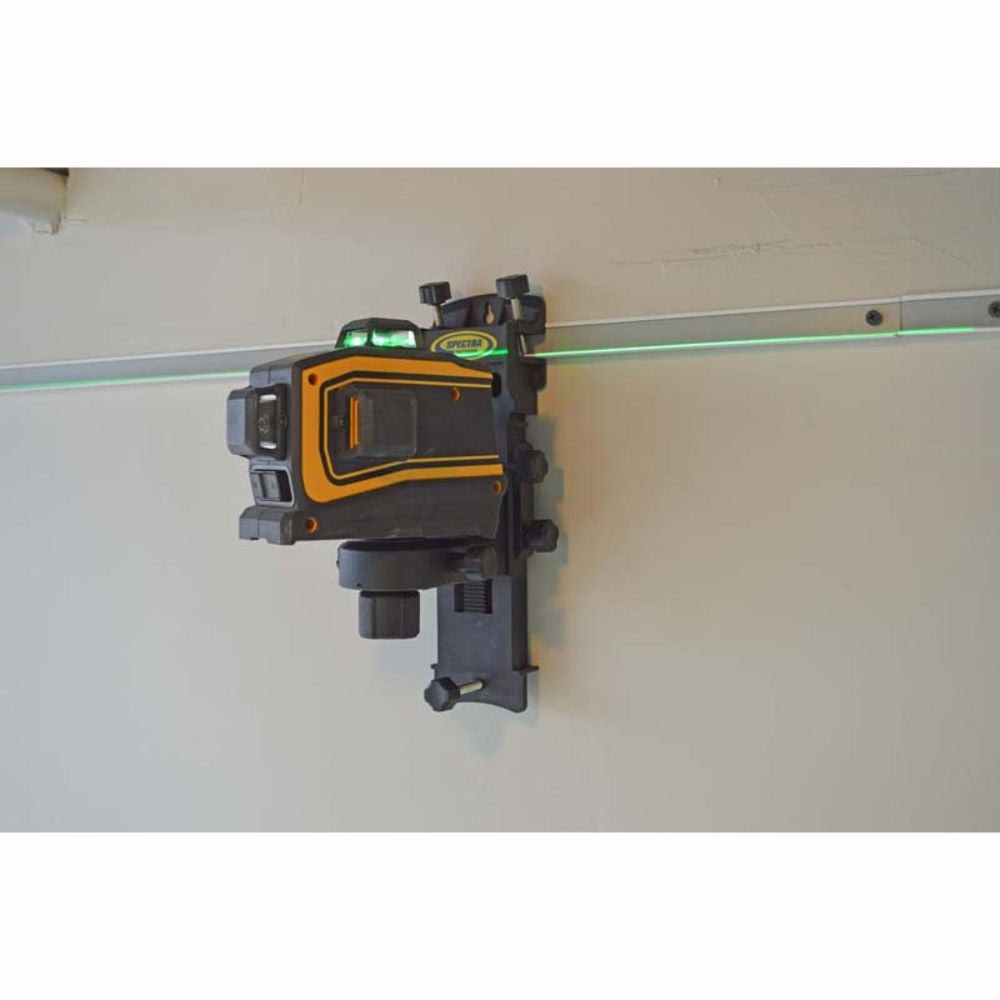

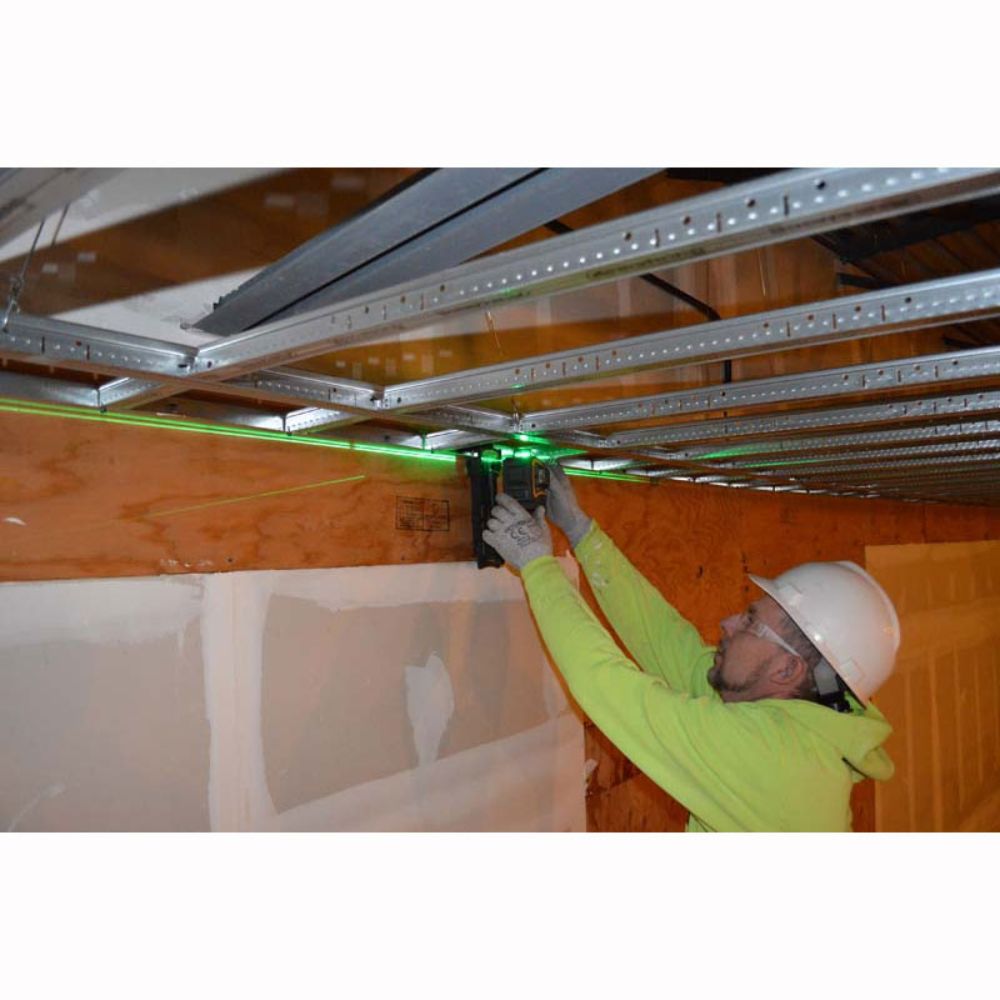

- Optimized for ceiling work – mounting accessory attaches to all types of ceiling track
- Compensator lock and hard-shelled carrying case for protective transport and storage
- Full 3–year warranty with instant exchange
Spectra Precision Laser LT58G Specifications
| Laser Power | Less than 1mw |
| Class / Wavelength | Class 2 / 522nm - 635nm |
| Accuracy | ±3 mm @ 15 m (1/8" @ 50') |
| Working Range | 100' (30 m) |
| Beam Color | Green |
| Number of Points/ Intersection | 6 |
| Number of Planes (Lines) | 3 |
| Battery Type | Lithium-Ion, 7200 mAh |
| Battery Life | 1 Beam, Green - 19 hours, 3 Beam - 11 hours |
| Charge Time | 8 hours |
| Charger | Input |
| Out of Level Indication | Flashing Beam - Triple Flash Every 10 seconds |
| Self Leveling Range | 4? ±1? All Directions |
| Dust and Water Resistance | IP54 |
| Operating Temperature | 14° to 113° F (-10° to 45° C) |
| Storage Temperature | -4° to 158° F (-20° to 70° C) |
