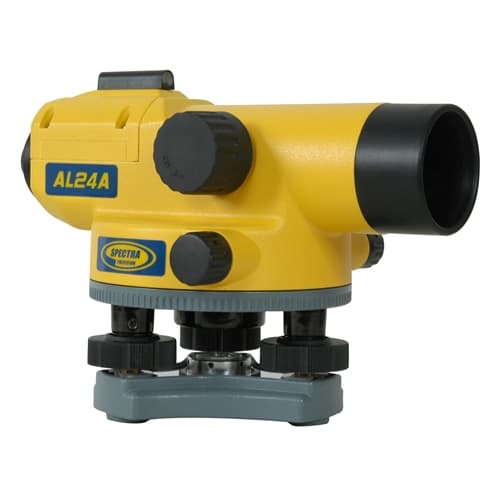

Spectra Precision Laser AL24A Description
The Spectra Precision 24X Air Dampened Auto Level AL24A is designed for a variety of elevation control and alignment tasks including general building construction, cut and fill measurements, area leveling, and landscaping, and features reliable automatic compensators to ensure stability and accuracy in the line of sight. In addition, the telescope optics are bright and clear providing sharp images for ease of viewing, a short focusing distance provides for better performance in tight spots or on steep slopes, stadia lines on the reticle make distance calculations easy and the horizontal scale directly below the eyepiece makes angle measurement quick and convenient.
Spectra Precision Laser AL24A Includes
- (1) AL24A Automatic Level
Spectra Precision Laser AL24A Features
- Choice of magnetic or air dampened automatic compensators
- Double-sided, continuous horizontal tangent drives
- Stadia lines for simple distance measurement
- Convenient horizontal angle measurement
- Built in bubble mirror and sighting guide
- Metal housing for increased durability
- Water resistant construction
- Includes hardshell case
Spectra Precision Laser AL24A Specifications
| Magnification | 24x |
| Accuracy | ±2.0 mm (0.08")* |
| Aperture | 30 mm (1.2") |
| Shortest Focus | 0.6 m (1.97') |
| Compensator | Air Dampened |
| Base Plate Thread | 5/8" x 11 |
| Field of View Angle | 1° 20' |
| Stadia Constant | 100 |
| Compensator Range | ±15' |
| Compensator Setting Accuracy | |
| Double Run Leveling per 1 km | 2 mm |
| Circular Vial Accuracy | 8/2 mm |
| Horizontal Circle | 1° |
| Color | Yellow |
