Spectra DG613-6 Dialgrade Pipe Laser with Large Pipe Centering Plate (Metric), Vertical Pole, Remote Control, Target and Rechargeable Batteries
Description
Description

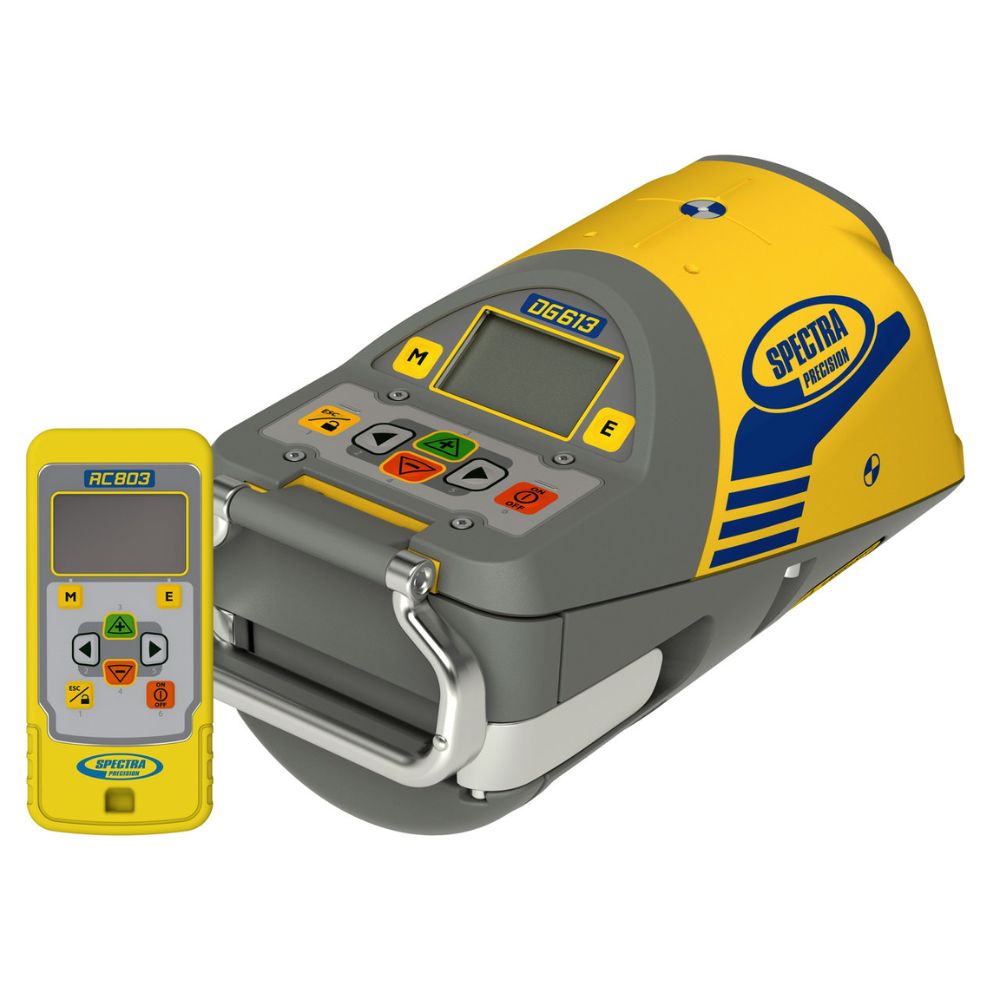

Spectra Precision Laser DG613-6 Description

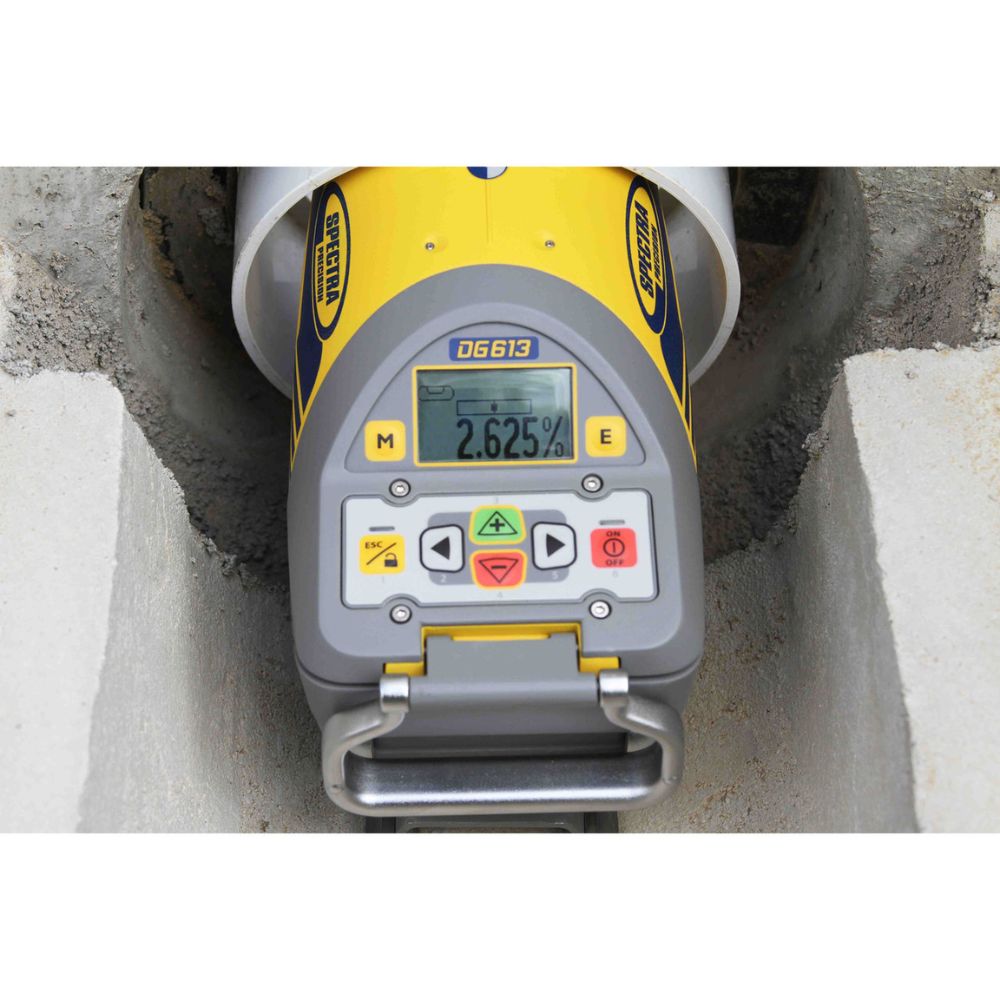

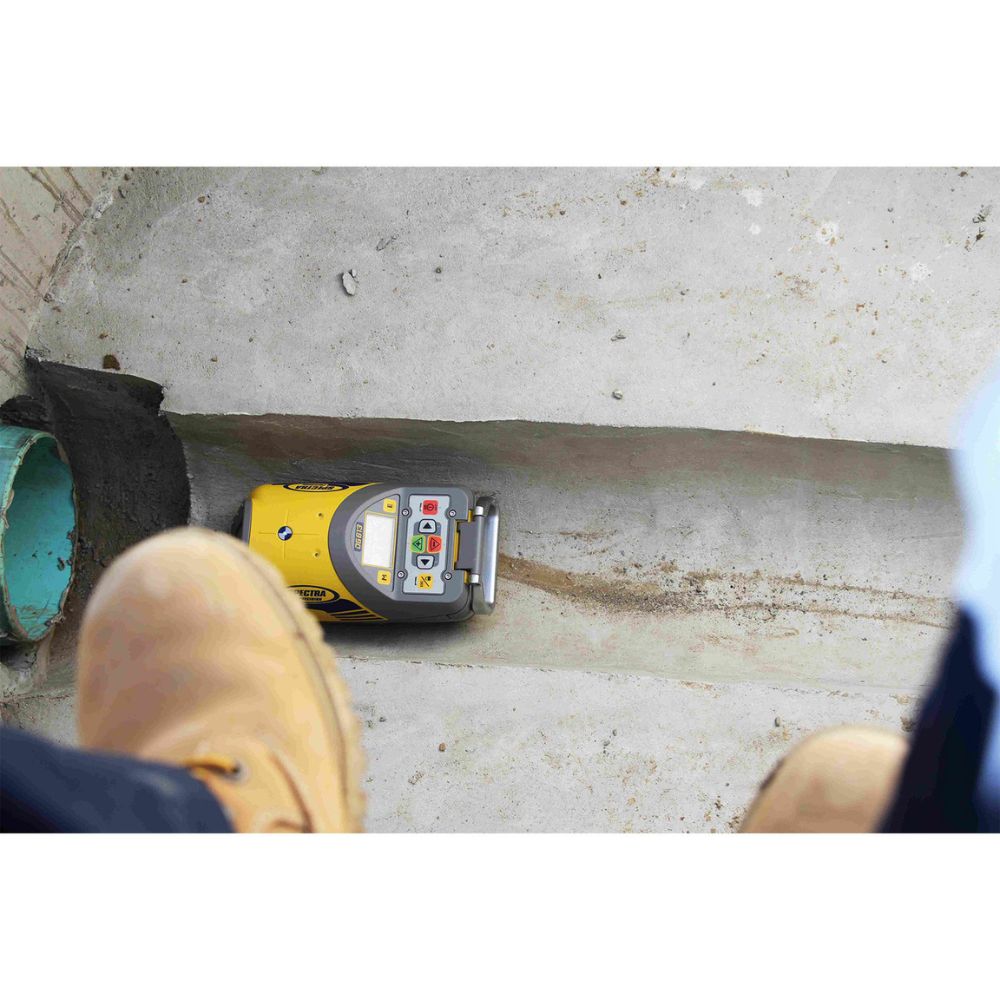

Designed to fit around tighter inverts, the Spectra Precision DG613 delivers the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. Spectra's DG613 helps you improve efficiency and provide unprecedented performance and reliability. The Spectra Precision DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes. Working in trenches just got easier with the new range of pipe lasers from Spectra Precision.

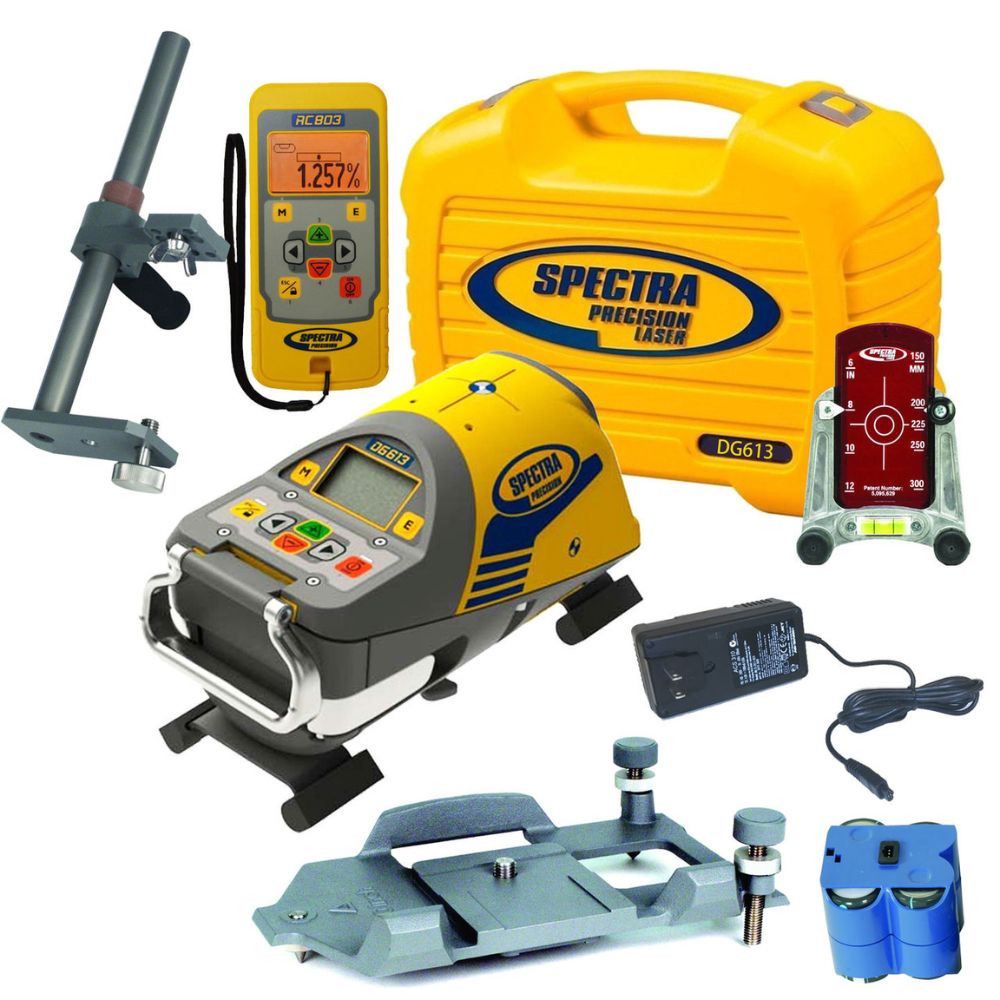

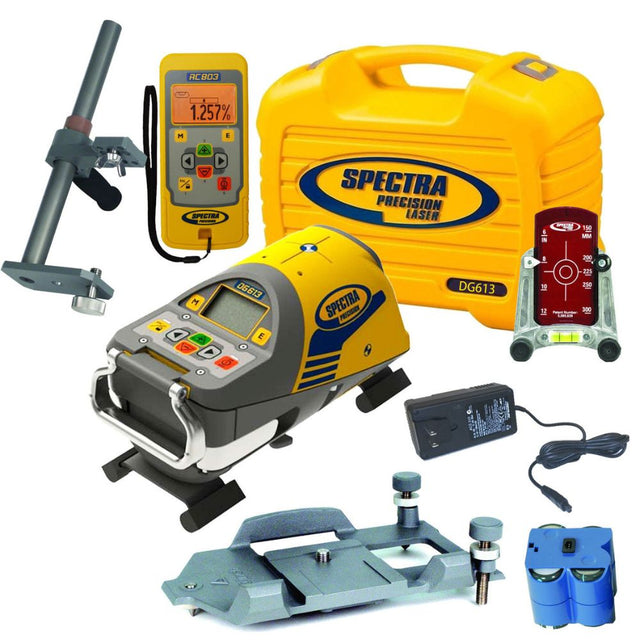

Spectra Precision Laser DG613-6 Includes
- (1) DG613 Pipe Laser
Spectra Precision Laser DG613-6 Features
- New reduced length allows easy set-up even in tight inverts
- Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe
- Graphical user interface from laser can also be seen on the remote - what you see on the laser, you see on the remote
- Self levelling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe - place it in the pipe, it levels, you work
- Bright visible beam that works up to 150m (500ft)
- IP68 protection (dust and waterproof)
- RC803 remote works via radio 130m (430ft) or infra-red 150m (500ft) for both "over-the-top" set-up and in pipe/trench set-up
- Has advanced functions that make setting up and using it easier and more accurate
- Line-Set/Check - allows the user to align the laser to the manhole quickly and easily to set direction.
Spectra Precision Laser DG613-6 Specifications
| Accuracy | ± 1.5 mm/30 m, (1/16" @ 100') 10 arc seconds |
| Laser Type | Class 3A/3R, |
| Grade Range | -12% to +40% |
| Operating Range | Up to 150 m (500') |
| Line Range | 20° ±1° |
| Leveling Indicators | LCD Indications; Beam and LED Flash |
| Power Source | 10000mAh NiMH Battery Pack |
| Power Life | 40 hours NIMH; 50 hours Alkaline |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust & Waterproof | Yes. IP 68 |
| Tripod Mount | 5/8 x 11 horizontal |
| Grade/Slope Display | Percent, Per Mille, Degree |
| Laser Color | Red Diode Laser |
| Laser Type/Wavelength | 600 - 680 nm |
| Length | 9.8" |
| Diameter | 5.3" |
| Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425') |
| IR Operating Range (front, through the pipe) | up to 150 m (500') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Water Proof | IP66 |
