Spectra Precision Laser | SKU:
DG613

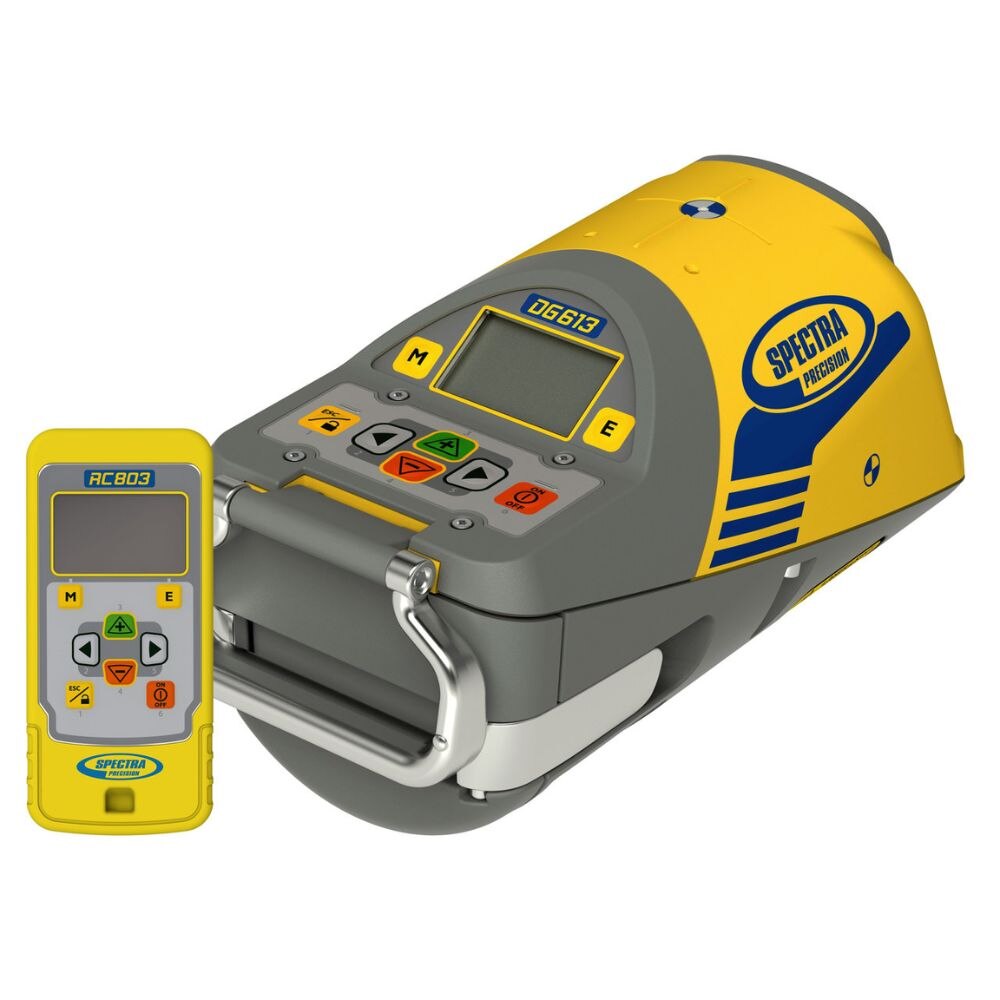

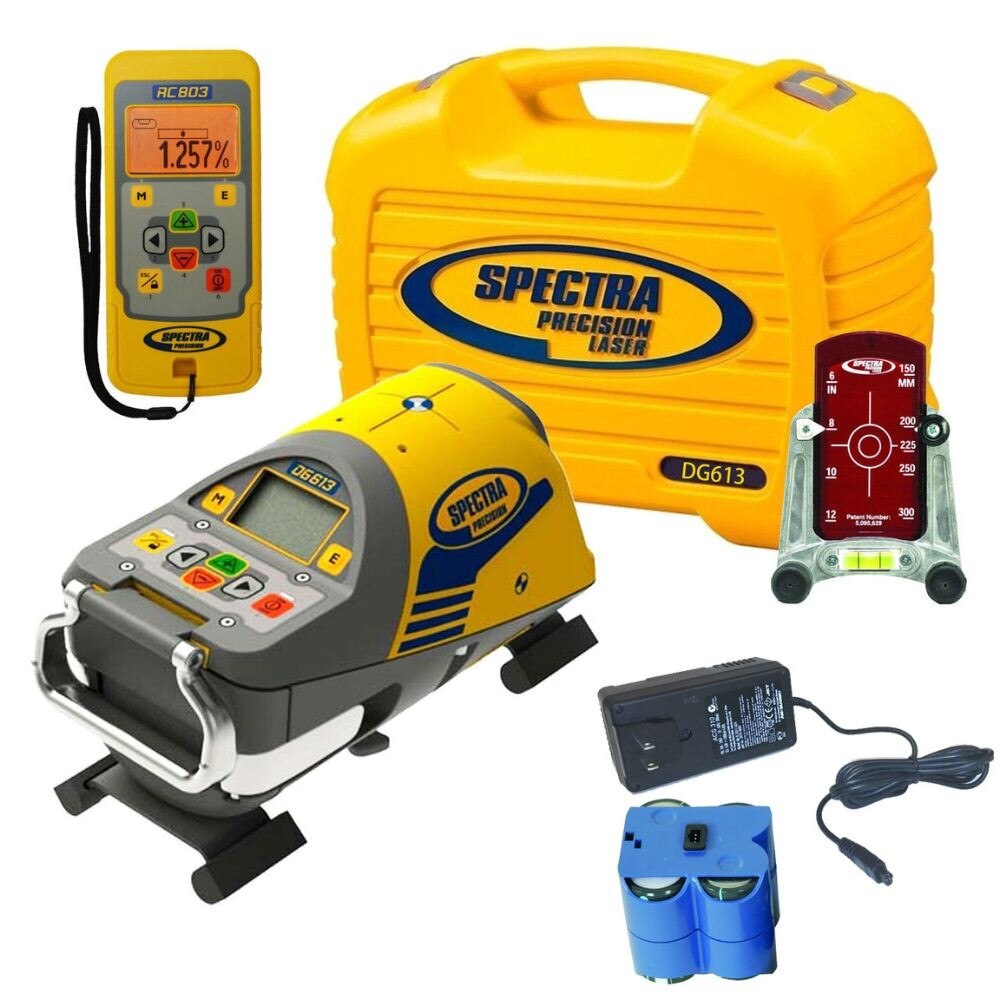

Spectra DG613 Dialgrade Pipe Laser, 8" Trivet Plate, Remote Control, Target, Rechargeable Batteries
Free Shipping
$4,080.00
$5,100.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description

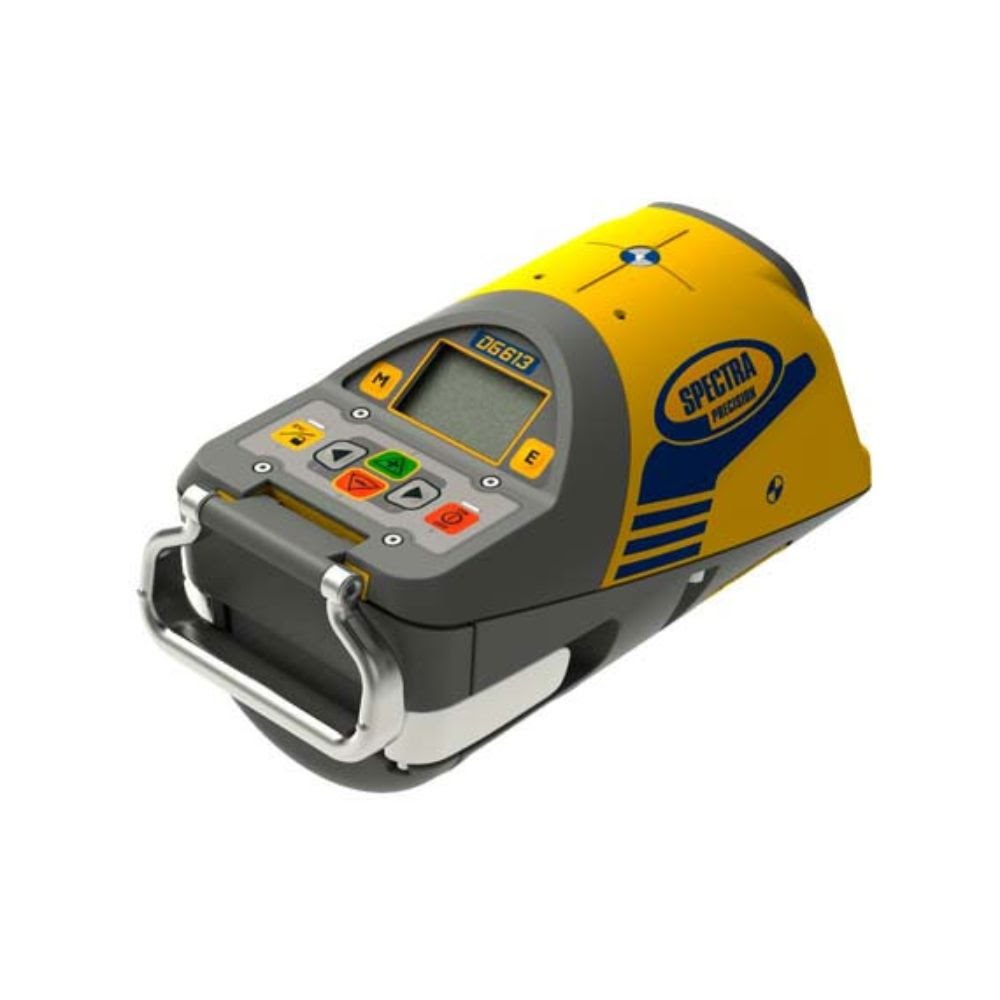

Spectra Precision Laser DG613 Description
Compact and Powerful, the DG613 red beam laser combines great performance with productivity. Advanced functions are user-friendly and allow for easy, fast set-up. Simple to use, with the new menu driven user interface.
Spectra Precision Laser DG613 Includes
- (1) DG613 Pipe Laser
Spectra Precision Laser DG613 Features
- Grade range -12% to +40%
- Ultra-fast beam movement
- Operating range up to 150 m (500 ft)

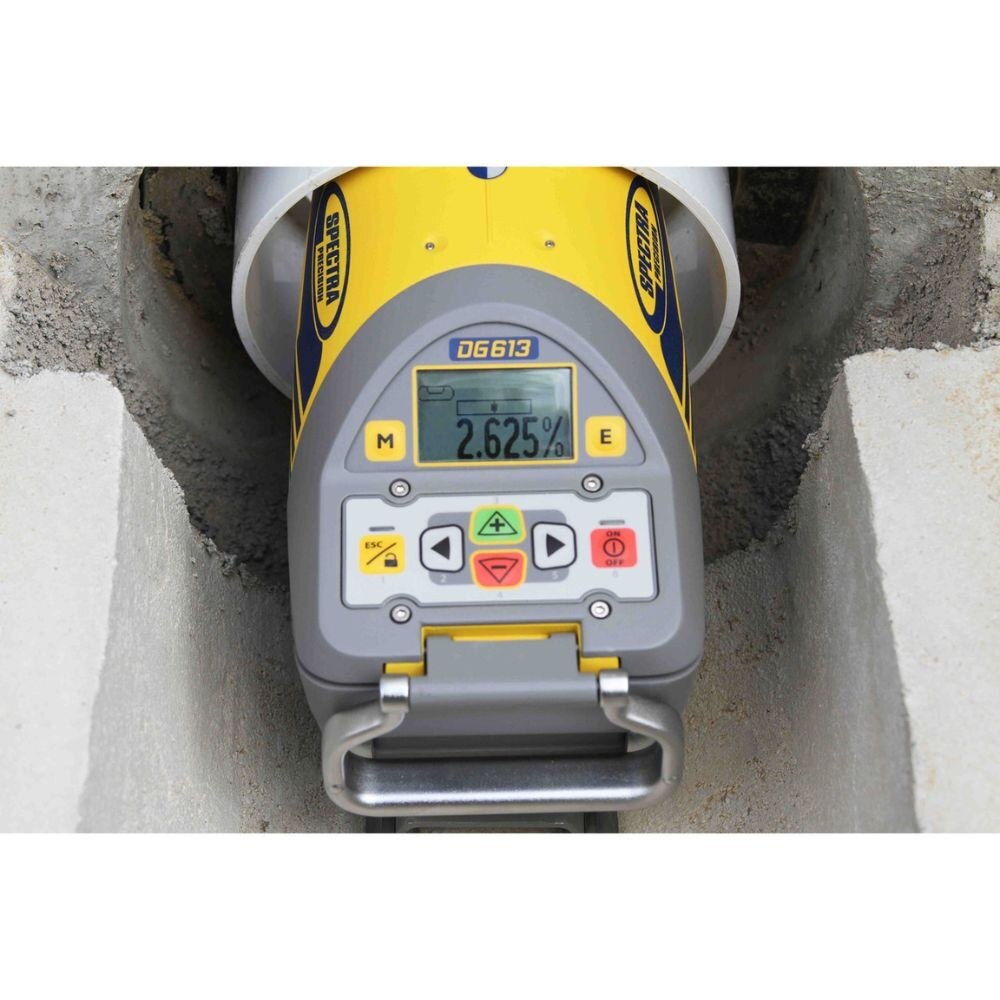

- Large intuitive graphical display on the laser and remote control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline)
- Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert
- Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)

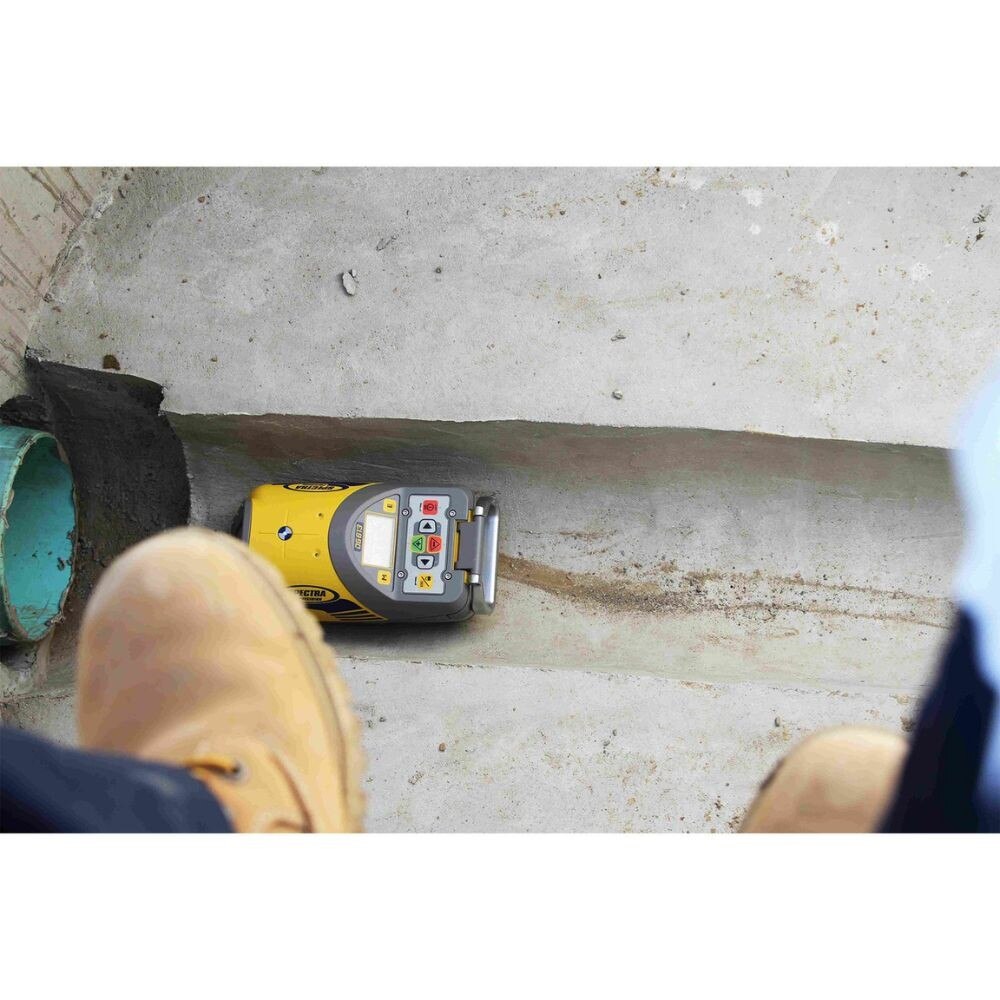

- Compact length allows easy set-up even in tight inverts
- Self-leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
- Bright visible beam works up to 150 m (500 ft)
- RC803 remote works via radio 130 m (430ft) "over-the-top“ set-up or infrared 150 m (500 ft) in the pipe set-up?
Spectra Precision Laser DG613 Specifications
| Accuracy | ± 1.5 mm/30 m, (1/16" @ 100') 10 arc seconds |
| Laser Type | Class 3A/3R, |
| Grade Range | -12% to +40% |
| Operating Range | Up to 150 m (500') |
| Line Range | 20° ±1° |
| Leveling Indicators | LCD Indications; Beam and LED Flash |
| Power Source | 10000mAh NiMH Battery Pack |
| Power Life | 40 hours NIMH; 50 hours Alkaline |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust & Waterproof | Yes. IP 68 |
| Tripod Mount | 5/8 x 11 horizontal |
| Grade/Slope Display | Percent, Per Mille, Degree |
| Laser Color | Red Diode Laser |
| Laser Type/Wavelength | 600 - 680 nm |
| Length | 9.8" |
| Diameter | 5.3" |

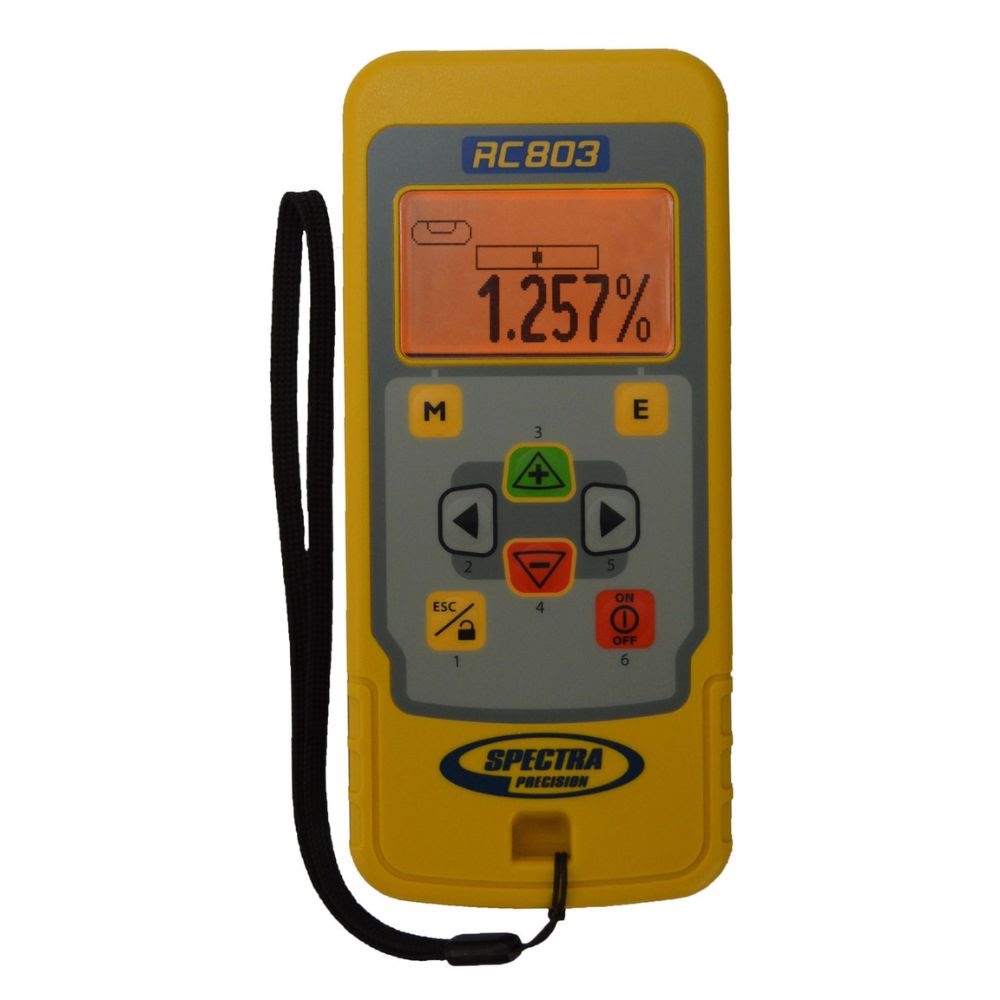

| Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425') |
| IR Operating Range (front, through the pipe) | up to 150 m (500') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Water Proof | IP66 |
