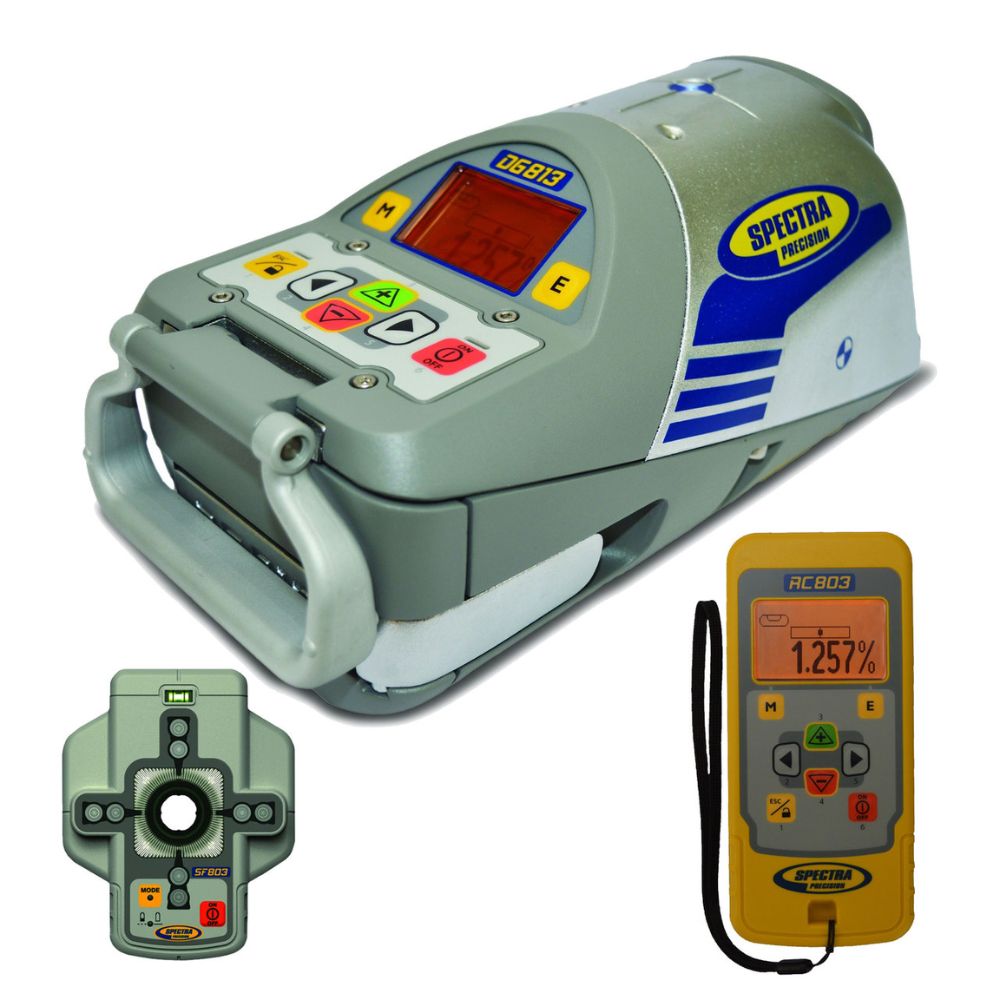

Spectra DG813-3 Pipe Laser with Dialgrade Graphic-Display, Large Pipe Plate, Remote, Spot Finder
Description
Description
Spectra Precision Laser DG813-3 Description
Designed to fit around tighter inverts, the Spectra Precision DG813 delivers the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefitting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. The top of the range model, DG813, comes with a smart Spot Finder, which the laser can align to automatically and can also calculate the grade – great for checking previous work on a second day set-up.
Spectra Precision Laser DG813-3 Includes
- (1) DG813 Pipe Laser
Spectra Precision Laser DG813-3 Features
- New reduced length to make it easier to fit in pipes around tighter inverts
- Self levelling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe " place it in the pipe it levels, you work.
- Bright visible beam that works up to 500ft (150m)
- RC803 remote works via radio 430ft (130m) or infra-red 500ft (150m) for both over-the-top set-up and in pipe/trench set-up.
- Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote " what you see on the laser you see on the remote.
- The DG813 has flexible power options that provide 40 hours operating time (NiMH rechargeable batteries with Worldwide charger) and 50 hours (alkaline batteries). Alkaline batteries can be used directly in the laser without a separate battery pack. Additional car charger can be purchased to keep you working even when out in remote areas.
- The Spectra Precision DG813 has advanced functionality that makes setting up and using it easier and more accurate:
- Line-Set/Check - allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
- Line Scan - provides a quick alignment to the centre of the target
- Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
- The SF803 SpotFinder, when used with DG813, provides other automatic functions making it the smartest pipe laser in the industry:
- Spot Align - automatically aligns the DG813 to the centre of the SpotFinder in the pipe or to the direction of the manhole when used in a trench or over-the-top set up.
- Spot Match - a great tool for checking that pipe has been installed to the correct grade
- or for finding the grade of existing pipe work. Can also be used to calculate the grade between manholes.
- SpotLok - can be used to lock the beam in a desired position for applications such as solar farms where the beam could be subject to drift.
- Spot Search - can be used to locate the beam over long distances out of the trench
Spectra Precision Laser DG813-3 Specifications
Accuracy, Self-Leveling (level) | ± 1.5 mm/30 m, (1/16" @ 100') 10 arc seconds |
Operating Range | Up to 150 m (500') |
Laser Type | Red Diode Laser |
Laser Wavelength | 600 - 680 nm |
Laser Class | Class 3A/3R, |
Self-Leveling Range Longitudinal | Over the Entire Grade Range with Automatic Cross Axis Compensation |
Grade Range | -12% to +40% |
Spot Align Search Range (DG813) | Up to +45° (with SF803 tilted to the laser) |
Line Range | 20° ±1° |
Leveling Indicators | LCD Indications; Beam and LED Flash |
Power Source | 10000mAh NiMH Battery Pack |
Battery Life | 40 hours NIMH |
Temperature Compensation | Yes |
Length | 9.8" |
Diameter | 5.3" |
Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Tripod Attachments | 5/8 x 11 Horizontally |
Dust and Water Proof | IP68 |
Low Voltage Indication | LCD Battery Indicator |
Low Voltage Disconnection | Unit Shuts Off |

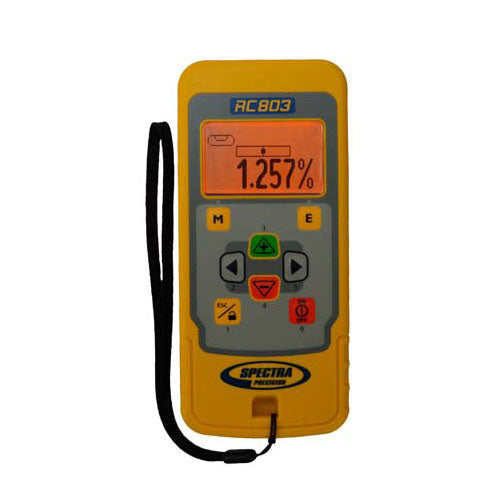

Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425') |
IR Operating Range (front) | Up to 150 m (500') |
Power Source | 2 x 1.5V AA Alkaline Batteries |
Battery Life | 130 hours |
Dust and Water Proof | IP66 |
Spot Finder SF803 Operating Range | Up to 150 m (500') |
Power Source | 4 x 1.5V AA Alkaline Batteries |
Battery Life | 30 hours |
Dust and Water Proof | IP67 |
Transporter ST805 Radio Operating Range | Up to 120 m (400') |
Power Source | 2 x 1.5V AA Alkaline Batteries |
Battery Life | 24 hours (continuous use) |
Dust and Water Proof | IP66 |
