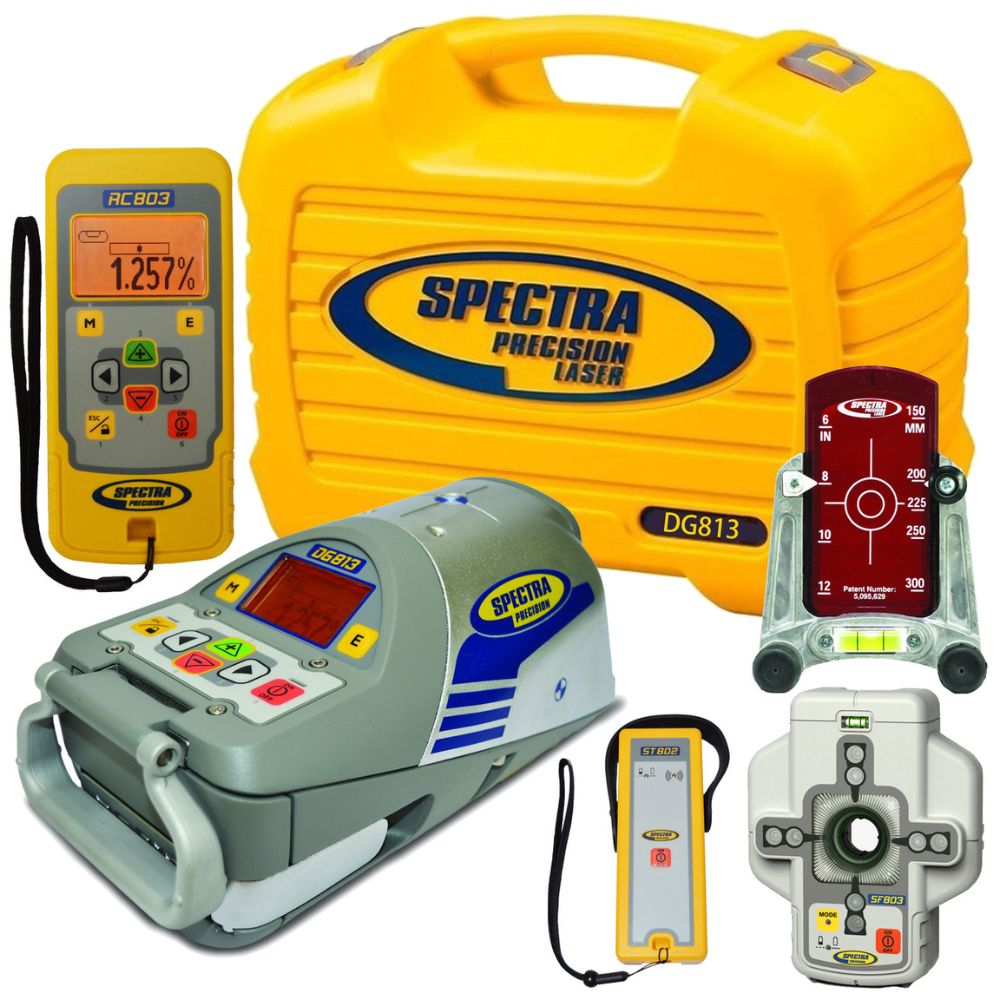

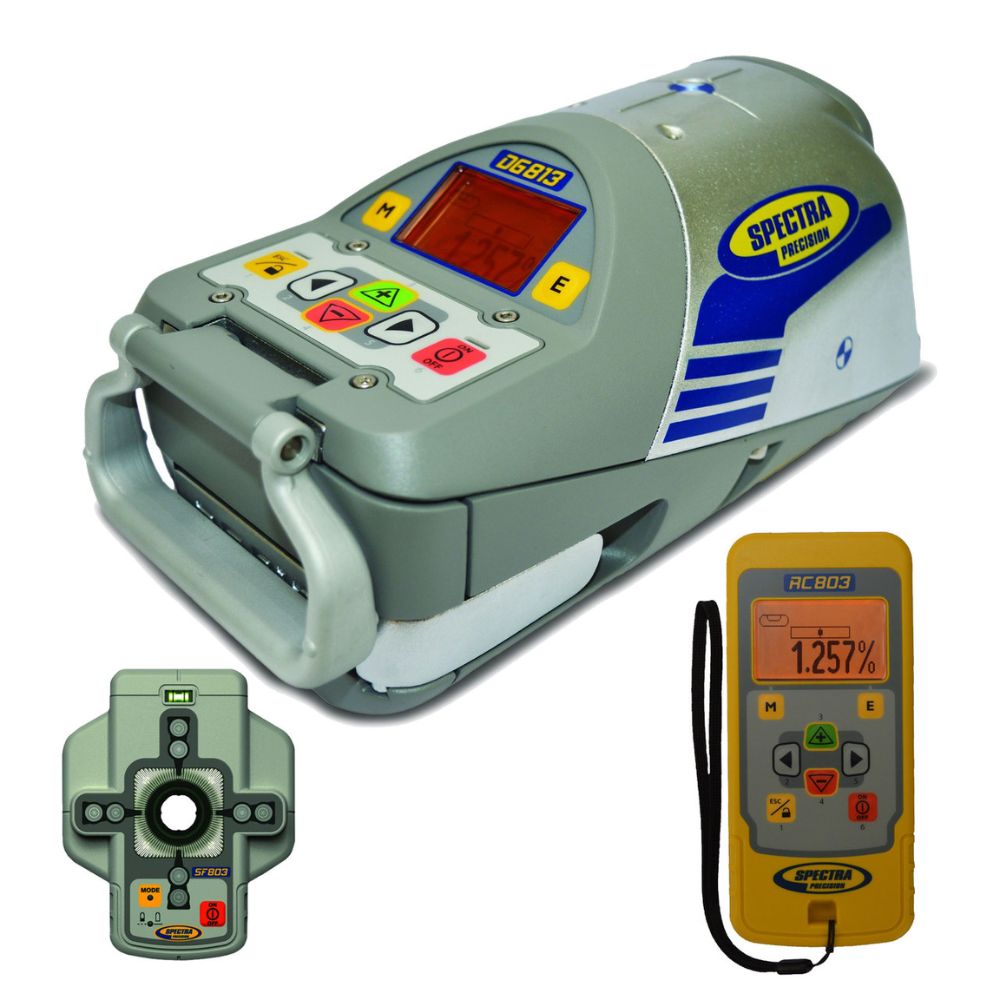

Spectra DG813 Pipe Laser with Dialgrade Graphic-Display, RC803 Remote and SF803 Spotfinder
Description
Description

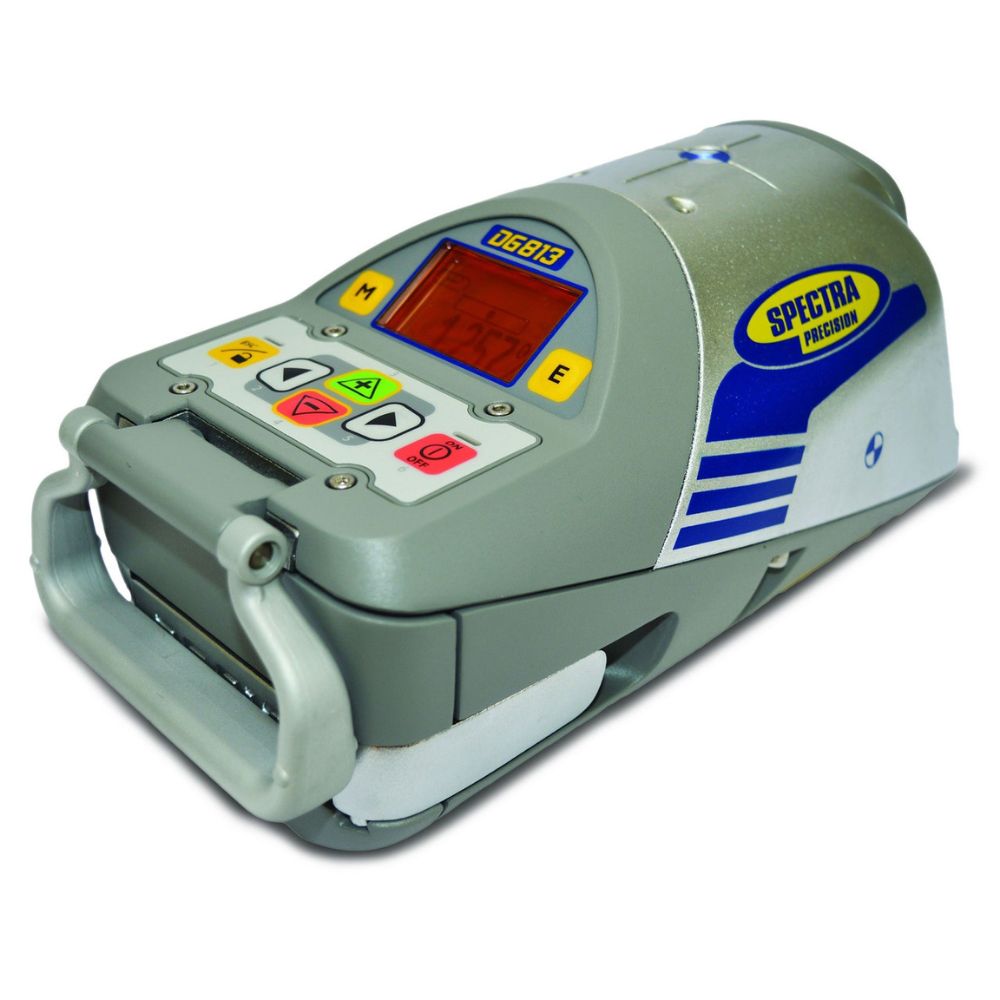

Spectra Precision Laser DG813 Description
The length of the DG813 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG813 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated - providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert. The DG813 works over a distance of 150m (500ft) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For “over-the-top” setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet).
Spectra Precision Laser DG813 Includes
- (1) DG813 Pipe Laser
Spectra Precision Laser DG813 Features
- Grade range -12% to +40%
- Ultra-fast beam movement
- Operating range up to 150 m (500 ft) with radio / IR remote control
- Large intuitive graphical display on the laser and remote control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline)
- Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert
- Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
- Compact length allows easy set-up even in tight inverts
- Self-leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
- Bright visible beam works up to 150 m (500 ft)
- RC803 remote works via radio 130 m (430 ft) or infra-red 150 m (500 ft) for both “over-the-top” set-up and in the pipe/trench set-up
Spectra Precision Laser DG813 Specifications
| Accuracy, Self-Leveling (level) | ± 1.5 mm/30 m, (1/16" @ 100') 10 arc seconds |
| Operating Range | Up to 150 m (500') |
| Laser Type | Red Diode Laser |
| Laser Wavelength | 600 - 680 nm |
| Laser Class | Class 3A/3R, |
| Self-Leveling Range Longitudinal | Over the Entire Grade Range with Automatic Cross Axis Compensation |
| Grade Range | -12% to +40% |
| Spot Align Search Range (DG813) | Up to +45° (with SF803 tilted to the laser) |
| Line Range | 20° ±1° |
| Leveling Indicators | LCD Indications; Beam and LED Flash |
| Power Source | 10000mAh NiMH Battery Pack |
| Battery Life | 40 hours NIMH |
| Temperature Compensation | Yes |
| Length | 9.8" |
| Diameter | 5.3" |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally |
| Dust and Water Proof | IP68 |
| Low Voltage Indication | LCD Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |

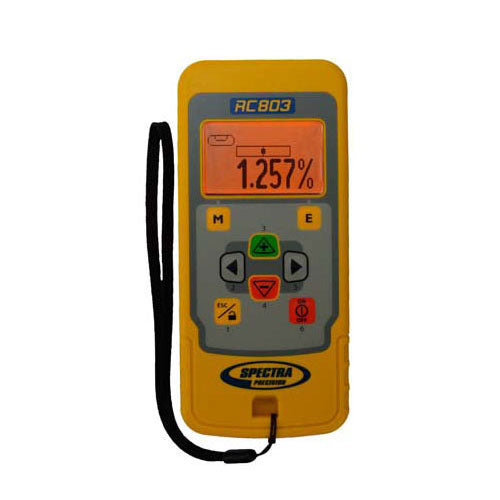

| Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425') |
| IR Operating Range (front) | Up to 150 m (500') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Water Proof | IP66 |
| Spot Finder SF803 Operating Range | Up to 150 m (500') |
| Power Source | 4 x 1.5V AA Alkaline Batteries |
| Battery Life | 30 hours |
| Dust and Water Proof | IP67 |
| Transporter ST805 Radio Operating Range | Up to 120 m (400') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 24 hours (continuous use) |
| Dust and Water Proof | IP66 |
