Spectra GL412N-14 GL412N Single Grade Laser with Remote and CR700 Receiver
Description
Description
Spectra Precision Laser GL412N-14 Description

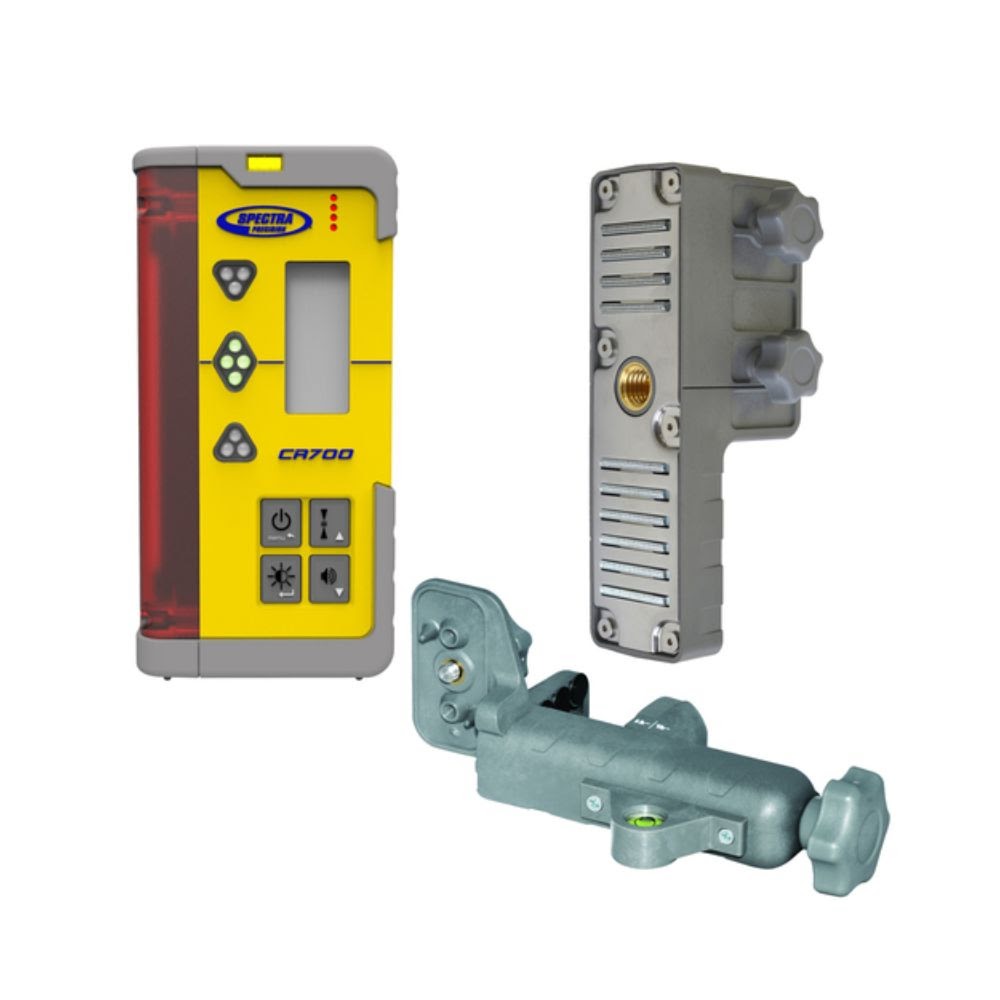

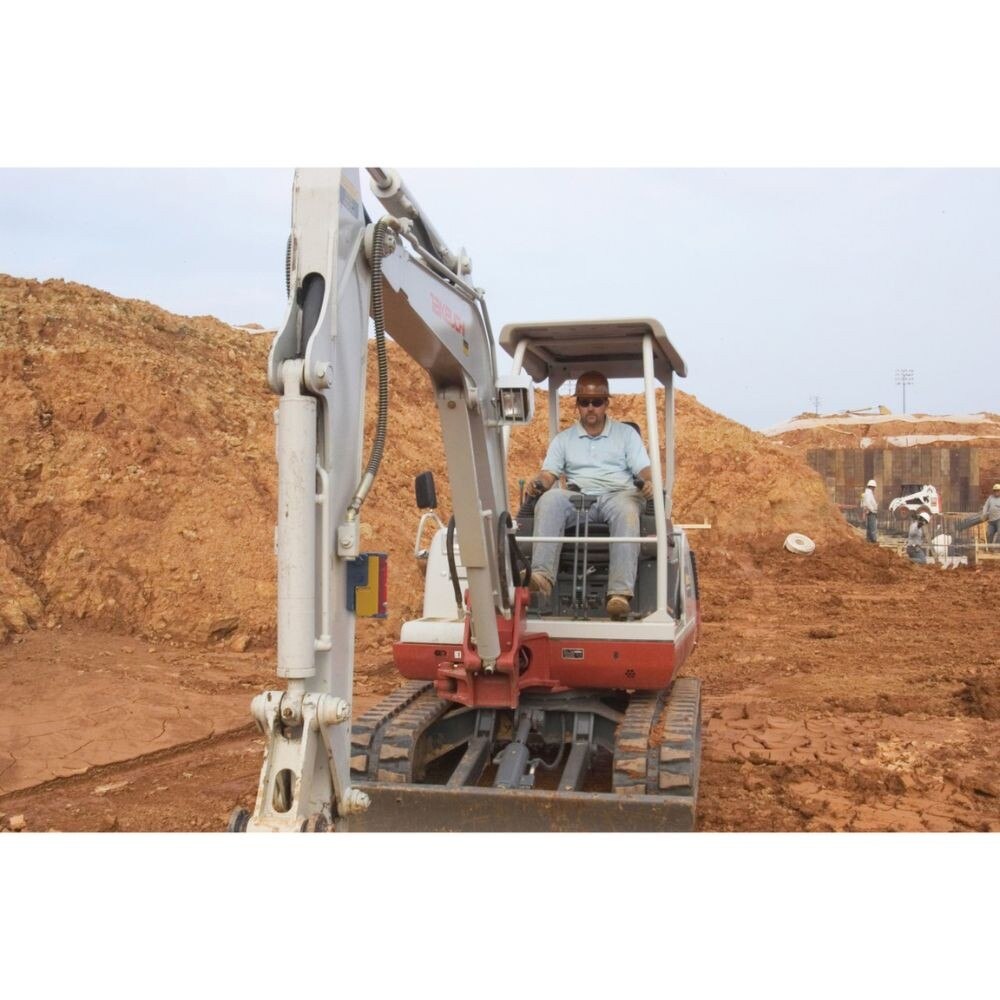

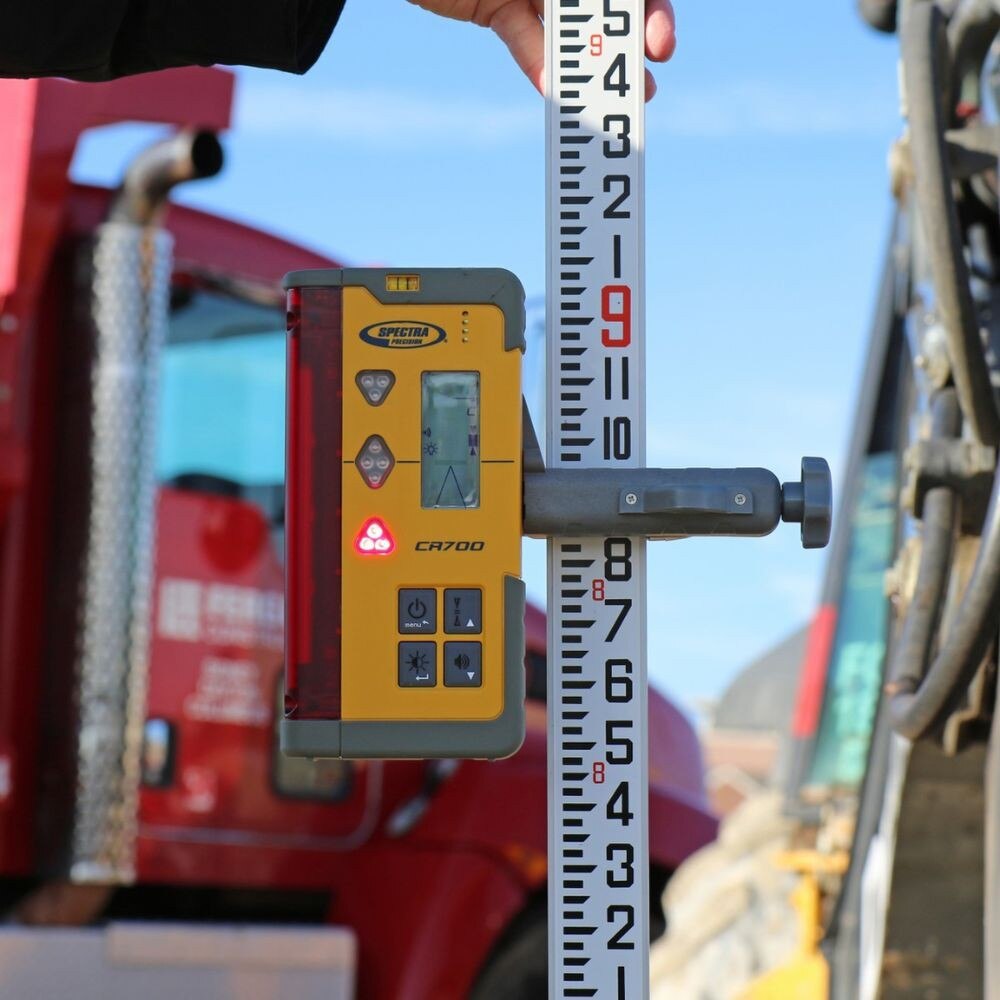

The automatic, self-leveling Spectra Precision® GL412N-14 single grade lasers is the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL412N-14 delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged GL412N lasers can withstand drops of up to three feet onto concrete and tripod tipovers up to five feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. This package with the CR700 Receiver include a receiver clamp to attach to a grade rod and a new magnetic mount to attach to mini-excavators, backhoes and other machines. Grade Match measures and displays the existing grade over unknown ground. As a consequence it eliminates time consuming and error prone calculations. A standout feature of this GL412N-14 package is the NEW CR700 receiver has the flexibility that allows it to be machine mounted or rod mounted. This rugged Receiver is best in class and features a Large 5-Inch reception height. This receiver has a wide 270° reception area and can easily be moved between backhoes, small excavators, box blades or skid steer loaders. With such a high degree of flexibility, the CR700 needs to be tough enough for any job.

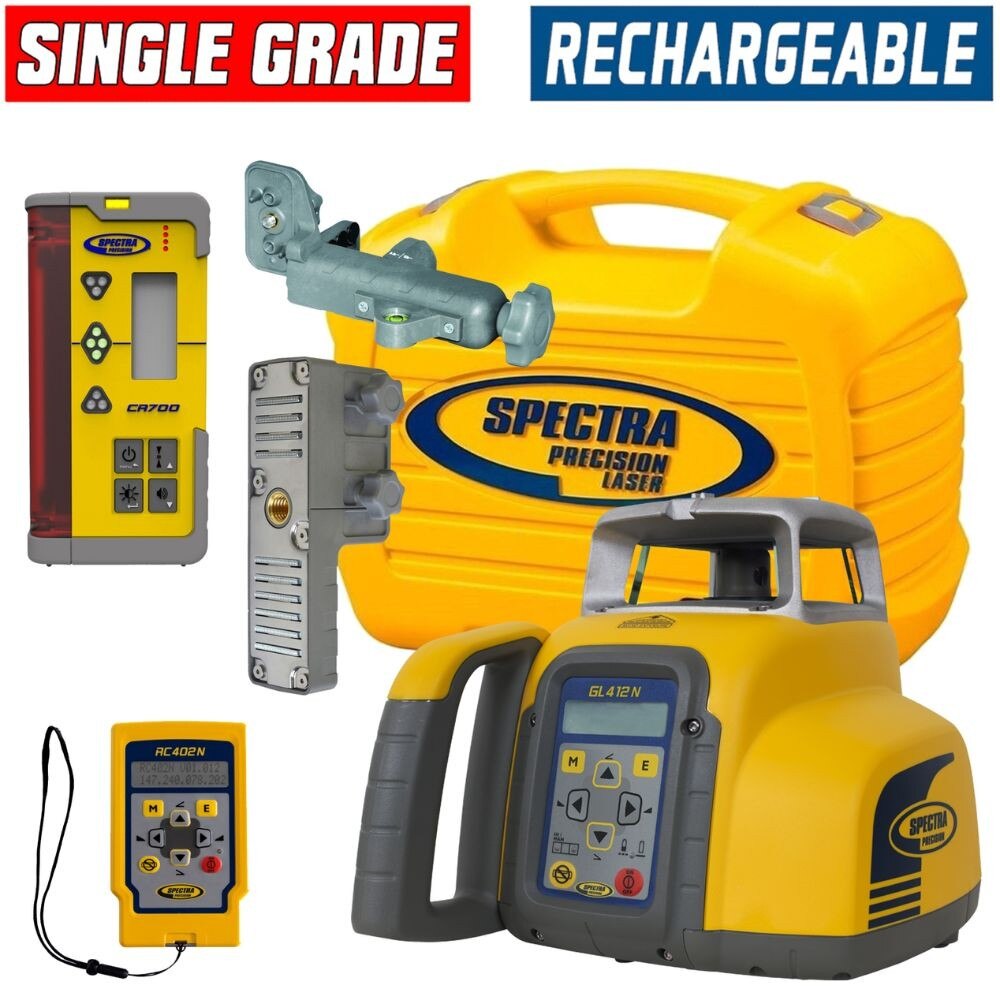

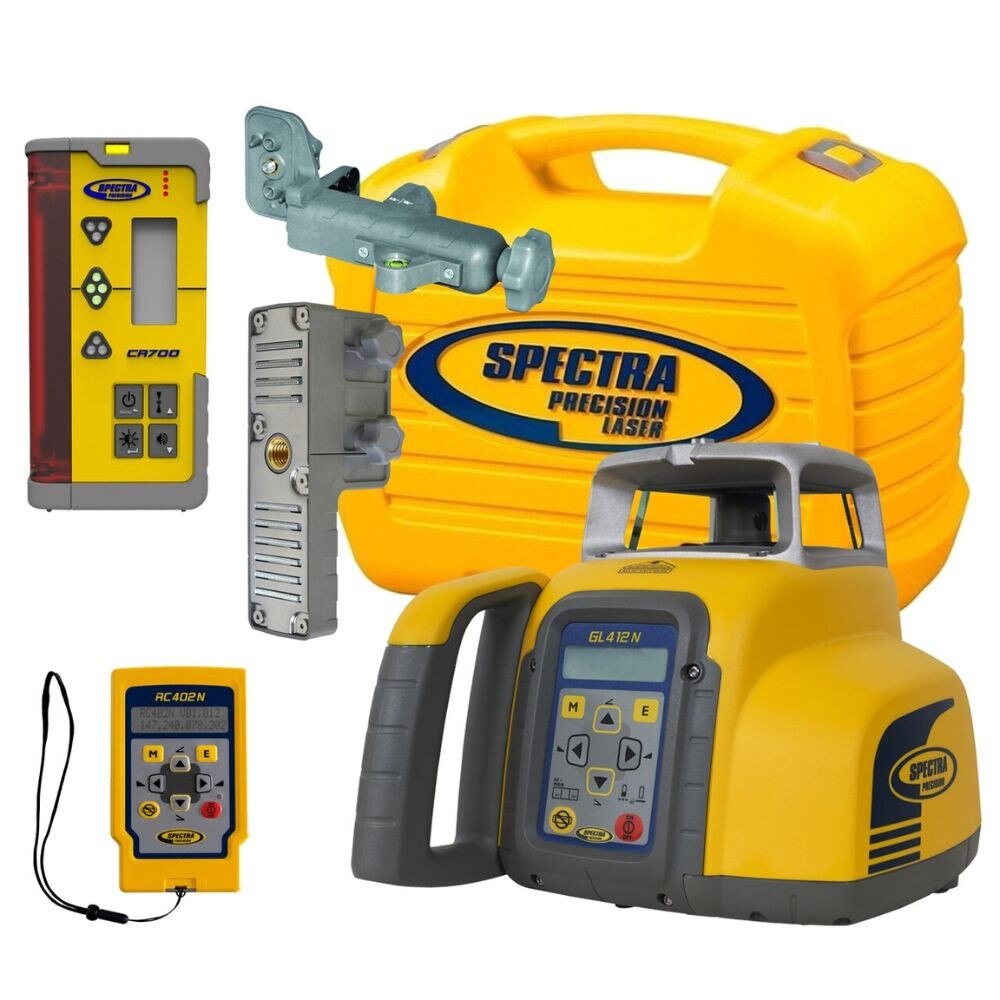

Spectra Precision Laser GL412N-14 Includes

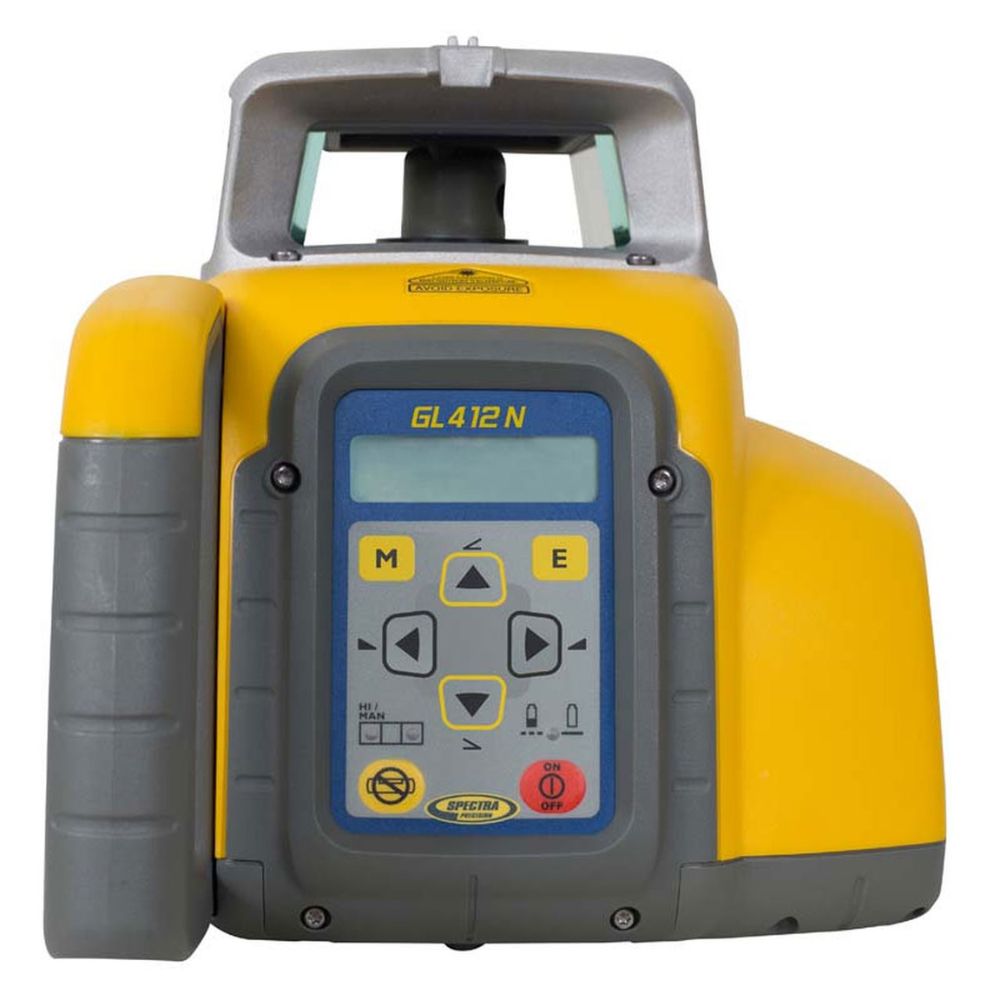

- (1) GL412N Single Grade Laser
Spectra Precision Laser GL412N-14 Features
- GL412N is single grade plus horizontal and vertical. Simple, accurate dial in grade from -10% to +15%
- Up to 2,600 ft working diameter which increases productivity by reducing need for multiple set-ups on a large job site
- Fully automatic self-leveling in both grade axis, horizontal, and vertical which provides fast, accurate setup in all applications
- Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
- Highly rugged design and patented lighthouse seal protects the rotor head and glass and offers superior drop and weather protection for reduced downtime
- 2-way full function remote control allows grade changes to be made from anywhere on the jobsite
- Temperature calibrated for high accuracy over wide temperature changes
- IP66 dust and water-proof to withstand harsh jobsite conditions
- Customizable with choice of HL760 or CR700 receivers
- Mask mode eliminates interference from other crews on the jobsite
- Automatic Grade Match and PlaneLok
Spectra Precision Laser GL412N-14 Specifications
| Leveling Accuracy | ± 1.5 mm/30 m, 1/16“ @ 100', 10 arc seconds |
| Operating Diameter | appr. 800 m (2600') |
| Grade Range | -10% to +15% (Single Axis GL412N) |
| Rotation | 300, 600 rpm |
| Laser Type | Red Diode Laser |
| Laser Beam | 650 nm |
| Laser Class | Class 2, |
| Self-Leveling Range | ± 5° (±9%) |
| Radio Range | (HL760) |
| Power Source | 10.000 mAh NiMH Battery Pack (Alkalines can be used) |
| Battery Life | 35 hours NiMH; 50 hours Alkaline |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust & Waterproof | Yes - IP66 |
| Low Voltage Indication | LCD Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |
| CR700 Combo Laser Receiver Working Radius (Laser dependent) | 1 m - 460 m (3' - 1500') |
| Laser Detection Height | 127.0 mm (5“) |
| Numeric Readout Height | 102.0 mm (4“) |
| Internal Radio | Full 2-Way Communication, Operation and Security Lock with Paired Device |
| Radio Working Radius | Up to 200 m (660'), Depending on Orientation, Conditions and Paired Device |
| Accuracy (Deadband) | Ultra Fine 0.5 mm 0.02" 1/32", Super Fine 1.0 mm 0.05" 1/16", Fine 2.0 mm 0.10" 1/8", Medium 5.0 mm 0.20" 1/4", Coarse 10.0 mm 0.50" 1/2", Machine 25.0 mm 1.00" 1" |
| Reception Angle | 200° Minimum (laser & distance dependent) |
| Strobe | Anti-Strobe Sensor |
| Detectable Spectrum | 610 nm ... 780 nm |
| Beeper Volumes | Loud = 110 dBA Medium = 95 dBA, Low = 65 dBA |
| LED Grade Indicators | Green On-grade, Red Hi, Blue Low |
| Brightness | Off, Bright, Super-Bright |
| Power Supply | 3 x 1.5 Volt “AA” batteries |
| Battery Life | 60+ hours; 16 Continuous Backlight |
| Automatic Shut Off | 30 minutes |
| Environmental | Waterproof, Dustproof to IP67 |
| Operating Temperature | -20°C...+60°C (-4°F... +140°F) |
| Storage Temperature | -40°C...+70°C (-40°F...+158°F) |
| Regulatory | CE EMC / RoHS Compliant |
| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |
