Spectra Precision Laser | SKU:
GL412N

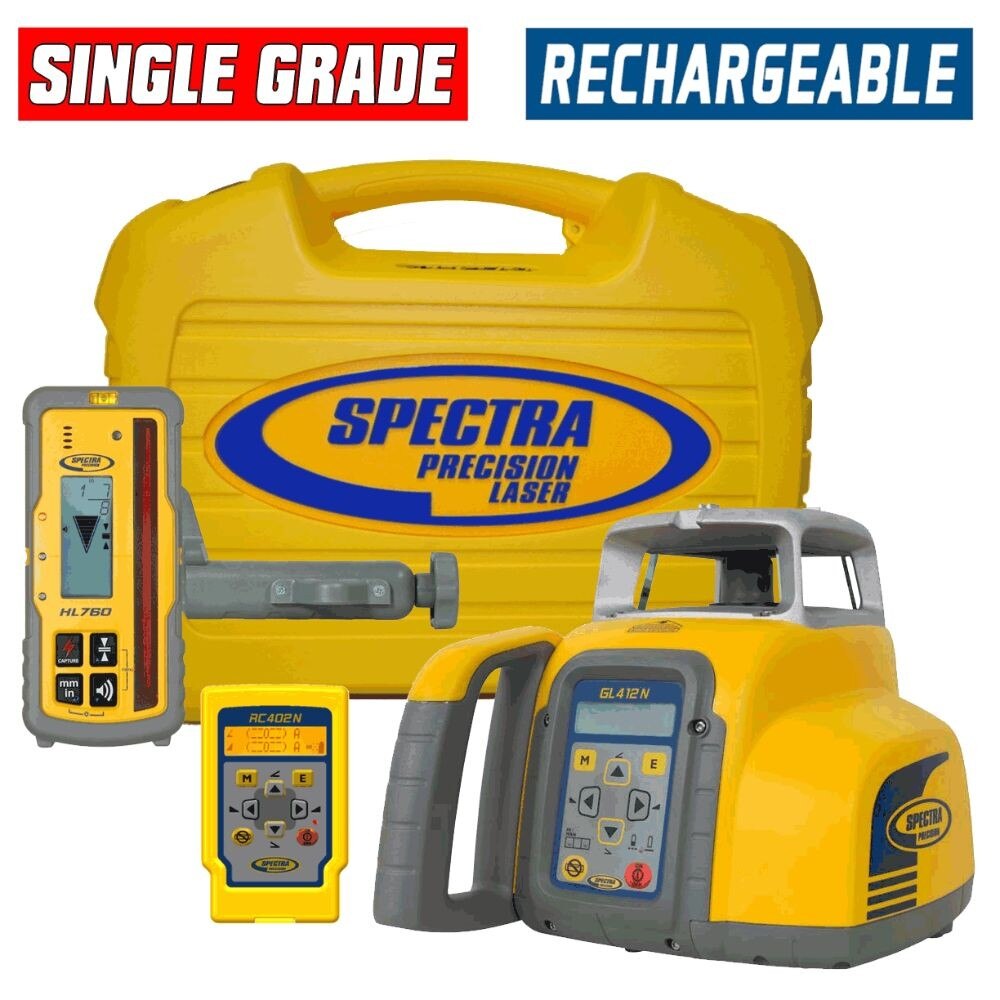

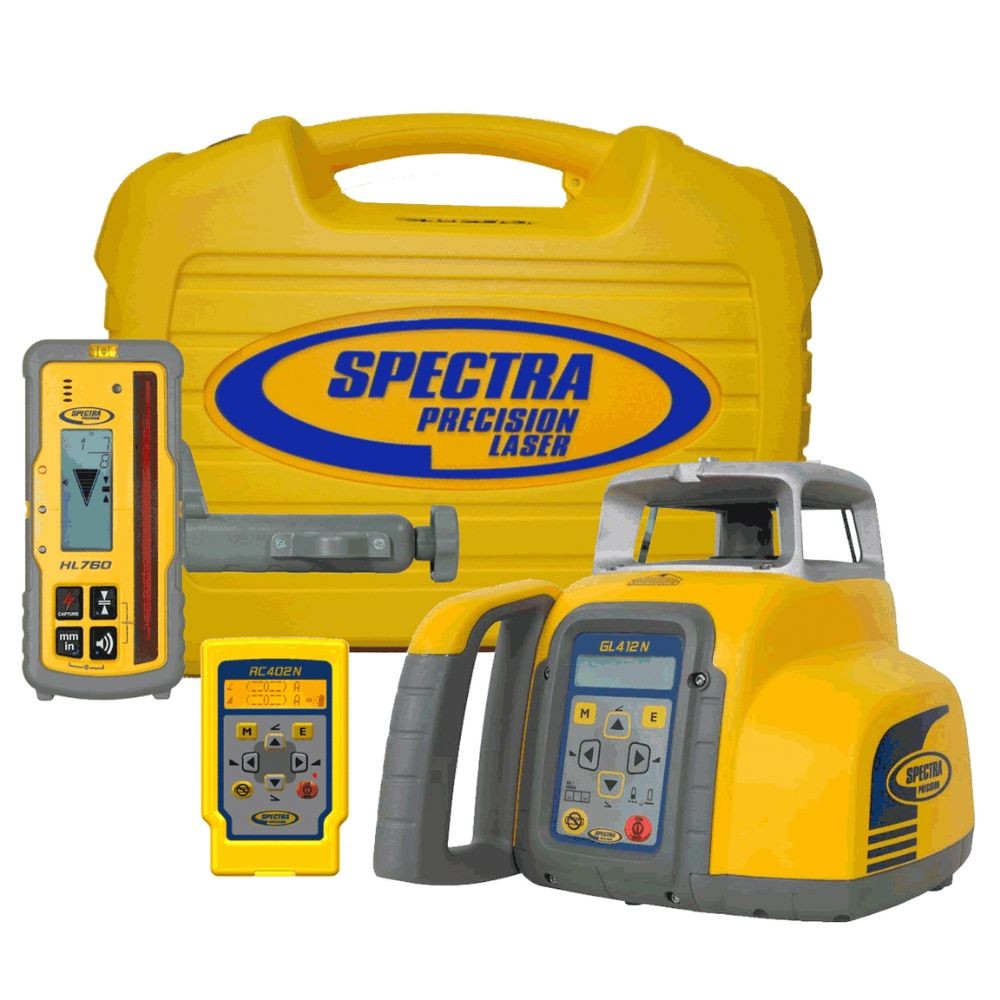

Spectra GL412N Single Grade Laser w/ HL760 Laserometer and RC402N Remote Control
Free Shipping
$2,000.00
$2,500.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description

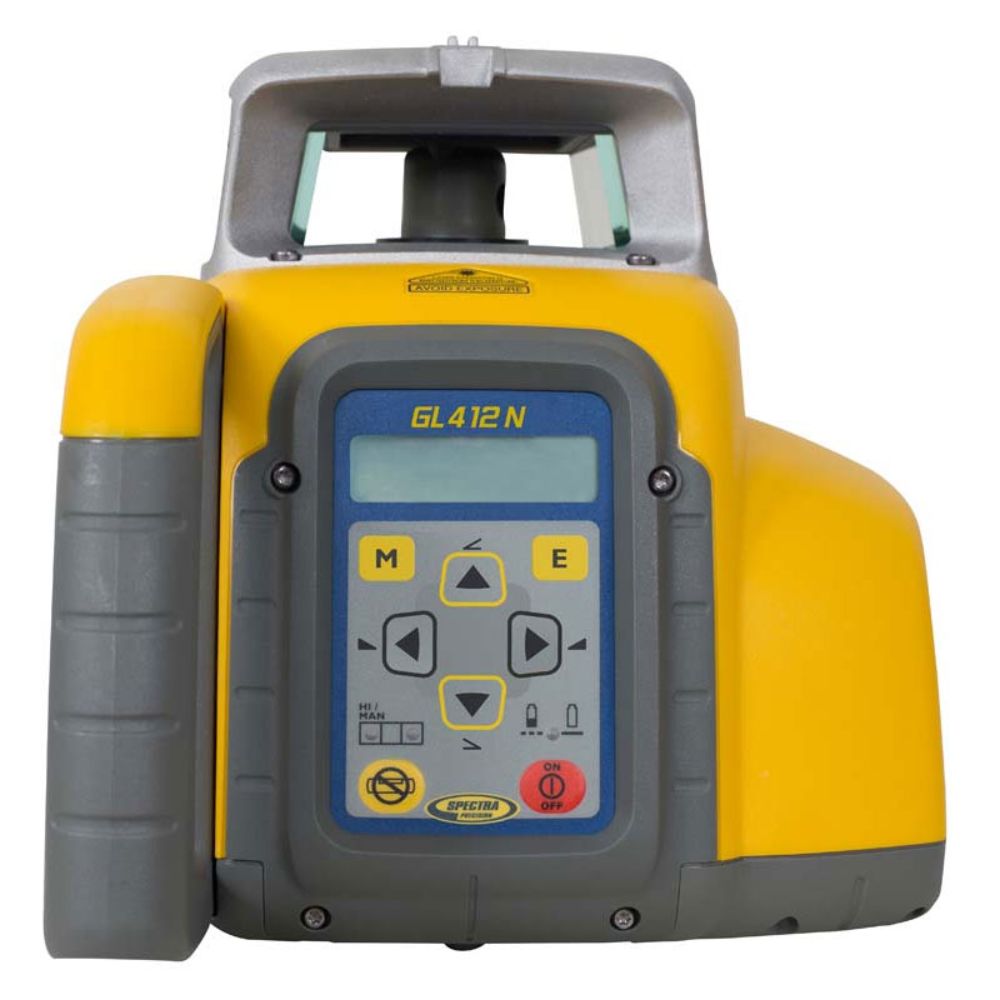

Spectra Precision Laser GL412N Description
The GL412N is a single grade laser that also offers long-range operation in addition to its grade range up to 15%. Operate the laser using longer range remote controls. With a radio remote operating at a range up to 330 feet (100 meters) you have the ability to make grade changes and to make grade changes remotely, which can significantly reduce setup time.
Spectra Precision Laser GL412N Includes
- (1) GL412N Laser
Spectra Precision Laser GL412N Features
- Easy-to-use menu-driven interface reduces learning time and eliminates complex button pressing to activate advanced features
- The exact grade can be entered in single axis and is self-leveling
- One person elevation control with 2600 ft (800 m) diameter range increases productivity
- RC402N radio remote control allows control of all laser functions from up to 330 ft (100 m) away
- Maintains performance even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
- Durable design reduces downtime due to drops and tripod tip-overs
- Automatic Grade Match eliminates time-consuming and error-prone calculation
- Mask mode eliminates interference with other crews on the job site
Spectra Precision Laser GL412N Specifications
| Leveling Accuracy | ± 1.5 mm/30 m, 1/16“ @ 100', 10 arc seconds |
| Operating Diameter | Approx. 800 m (2600') |
| Grade Range | -10% to +15% (Single Axis GL412N) |
| Rotation | 300, 600 rpm |
| Laser Type | Red Diode Laser |
| Laser Beam | 650 nm |
| Laser Class | Class 2, |
| Self-Leveling Range | ± 5° (±9%) |
| Radio Range | (HL760) |
| Power Source | 10.000 mAh NiMH Battery Pack (Alkalines can be used) |
| Battery Life | 35 hours NiMH; 50 hours Alkaline |
| Operating Temp | -20°C to 50°C (-4°F to 122°F) |
| Storage Temp | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust & Waterproof | Yes - IP66 |
| Low Voltage Indication | LCD Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |
| HL760 Receiver Digital Readout Units | mm, cm, ft, in, frac. in |
| Reception Height | 127 mm (5 inches) |
| Battery Life | 60+ hours Continuous Operation |
| Auto Shut-Off | 30 minutes |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust and Waterproof | Yes - IP67 |
