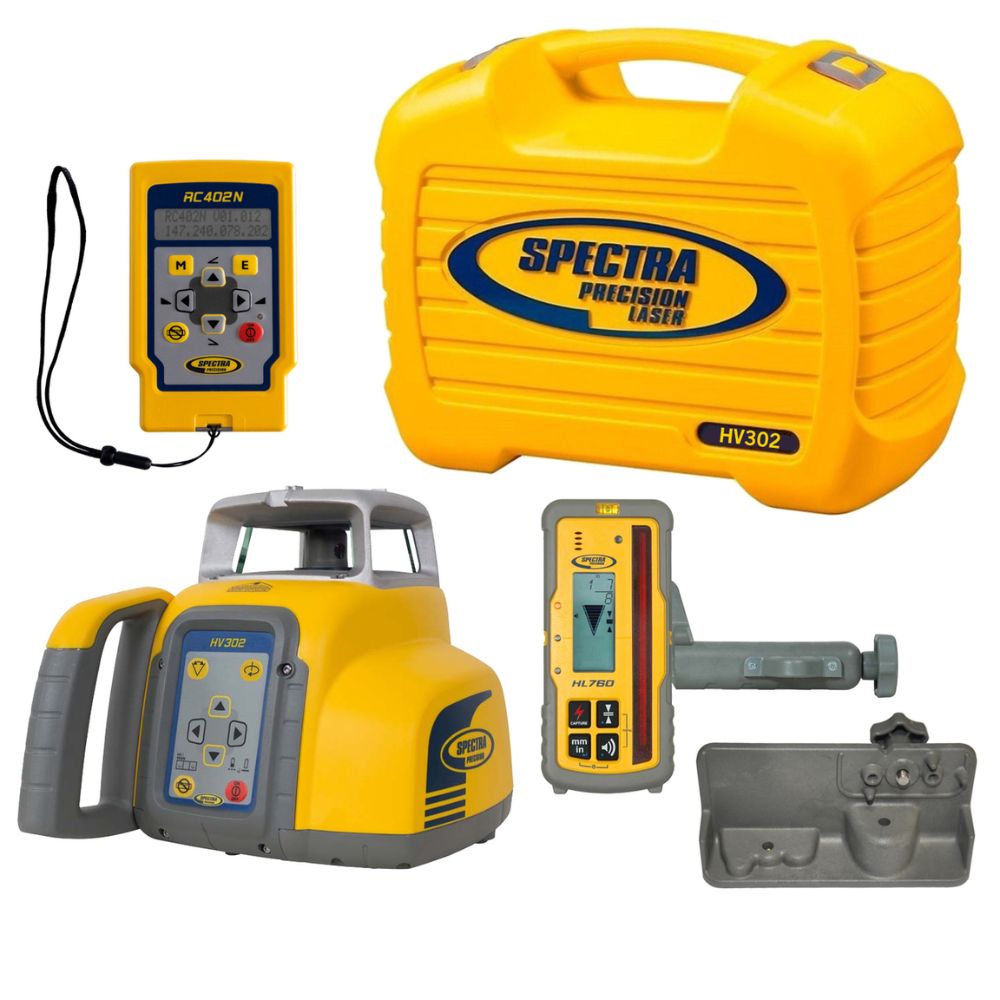

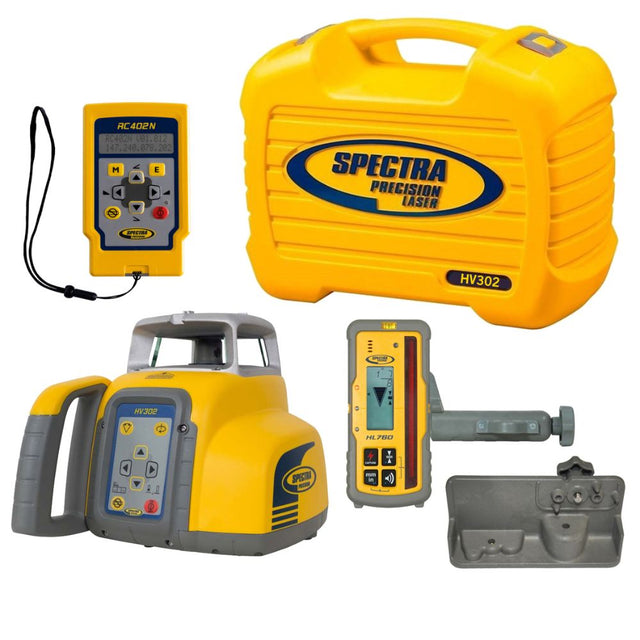

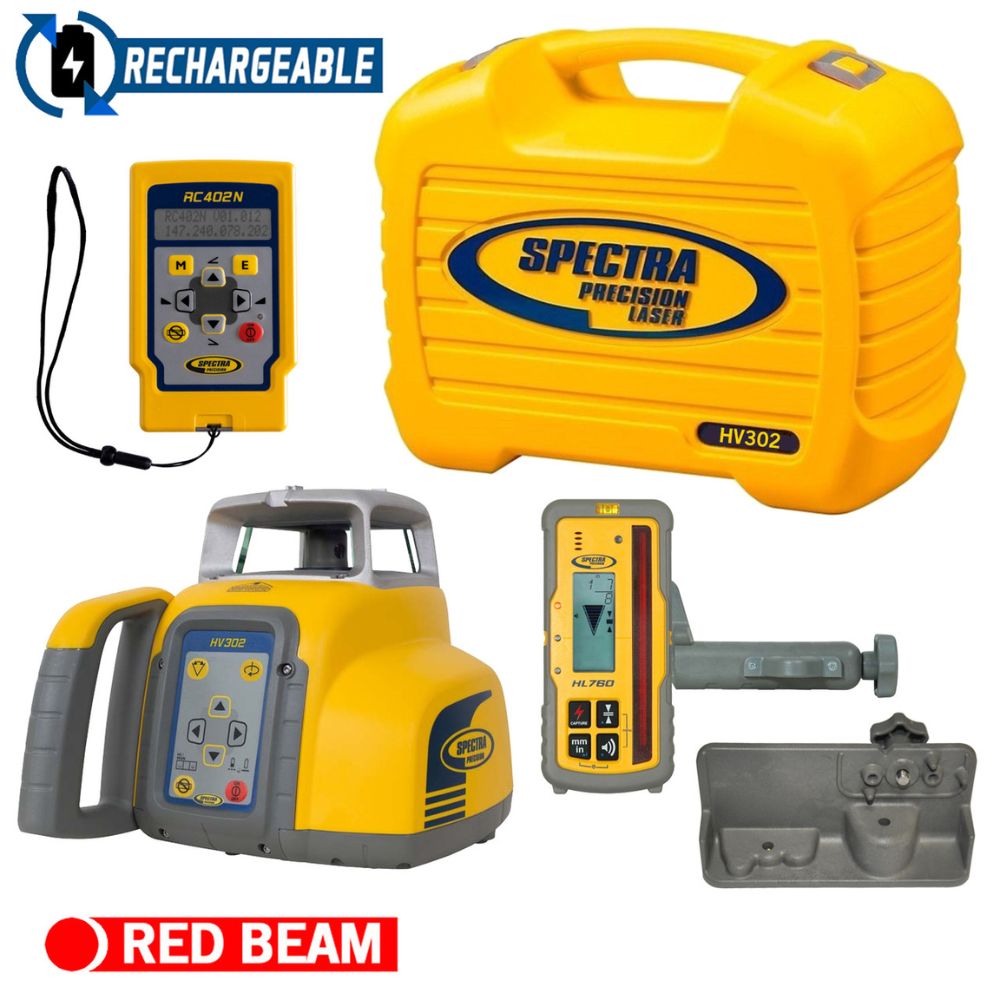

Spectra HV302-4 HV302 Horizontal / Vertical Laser GC Package Rechargeable with HL760 Receiver
Description
Description
Spectra Precision Laser HV302-4 Description
Whether your job is indoors or outdoors, the automatic self-leveling Spectra Precision® HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged HV302 laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tipovers up to 1.5 meters (5 feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Spectra Precision Laser HV302-4 Includes

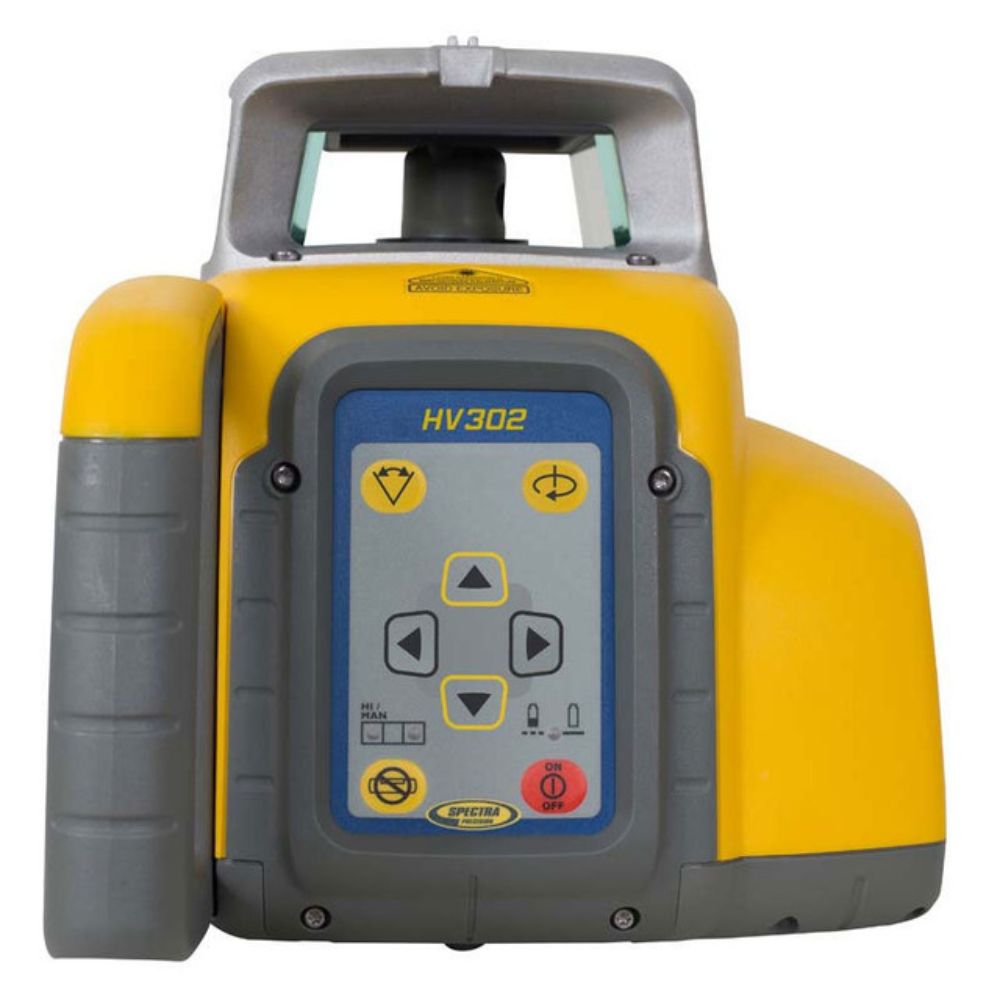

- (1) HV302 Horizontal/Vertical Laser
Spectra Precision Laser HV302-4 Features
- Automatic horizontal and vertical self-leveling
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working range of 800 m (2,600 ft) diameter
- High-visibility beam – easily visible even in brightly lit conditions
- Split beam – enables plumb point transfer and 90-degree layout
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range RC402N Radio remote control
- Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- “Fingerprint” function of the HL760 DRO receiver only accepts the beam from the laser it is paired with
- Extremely durable and portable
- 5 Year warranty
Spectra Precision Laser HV302-4 Specifications
| Leveling Accuracy | ± 1.5 mm/30 m, 1/16“ @ 100', 10 arc seconds |
| Operating Diameter | appr. 800 m (2600') |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-Selected Scan Sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser Type | Red Diode Laser 600-680 nm |
| Laser Class | Class 3A/3R, max. 5 mW |
| Self-Leveling Range | ± 5° (±9%) |
| Leveling Indicators | LED Flashes |
| Radio Range (HL760) | Up to 100 m (330') |
| Power Source | 10.000 mAh NiMH Battery Pack |
| Battery Life | 45 hours NiMH; 60 hours alkaline |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust and Waterproof | Yes - IP66 |
| Low Voltage Indication | LED Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |

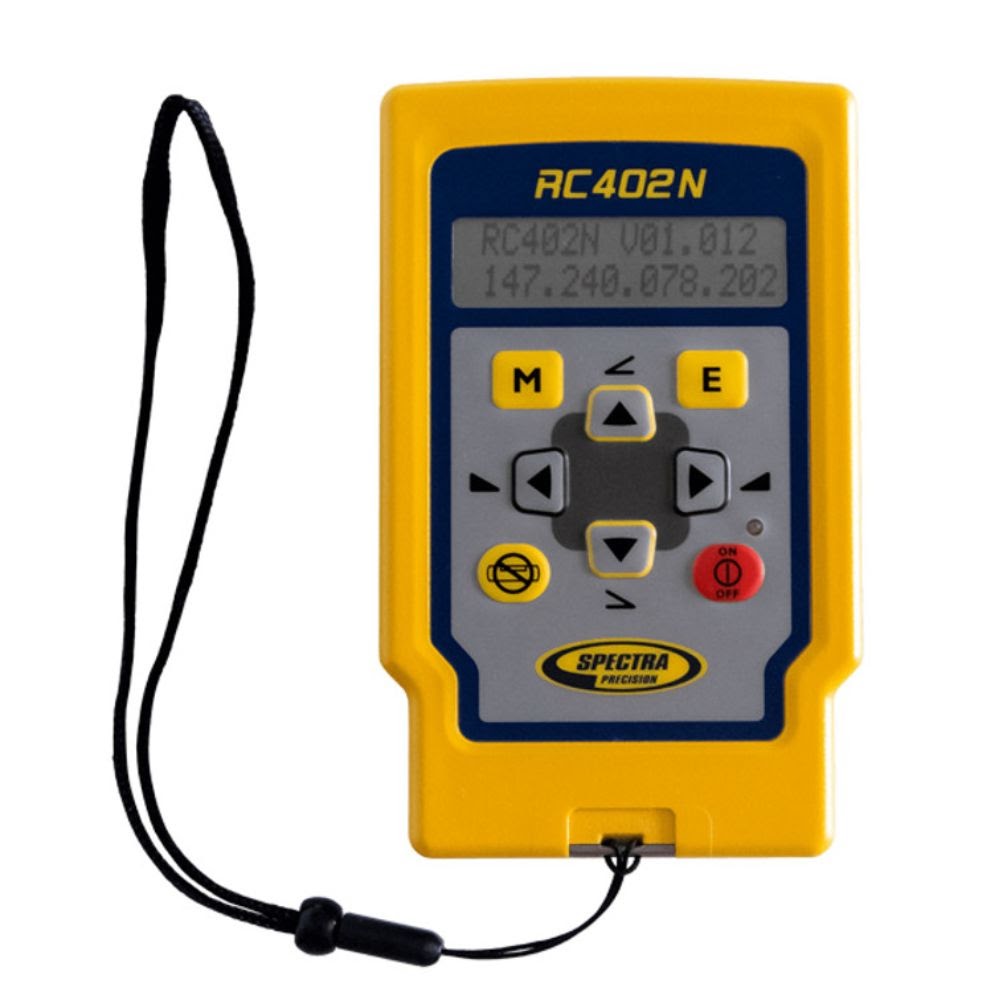

| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |

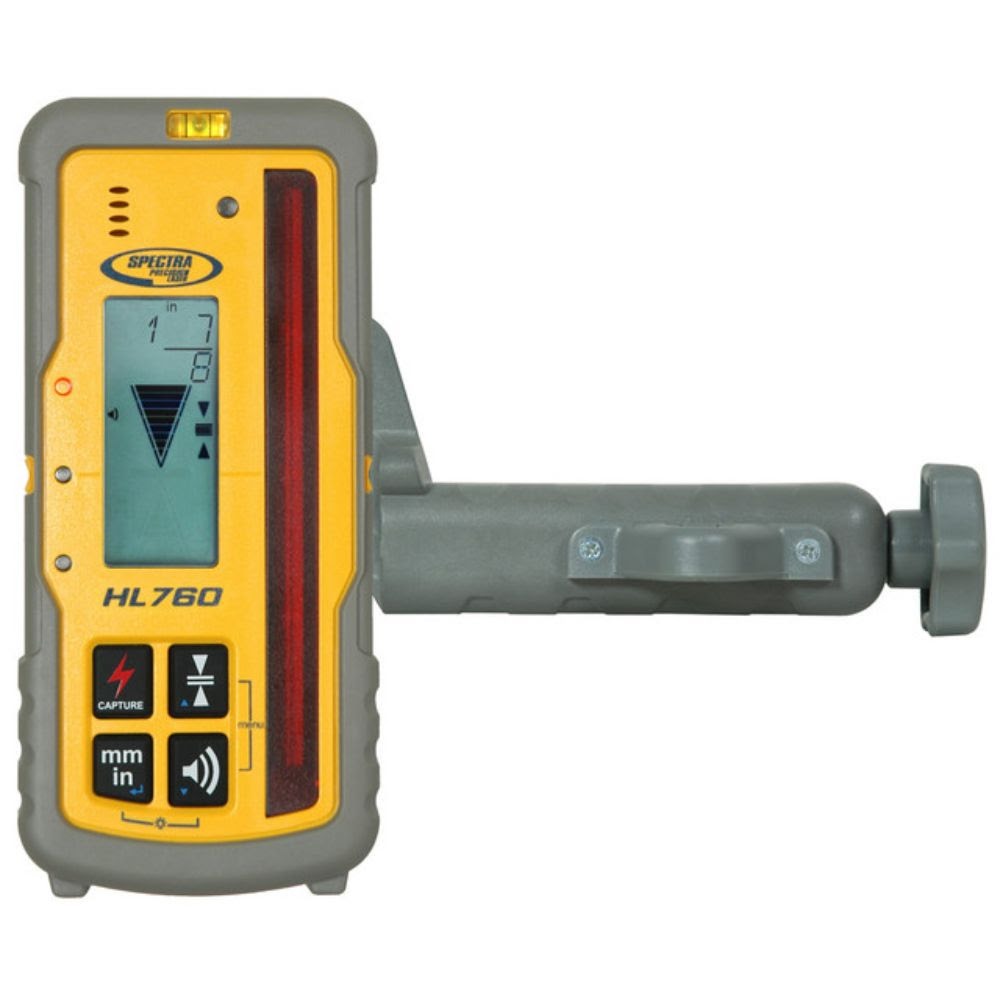

| HL760 Laser Receiver Digital Readout Units | mm, cm, ft, in, frac. in |
| Reception Height | 127 mm (5") |
| Six On-Grade Sensitivities | Ultra fine - 1/32", Super fine - 1.16", Fine - 1/8", Medium - 1/4", Coarse - 1/2", Calibration Mode - 1/64" |
| Battery Life | 60+ hours Continuous Operation |
| Auto Shut-Off | 30 minutes/24 hours |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust and Waterproof | Yes - IP67 |
| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |
