Spectra HV302G-2 HV302G Green Beam Laser Package with HR150U Laser Receiver and RC402N Remote Control
Description
Description
Spectra Precision Laser HV302G-2 Description

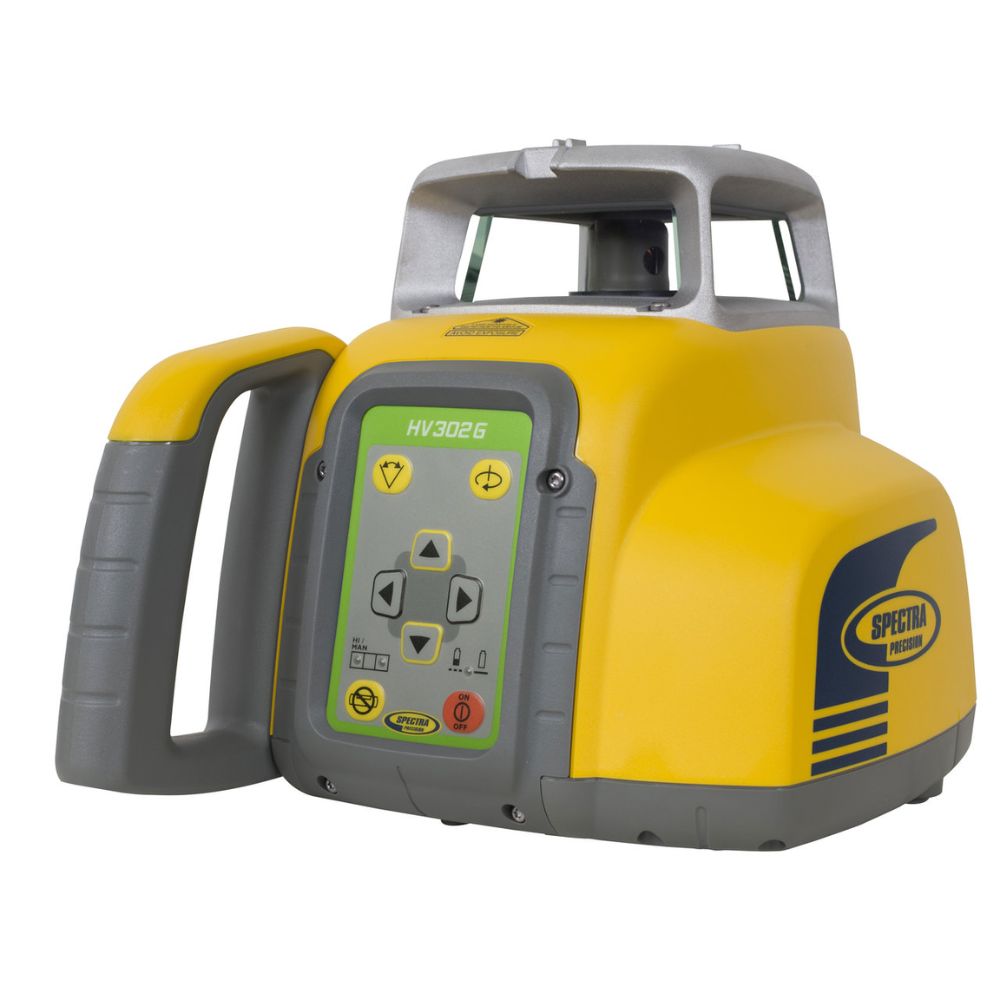

The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

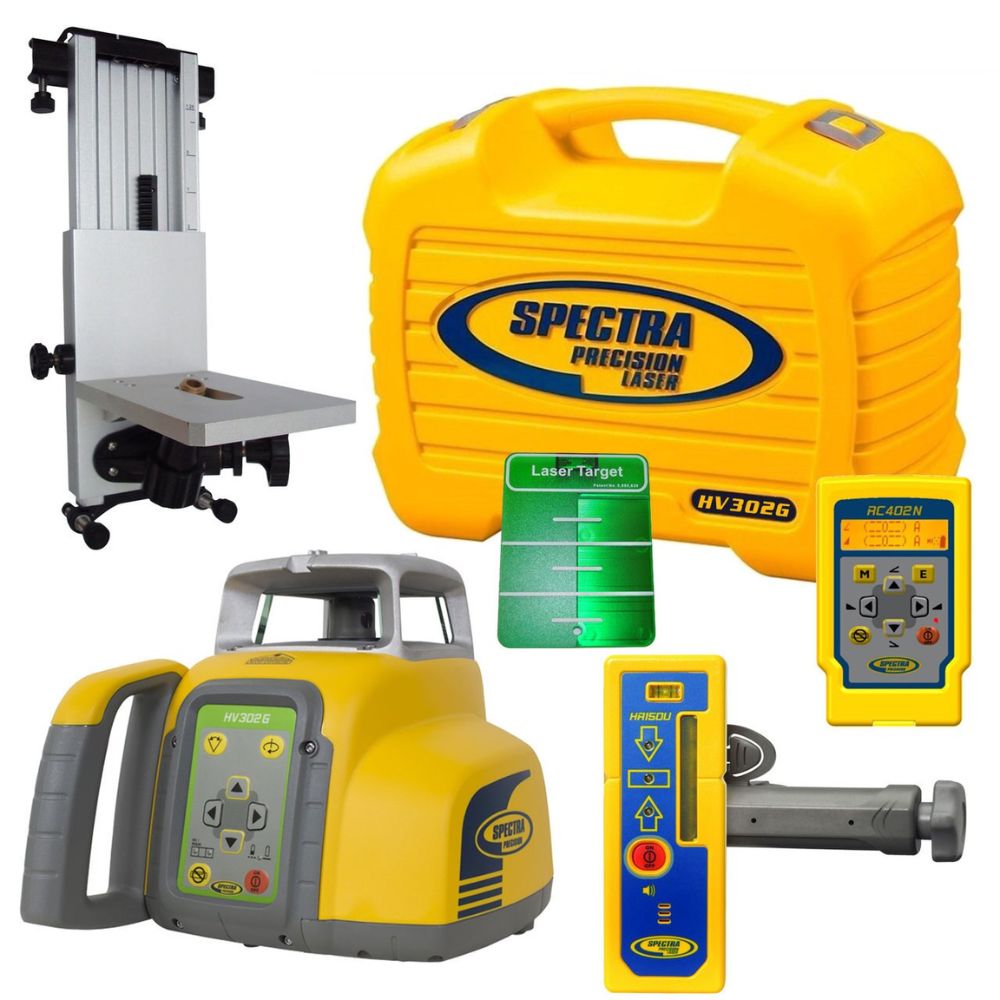

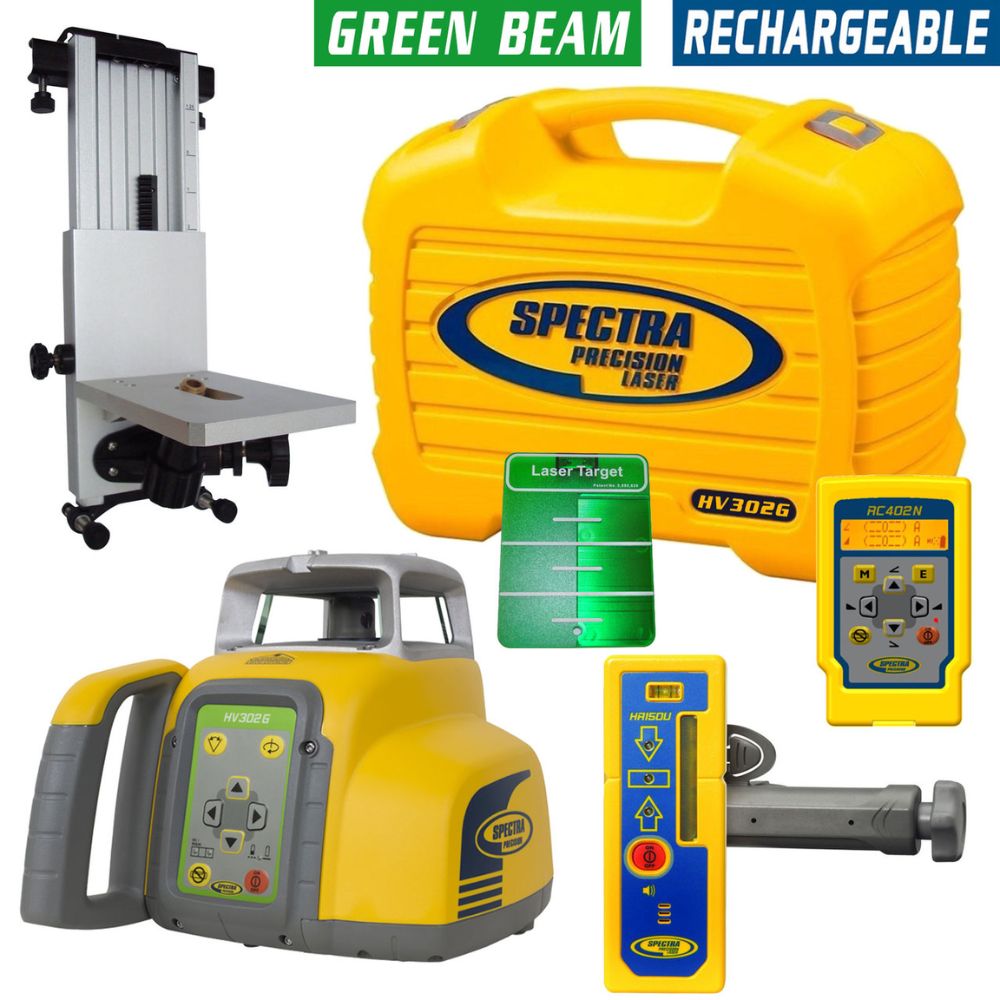

Spectra Precision Laser HV302G-2 Includes
- (1) HV302G Interior Green Beam Horizontal / Vertical Laser
Spectra Precision Laser HV302G-2 Features
- Automatic horizontal and vertical self-leveling
- Accuracy 1/16-inch @ 100 feet (1.5mm @ 30 m)
- Working visible range of 250 feet (75 m) radius
- High-visibility beam – easily visible even in brightly lit conditions
- Split beam – enables plumb point transfer and 90-degree layout
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range RC402N Radio remote control
- HR150U - Interior Receiver with highly visible LEDs and built-in Magnetic Mount
- Radio communication between the HL760U DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- Extremely durable and portable
- 3 Year warranty
Spectra Precision Laser HV302G-2 Specifications
| Leveling Accuracy | ± 1.5 mm/30 m, 1/16" @ 100', 10 arc seconds |
| Operating Visible Radius | 250' (75 m) |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-Selected Scan Sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser Type | Green Diode Laser 520 nm |
| Laser Class | Class 3A/3R, max. 5 mW |
| Self-Leveling Range | ± 5° (±9%) |
| Leveling Indicators | LED Flashes |
| Radio Range (HL760) | Up to 100 m (330') |
| Power Source | 10.000 mAh NiMH Battery Pack |
| Battery Life | 45 hours NiMH; 60 hours alkaline |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust and Waterproof | Yes - IP66 |
| Low Voltage Indication | LED Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |
| HR150U Receiver LED Channels | 3 |
| Capture Height | 50 mm (2") |
| Acceptance Angle | 90° |
| On-Grade Sensitivity Medium | 3.00 mm (1/8") |
| Power Source | Two 1.5-V Batteries (type LR6/AA) |
| Battery Life @ 20 °C (68 °F) | Alkaline |
| Low Battery Indicator | Red LEDs Flash in Sequence |
| Automatic Shutoff | 30 minutes After Last Laser Detection or Push-Button Actuation |
| Spectral Sensitivity | Operates with Red Visible and Infrared Rotating Lasers with Wavelength Between 610 and 900 nm |
| Marking Notch | 50 mm (2") Below the Top of Receiver, on Both Sides |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |
| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |
