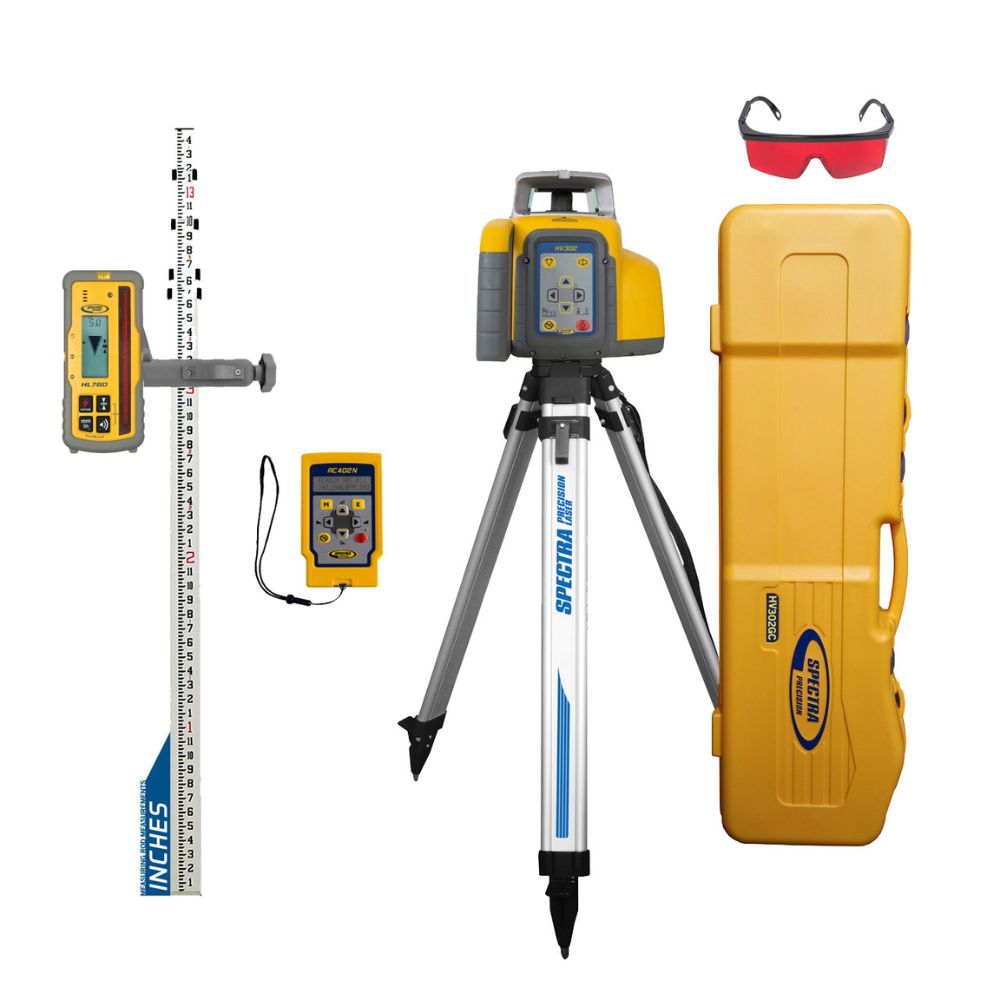

Spectra HV302GC-2 Horiz/Vert - Interior/Exterior Red Beam Laser GC Package with Remote, HL760 Receiver, Rod (Inches) and Tripod
Description
Description

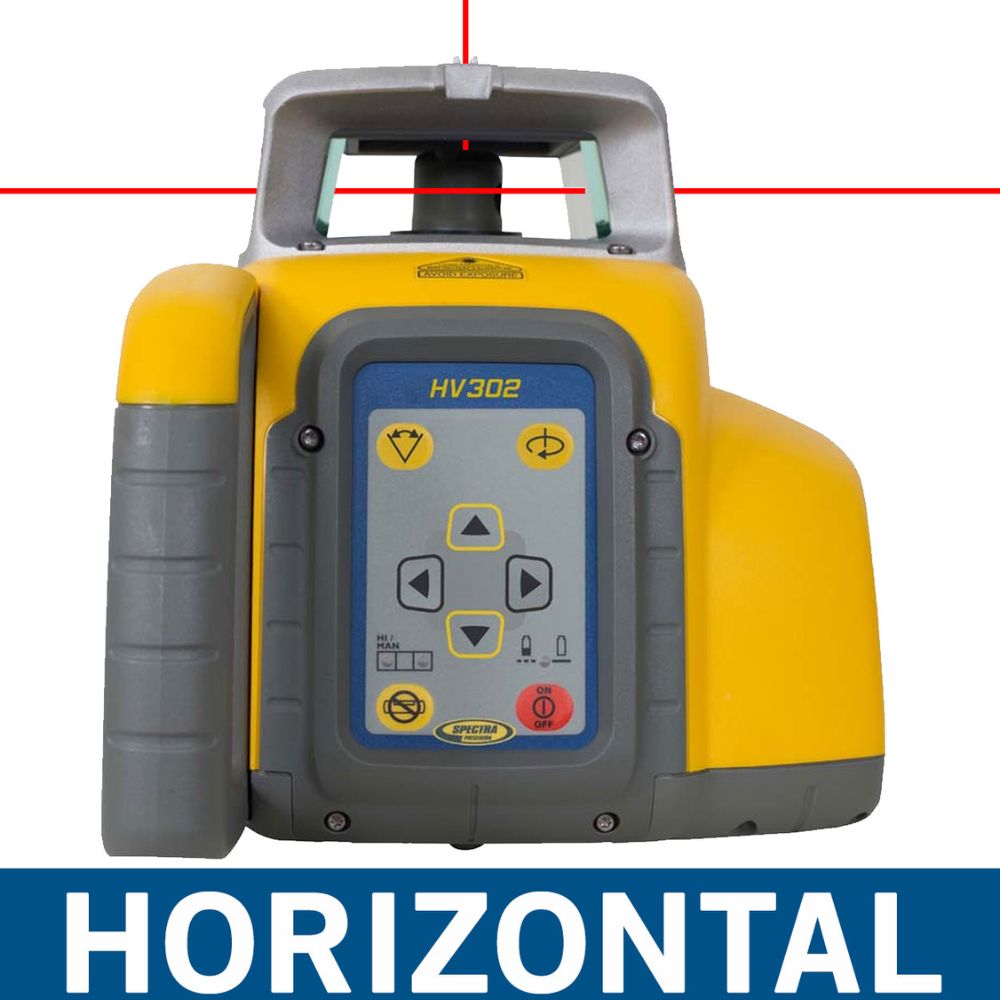

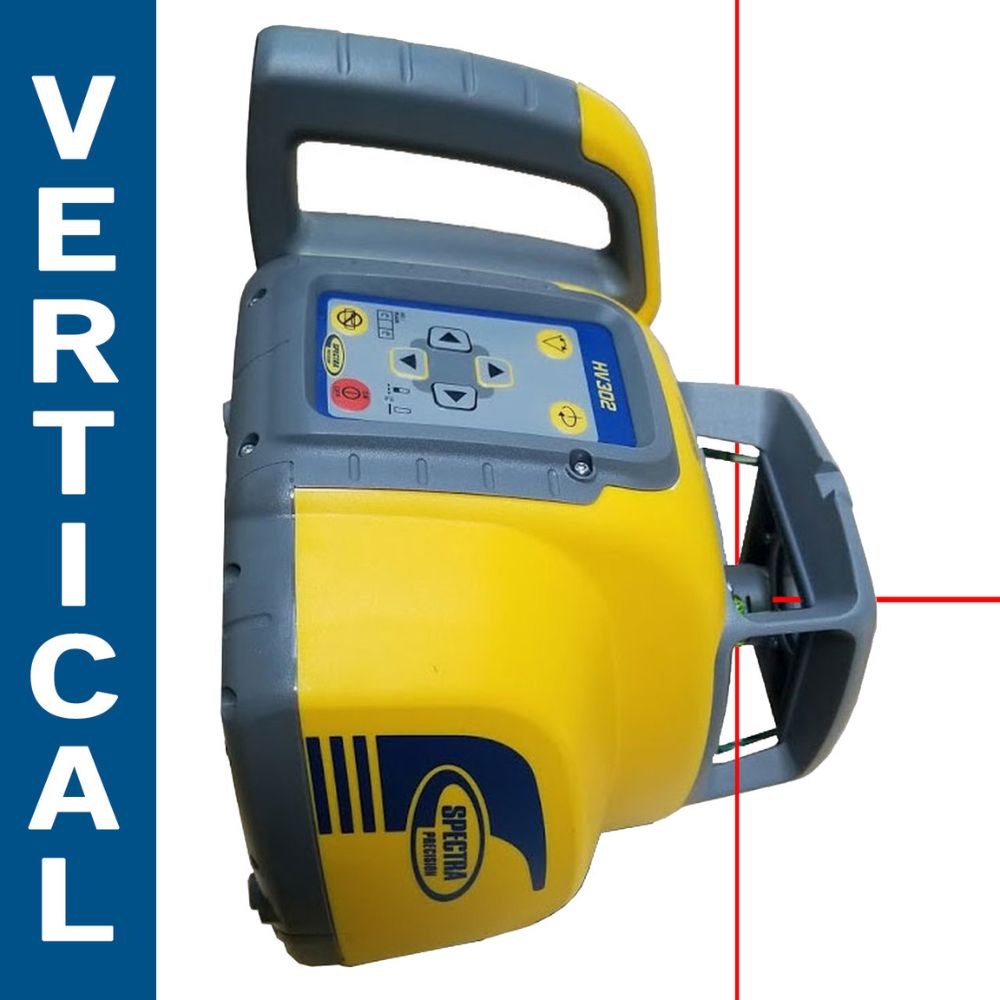

Spectra Precision Laser HV302GC-2 Description
Whether your job is indoors or outdoors, the automatic self-leveling Spectra Precision HV302GC-2 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged HV302GC-2 laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. Various HV302 packages are offered that are appropriate for interior applications, exterior applications or both
Spectra Precision Laser HV302GC-2 Includes
- (1) HV302 Horizontal/Vertical Laser
Spectra Precision Laser HV302GC-2 Features
- Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
- Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and HL760 Receiver
- Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and HL760 Receiver
- Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
- Long-range remote control operation allows convenient access to key functions across the job site
- Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
Spectra Precision Laser HV302GC-2 Specifications
| Leveling Accuracy | 1/16" @ 100', 10 arc seconds |
| Operating Diameter | 2600' |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-Programmed Scan Sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser Type | Red Diode Laser 600-680 nm |
| Laser Class | Class 3A/3R, max. 5 mW |
| Self-Leveling Range | ± 5° |
| Leveling Indicators | LED Flashes |
| Radio Range (HL760) | Up to 330' |
| Power Source | Alkaline Batteries |
| Battery Life | 60 hours Alkaline |
| Operating Temperature | -4°F to 122°F |
| Storage Temperature | -4°F to 158°F |

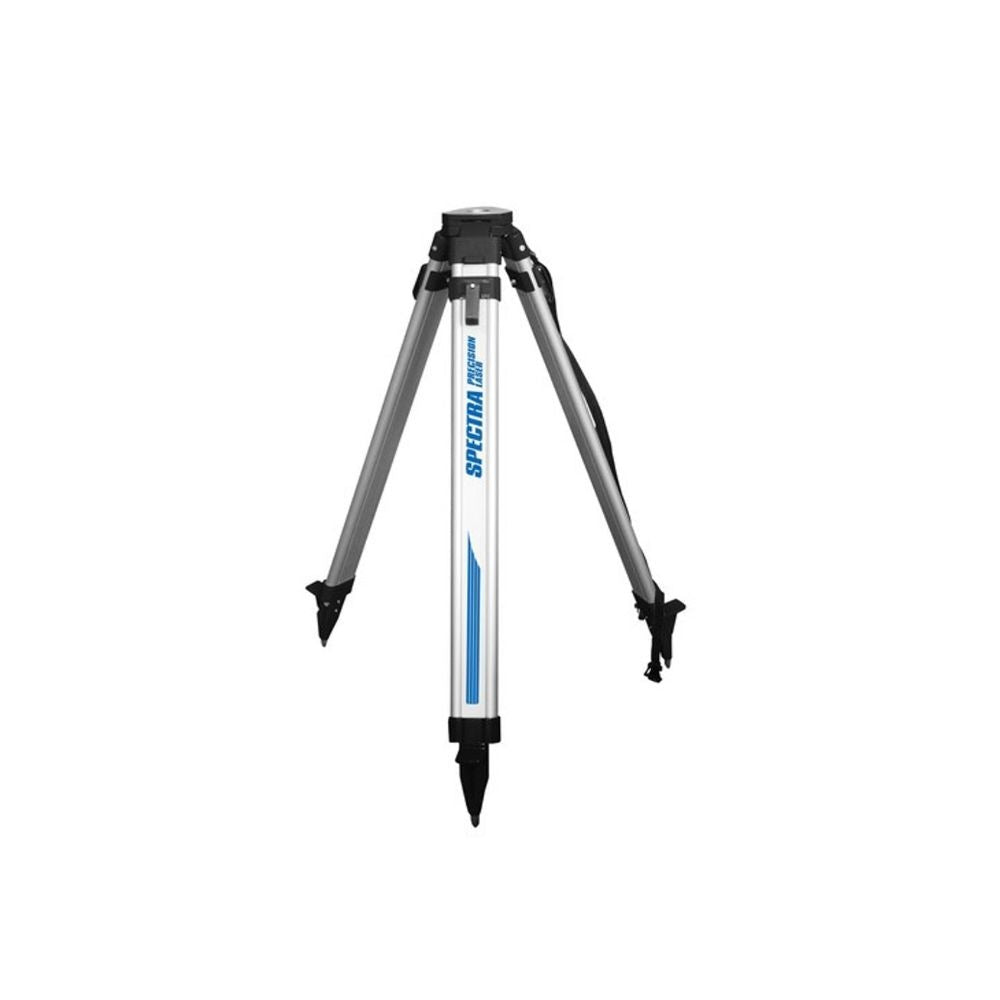

| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust and Waterproof | Yes - IP66 |
| Low Voltage Indication | LED Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |

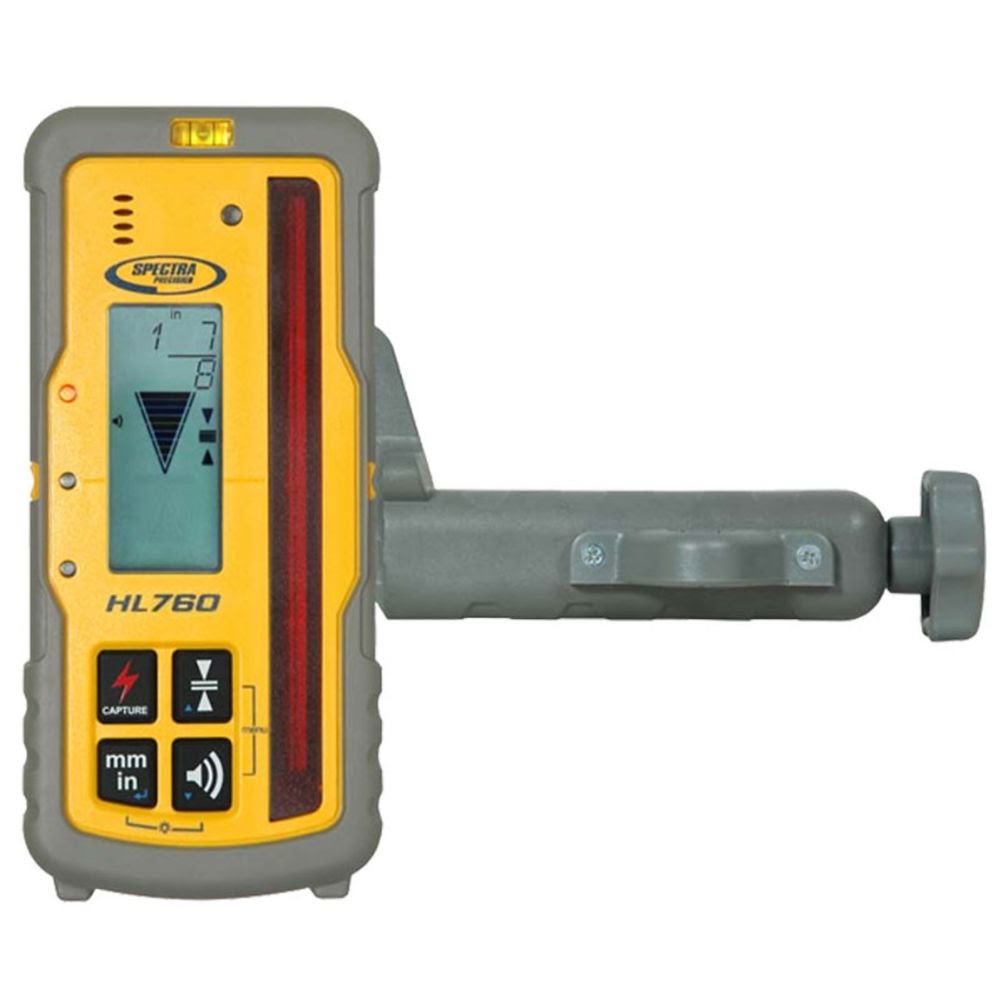

| HL760 Laser Receiver Digital Readout Units | mm, cm, ft, in, frac. in |
| Reception Height | 127 mm (5") |
| Six On-Grade Sensitivities | Ultra fine - 1/32", Super fine - 1.16", Fine - 1/8", Medium - 1/4", Coarse - 1/2", Calibration Mode - 1/64" |
| Battery Life | 60+ hours Continuous Operation |
| Auto Shut-Off | 30 minutes/24 hours |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust and Waterproof | Yes - IP67 |

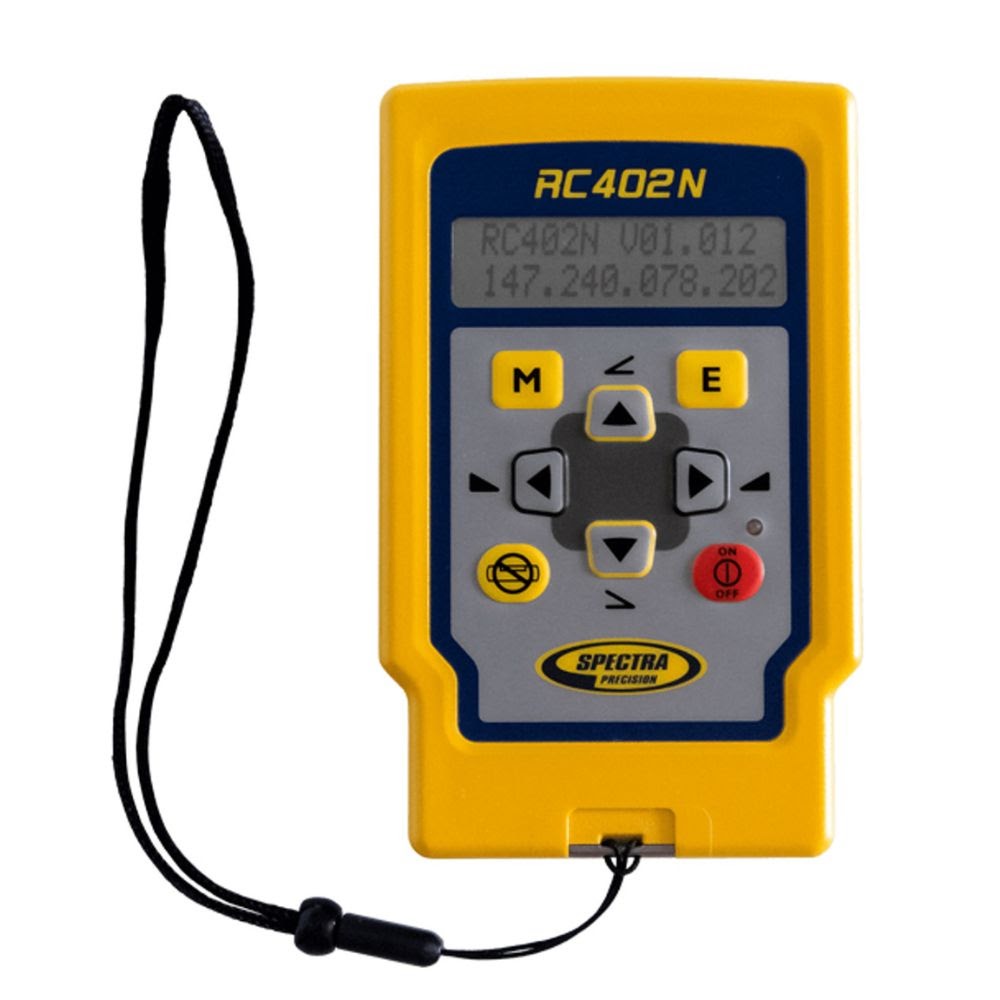

| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |

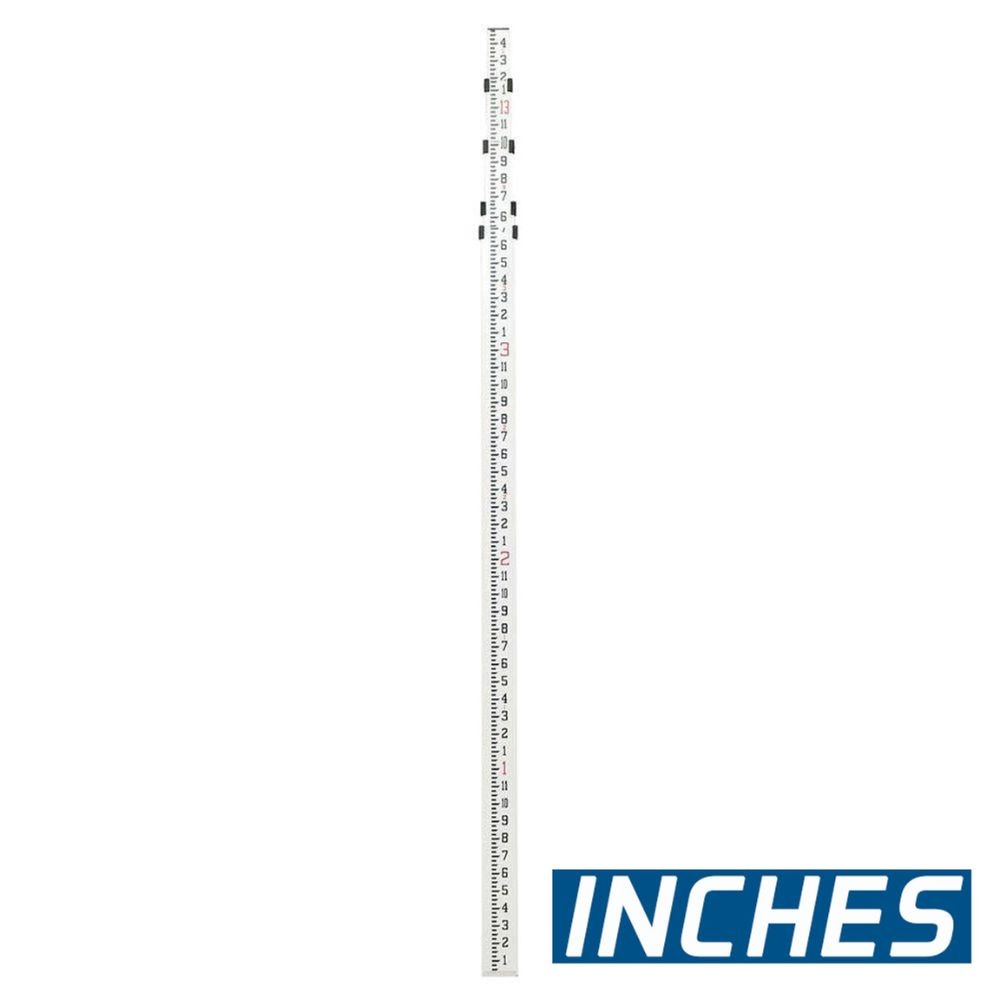

| Grade Rod Length | 15' |
| Graduations | Inches |
