Spitznas | SKU:
5 1128 0010

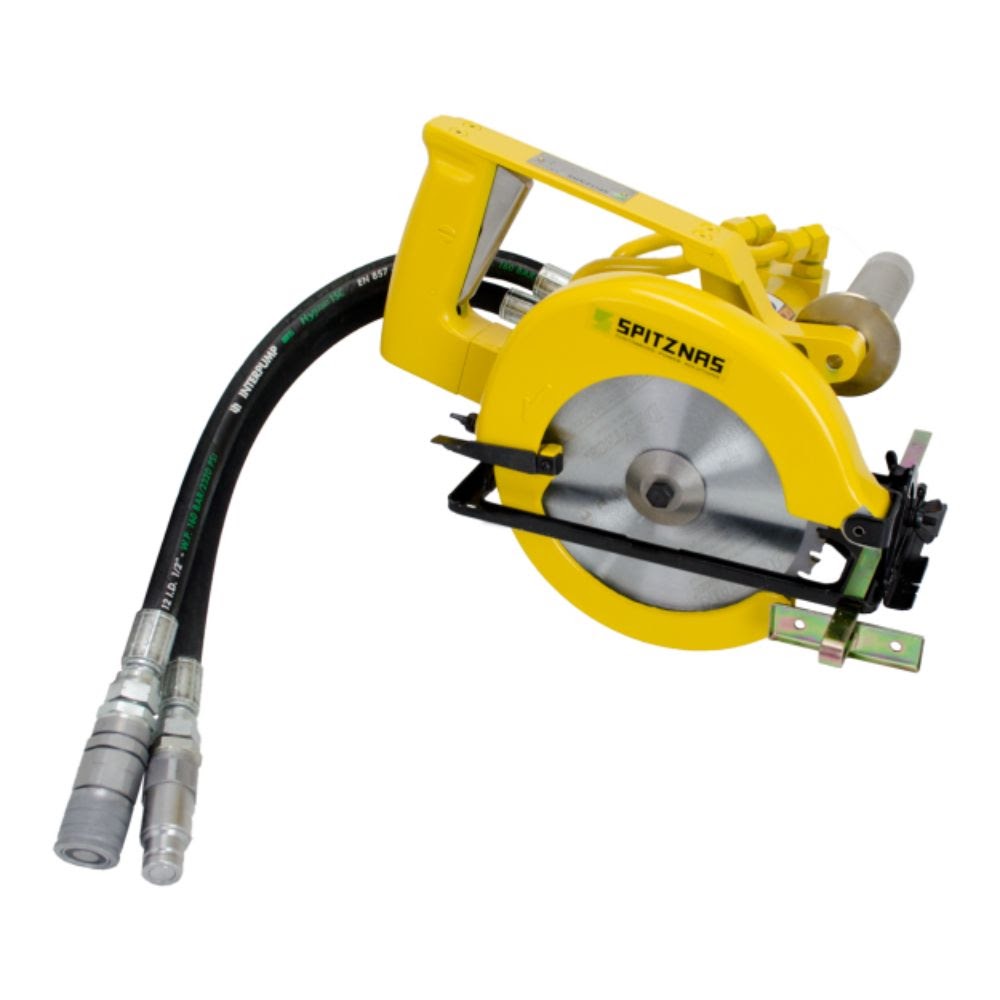

Spitznas CS Unitec 5 1128 0010 7-1/2" Hydraulic Circular Saw
Free Shipping
$4,992.34
$5,311.00
Unit price
/
Unavailable
Description
Description
CS Unitec 5 1128 0010 Description

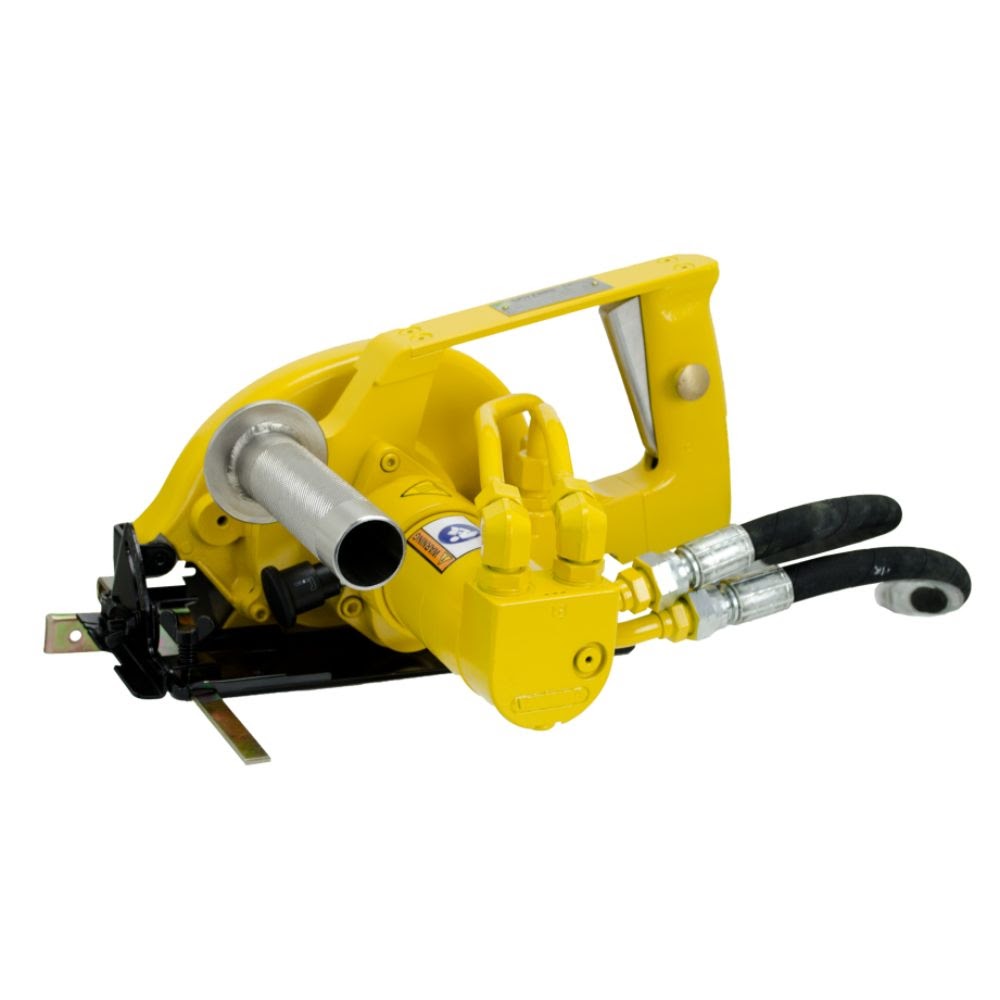

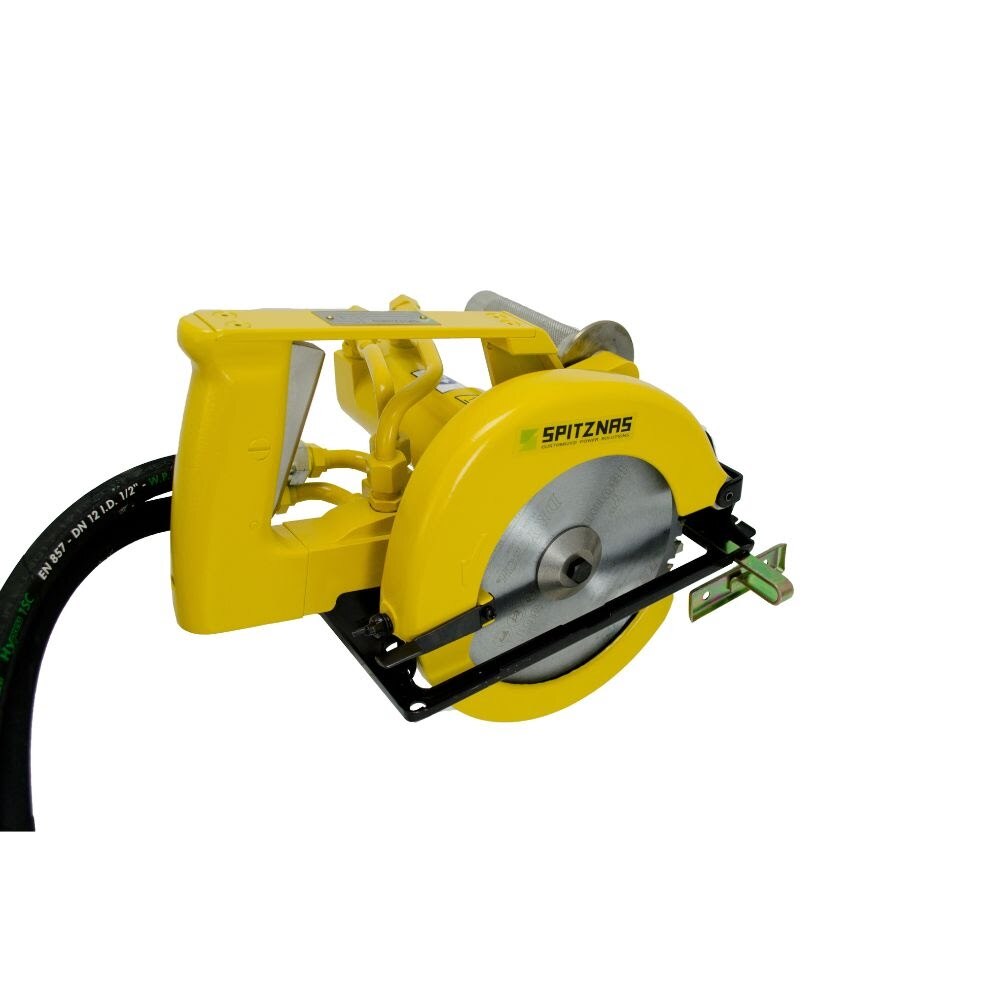

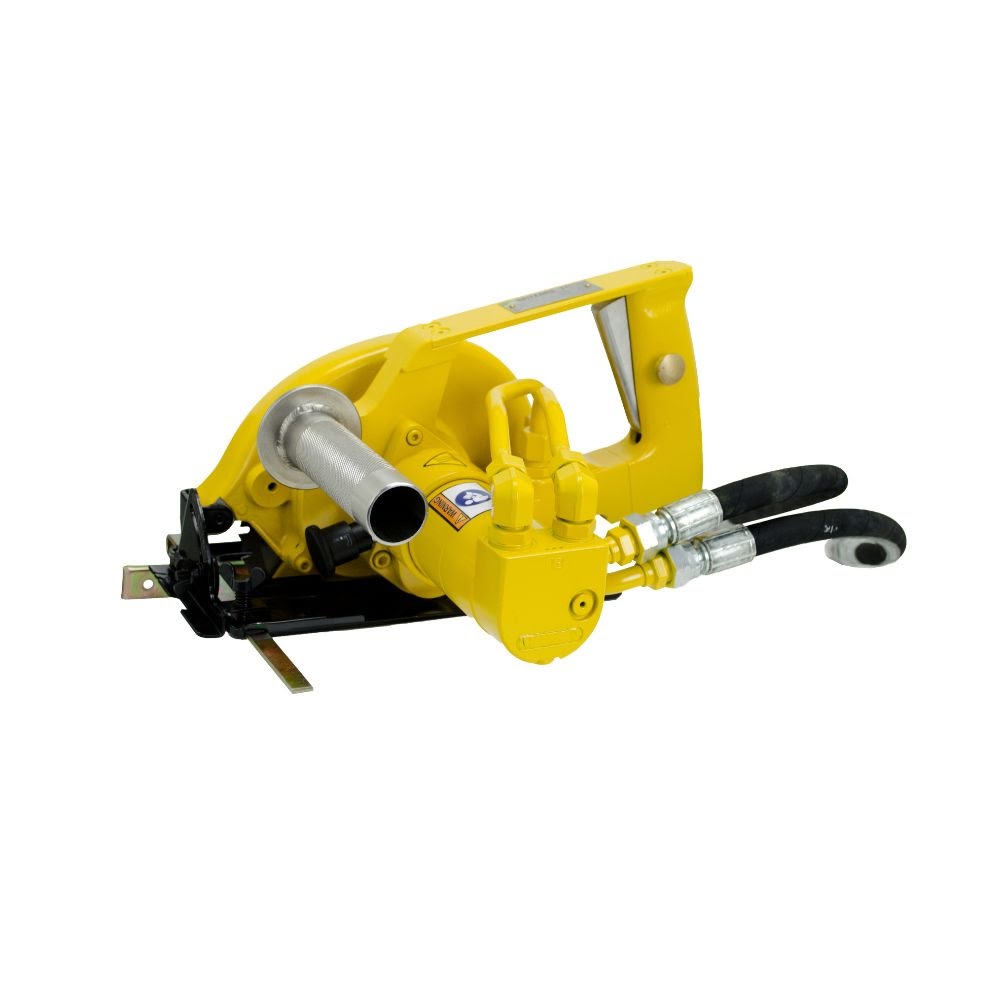

CS Unitec's 7-1/2" Diameter Hydraulic Circular Saw is an ATEX Certified saw that is made to be used in subsea or underwater environments. This heavy duty saw can cut up to 2-1/2" depth from 90 degrees and 1-1/2" depth from 45 degrees, and can be used for a wide range of applications. Made with a D-handle design, inside trigger, and safety lock button, this saw keeps the operators safety in mind.
CS Unitec 5 1128 0010 Includes
- (1) Saw

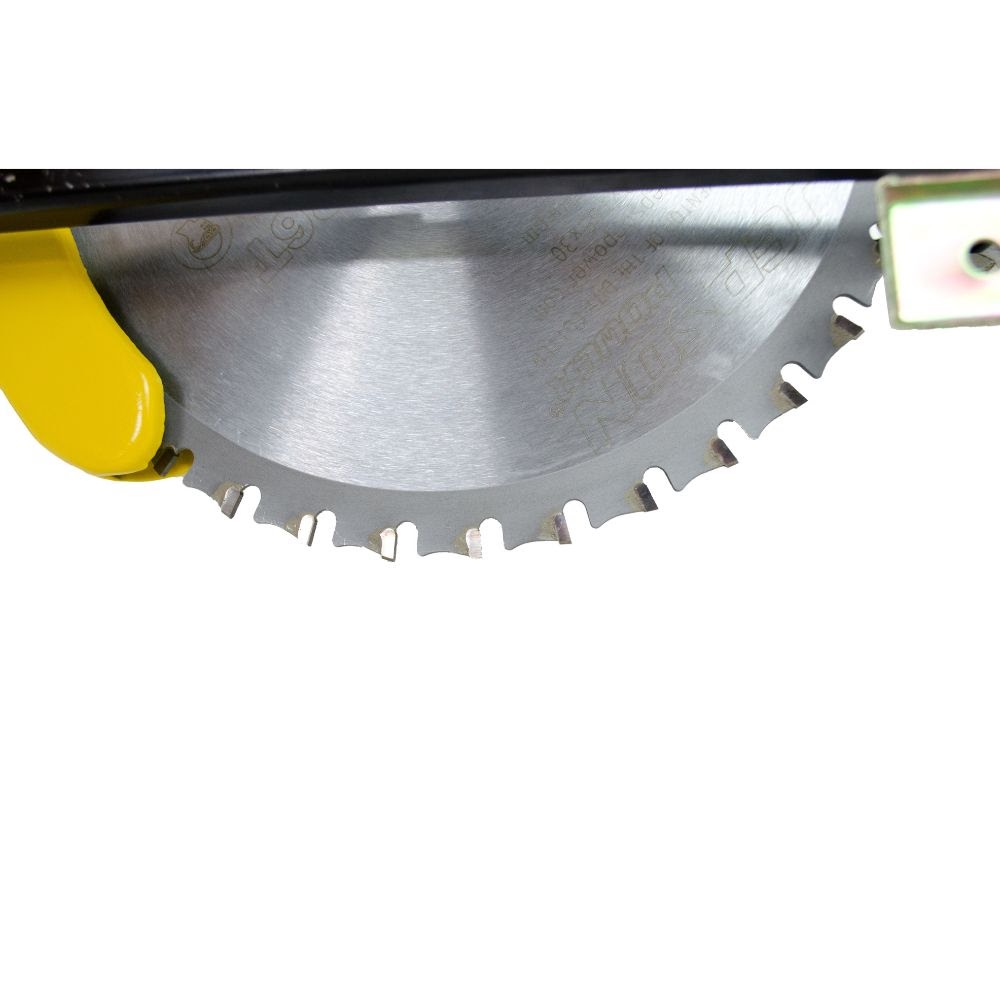

- (1) Carbide Tipped Blade 7"
CS Unitec 5 1128 0010 Features
- ATEX Certified
- Cut up to 2-1/2" at 90 degrees and 1-1/2" depth at 45 degrees

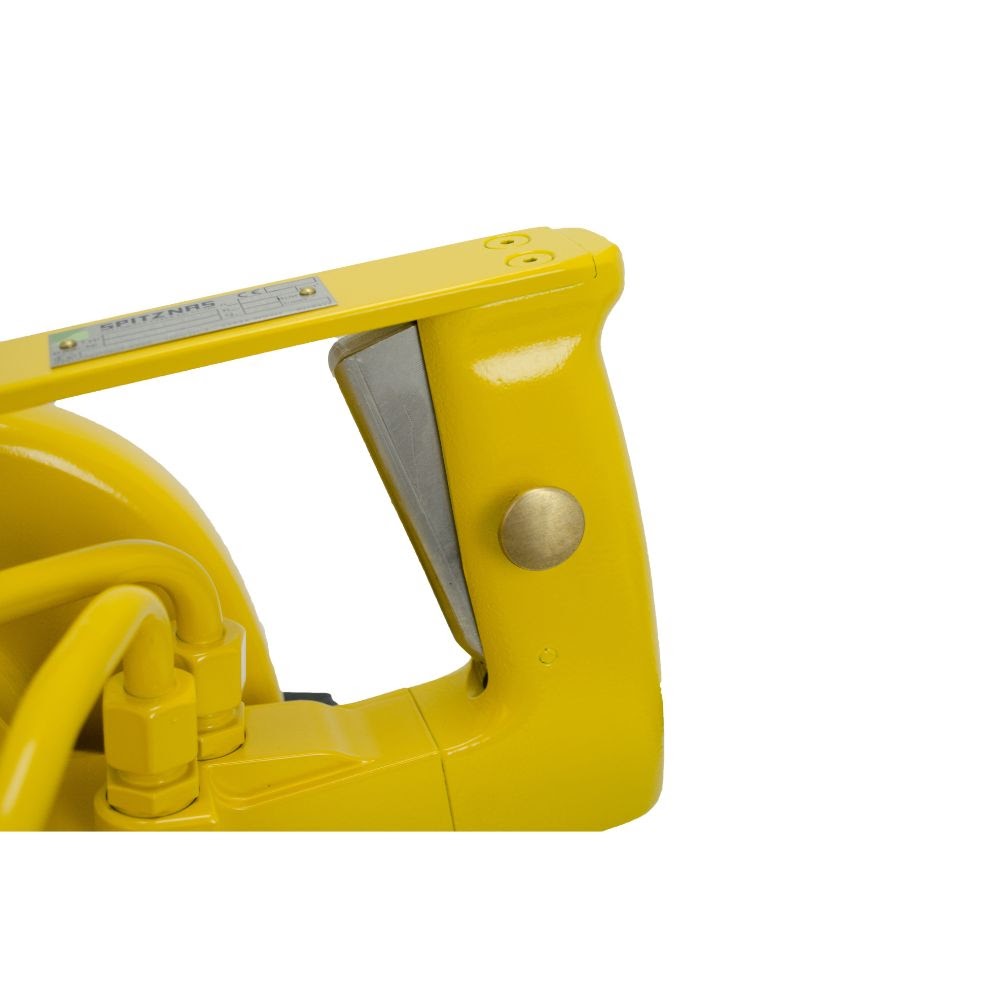

- D handle design
- Inside trigger with safety lock button
- For hazardous environments, petrochemical, marine, demolition applications
- `
CS Unitec 5 1128 0010 Specifications
| Motor Power: | 3.1 HP (2.3 kW) |
| Max Depth of Cut: | 2-1/2" at 90 degrees, 1-1/2" at 45 degrees |
| Blade Diameter: | 7-1/2" |
| Speed (Free): | 3200 RPM |
| Motor Specifications: | 5.25 GPM at 2000 PSI |

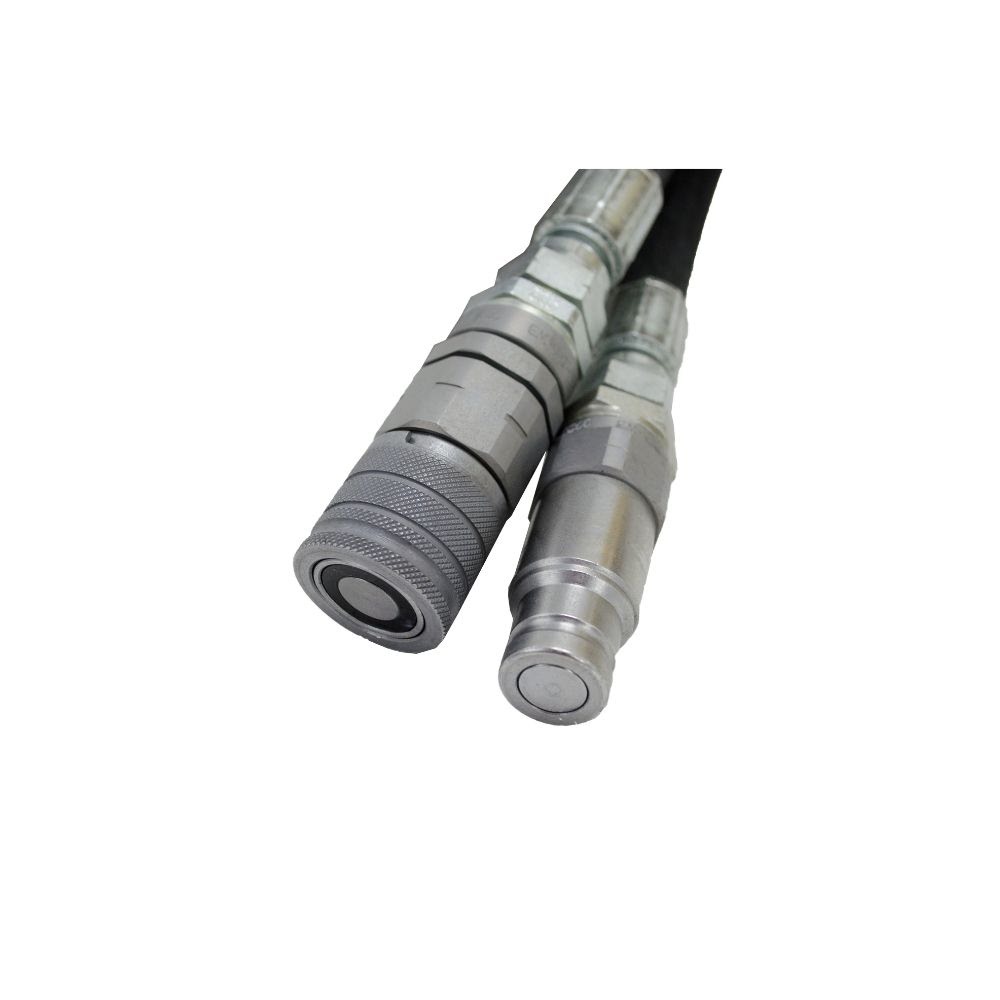

| Air Connection: | 1/2" FF (HTMA) |
| Vibration: | < 2.5 m/s^2 |
| Weight: | 22.5 lbs |
| ATEX EX Zone Certification: | II3GExhIIBT5Gc |
| Arbor size: | 5/8", 3/4", 1.2" (16, 19, 20, 30 mm) |
