Stabila 03421 Description
This professional 12 V green-beam multi-line laser kit delivers three 360 Degree lines and plumb points for precise layout and alignment work. The included RL230RG laser line receiver extends working range for outdoor use, while the rechargeable 2.0 Ah battery, charger, and mounting accessories support reliable jobsite performance.

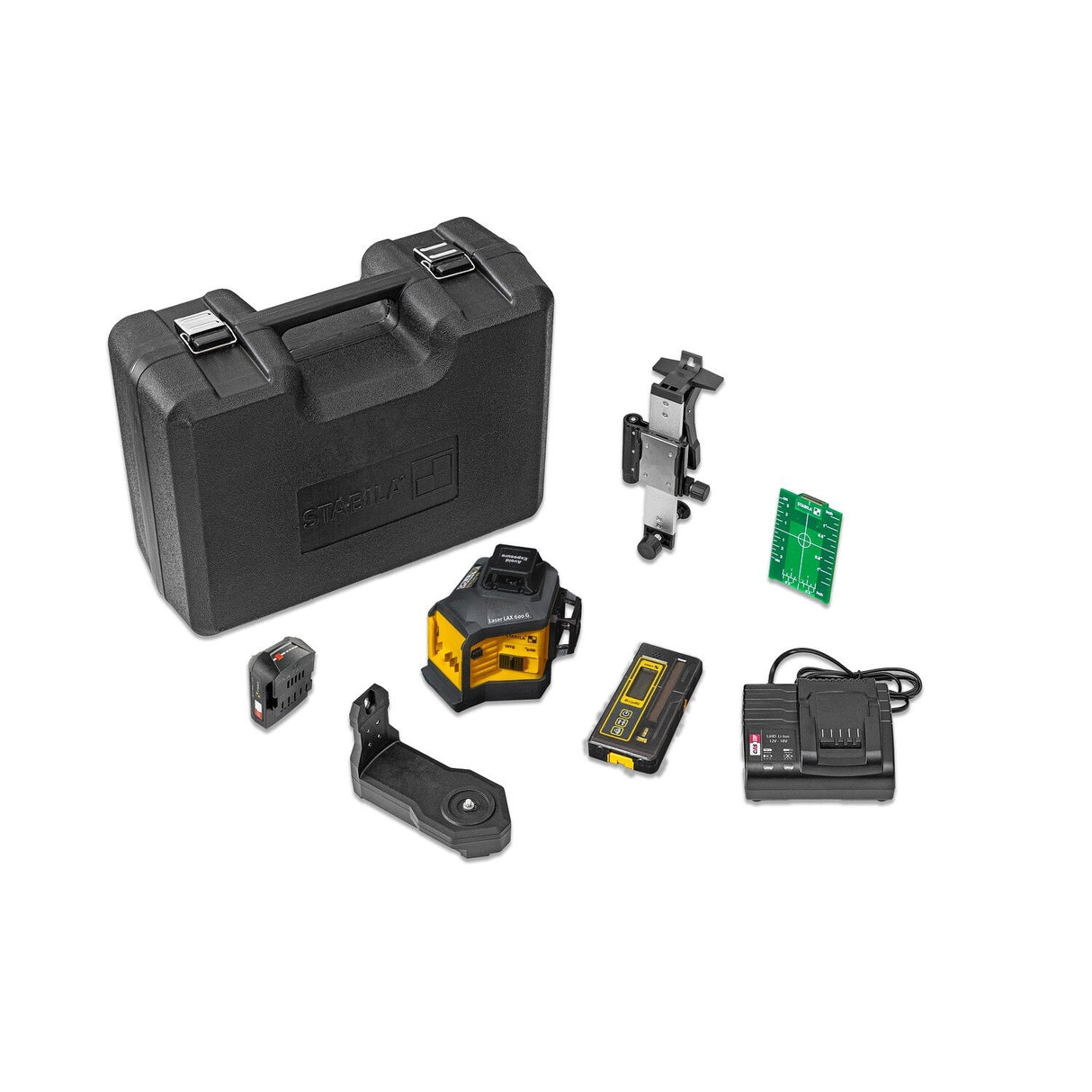

Stabila 03421 Includes
- (1) LAX 600 G Multi-Line Laser
- (1) CAS 12 V Li-Power 2.0 Ah Battery
- (1) SC 30 CAS US Charger
- (1) Base Adapter
- (1) Wall Bracket
- (1) Target Plate
- (1) Carrying Case
- (1) RL230RG Laser Line Receiver
Stabila 03421 Features
- Green 3 x 360 Degree lines for exact layout work
- Plumb points for precise transfer and alignment
- GREENBEAM technology provides visible lines up to 130 ft. indoors
- Works over 300 ft. outdoors with the included receiver
- Fast self-leveling with a rugged pendulum mechanism built for construction sites
- IP65 water- and dustproof construction for jobsite durability
- CAS 12 V Li-Power 2.0 Ah rechargeable battery delivers up to 15 hours of runtime
- Switchable pulse-modulated lines are compatible with line receivers
- Manual mode with pendulum lockout casts angled lines
- Pivoting mount includes rare earth magnets and 1/4 in. and 5/8 in. tripod mounts
- Adjustable wall mount with T-bar clamp
Stabila 03421 Specifications
| Laser Class | Class 2 |
| Laser Wavelength | 510 - 530 nm |
| Laser Output | < 1 mW |
| Self-Leveling Range | 4 Degree |
| Accuracy | 1/8 in. @ 30 ft. |
| Line Configuration | 3 x 360 Degree |
| Indoor Visibility Range | Up to 130 ft. |
| Outdoor Working Range with Receiver | Over 300 ft. |
| IP Rating | IP65 |
| Battery Voltage | 12 V |
| Battery Capacity | 2.0 Ah |
| Runtime | Up to 15 hours |
| Tripod Mounts | 1/4 in. and 5/8 in. |
| Product Length (in) | 17.5 |
| Product Width (in) | 8 |
| Product Height (in) | 13.5 |
| Shipping Weight (lbs) | 12.2 |
Toolup Part # :
885718
