Stabila 03520 Description
This Stabila LAX 500 G crossline and plumb point laser kit features GREENBEAM technology for bright, sharp laser lines with long visibility. It offers versatile layout capability with cross-lines, plumb points, and a manual mode with pendulum lockout for angled lines. Powered by a 12V 2.0Ah CAS rechargeable battery for up to 20 hours of operating time.

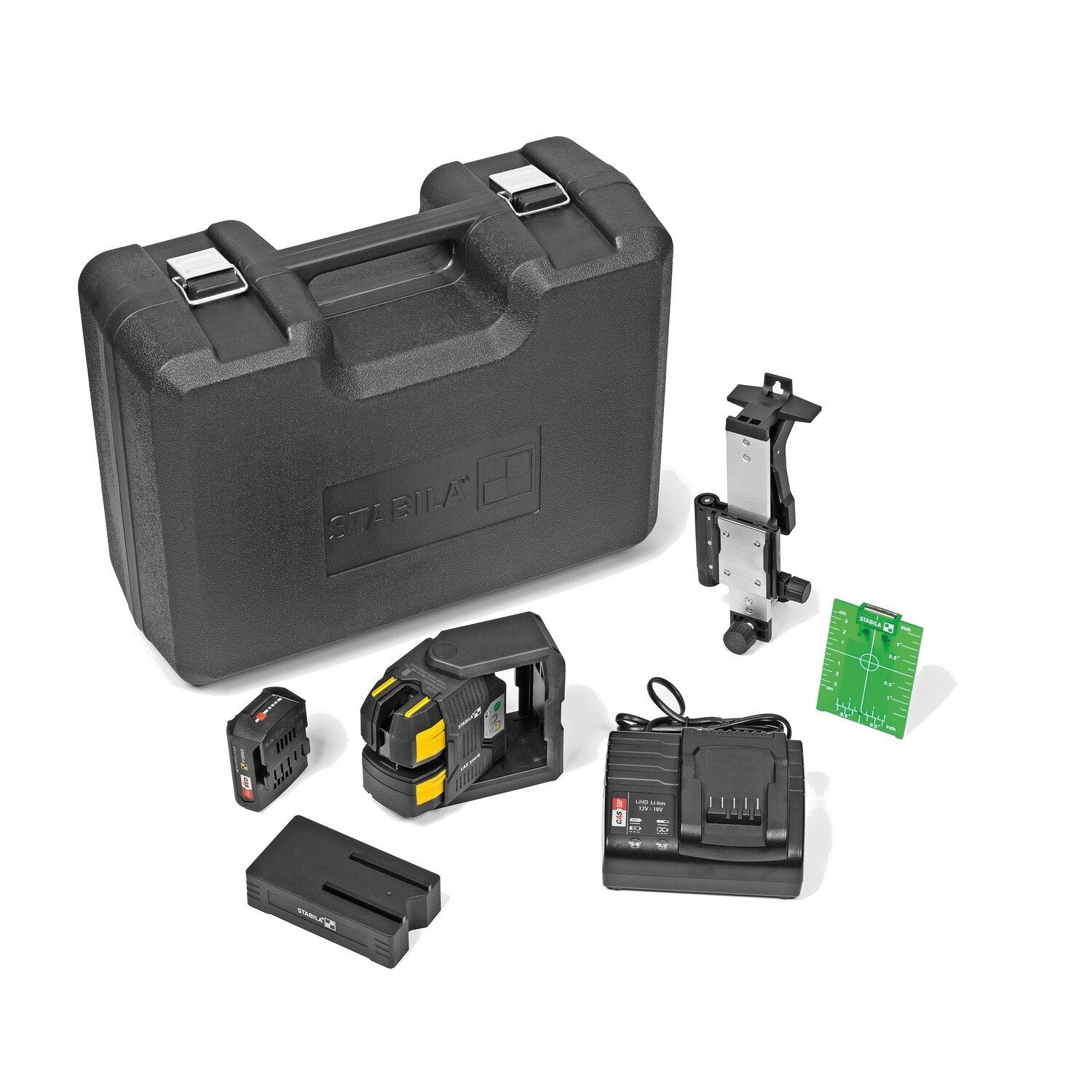

Stabila 03520 Includes
- (1) LAX500G Crossline and Plumb Point Laser
- (1) 12V CAS Battery
- (1) Battery Charger
- (1) Laser Target
- (1) Adjustable Wall Mount
- (1) Removable Framing Base
- (1) Carrying Case
Stabila 03520 Features
- Bright, sharp GREENBEAM laser lines for improved visibility
- Projects cross-lines plus plumb points for versatile layout work
- Switchable pulse-modulated lines for use with compatible line receivers
- Visible up to 130 ft indoors and up to 320 ft outdoors with optional receiver
- Manual mode with pendulum lockout for projecting angled lines
- Self-leveling with a 5 Degree leveling range
- Energy-saving laser diodes for up to 20 hours of operating time
- Built-in rare earth magnets for secure mounting
- Tool pivots within the housing for flexible positioning
- 1/4 in tripod mount for standard tripod compatibility
- Adjustable wall mount includes a T-bar clamp for alignment and setup
- Removable framing base helps align plumb beams from top to bottom plates
Stabila 03520 Specifications
| Laser Class | 2 |
| Laser Wavelength | 510 - 530 nm |
| Laser Output | < 1 mW |
| Self-Leveling Range | 5 Degree |
| Accuracy | 1/8 in @ 30 ft |
| Indoor Visibility Range | 130 ft |
| Outdoor Visibility Range (with optional receiver) | 320 ft |
| Tripod Mount | 1/4 in |
| Battery Voltage | 12V |
| Battery Capacity | 2.0 Ah |
| Operating Time | Up to 20 hours |
| Package Length | 17.5 in |
| Package Width | 8 in |
| Package Height | 13.5 in |
| Shipping Weight | 10.3 lb |
Toolup Part # :
879212
