Steelman Pro 60491 Description

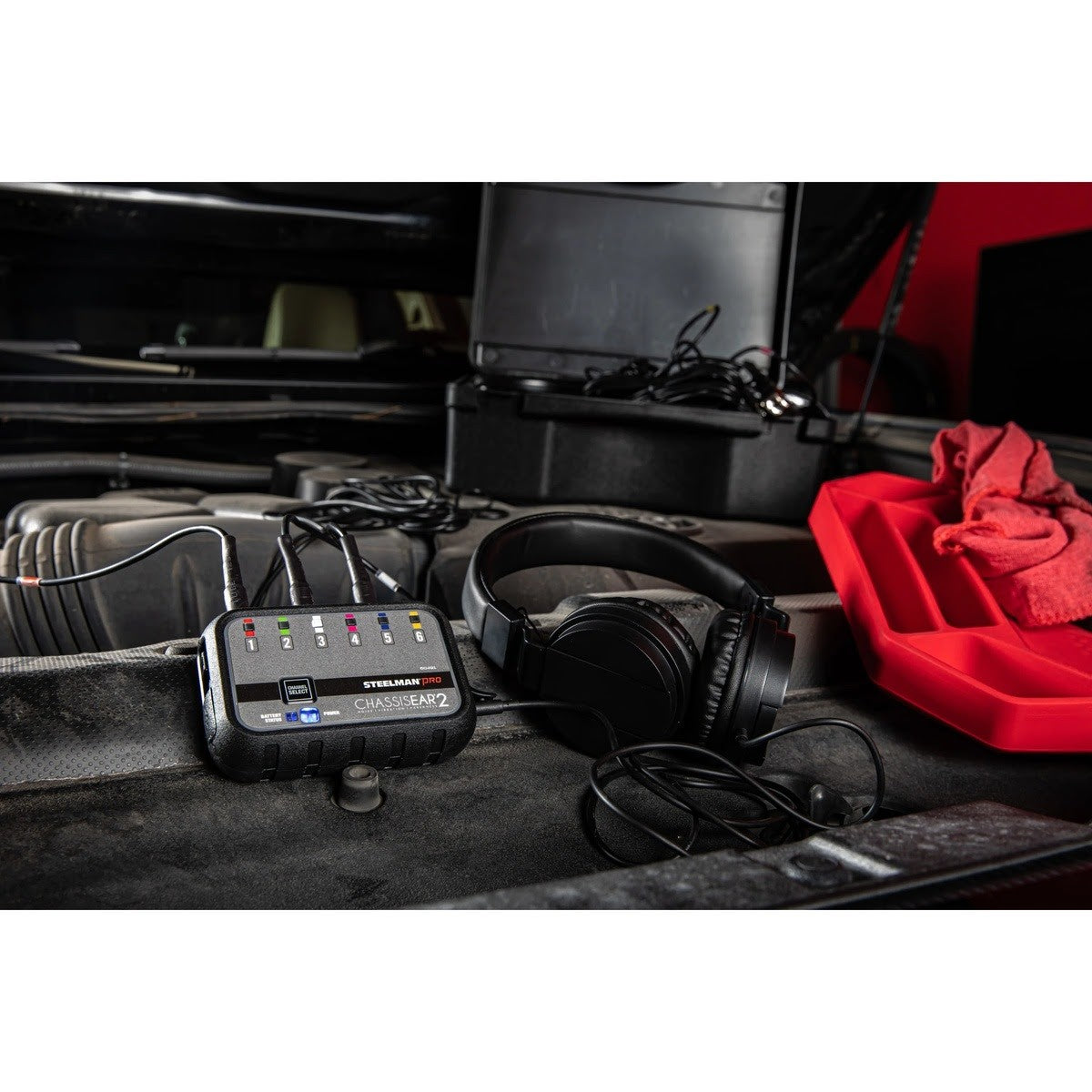

The Steelman Pro ChassisEAR 2 is an electronic noise and vibration diagnostic kit that amplifies problem sounds during road tests to help pinpoint squeaks, rattles, and other NVH issues. Use up to six color-coded microphone clamps and the digital control unit with over-ear headphones to isolate the exact source of hard-to-find automotive noises.

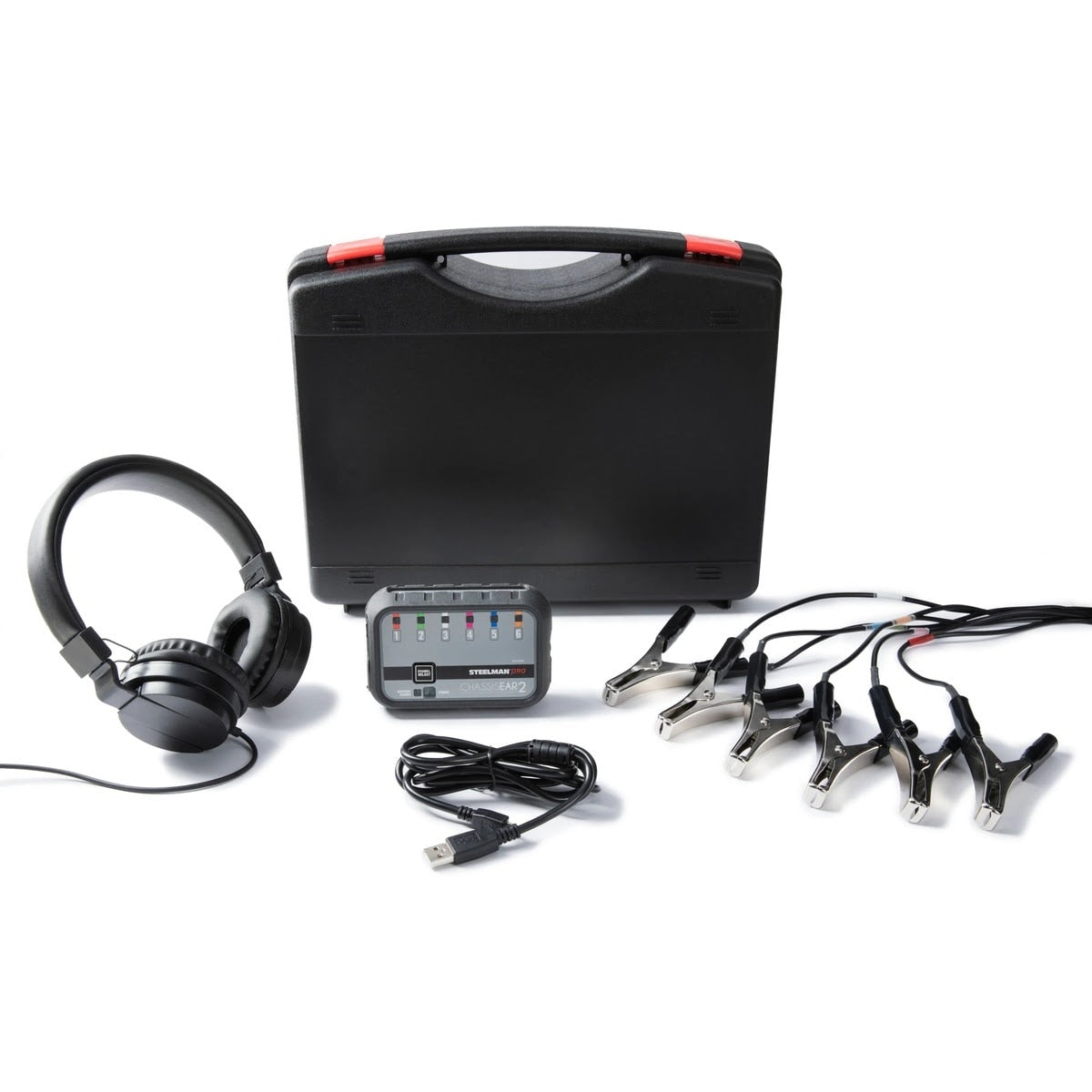

Steelman Pro 60491 Includes
- (1) ChassisEAR 2 Auto Diagnostic Noise Finder Kit (60491)

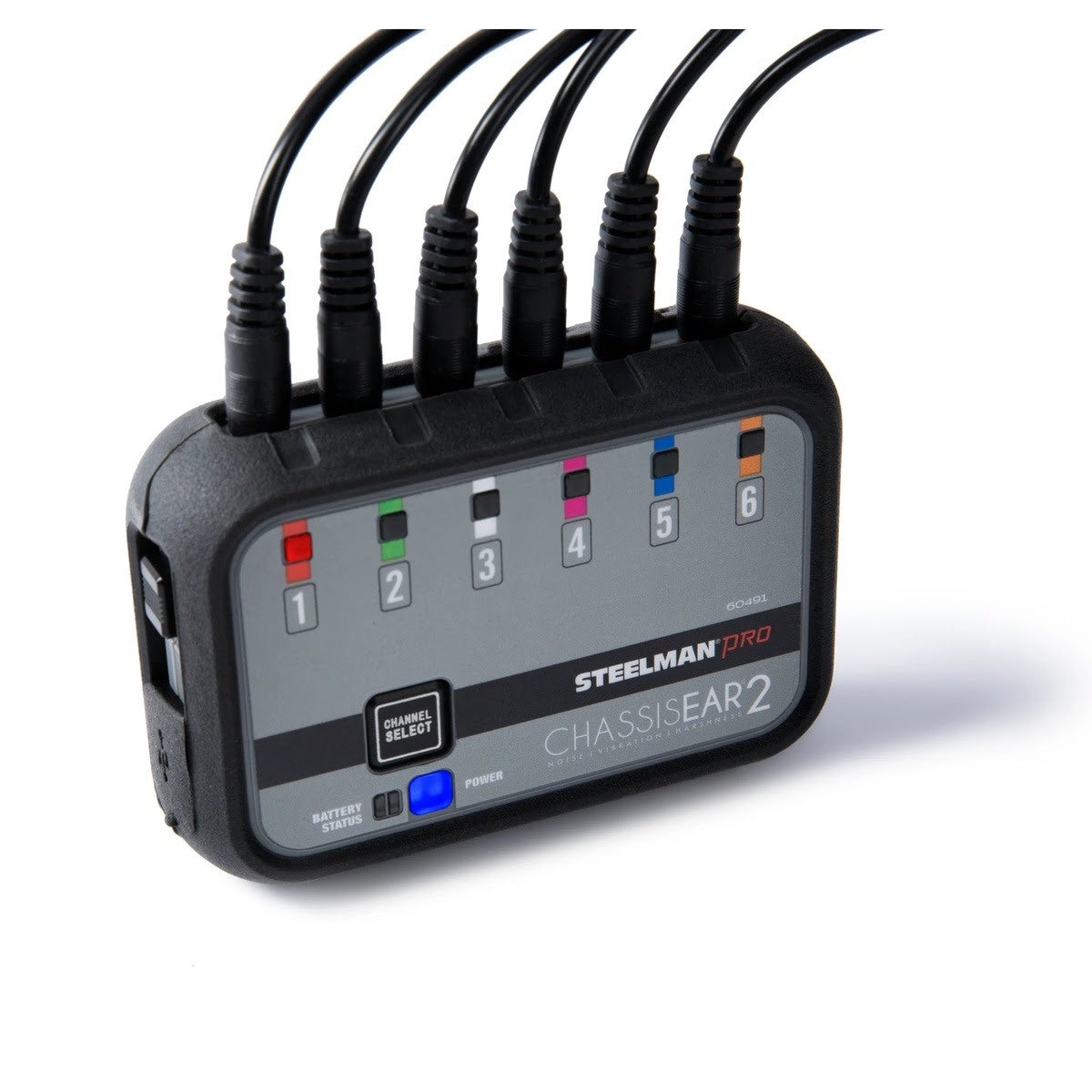

- (1) Digital control unit with rechargeable battery

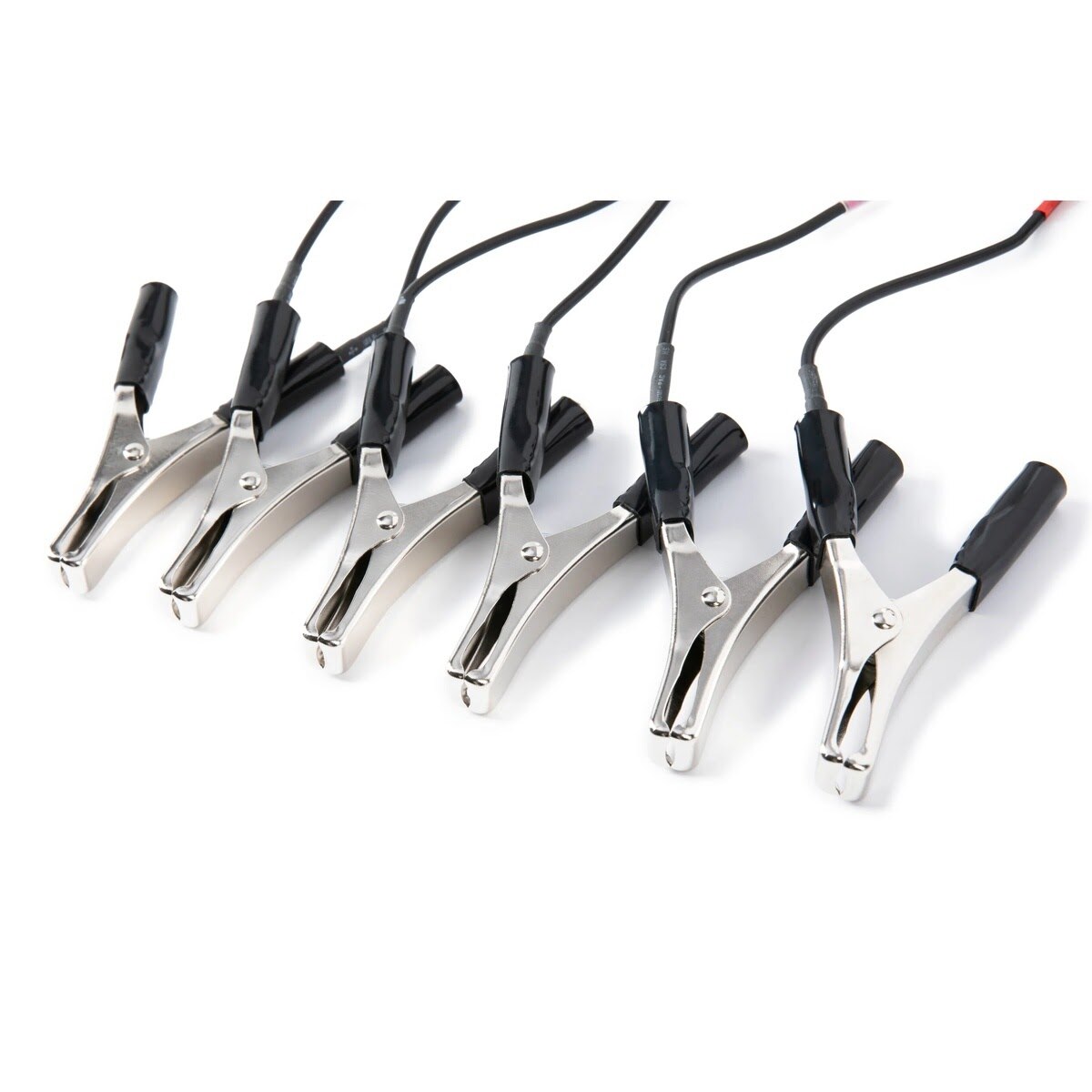

- (6) Piezoelectric microphone clamp sensors with 16 ft leads

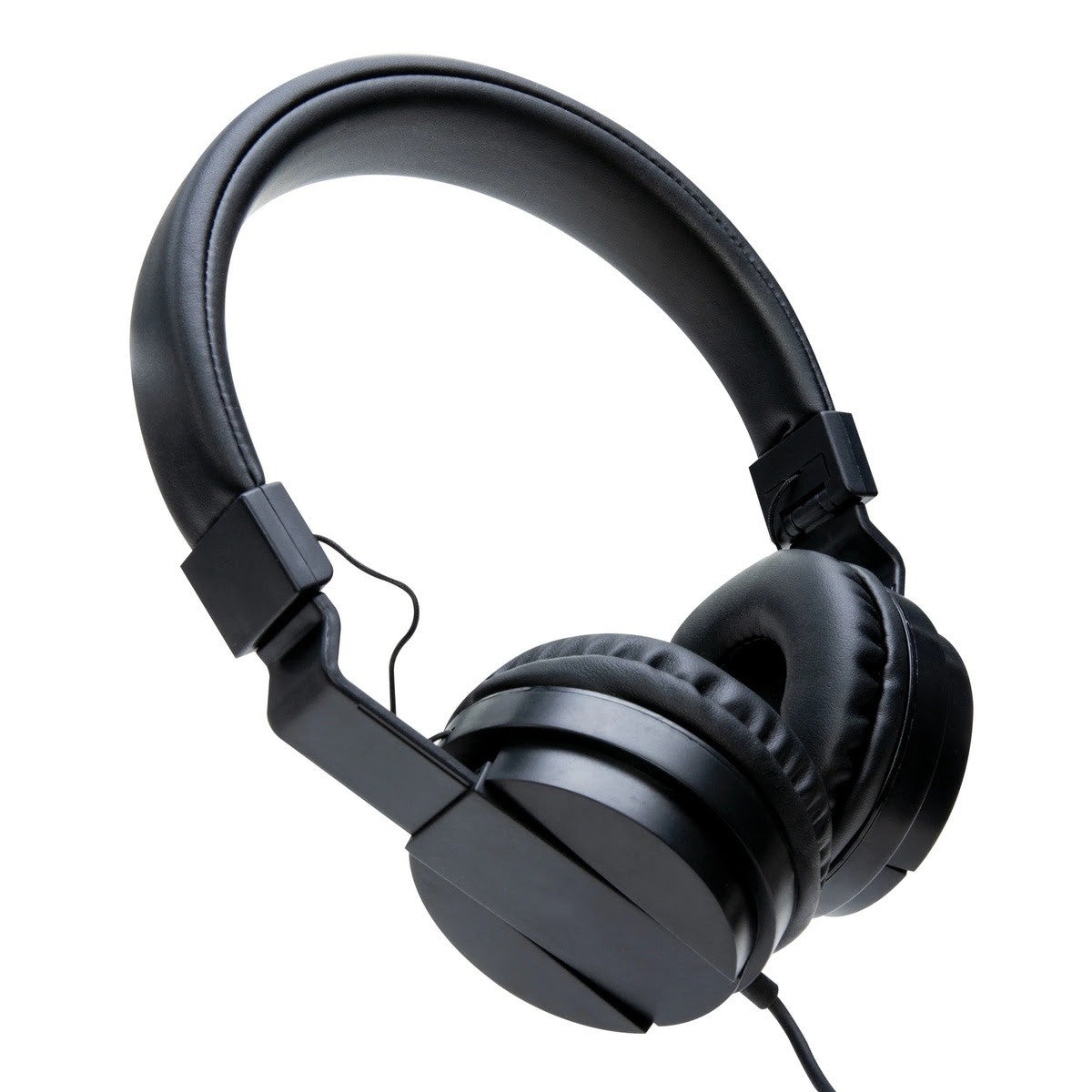

- (1) Over-ear headphones
- (1) USB to mini-USB charging cable
- (1) Dry erase pen
- (1) Set of nylon zip ties
- (1) Set of hook-and-loop tie down straps

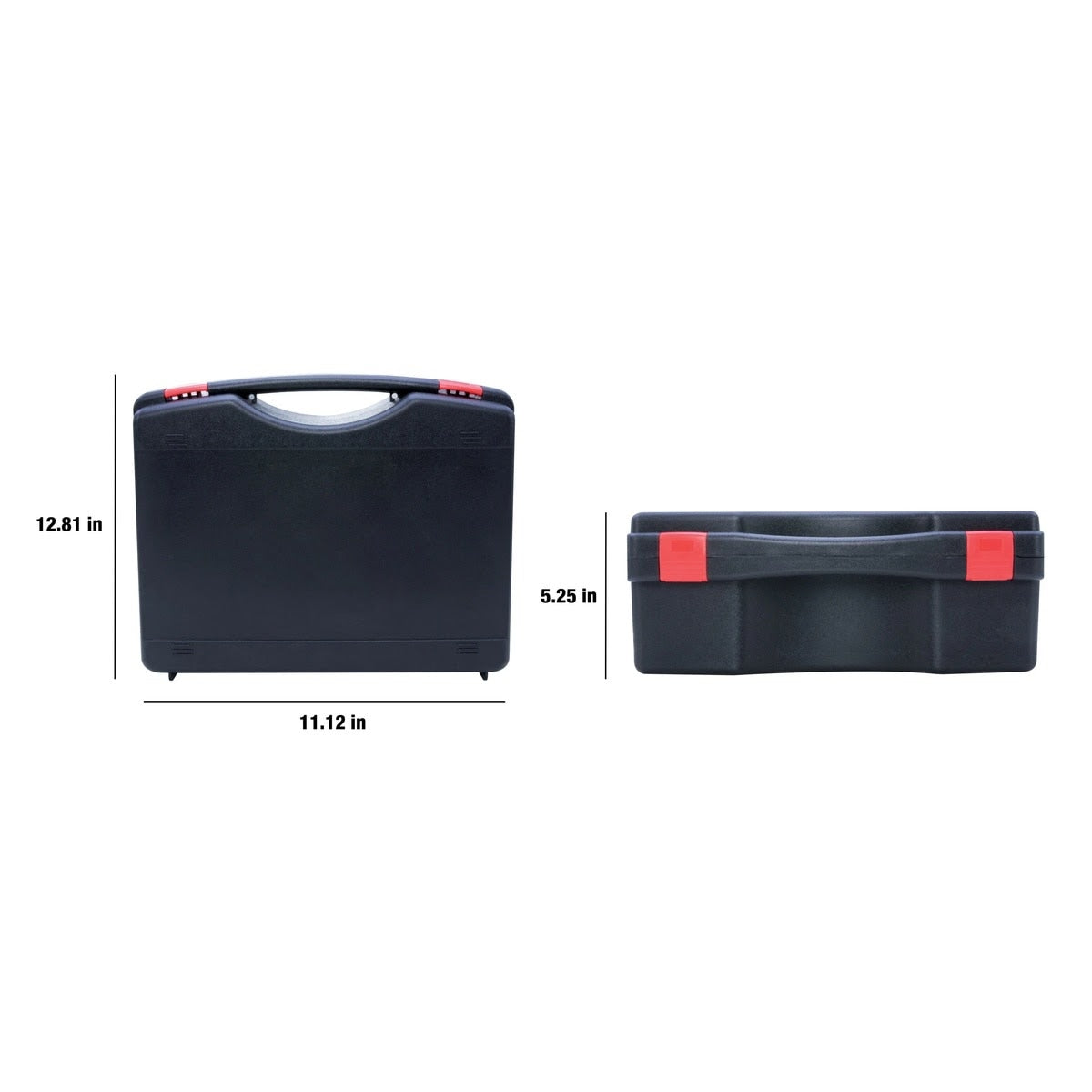

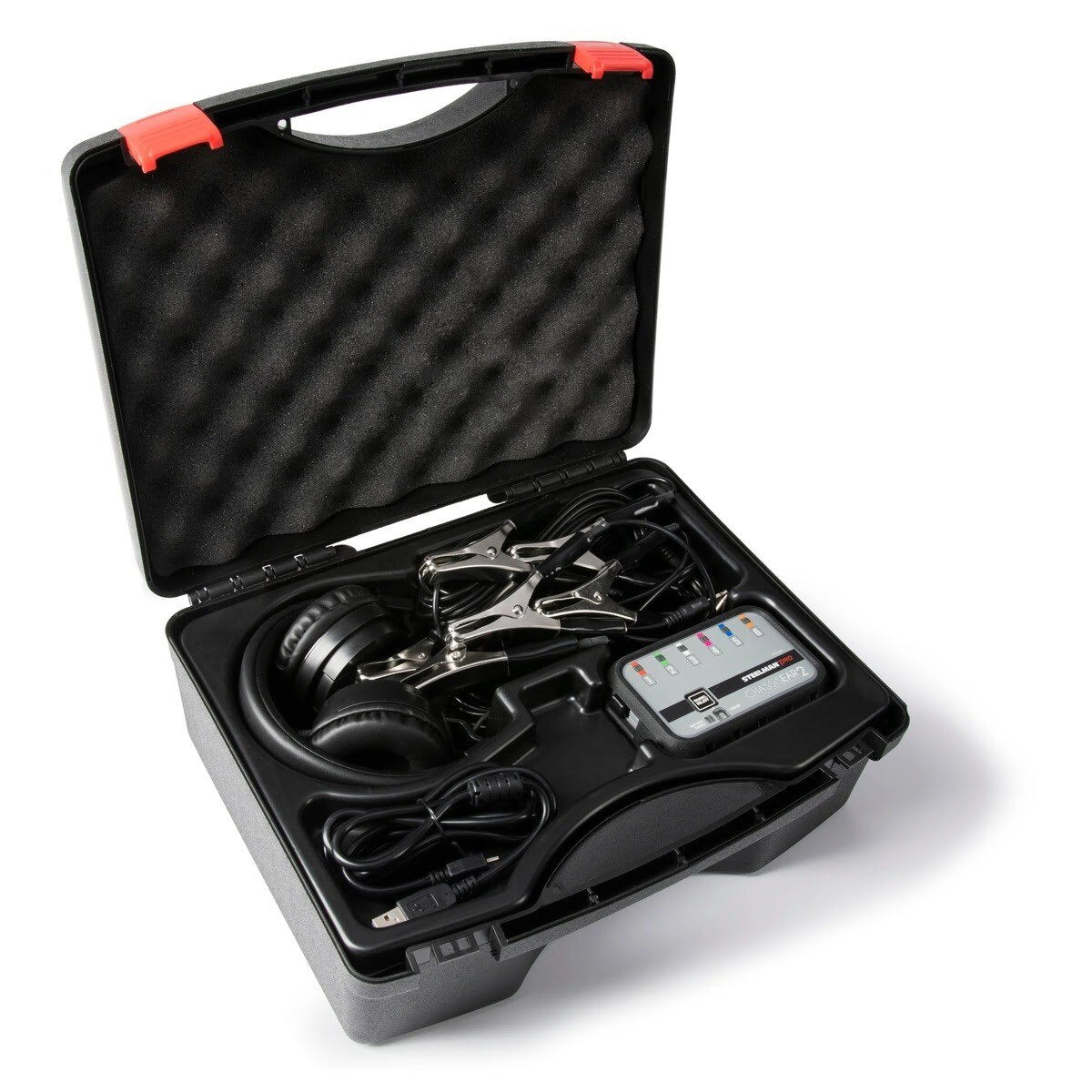

- (1) Blow-molded ABS storage case
Steelman Pro 60491 Features
- Electronic squeak and rattle finder designed for real-time diagnostics during road tests
- Includes six color-coded piezoelectric microphone clamp sensors to help pinpoint noise sources
- 16-foot sensor leads provide reach to access difficult vehicle locations
- Digital control unit supports listening through one or multiple sensor channels
- Built-in rechargeable battery powers up to 8 hours of continuous use per charge
- Full-coverage, professional-style over-ear headphones help block surrounding sound
- Dry-erase label area on the control unit for noting sensor locations during diagnosis
- Sensors clamp onto many automotive components including suspension, drivetrain, exhaust, and body hardware
Steelman Pro 60491 Specifications
| Brand | Steelman Pro |
| Model | ChassisEAR 2 Electronic Diagnostic Noise Vibration and Harshness Finder Kit |
| UPC | 099198604916 |
| Color | Black |
| Material | ABS, Steel, Rubber |
| Overall Dimensions | 12.81 in. L x 5.25 in. W x 11.12 in. H |
| Item Weight | 4.47 lb |
| Battery Chemistry | Lithium Polymer |
| Battery | Battery-embedded Device: Yes |
| Runtime | Up to 8 hours per charge |
| Number of Sensor Clamps | 6 |
| Sensor Lead Length | 16 ft |
| Warranty | 90 Day Limited Warranty |
| Country of Origin | China |
