Description
Description
Strong-Point HA1016CV Description

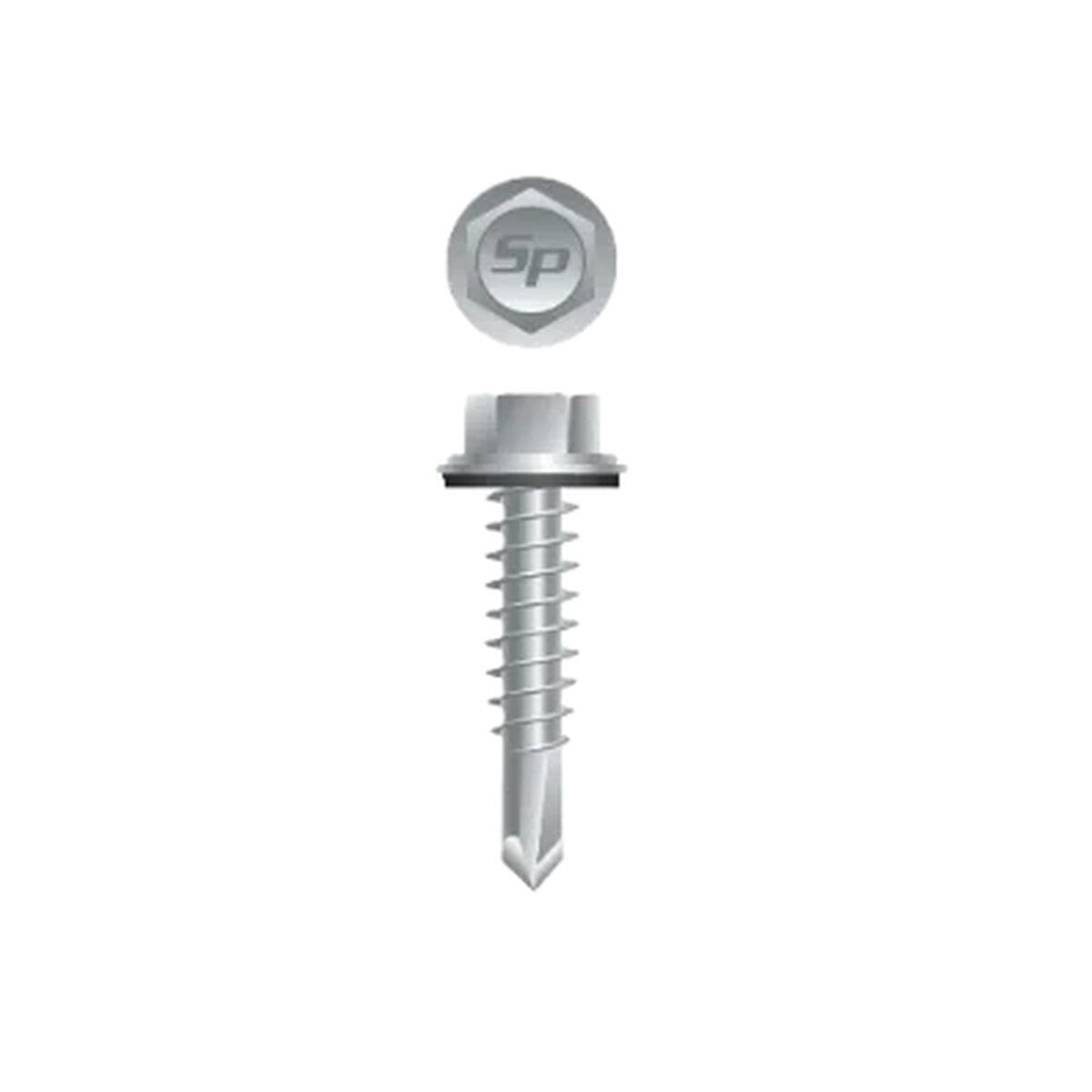

The Strong-Point HA1016CV is a 10 x 1 in. hex Tek 3 self-drilling screw with a bonded Neo washer and Strong Shield coating for metal-to-metal fastening. Packed in a 5 lb box of 500, it is built to provide secure installation, leak-resistant sealing, and strong corrosion protection for demanding outdoor and treated-lumber applications.
Strong-Point HA1016CV Includes
- (500) Hex Tek 3 screws with bonded Neo washers
Strong-Point HA1016CV Features
- Designed for metal-to-metal fastening applications
- #3 self-drilling point helps penetrate steel without separate pre-drilling in appropriate materials
- Bonded NEO-EPDM washer helps create a leak-resistant seal
- Unslotted indented hex washer head provides stable driving performance
- Strong Shield coating delivers high corrosion resistance
- Suitable for use with ACQ, pressure-treated, and fire-treated lumber
- Meets multiple industry performance and dimensional standards
Strong-Point HA1016CV Specifications
| Thread Diameter | #10 |
| Thread Pitch | 16 TPI |
| Length | 1 in. |
| Head Style | Unslotted Indented Hex Washer Head |
| Drive Style | Hex - Unslotted |
| Drive Size | 5/16 in. |
| Point Type | #3 Self-Drilling |
| Washer Type | Bonded NEO-EPDM Washer |
| Washer OD | 1/2 in. |
| Material | Steel |
| Finish | Strong Shield Coated |
| Application | Metal-to-metal |
| Drill Capacity | 0.035 - 0.176 in. |
| Recommended Drill Speed | 2500 RPM |
| Package Type | 5 lb box |
| Package Quantity | 500 |
| ICC-ES Evaluation Report | ESR-3528 |
| Compliance | ASTM C 1513, ASTM A 510, SAE J78, F.I.P.-1000.7, ASTM B 117 |
Toolup Part # :
856431
