Sumner 783250 Description

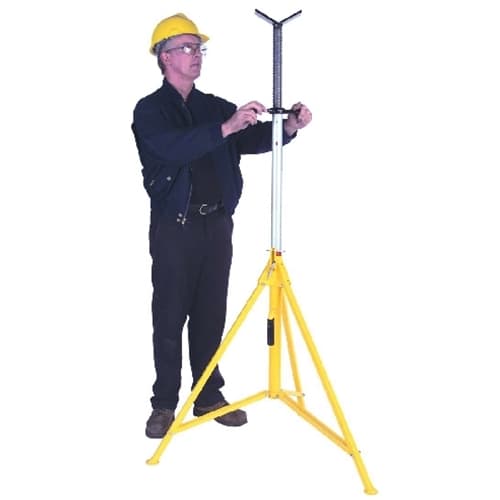

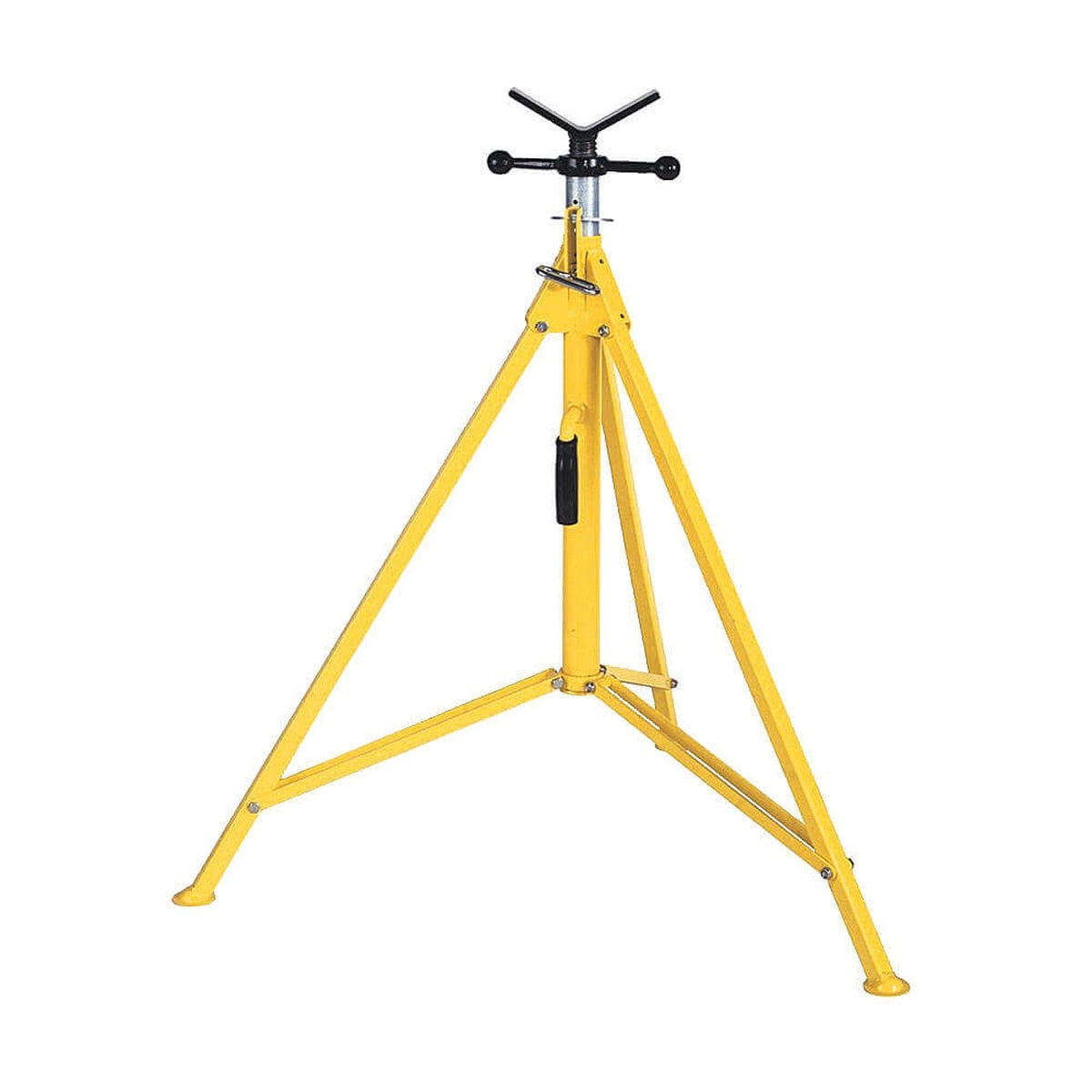

The Sumner Hi Boy Jack with Vee Head is a foldable pipe jack stand designed for pipe installation in tight areas. It supports up to 1,000 lb at 72 in and features quick height positioning with a lock washer and set screw for added safety during use and transport.
Sumner 783250 Includes
- (1) Hi Boy Jack with Vee Head Pipe Jack Stand
Sumner 783250 Features
- Holds up to 1,000 lb at 72 in
- Designed for pipe installation in tight areas
- Folds for easy transport
- Quick action lock washer for fast height positioning
- Patented Fall Guard feature provides a 1 in safety zone around the lock washer
- Large adjustment handle for convenient height changes
- Set screw provides a double margin of safety
- Set screw locks jack head to stand for transport to prevent loose pieces
- 1-1/2 in Acme fine adjustment thread
Sumner 783250 Specifications
| Load Capacity | 1000 lb |
| Rated Height | 72 in |
| Adjustment Thread | 1-1/2 in Acme fine adjustment thread |
| Shipping Weight | 41.7 lb |
Toolup Part # :
44006
