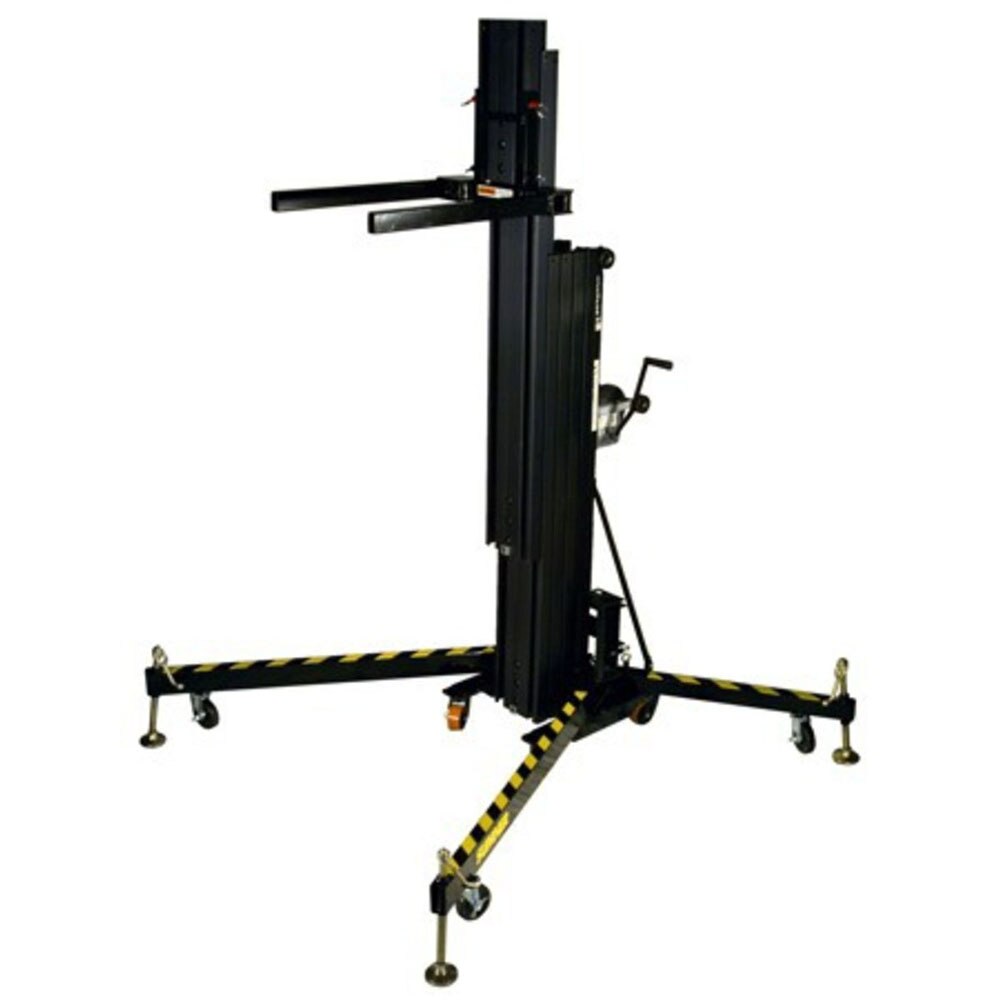

Sumner 783801 Description
The Sumner* Eventer™ black bodied lift series is specifically designed to meet the needs of theatrical and entertainment industries
Sumner 783801 Includes
- (1) Eventer Lift
Sumner 783801 Features
- Available accessories for lifting and support speakers, lights and other stage equipment
- Sumner* built winch with lifting capacities from 500-800 lbs.
- Compact design with quick assembly and breakdown
- Forks reverse to maximize lifting height
- Included leveling pads to ensure stability
- Black, anodized aluminum telescoping masts fade out on the stage
Sumner 783801 Specifications
| Height stowed: | 78" |
| Length stowed: | 27 1/4" |
| Width stowed: | 23" |
| Length operating: | 77 1/4" |
| Width operating: | 75" |
| Height - forks up: | 20' 7 3/4" |
| Height - forks down: | 18' 8 1/2" |
| Ground clearance: | 3 1/4" |
| Load height (minimum): | 8 1/2" |
| Load capacity (13" load center): | 800 lbs. |
| Lift weight: | 469 lbs |
| Fork width - minimum: | 16" |
| Fork width - maximum: | 25" |
| Fork length: | 28" |
| Fork weight: | 41 lbs |
| Winch rotation per foot: | 5 1/4 / ft. |
