At a Glance
Lift Height
13 ft
Lift Capacity
800 lb
Lift Type
Mast
Material
Galvanized Steel
Description
Description
Stabilizer Sold Separately

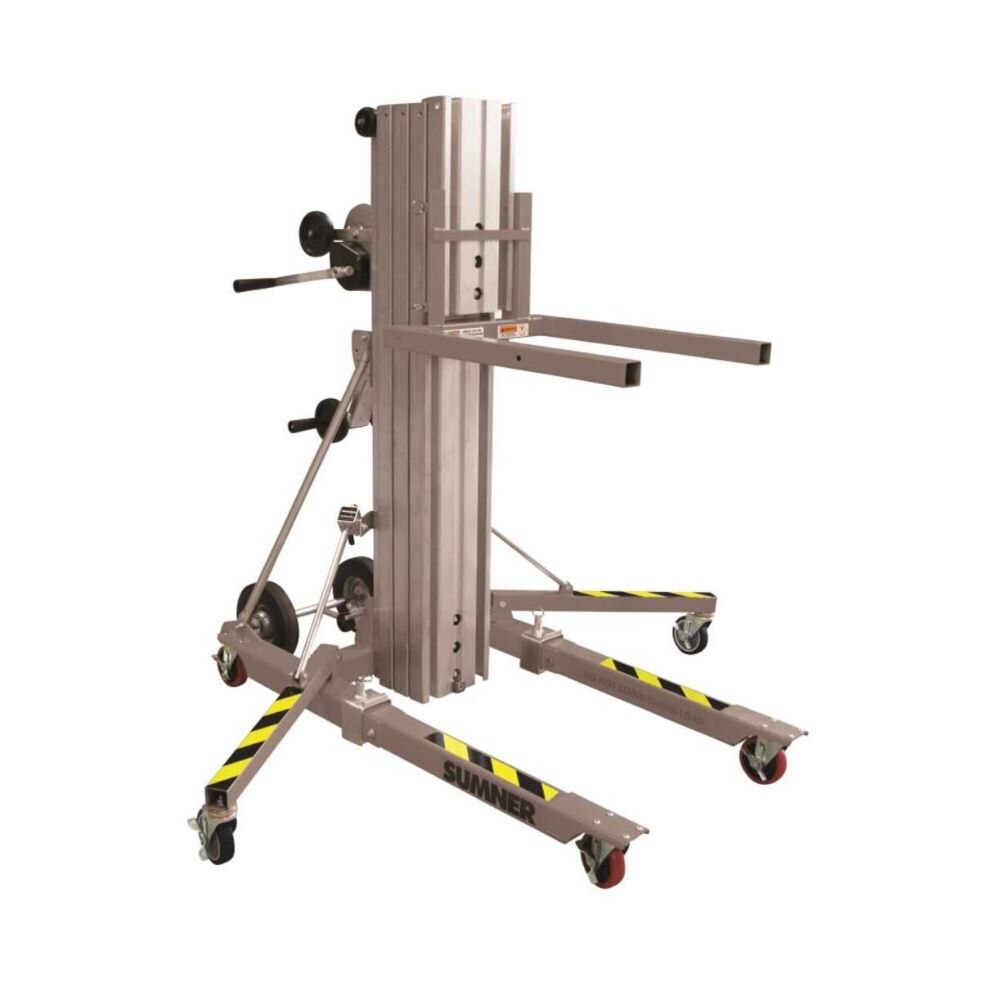

Sumner 784093 Description
2012 Short stack galvanized material lift. Max lift capacity: 800 lbs. Mast hold-down secures mast for safe transport. No tools required, no loose hardware. 12' 11" (3.9 m) extension height.
Sumner 784093 Includes
- (1) Material Lift

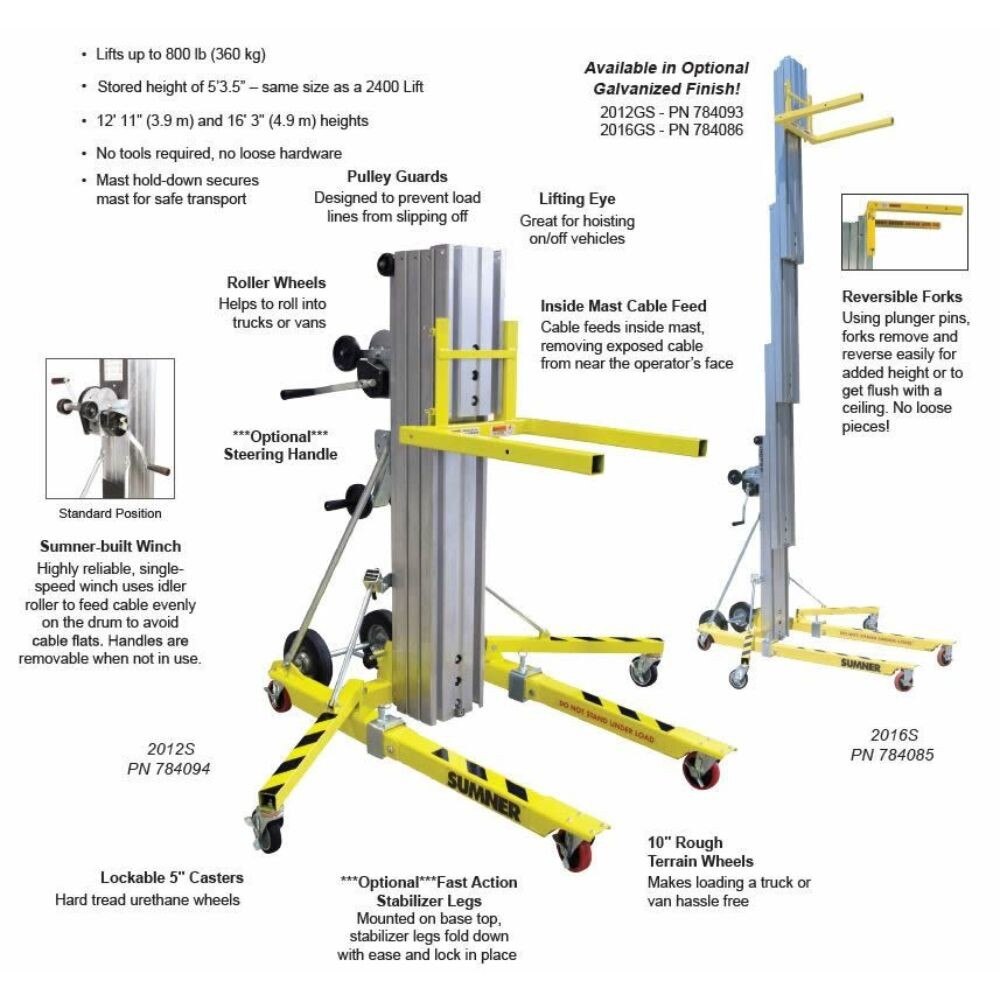

Sumner 784093 Features
- Designed for loads up to 800 lbs & fits easily through doorways
- Easily flown in using the integrated lifting eye
- Pulley Guard provides 360° of cable protection
- Forks reverse to maximize lifting height
- Plunger pins eliminate extra tools and loose parts
- Quickly breaks down for storage and transportation
- Load cable that feeds inside mast - No more exposed cable just inches away from operator's face
- Multiple accessories available
- Available in 2 models in powder coating or galvanized finish
Sumner 784093 Specifications
| Height - Stowed | 63.5" |
| Length - Stowed | 34" |
| Length Operating | 62" |
| Base Width | 31.25" |
| Width with Stabilizer Legs | 74.0" |
| Lifting Height | 12' |
| Ground Clearance | 2.5" |
| Load Height (Minimum) | 6.0" |
| Maximum Height (Forks Down) | 10' 11" |
| Max Height (Forks Up) | 12' 11" |
| Lifting Capacity | 800 lbs |
Toolup Part # :
720101
