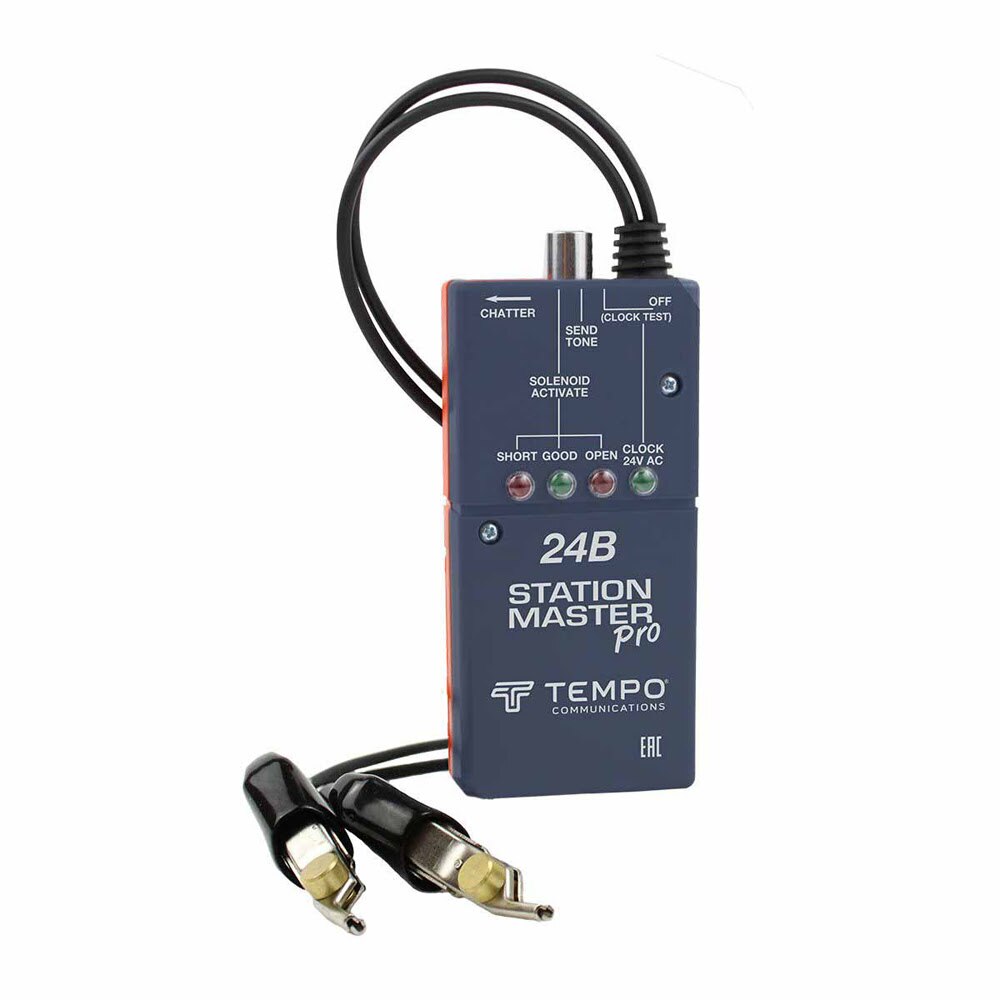

Tempo 24B Station Master Pro Irrigation System Troubleshooter

Greenlee 24B Specifications:
• Electrical:
• Minimum voltage for clock LED: 15 V AC (LED intensity increases as voltage increases)
• Minimum battery while testing: 10.5 V DC
• Maximum input voltage between test leads: 28 V AC
• Maximum distance range to activate one solenoid: 12 AWG Loop 3000-13000 ft.
(depending on battery condition) 14 AWG Loop 2000-8500 ft.
• 18 AWG Loop 500-3000 ft.
• Solenoid activate output voltage: 27 to 18 V AC
Power Source:
• Battery: 2 - 9V Alkaline batteries
Environment:
• Operating/storage temperature: 32°F to 122°F (0°C to 50°C)
• Relative humidity (max): 80%
Physical:
• Length: 5.56 in. (141mm)
• Width: 2.34 in. (59.5mm)
• Depth: 1.0 in. (25.5mm)
• Weight: 0.6 lbs. (0.27kg)

Greenlee 24B Features:
• Troubleshoot irrigation systems.
• Chatter mode for audible locating of valves.
• Activate any 24V AC valve solenoid.
• Test solenoids for continuity.
• Send tone to identify wires.
• Check clock AC voltage.
• Low battery indication.
• Easy-to-understand LEDs.
• Test leads with 'bed-of-nails' and piercing pin plips.
• Tracing valve wiring.
• Locates underground solenoids.
