Tempo  |  SKU: 52047486  |  Barcode: 783310499893

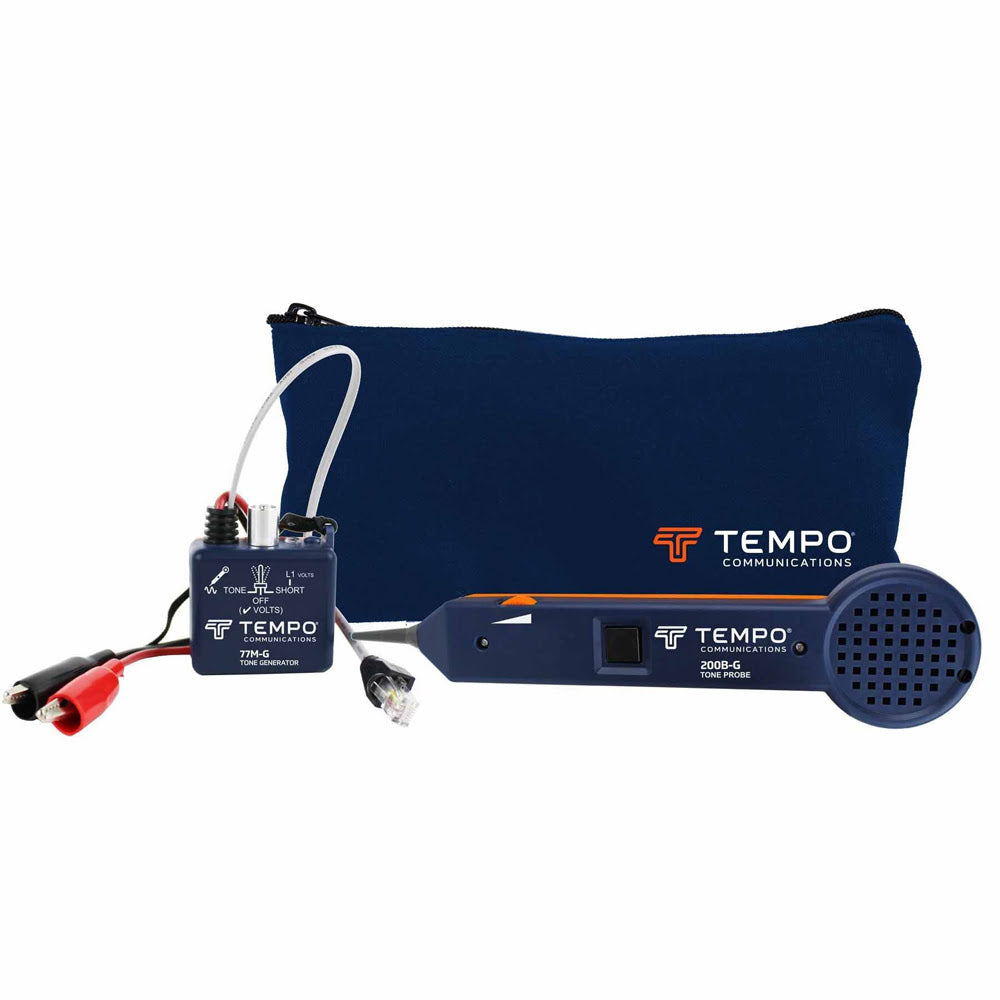

Tempo 601K-G Basic Tone Generator and Trace Probe Kit

$6.54 off
See Price In Cart

Description

Tempo 601K-G Features

  • Adjustable Volume Control
  • Replaceable Tip
  • Continuity & Polarity LED
  • External Warble Select
  • Short Circuit LED
  • Single Line Modular LED
  • Alligator Connector Clips

Tempo 601K-G Specifications

5 Digit UPC: 49989
Gain (nominal): 30 db
Input Impedance (nominal): 100 M
Plastic Tip Resistance: 300
Battery: 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61)
Battery Life (nominal): >50 hours
Length: 231 mm (9.0”)
Width: 55 mm (2.2”)
Depth: 28 mm (1.1”)
Weight: 145 g (5.2 oz)
Operating/Storage Temperature: 0° C to 50° C (32° F to 122° F)
Talk Battery (into 600?): 4.6 VDC
Output Power (into 600?): +10 dBm
Resistive Short Visual Indication: <10 k
Output Frequency (nominal) Alternating-890/960 Hz, Warbling-Slow: 1.3 Hz/Fast: 6 Hz
Voltage Protection (into 600?): 52 VDC
Battery: 9 VDC (NEDA 1604, JIS 006P, or IEC 6LF61)
Battery Life: >50 hours
Storage Temperature: -50° C to 75° C (-58° F to 167° F)
Operating Temperature: 0° C to 50° C (32° F to 122° F)
