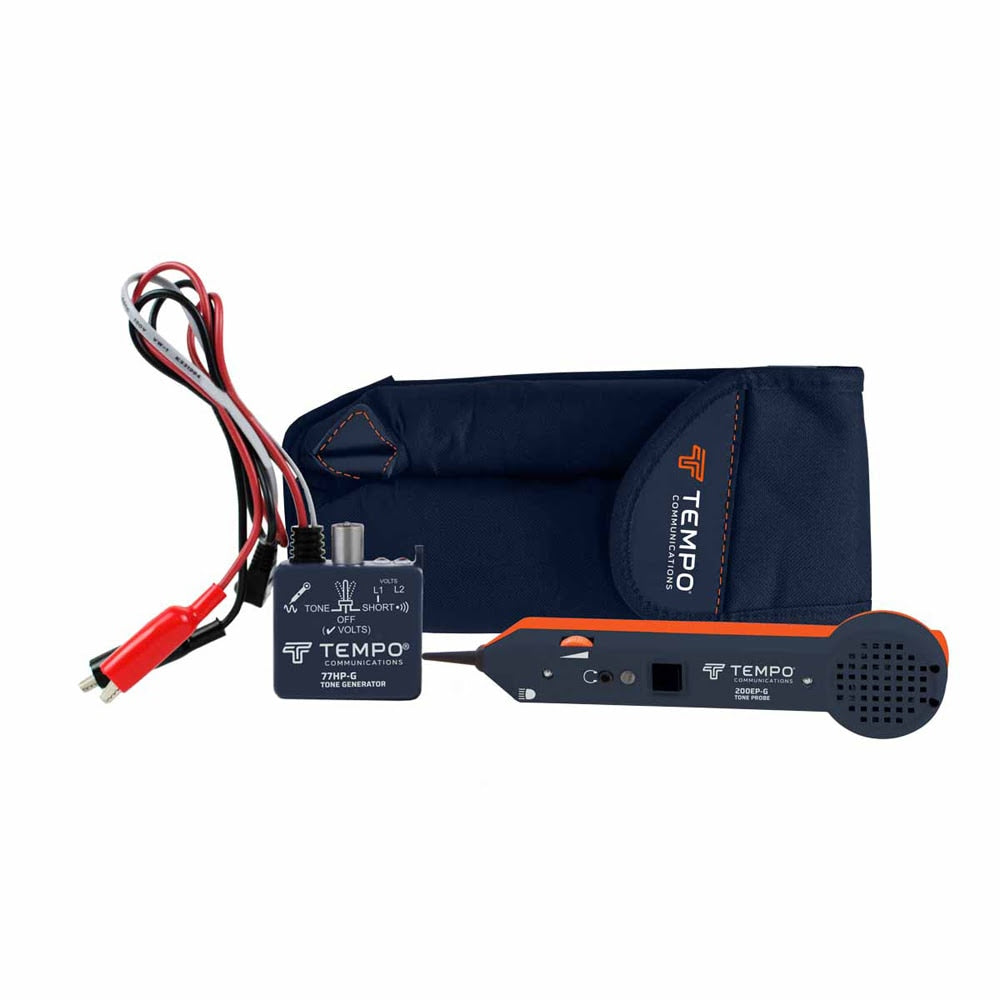

Tempo 701K-G Professional Tone & Probe Tracing Kit
$90.00
$121.14
Unit price
/
Unavailable
Description
Description
Tempo 701K-G Features
- Adjustable Volume Control
- Replaceable Tip
- LED Signal Indicator
- Test Telephone Port
- Headset Jack
- LED Flashlight
- Continuity & Polarity LED
- External Warble Select
- RJ11 & RJ45 Socket
- Lanyard
- Short Circuit LED/Beeper
- Single/Dual Line Modular LED
- Alligator/ABN Connector Clips
Tempo 701K-G Specifications
| 5 Digit UPC: | 49990 |
| Talk Battery (into 600?): | 4.6 VDC |
| Output Power (into 600?): | +10 dBm |
| Resistive Short Visual Indication: | <10k |
| Resistive Short Audio Indication: | <200 |
| Output Frequency (nominal) Alternating-890/960 Hz (Warbling Slow): | 1.3 Hz |
| Output Frequency (nominal) Alternating-890/960 Hz(Fast): | 6 Hz |
| Voltage Protection: | 150 VDC |
| Battery: | 9 VDC (NEDA 1604, JIS 006P, or IEC 6LF61) |
| Battery Life: | >50 hours |
| Height: | 57 mm (2.25”) |
| Width: | 64 mm (2.5”) |
| Depth: | 32 mm (1.25”) |
| Weight (max): | 128 g (4.5 oz.) |
| Operating Temperature: | 0° C to 50° C (32° F to 122° F) |
| Storage Temperature: | -50° C to 75° C (-58° F to 167° F) |
