Tempo | SKU:
50077961

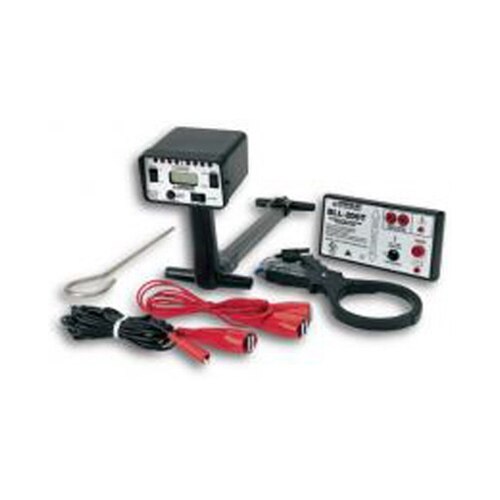

Tempo BLL-200 Buried Line Locator
Free Shipping
$2,432.19
$3,496.28
Unit price
/
Unavailable
Description
Description
Tempo BLL-200 Specifications:
TRANSMITTER:
•Operating Voltage - 0-600 VAC, 0-300 VDC
•Current - 13mA (open line), 150mA (live or shorted line)
•Frequency - 33.3kHz
•Operating Temperature - 0°F to 120°F (-17°C to 50°C)
•Size - 7.5" x 4" x 2.1" (190.5 mm x 101.6 mm x 53 mm)
•Power - 6 VDC (4 AA batteries)
RECEIVER:
•Depth Range Measures - 0-15 ft. ; Traces - 0-20 ft. ±(10% reading + 0.2 ft.)
•Depth Resolution - 0.1 ft. increments
•Passive Trace Frequency - 12Hz-24kHz
•Operating Temperature - 0°F to 120°F (-17°C to 50°C)
•Size - 4.1" x 8.5" x 38" (104.1 mm x 215.9 mm x 965.2 mm)
•Power - 6 VDC (4 AA batteries)
Tempo BLL-200 Features:
•LED and LCD signal strength indicators make it quick and easy to find exact line location.
•Lightweight and ergonomically balanced.
•Automatic signal boost makes it easy to trace lines, even those with very weak signals.
•Receiver may be used in active or passive mode.
•Receiver locates multiple passive frequencies with a single setting.
•Receiver automatically locks out passive range when it detects a transmitter signal, reducing the chance of tracing other lines carrying weaker signals.
•Microprocessor-based circuitry delivers increased accuracy and features auto-gain control in all environments.
•Traces 20' (6 m) underground and provides depth readings up to 15'.
•Transmitter can be connected to live lines up to 600V.
•Lifetime limited warranty.
•Molded carrying case included.
TRANSMITTER:
•Operating Voltage - 0-600 VAC, 0-300 VDC
•Current - 13mA (open line), 150mA (live or shorted line)
•Frequency - 33.3kHz
•Operating Temperature - 0°F to 120°F (-17°C to 50°C)
•Size - 7.5" x 4" x 2.1" (190.5 mm x 101.6 mm x 53 mm)
•Power - 6 VDC (4 AA batteries)
RECEIVER:
•Depth Range Measures - 0-15 ft. ; Traces - 0-20 ft. ±(10% reading + 0.2 ft.)
•Depth Resolution - 0.1 ft. increments
•Passive Trace Frequency - 12Hz-24kHz
•Operating Temperature - 0°F to 120°F (-17°C to 50°C)
•Size - 4.1" x 8.5" x 38" (104.1 mm x 215.9 mm x 965.2 mm)
•Power - 6 VDC (4 AA batteries)
Tempo BLL-200 Features:
•LED and LCD signal strength indicators make it quick and easy to find exact line location.
•Lightweight and ergonomically balanced.
•Automatic signal boost makes it easy to trace lines, even those with very weak signals.
•Receiver may be used in active or passive mode.
•Receiver locates multiple passive frequencies with a single setting.
•Receiver automatically locks out passive range when it detects a transmitter signal, reducing the chance of tracing other lines carrying weaker signals.
•Microprocessor-based circuitry delivers increased accuracy and features auto-gain control in all environments.
•Traces 20' (6 m) underground and provides depth readings up to 15'.
•Transmitter can be connected to live lines up to 600V.
•Lifetime limited warranty.
•Molded carrying case included.
