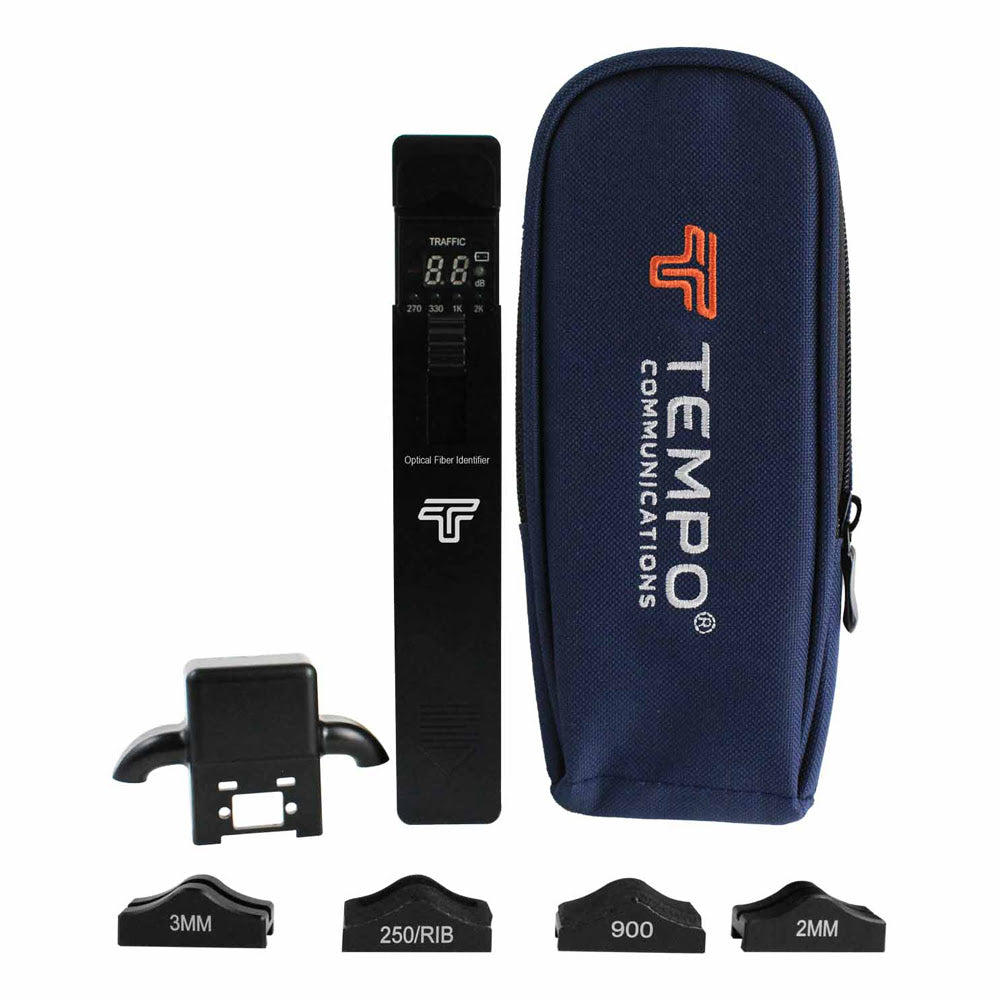

Tempo FI-100 KIT FL-100 Fiber Identifier Kit
Free Shipping
$1,403.19
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) FL-100
• (1) Fl-250UM Adapter
• (1) FL-100 900UM Adapter
• (1)FL-100 2MM Adapter
• (1) FL-100 3MM Adapter
• (1) Fl-100 Case
• (1) FL-100 Sunshade
FEATURES:
• Low Insertion Loss - Non-intrusive low insertion loss prevents alarm conditions
• Easy Operation - Identifies fiber with tone detect and a clear indication of signal transmission direction
• Versatile - Supports all common fibers including 250UM, 900UM, 2mm, and 3mm and is able to sense light in bend insensitive fibers.
SPECIFICATIONS:
• Identified Wavelength Range: 800-1700nm
• Identified Signal Type: 270Hz ±5%, 1kHz ±5%, 2kHz ±5%
• Detector Type: 1mm InGaAs
• Adapter Types: Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable), Ø2.0 (Applicable for Ø2.0 Cable), Ø3.0 (Applicable for Ø3.0 Cable)
• Signal Indication: Left & Right LED
• Signal Direction Test Range (CW/0.9mm fiber): -46 to 10dBm (1310nm), -50 to 10dBm (1550nm),
• Signal Power Test Range (CW/0.9mm fiber): -50 to +10dBm
• Signal Frequency Display: 270Hz, 1kHz, 2kHz
• Tone Detect Test Range (Average): Ø0.9, Ø2.0, Ø3.0; -30 to 0dBm, (270Hz, 1kHz), -25 to 0dBm (2kHz), Ø0.25: -25 to 0dBm (1kHz, 2kHz), -20 to 0dBm (2kHz) Insertion Loss (Typical/ Maximum), 0.3 / 0.8dB at 1310nm, 1.5 / 2.5dB at 1550nm, Battery AAA Alkaline (2), Operating Temperature -10 to +60ºC, Storage Temperature -25 to +70ºC, Dimension 196 X 30.5 X 27mm, Weight 195g, Certifications CE, FCC, WEEE
• (1) FL-100
• (1) Fl-250UM Adapter
• (1) FL-100 900UM Adapter
• (1)FL-100 2MM Adapter
• (1) FL-100 3MM Adapter
• (1) Fl-100 Case
• (1) FL-100 Sunshade
FEATURES:
• Low Insertion Loss - Non-intrusive low insertion loss prevents alarm conditions
• Easy Operation - Identifies fiber with tone detect and a clear indication of signal transmission direction
• Versatile - Supports all common fibers including 250UM, 900UM, 2mm, and 3mm and is able to sense light in bend insensitive fibers.
SPECIFICATIONS:
• Identified Wavelength Range: 800-1700nm
• Identified Signal Type: 270Hz ±5%, 1kHz ±5%, 2kHz ±5%
• Detector Type: 1mm InGaAs
• Adapter Types: Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable), Ø2.0 (Applicable for Ø2.0 Cable), Ø3.0 (Applicable for Ø3.0 Cable)
• Signal Indication: Left & Right LED
• Signal Direction Test Range (CW/0.9mm fiber): -46 to 10dBm (1310nm), -50 to 10dBm (1550nm),
• Signal Power Test Range (CW/0.9mm fiber): -50 to +10dBm
• Signal Frequency Display: 270Hz, 1kHz, 2kHz
• Tone Detect Test Range (Average): Ø0.9, Ø2.0, Ø3.0; -30 to 0dBm, (270Hz, 1kHz), -25 to 0dBm (2kHz), Ø0.25: -25 to 0dBm (1kHz, 2kHz), -20 to 0dBm (2kHz) Insertion Loss (Typical/ Maximum), 0.3 / 0.8dB at 1310nm, 1.5 / 2.5dB at 1550nm, Battery AAA Alkaline (2), Operating Temperature -10 to +60ºC, Storage Temperature -25 to +70ºC, Dimension 196 X 30.5 X 27mm, Weight 195g, Certifications CE, FCC, WEEE
