Tempo FIP100 Kit - SC/APC Description

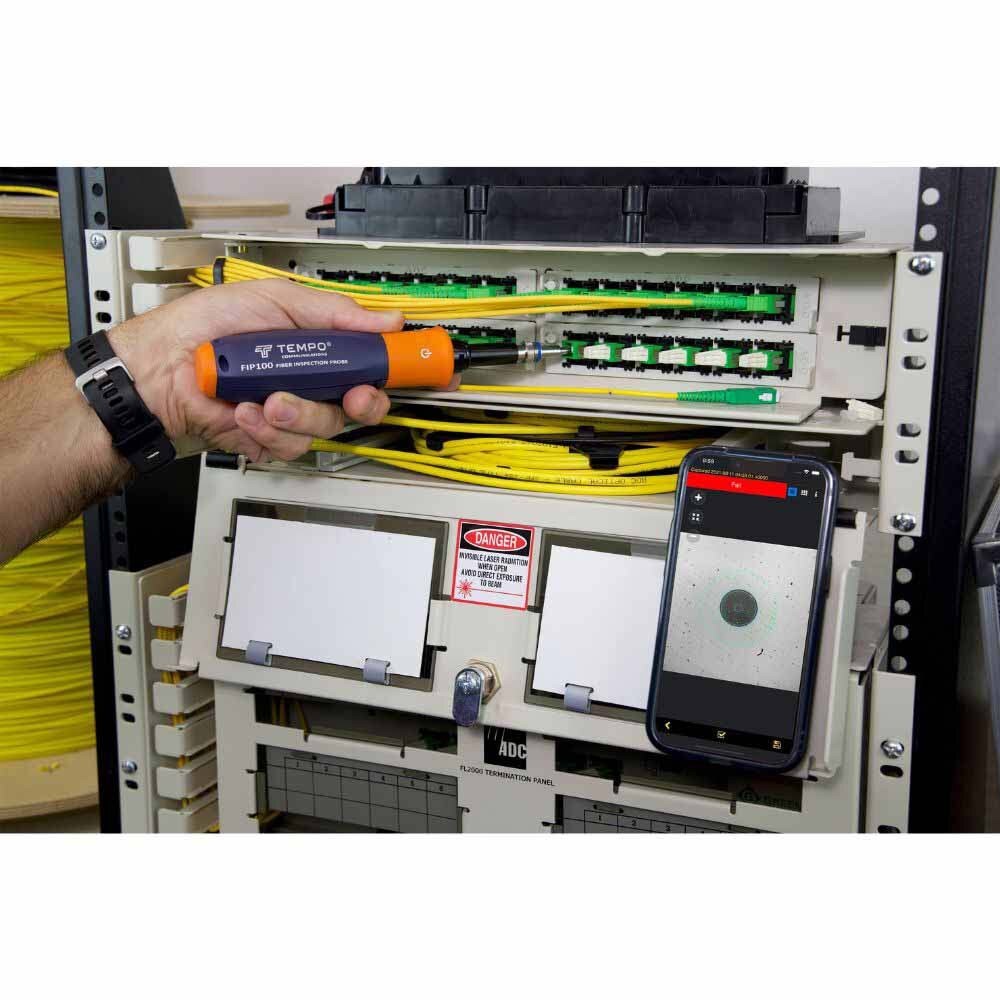

The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads. With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result. The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing. Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.

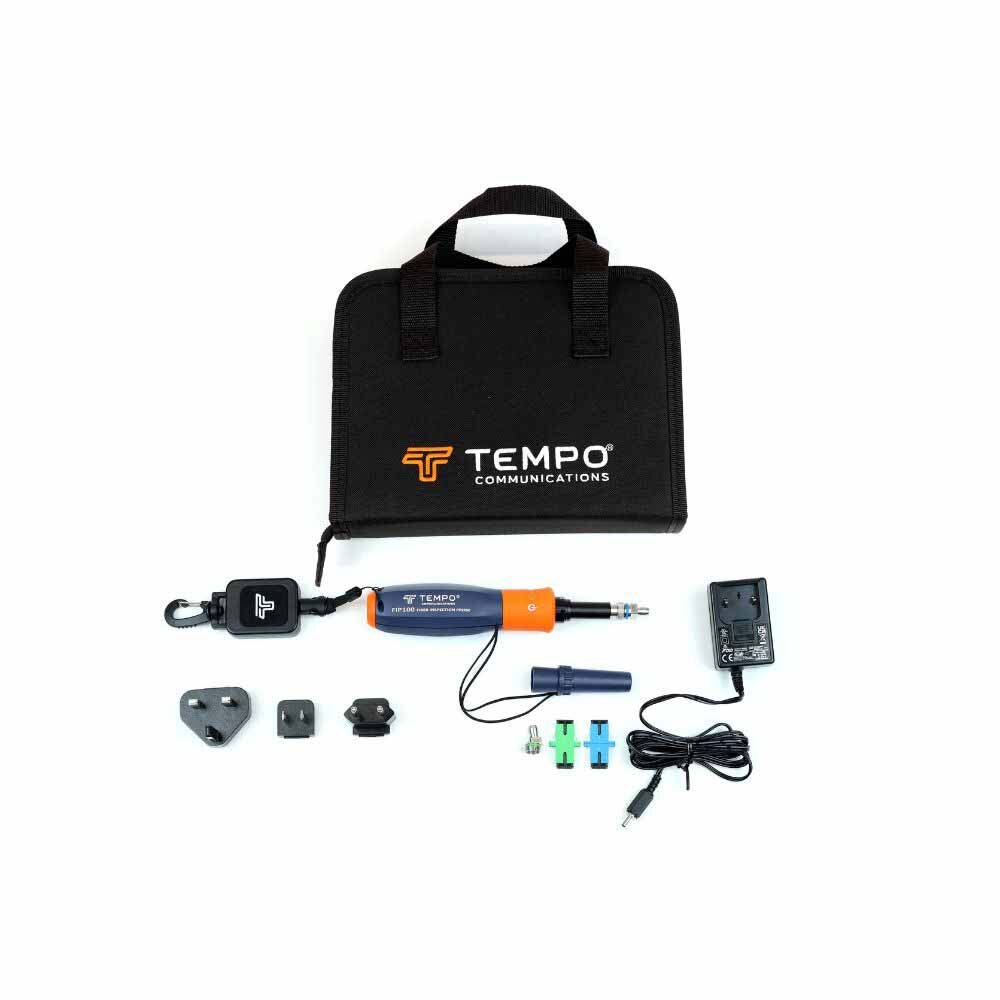

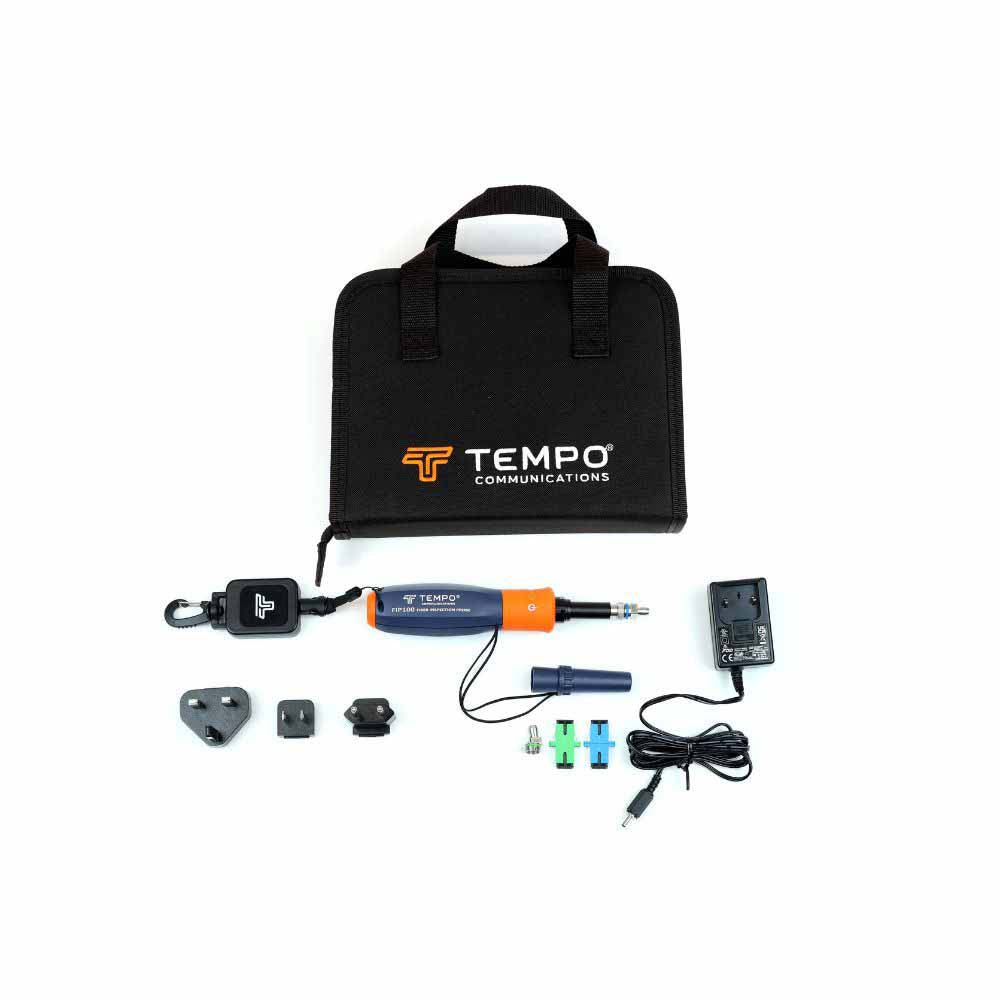

Tempo FIP100 Kit - SC/APC Includes
- (1) FIP100 Fiber Inspection Probe
- (1) Power Supply with Adapters (NA, UK & EU)
- (1) SC/APC Bulkhead Tip
- (1) SC/APC Bulkhead
- (1) SC/UPC Bulkhead Tip
- (1) SC/UPC Bulkhead
- (1) Carry Case
- (1) Quick Reference Card
Tempo FIP100 Kit - SC/APC Features
- Test ferrule end faces and bulkheads compliant to IEC61300-3-35
- Single-handed, one-button operation
- Auto focus, auto-capture, auto test
- LED pass/fail indicator on probe
- Small form factor enables inspection of difficult-to-reach ports
- Create and share reports on Android and iOS devices
- IEC, IPC and user-defined inspection criteria
- Wide range of adapter tips
Tempo FIP100 Kit - SC/APC Specifications
| Field of View (FOV) | Live and Captured |
| Manual Detection Capability (Minimum) | 0.25 ?m |
| Auto Analysis Resolution | |
| Stored Image Size | 2592 x 1944 (5M) Pixels |
| End-face Illumination | Coaxial blue LED 476 nm |
| Maximum No Damage Live Fiber Power Level | +20 dBm |
| WiFi Characteristics | IEEE 802.11bng |
| Focus | Auto-focus (?3 sec) and Manual Focus |
| Centering | Auto-Centering ( |
| Button Functionality | Power On/Off (>3 secs); Capture/Analysis/Auto-save/Live |
| Main LED Functionality | Blue = Connected to App, Green = Pass, Red = Fail |
| Magnification | Variable from 80X to 700X, in Live and Capture Modes |
| Applications Compatibility | Android ?4.0.3, iOS ?8.1 |
| Image Capture with Pass/Fail Analysis | IEC 61300-3-35, AT&T TP-76461, IPC-8497-1, User-Set Criteria |
