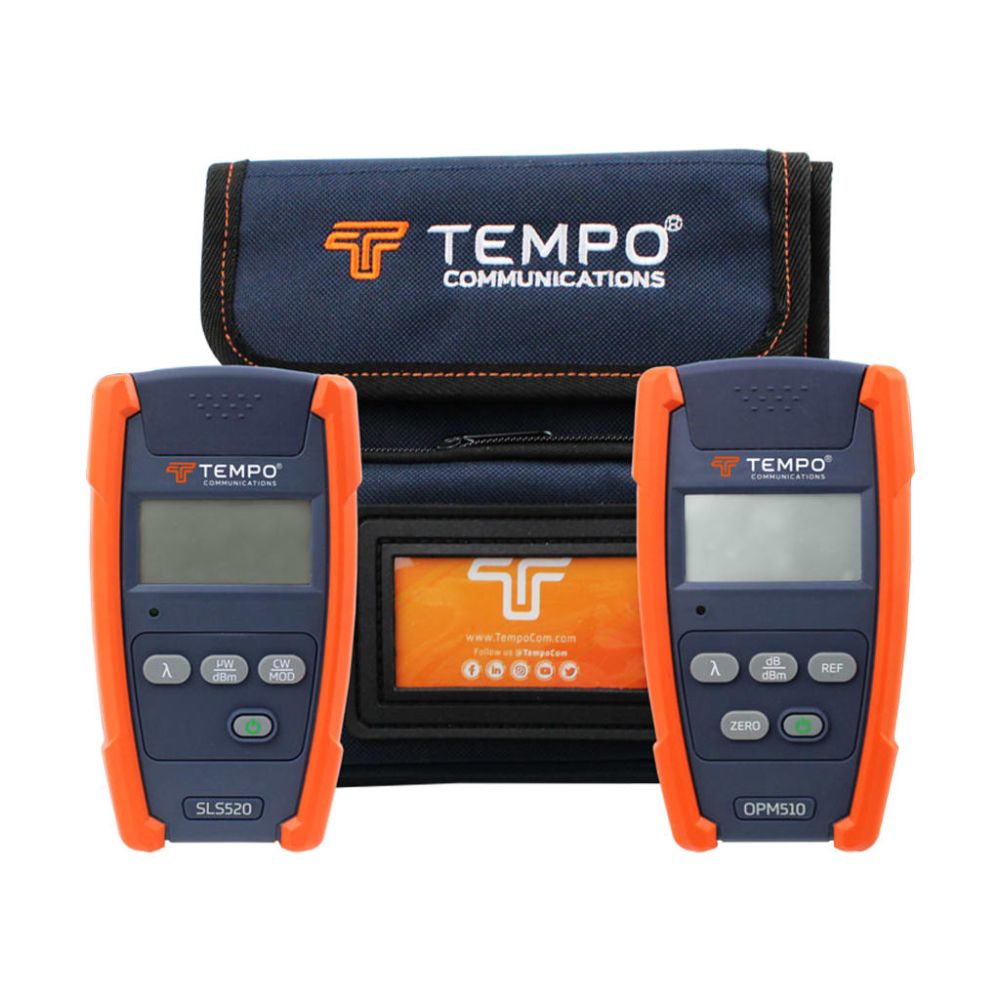

Tempo MM DUAL KIT OPM510 Power Meter & SLS525 Light Source (Multimode Dual Kit)
Description
Description
Tempo 55500029 Description
The Tempo Communications MM DUAL KIT offers a standard optical power meter OPM510 (-65 to +10dBm) and a dual LED source SLS525 (850/1300nm). These testers quickly and accurately measure the insertion loss on multimode fiber optic cabling, trace and identify fiber cables using the tone detect function. The OPM with the InGaAs detector and stabilized light source are 270, 1kHz and 2kHz tone compatible. Absolute power measurements can be made in dBm, Watts and micro Watts. The zeroing procedure will zero out any ambient light present and ensure precise measurements.
Tempo 55500029 Includes
- (1) OPM510 Power Meter
- (1) SLS525 Light Source
- (1) CC-2-3 Carry Case
Tempo 55500029 Features
- Dual and triple lasers available
- Out of band testing at 1625nm and 1650nm270Hz, 1kHz and 2kHz tone
- PC flat polish interface
- Each source is supplied with one SC/PC adapter for each bulkhead
Tempo 55500029 Specifications
| Power Meter Cal. Wavelength (nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Measure Range (dBm) | -65 ~ +10(1) |
| Detector Type | InGaAs |
| Accuracy (dB) | ±5% ±0.01nW (±0.5dB@850nm) |
| Linearity | +/-0.5dB (+10 to -3dBm), +/-0.1dB (-3 to -50dBm), +/-0.5dB (-50 to -65dBm) |
| Resolution (dB) | 0.01dB |
| Functions | W/mW/?W/dBm/dB(REF)/MOD TONE DETECT 270Hz, 1kHz, 2kHz |
| Connector Type | SC (Interchangeable LC, ST, FC) |
| Fiber Type | Singlemode & Multimode |
| Battery Life | > 100 Hours |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter |
| Operating Temperature | -10ºC ~ 50ºC |
| Storage Temperature | -20ºC ~70ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
| Vibration | 5Hz to 150Hz, Amplitude+0.15mm |
| Shock | Peak Acceleration 25g at a Pulse Duration of 6ms |
| IP Rating | IP54 |
| Compliance | CE, FCC |
| Light Source Wavelength (±20nm) | 850/1300 |
| Range of Use | Multimode (62.5/125) |
| Emitter Type | LED |
| Spectrum Width | +/-40nm |
| Output Power | -20dBm/-21dBm |
| Output Power Stability | ±0.05 dB/15min, ±0.15dB/8hr |
| MOD Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | 60 Hours |
| Connector Type | SC/PC (Interchangeable LC ,ST, FC) |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter |
| Operating Temp. | -10ºC to 50ºC |
| Storage Temp. | -20ºC to 70ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
| Vibration | 5Hz to 150Hz, Amplitude = 0.15mm |
| Shock | Peak Acceleration 25g at a Pulse Duration of 6ms |
| IP Rating | IP54 |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
