Tempo 55500083 Description

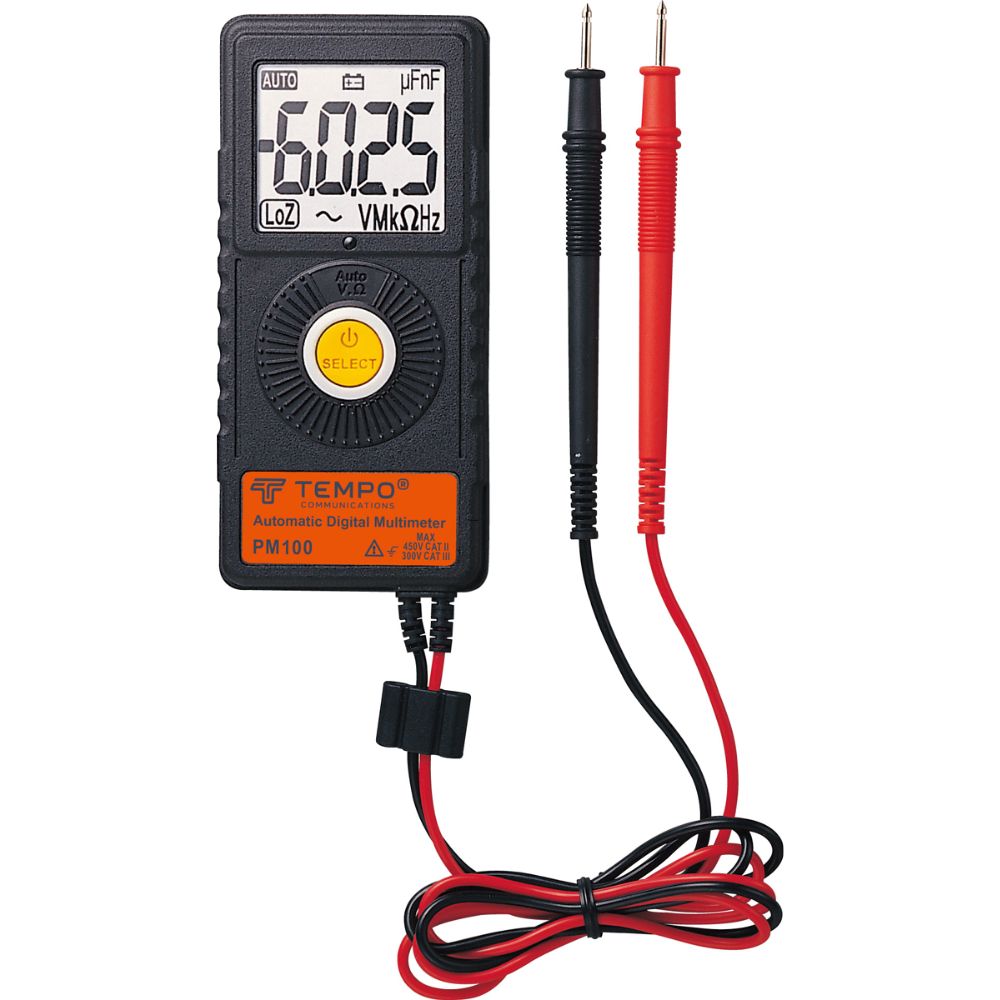

The PM100 Pocket Multimeter from Tempo Communications is an accurate, automatic, pocket-sized meter that deserves to live in every technician's (or homeowners') tool bag, if not pocket. It has a default power on mode that magically checks for voltage and displays that if present, if not then it will attempt to measure resistance. The PM-100 is a go-to-tool for quickly checking electrical supplies and basic continuity. Volts, ohms, continuity, electric field, frequency, capacitanceCAT-III 300V, CAT-II 450VSupplied with integrated test leads with arc-flash guardsIncludes a custom fabric carry case
Tempo 55500083 Includes
- (1) Multimeter
- (1) Test Leads
- (1) Zipper Case
Tempo 55500083 Features
- The PM100 is supplied in a convenient zipper case and includes a 6000 count large digit LCD.
- The only control on this Pocket Multimeter is a single push button that switches the unit on and off, and cycles through the various tests.
- The PM100 powers up in Auto mode and checks for voltage and displays if present, if not, it will attempt to measure resistance.
- Manual modes are:Continuity (with visible and audible indication)Electric Field (EF) for non-contact or contact checking for presence of ac voltageAC voltage (low impedance to prevent ghost readings) to 450 VDC voltage to 450 VResistance to 6 milliohms
- Frequency to 30 kHzCapacitance to 100 uF
Tempo 55500083 Specifications
| Display | 6000-Count LCD |
| Polarity | Automatic |
| Display Update Rate | 5 per second |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy) per °C Below 18 °C or Above 28 °C |
| Intelligent Automatic Power Off | After 3 Minutes of Inactivity (approximately) |
| Noise Rejection | Common Mode Rejection Ratio |
| Operating Conditions | Temperature |
| Relative Humidity (non-condensing) | 80% Maximum for Temperatures up to 31 °C (88 °F), Decreasing Linearly to 50% Maximum at 40 °C (104 °F) |
| Altitude | 2000 m (6500’) Maximum |
| Pollution Degree | 2 |
| Storage Conditions | –20 °C to 60 °C (–4 °F to 140 °F), 0% to 80% Relative Humidity (non-condensing) |
| Battery | 3V Standard Button Battery (IEC-CR2032; ANSI-NEDA-54004LC) |
| Low Battery | Below 2.4 VDC |
| Overvoltage Protection | 450 VDC/VAC RMS, 50/60 Hz |
| Measurement Categories | Cat II, 450 V - Cat III, 300 V |
