Tempo | SKU:
SLS520

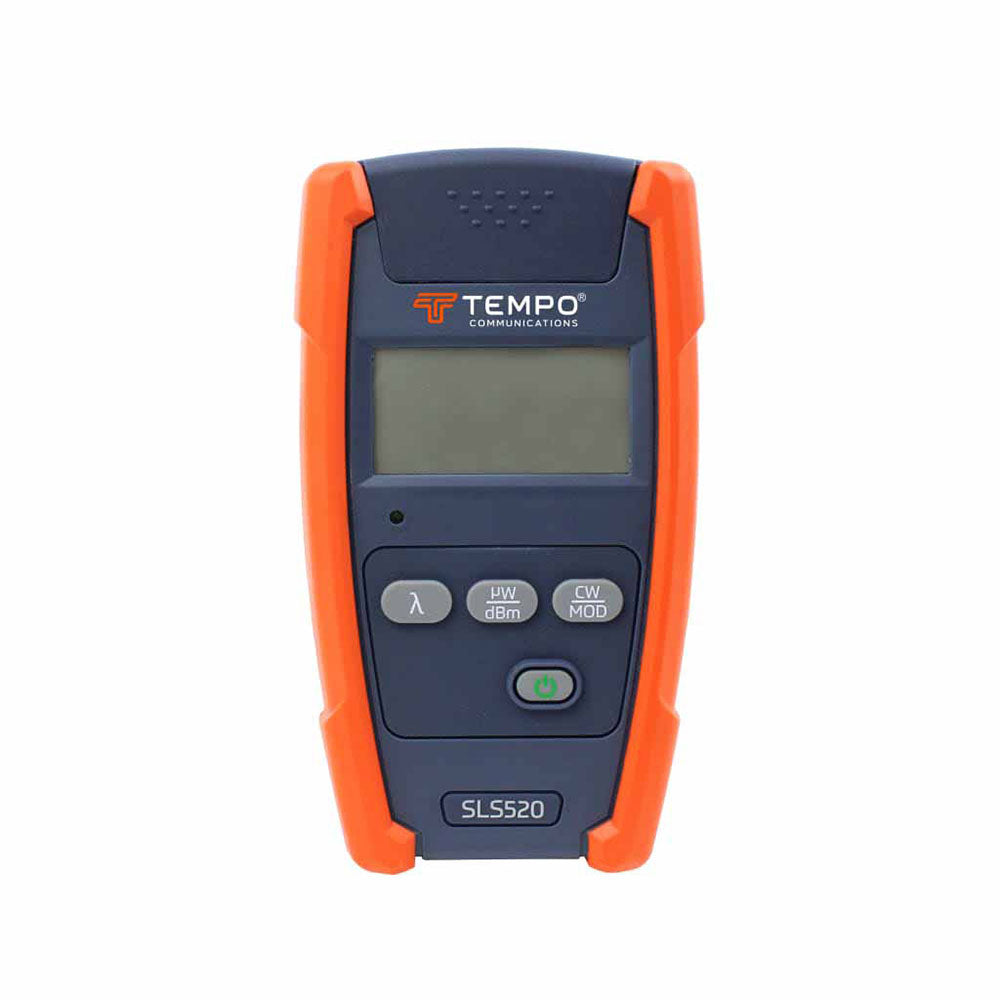

Tempo SLS520 Stabilized Fiber Optic Light Source; Singlemode, 1310/1550
Free Shipping
$1,145.94
Unit price
/
Unavailable
Description
Description
Tempo SLS520 Features
- Dual and Triple Wavelength Laser Sources at 1310, 1490, 1550, 1625 & 1650nm
- Dual Wavelength LED Source at 850nm & 1300nm
- Accurate Insertion Loss Measurements
- Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
- SC, LC, FC and ST Interchangeable Bulkheads
- Ruggedized Package, IP54 compliant
- Compatible with Singlemode and Multimode Networks
- Auto Off or Continuous On Operation
- Battery or 120/240VAC Operation
Tempo SLS520 Specifications
| Range of Use | Singlemode |
| Emitter Type | FP |
| Spectral Width | ≤ 5 nm |
| Output Power Typical/ Minimum | 0dBm/-1dBm |
| Output Power Stability | ±0.05 dB/15min; ±0.10dB/8hr |
| Modulation Frequency | 270Hz, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | 25 hours |
| Connector Type | SC/PC (Interchangeable LC, ST, SC) |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery / 9V AC adapter |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to +70°C |
| Relative Humidity | 0 to 95% (non-condensing) |
| Weight | 0.71 lbs (320g) |
| Dimensions (H × W × T) | 6.1 × 3.5 × 1.3" (155 × 88 × 33mm) |
| IP Rating | IP54 |
| Vibration | 5Hz to 150Hz, Amplitude = 0.15mm |
| Shock | Peak acceleration 25g at a pulse duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (laser) |
