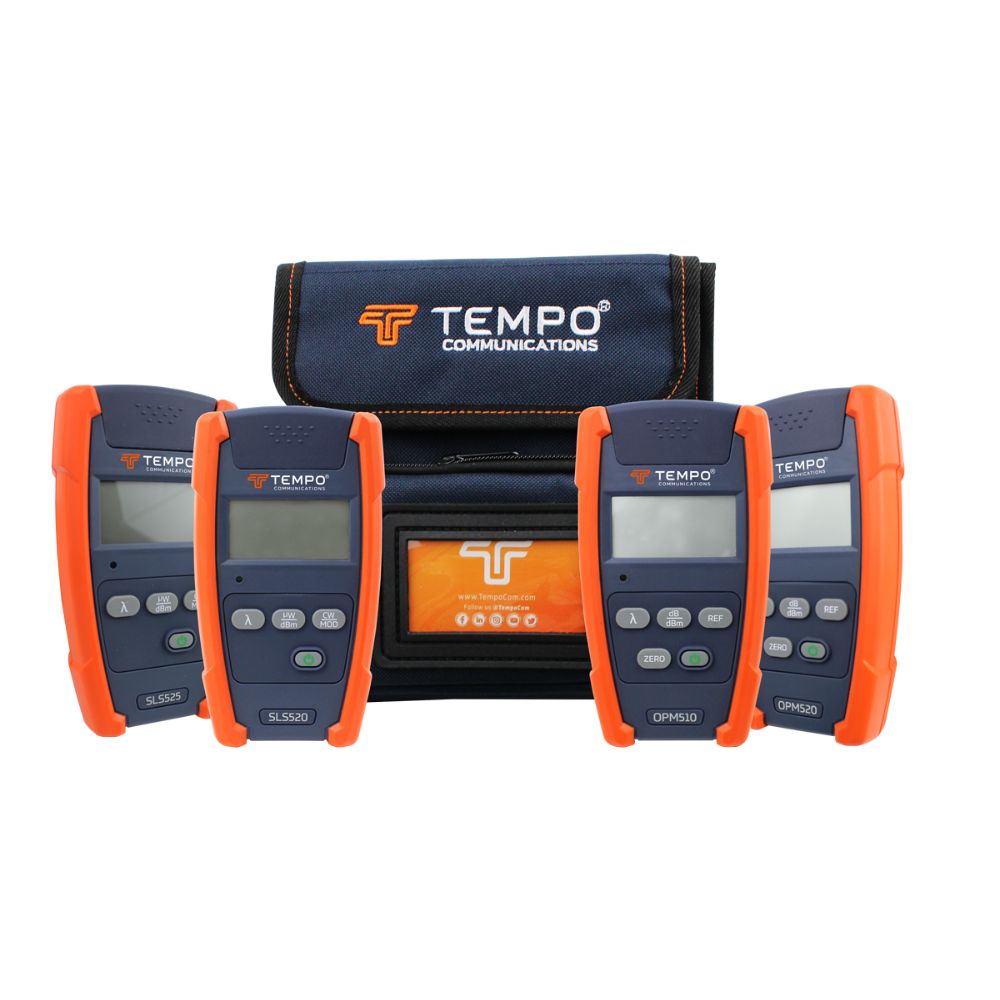

Tempo SM DUAL KIT OPM510 & SLS520 Single Mode Telco Dual Kit
Description
Description
Tempo 55500027 Description
The Tempo Communications SM DUAL KIT offers a standard optical power meter OPM510 (-65 to +10dBm) and a dual laser source SLS520 (1310/1550nm). It is used for Telco applications. These testers quickly and accurately measure the insertion loss of a fiber link, trace and identify fiber cables using the tone detect function. The OPM with the InGaAs detector and stabilized light source are 270, 1kHz and 2kHz tone compatible. Absolute power measurements can be made in dBm, Watts and micro Watts. The zeroing procedure will zero out any ambient light present and ensure precise measurements.
Tempo 55500027 Includes
- (1) OPM510 Power Meter
- (1) SLS520 Light Source
- (1) CC-2-3 Carry Case
Tempo 55500027 Features
- Dual and triple lasers available
- Out of band testing at 1625nm and 1650nm270Hz, 1kHz and 2kHz tone
- PC flat polish interface
- Each source is supplied with one SC/PC adapter for each bulkhead
Tempo 55500027 Specifications
| SLS520 Center Wavelength | 1310/1550nm |
| Fiber Type | Single Mode |
| Emitter Type | FP |
| Spectrum Width | ? 5nm |
| Output Power (Max/Min) | ? 0dBm/-1dBm |
| Output Power Stability | ±0.05 dB/15min; ±0.10dB/8hr |
| Modulation Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | 60 Hours |
| Connector Type | SC/PC (Interchangeable LC ,ST, FC) |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -20ºC to 70ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
| IP Rating | IP54 |
| Vibration | 5Hz to 150Hz, Amplitude = 0.15mm |
| Shock | Peak Acceleration 25g at a Pulse Duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
| OPM510 Cal. Wavelength | 850, 1300, 1310, 1490, 1550, 1625nm |
| Measure Range | -65 ~ +10(1) dBm |
| Detector Type | InGaAs |
| Accuracy | ±0.25 dB (±0.5dB@850nm) |
| Linearity | +/-0.5dB (+10 to -3dBm), +/-0.1dB (-3 to -50dBm), +/-0.5dB (-50 to -65dBm) |
| Resolution | 0.01dB |
| Functions | ?W/dBm/dB(REF)/ MOD Tone Detection 270Hz, 1kHz, 2kHz |
| Connector Type | SC (Interchangeable LC, ST, FC) |
| Fiber Type | Singlemode & Multimode |
| Battery Life | > 100 Hours |
| Power Supply | 9V Alkaline or 1000mAh Lithium Battery/ 9V AC Adapter |
| Operating Temperature | -10ºC ~ 50ºC |
| Storage Temperature | -20ºC ~70ºC |
| Relative Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP54 |
| Vibration | 5Hz to 150Hz, Amplitude+0.15mm |
| Shock | Peak Acceleration 25g at a Pulse Duration of 6ms |
| Compliance | CE, FCC |
