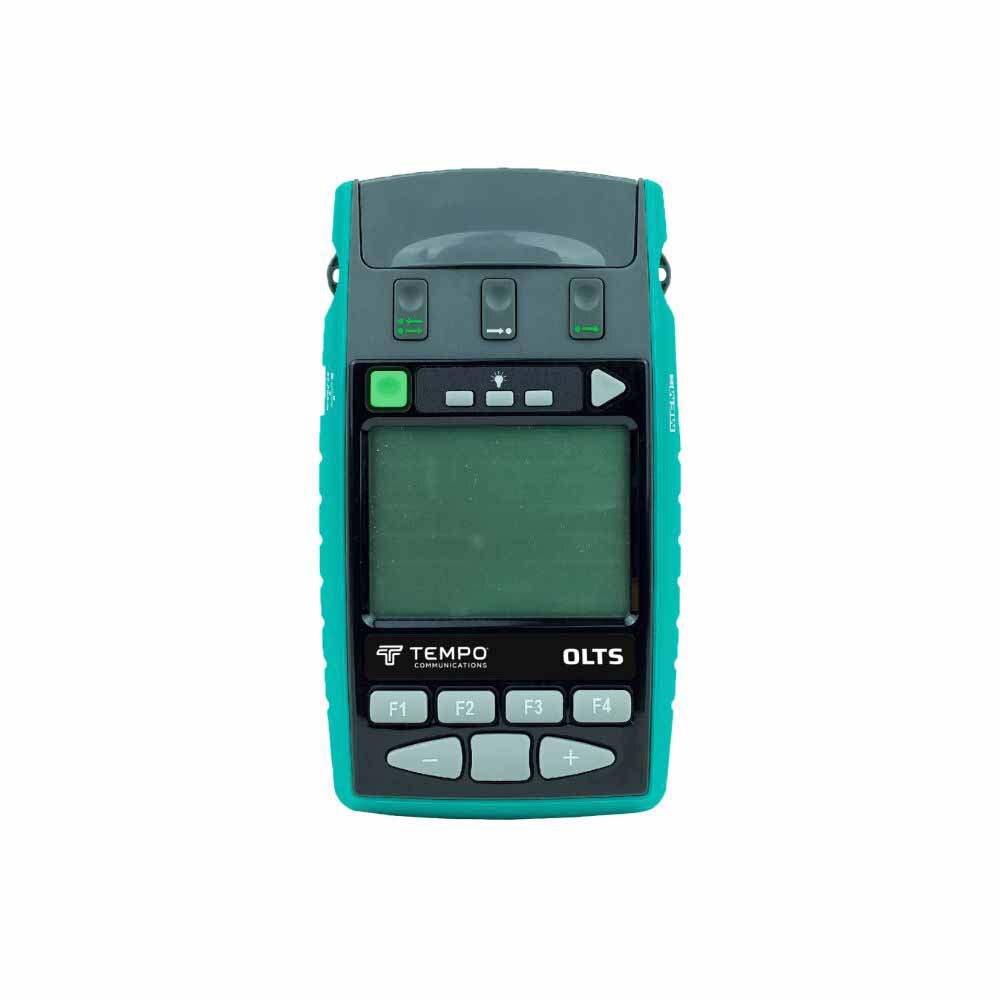

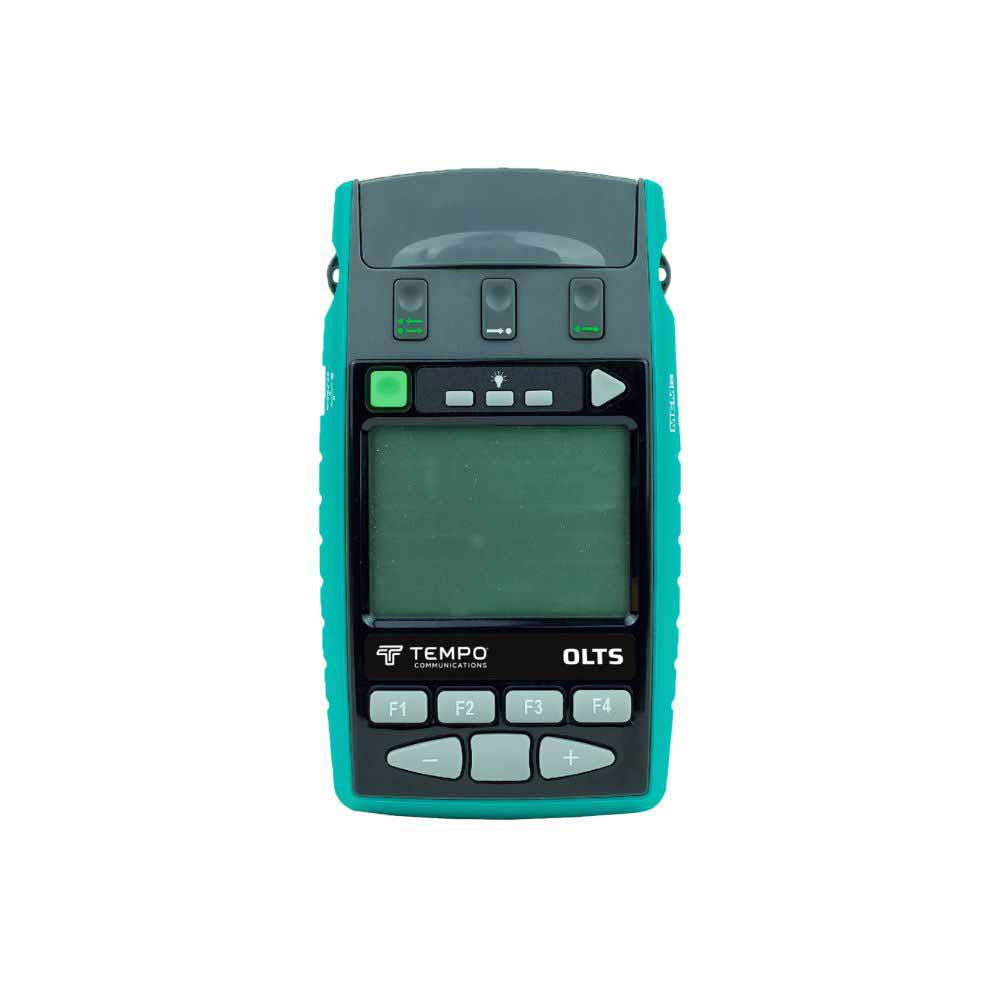

Tempo T27403LV Multimode Two-Way Loss & Length Test Set
Description
Description
Tempo T27403LV Description
A Two-Way Optical Loss Test set (OLTS) that’s perfect for medium to ultra high fiber count loss & length testing applications on multimode fiber at 850 / 1330nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. The 650 nm VFL VisiTester feature mixes a VFL in with the test signal during Autotest. It operates as a stand-alone VFL, or gives positive visual identification of a fiber to be connected during loss testing. Each fiber needs just one test hook-up and one key press for a complete bidirectional loss and length test, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. A pair of instruments both display length & bi-directional loss, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone light source & power meter, VFL, or tone generator / detector.
Tempo T27403LV Includes
- (1) SC/SC (OPT046) Hybrid Adaptors 1 per Port
- (1) SC/LC (OPT076) Hybrid Adaptors 1 per Port
- (1) SC/ST (OPT040) Hybrid Adaptors [only for T23400 & T27400 Series with LED Sources] 1 per Port
- (1) SC PC Terminator (OPT703) [only for T23400 Series]
- (1) SC APC Terminator (OPT704) [only for T23400 Series]
- (1) SC-SCAPC SMF Test Lead (OPT730-SCP-SCA) [Only for T23400 Series with Laser Sources]
- (1) SC-SCAPC MMF Test Lead (OPT706) [Only for T23400 Series with LED Sources]
- (1) SC-SC(APC) MMF Test Lead (OPT740-SCP-SCA) [Only for T23400 Series with LED Sources at 50 µm]
- (1) Set 50 & 62.5 µm Fiber Mandrel Wrap Set for Multimode Sources (OPT701) [only for T23400 & T27400 Series with LED Sources]
- (1) USB Cable _A-B Type)
Tempo T27403LV Features
- (1) Carry Pouch
- (1) Wrist Strap
- (1) Operation Manual
- (1) Set of QA Certificates
- (1) Set ILAC/Nata Traceable Calibration Certificates Including Power Meter, Light Source, Two-Way Detector
- 25% of the size / weight, 7x the battery life of competitors
- Bidirectional Autotest loss & length testing on one fiber
- Real time Pass / Fail display
- 8,000 fiber memory and USB Flash Drive file dump
- KITS™ reporting software
- Autotest optical power meter, >25 ?, 1 % accuracy
- Traceable calibration reports: power meter & linearity, source ? & stability
- 80 hr alkaline battery life
