Tempo | SKU:
T9600A-H3B

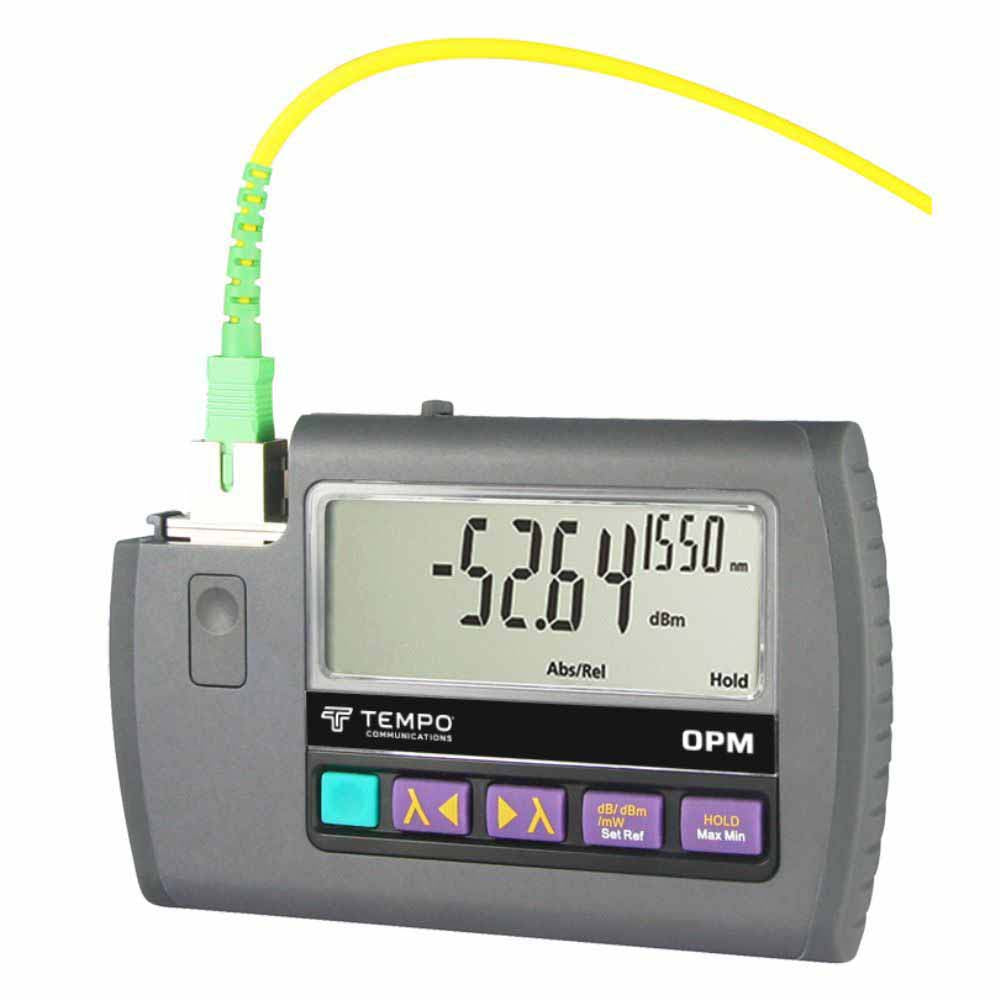

Tempo T9600A-H3B Pocket Optical Power Meter, High Power
$0.00 off
Free Shipping
$691.86
$737.99
Unit price
/
Unavailable
Description
Description
Tempo T9600A-H3B Description
A simple and reliable optical power meter for testing power and loss on high power fiber optic systems up to +24 dBm. It provides high accuracy and simplicity of use. An advanced netral density filter design offers improved accuracy for this type of instrument, and use of an InGaAs detector provides better accuracy and response flatness for DWDM systems up to 1650 nm.
Tempo T9600A-H3B Includes
- (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046)
- (1) Carry Pouch (OPT156)
- (1) Wrist Strap
- (1) ILAC/ NATA Traceable Certificate
- (1) QA Certificate
- (1) Quick Guide
- (1) KITS™ Recording/Reporting Software (Download from Website for Free)
Tempo T9600A-H3B Features
- 9 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Easy to use TamperLock mode
- Interchangeable connectors
- Full QA reports
Tempo T9600A-H3B Specifications
| Detector Type | InGaAs High Power |
| Response Wavelength | 800 ~ 1700 nm |
| Calibrated Wavelengths | 850, 1300, 1310, 1390, 1490, 1550, 1590, 1610, 1625 |
| Power Range | +24 ~ -40 dBm |
| Mid-Range Linearity | 0.04 dB (Typical) |
| Total Uncertainty | 0.3 dB (Max) |
| Wavelength Sensitivity (± 30 nm) | 0.03 dB (Typical) |
| ID Tone Detection Sensitivity | Up -30 dBm |
| Accuracy | ±2 % |
| Calibration Validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | |
| Tone Detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
