At a Glance
Sold As
Individual
Description
Description

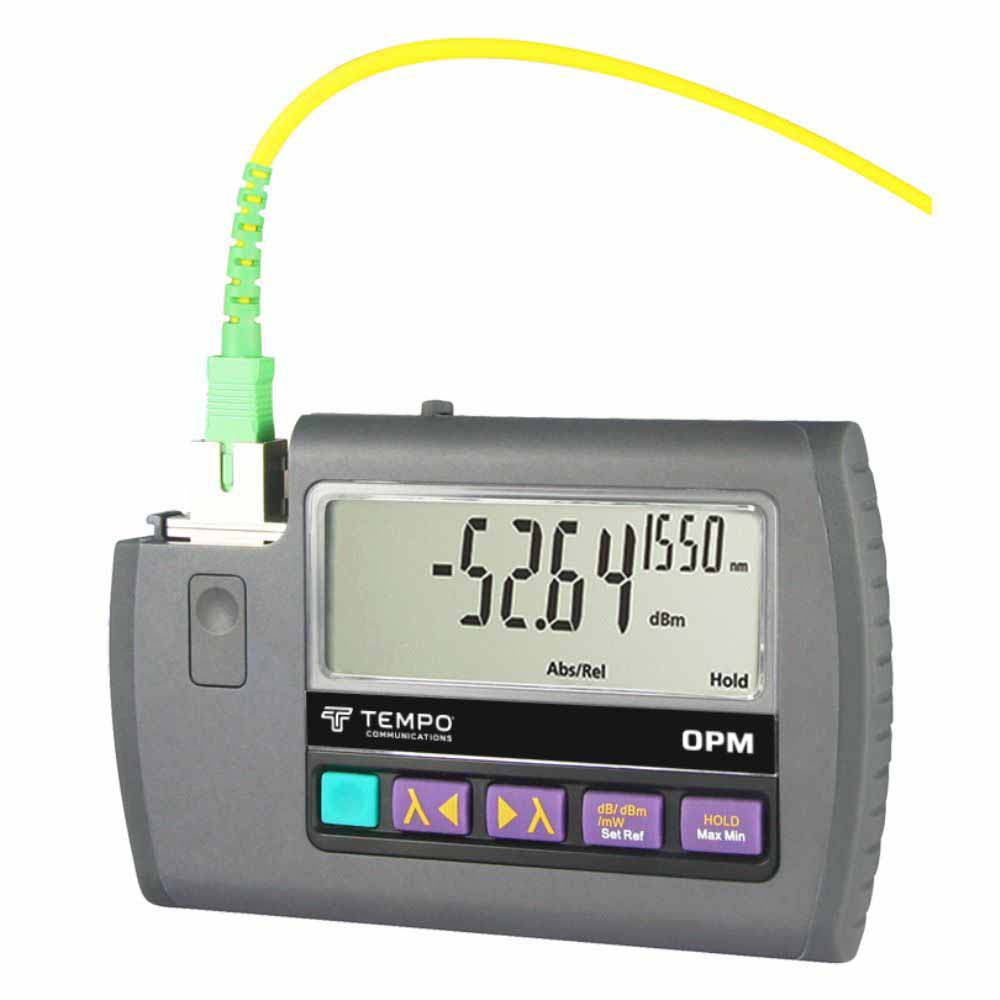

Tempo T9600A Description
General power meter for Multimode and Singlemode applications (Single fiber). A simple and reliable optical power meter for testing power and loss on typical multimode & single mode fiber optic systems. It provides high accuracy and simplicity of use.
Tempo T9600A Includes
- (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046)
- (1) Carry Pouch (OPT156)
- (1) Wrist Strap
- (1) ILAC/ NATA Traceable Certificate
- (1) QA Certificate
- (1) Quick Guide
- (1) KITS™ Recording/Reporting Software (Download from Website for Free)
Tempo T9600A Features
- 8 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Easy to use TamperLock mode
- Interchangeable connectors
- Full QA reports
Tempo T9600A Specifications
| Detector Type | InGaAs |
| Response Wavelength | 600 ~ 1700 nm |
| Calibration Wavelengths | 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm |
| Power Range | +5 ~ -60 dBm |
| Mid-Range Linearity | 0.04 dB (Typical) |
| Total Uncertainty | 0.3 dB (Max) |
| Wavelength Sensitivity (± 30 nm) | 0.02 dB (Typical) |
| ID Tone Detection Sensitivity | Up -50 dBm |
| Accuracy | ±2 % |
| Calibration Validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | |
| Tone Detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
Toolup Part # :
762223
