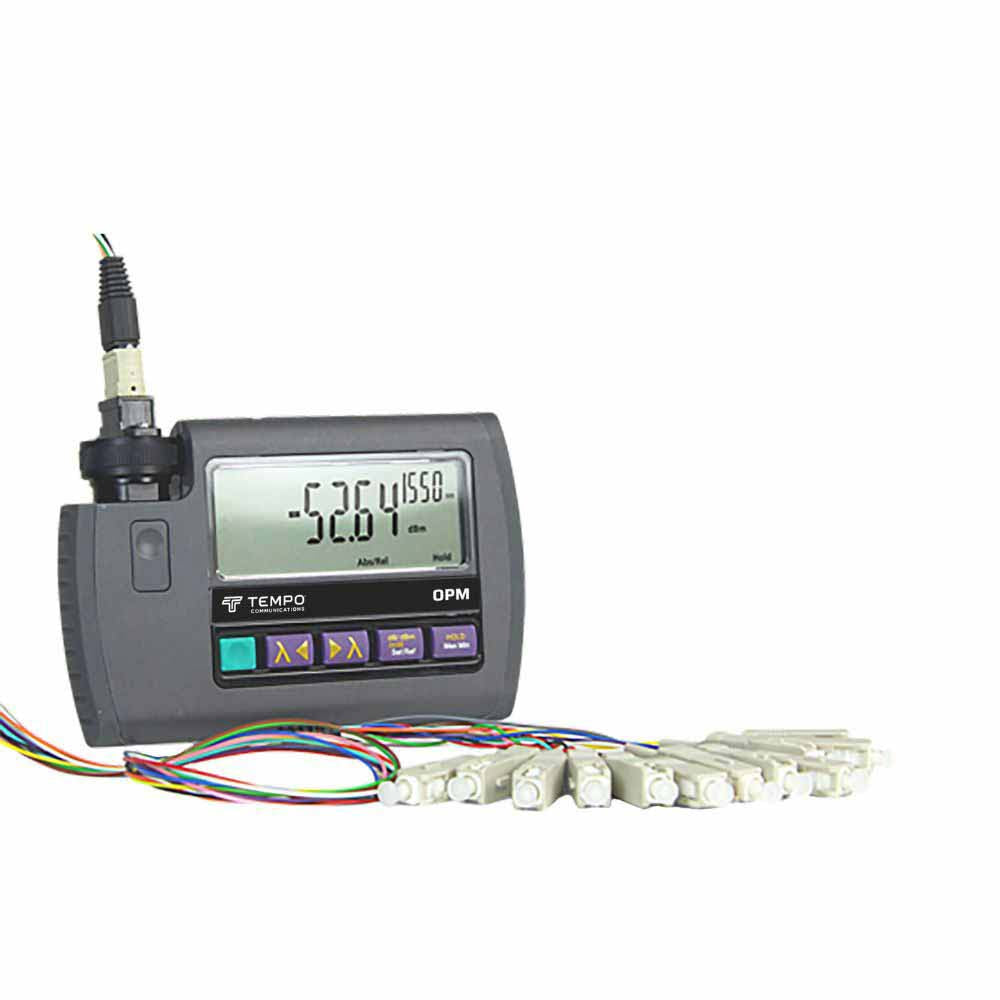

Tempo T9600XL-GE5 Pocket Optical Power Meter, GE 5mm
Description
Description
Tempo T9600XL-GE5 Description
A simple and reliable optical power meter with a large area 5 mm Ge detector for testing power and loss on fiber optic systems or free-space light beams up to +10 dBm. Ideal for: Plastic fiber, PCS, single mode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. This versatile meter is a popular MPO tester, providing high accuracy and simplicity of use. For all fiber optic Ethernet & Infiniband applications except 16 x 1 or 16 x 2 ribbon types. Optional connector adapter not included, order separately.
Tempo T9600XL-GE5 Includes
- (1) Connector Adaptor XL 7/8-28, MTP / MPO 12 x n (OPT227)
- (1) Connector Adaptor XL 7/8-28, MTP / MPO 16 x n (OPT228)
- (1) Operating Manual
- (1) Set ILAC/ NATA Traceable Calibration Certificate
- (1) Soft Carry Pouch
- (1) Wrist Strap
- (1) Quick Guide
- (1) QA Certificate
- (1) KITS™ Recording/Reporting Software (Download from Website for Free)
Tempo T9600XL-GE5 Features
- 12 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Large area detector for MPO applications
- Easy to use TamperLock mode
- Interchangeable connectors
