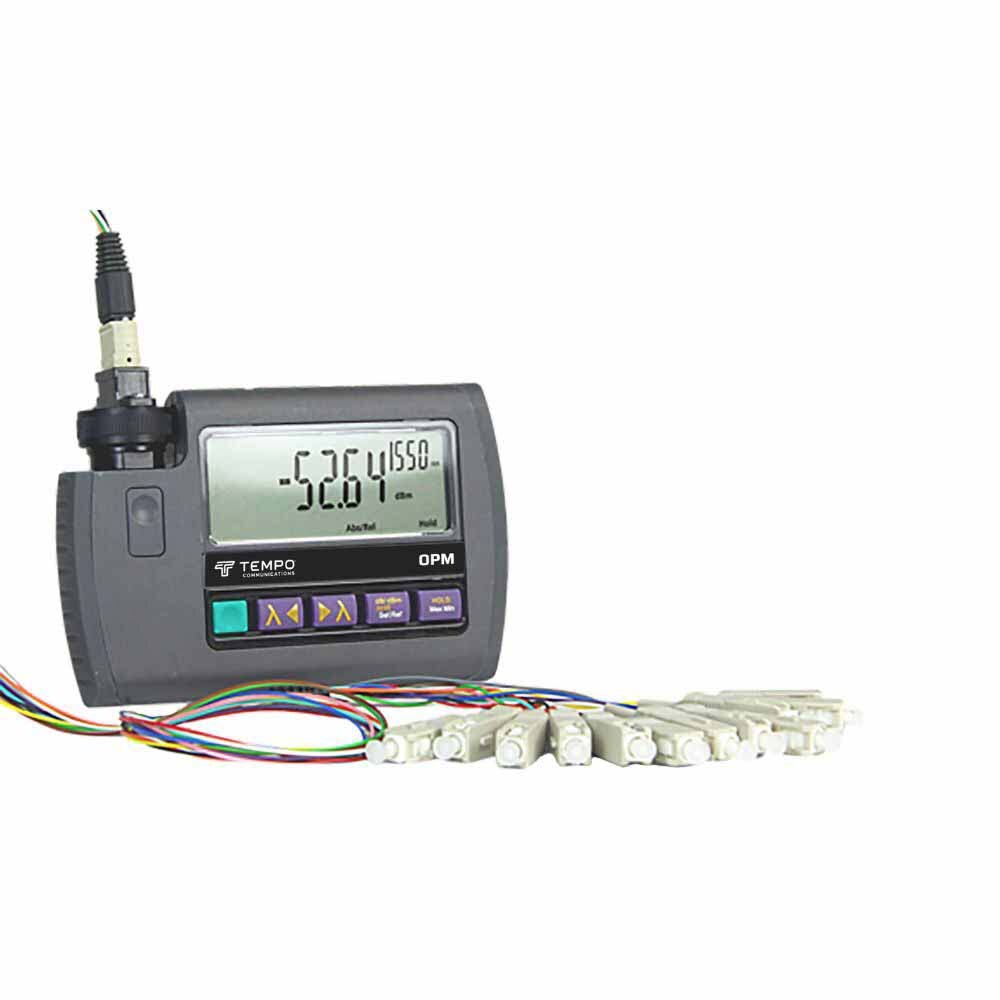

Tempo T9600XL-SI5 Pocket Optical Power Meter, SI 5mm
Description
Description
Tempo T9600XL-SI5 Description
A simple and reliable free space or optical fiber light meter tester with a large-area 5 mm Silicon detector. It is ideal for testing power & loss on fiber optic systems or free-space light beams up to +5 dBm. Ideal for: plastic fiber, PCS, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. It provides high accuracy & simplicity of use. For multimode fiber Ethernet and InfiniBand applications excluding 16 x 1 or 16 x 2 ribbon types. Optional connector adapter not included, order separately.
Tempo T9600XL-SI5 Includes
- (1) Operating Manual
- (1) Set ILAC/ NATA Traceable Calibration Certificate
- (1) Soft Carry Pouch
- (1) Wrist Strap
- (1) Quick Guide
- (1) QA Certificate
- (1) KITS™ Recording/Reporting Software (Download from Website for Free)
Tempo T9600XL-SI5 Features
- 9 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Easy to use TamperLock mode
- Interchangeable optical connectors
- Full QA reports
Tempo T9600XL-SI5 Specifications
| Detector Type | Si (5 mm) |
| Response Wavelength | 350 ~ 1100 nm |
| Calibration Wavelengths | 470, 520, 635, 650, 660, 780, 820, 850, 980 nm |
| Power Range | +5 ~ -50 dBm ( for 470, 520 nm) / +5 ~ -60 dBm (for 635 ~ 980 nm) |
| Mid-Range Linearity | 0.04 dB (Typical) |
| Wavelength Sensitivity (± 30 nm) | 0.2 dB (Typical) |
| Response Uniformity Across Detector | 1% (0.06 dB) |
| ID Tone Detection Sensitivity | -45 dBm |
| Calibration Accuracy | ±2 % (0.09 dB) |
| Calibration Validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | |
| Tone Detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
