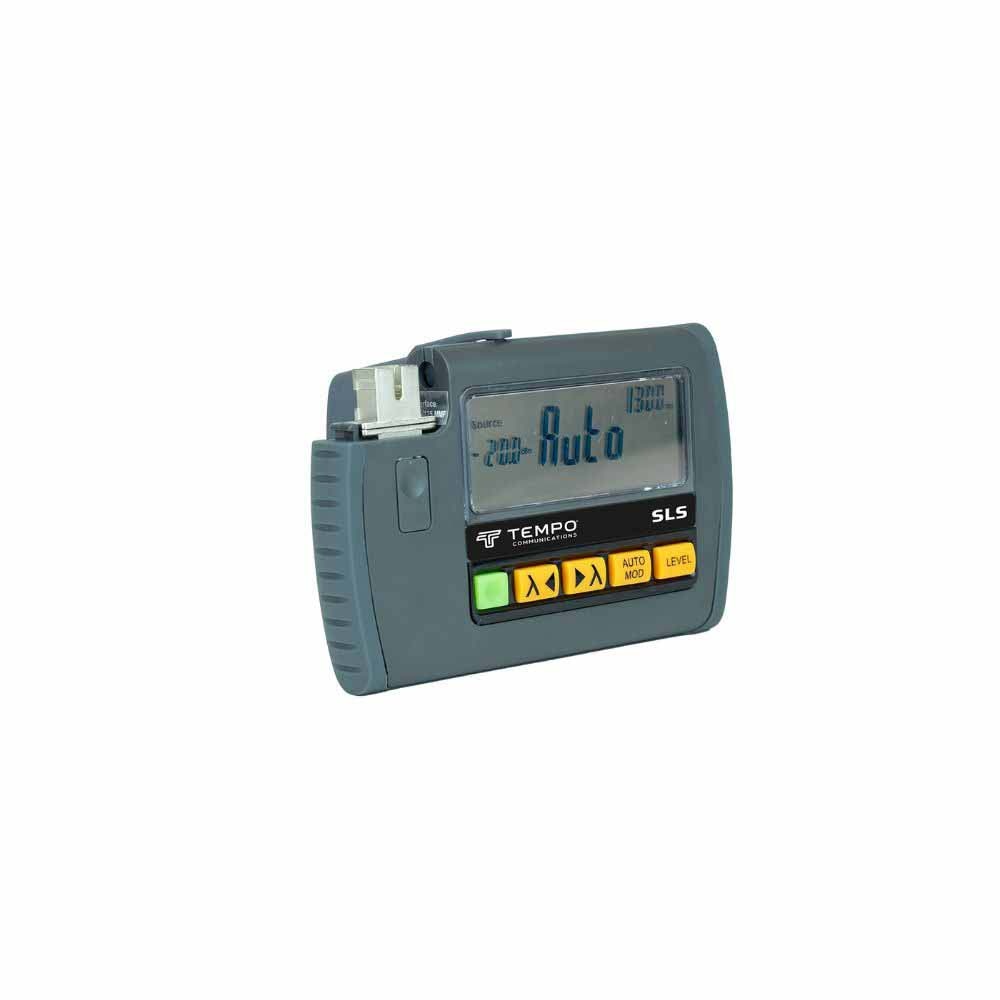

Tempo T9809AM Pocket Fiber Optic POF Test Source
Free Shipping
$834.30
$889.92
Unit price
/
Unavailable
Description
Description
Tempo T9809AM Description
A shirt-pocket size fiber optic source ideal for general testing of PCS or POF systems at 660 nm. It provides, high test accuracy and simplicity of use. A variety of POF specific connector adapters are available for most POF connector styles.
Tempo T9809AM Includes
- (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC
- (1) 50 & 62.5 µm Fiber Mandrel Wraps Set (OPT701) for MM LED & 850 nm VCSEL Sources
- (1) Quick Guide
- (1) Soft Carry Pouch (OPT156)
- (1) Wrist Strap
- (1) QA Certificate
Tempo T9809AM Features
- Interchangeable Connector Adaptors: Use a single tester for - SC, LC, MPO, FC, HFBR, and other connectors - including universal and duplex options.
- Test Tone with Multi-Fiber ID - Send and identify one of 12 unique test tones. Great for quickly verifying continuity, polarity, and rack labeling.
- One-Touch Auto Test - Smart communication makes sure you always get a full, complete, and consistent test result.
- Metal-free Connectors - To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
- Mutli-mode Test Standard Compliance - Kingfisher LED sources meet Encircled Flux and CPR requirements straight out of the box.
- TamperLock Mode - Lock-down user controls and configuration to reduce the risk of test failure.
- SC/LC Duplex Support - Use our universal interchangeble connector options for duplex testing.
- Runs on alkaline batteries.
Tempo T9809AM Specifications
| Output Wavelength | 660 nm LED |
| Output Power (Fixed) | -6 dBm ±1 dB (@ 1 mm POF) / -13 dBm ±2 dB (@ 200 µm PCF) |
| Short Term Stability (for 15 min, Typical, ±2 °C, After Warm-Up) | 0.01 dB |
| Stability Over Temperature | 0.35 dB (Typical) |
| Wavelength Initial Tolerance (@ 25 °C) | 15 nm |
| Spectrum Width (FWHM) | 25 nm (Typical) |
| Blinking Output | 2 Hz |
| Calibration Validity (ISO/IEC 17025) | 3 Years |
| Modulation | 270 Hz, 1 kHz, 2 kHz ±2 % |
| Multi-Fiber ID | 12 Fibers |
| Autotest | Compatible with KI Autotest Power Meter Port & Matching ? |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery Life | Laser/LED Source |
| Auto Off | Selectable |
