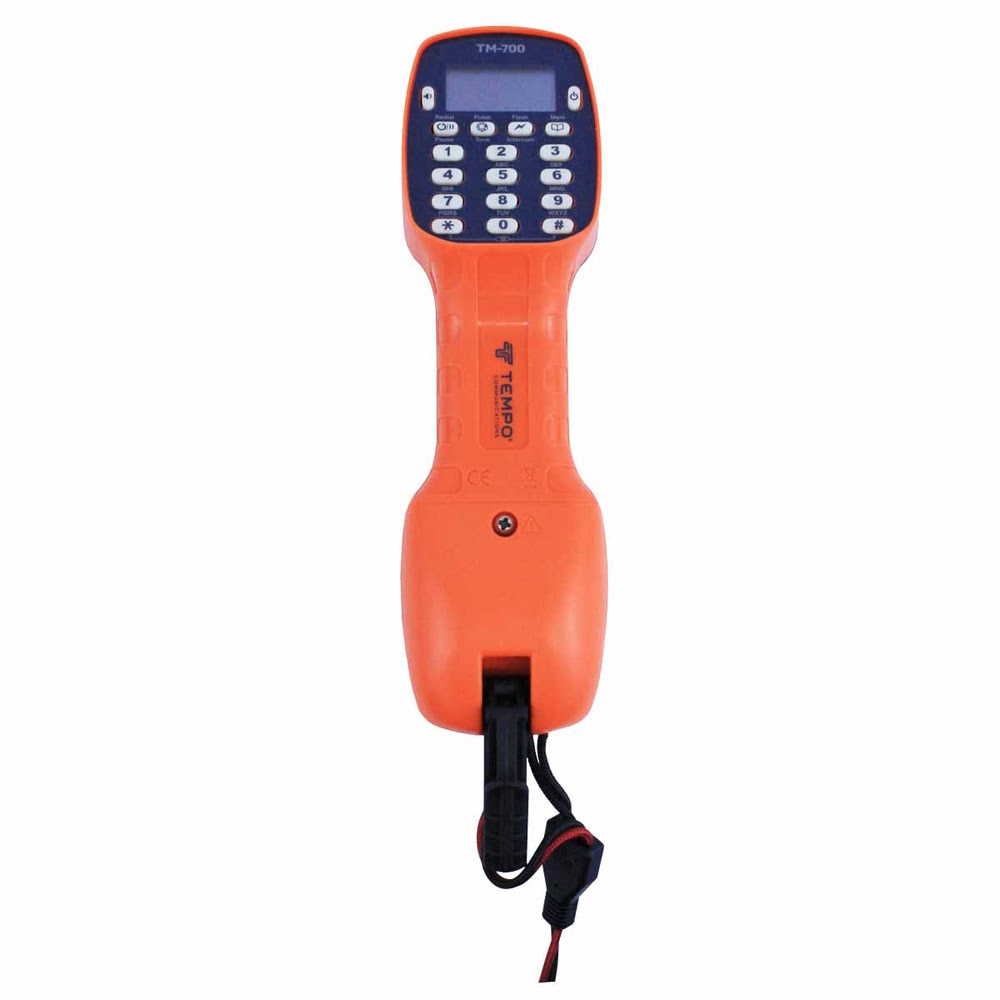

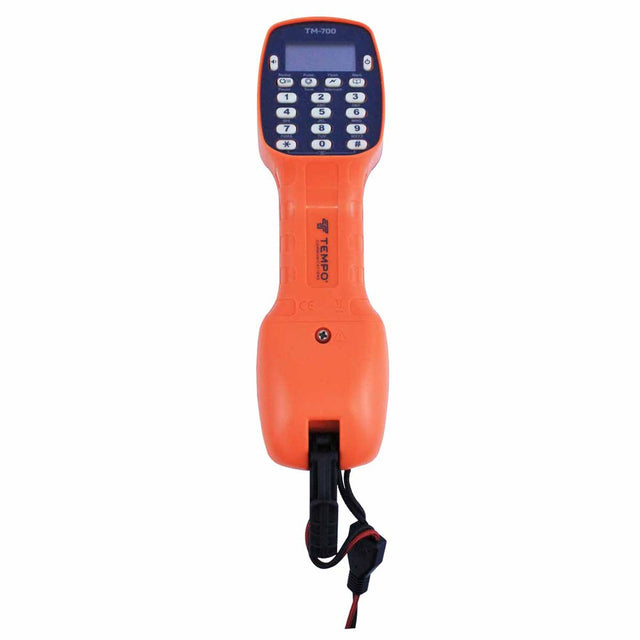

Tempo TM-700 Tele-Mate Pro Telephone Test Set
Description
Description
Tempo TM-700 Description
The TM-700 helps technicians install, service, and maintain voice services with ease. DSL compatible in both Monitor and Talk modes, the TM-700�s LCD screen makes reading polarity, voltage, current, and ringing frequencies easier than ever, and clearly shows speed dials and recent numbers for faster access.The TM-700 features over-voltage and over-current detection for safer operation and also features an intercom mode, a built in toner for pair tracing, and DTMF detection and measurement for enhanced productivity. Use the built in loudspeaker or with a headset (included) for easy hands free operation.
Tempo TM-700 Includes
- (1) Test Set
Tempo TM-700 Features
- LCD for easy dialing, programming, caller ID, voltage, current, ringing, and DTMF measurements
- Safe over voltage and over current protection
- Intercom for �dead-pair� talking
- SmartIntercom between Tele-Mate Pros (including PE830); allows �ringing� the far end
- Tone generator for pair identification
- Luminescent (glow-in-the-dark) keypad
- DSL line filter
- Super Impedance Amplifier to monitor lines without disrupting traffic
- Tone and Pulse dialing for old and new phone lines with Pause and Flash (TBR)
- User options allow USA or ETSI telephony with individual options available
- RJ11 socket for easy cord changes
- Ten last number redial & ten number speed dial memories
- Headset (included) for hands free operation, with loudspeaker option Volume control & mute
- Requires just two AA cells, readily available and low cost
Tempo TM-700 Specifications
| Application: | Test Telephone with High-impedance monitor, LCD, SmartIntercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories |
| DC Voltage: | TNV-3 working, 500 V peak, 1500 V TRANSIENT |
| Dimensions: | 9.25 (235 MM) Length X 2.5 (64 MM) Width X 3.25 (83 MM) Height |
| Leakage: | > 10 M ohms |
| Loop Current: | < 10 mA < I < 125 mA |
| Replacement Part: | Replaces PE830, Spares CS-01,CS-02, CS-03, CS-04, CS-05, CS-06, CS-07, HS-001 |
| Standard: | TIA/EIA-470-B and ETSI |
| Storage/Operating Temperature: | -10 C to +70 C, <95% humiditystorage, 0 C to +50 C, <90 % humidity (no condensation) operating |
| Voltage Measurement: | 110 V dc max |
