Tempo | SKU:
TV220E

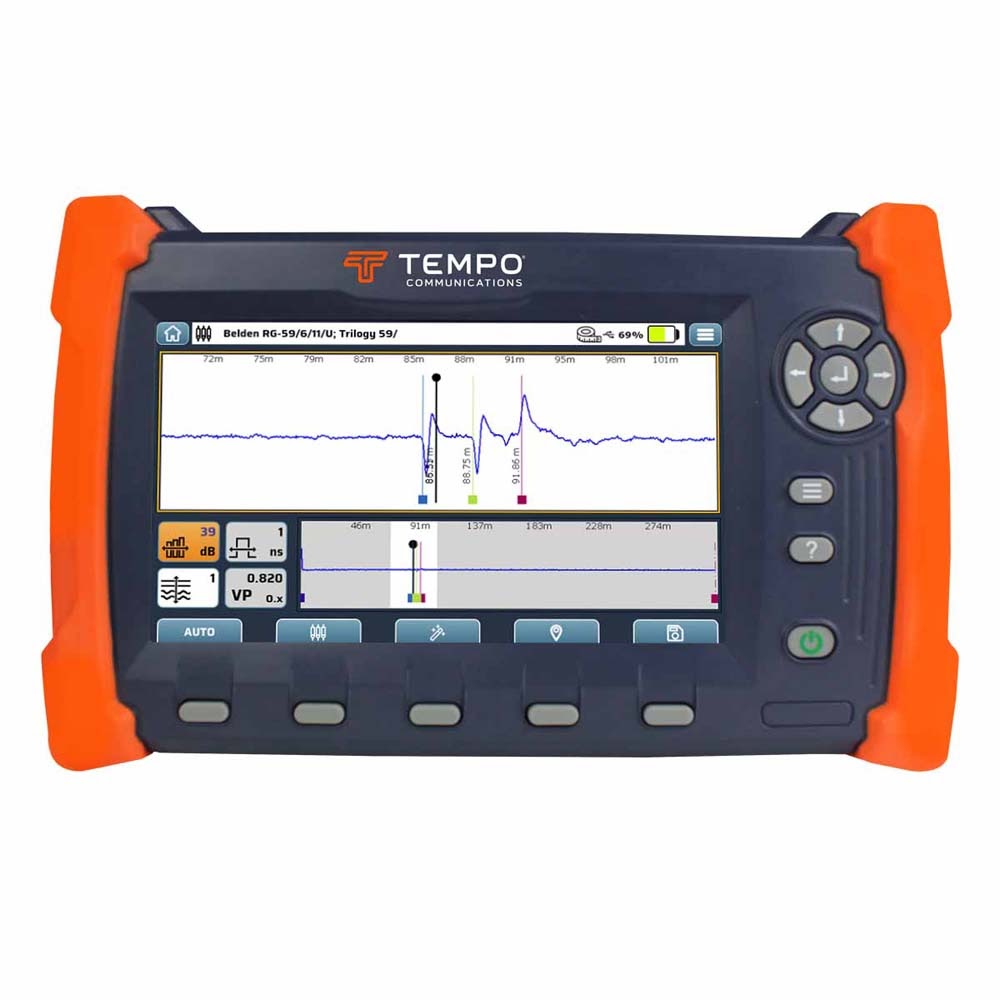

Tempo TV220E Time-Domain Reflectometer Cable Tester For CATV
Free Shipping
$3,995.00
Unit price
/
Unavailable
Description
Description
Tempo TV220E Includes
- (1) CATV Cable Tester
Tempo TV220E Features
- Compact, lightweight & rugged design
- 7” full-color, high resolution, sunlight readable, touchscreen with “multi-touch”
- Push-button controls allow for gloves and dirty environments
- Improved UI for rapid, intuitive testing
- TestWizard & automatic event detector with configurable event thresholds
- Advanced analysis modes: Test, Intermittent. Test vs. Saved, Saved and Difference etc
Tempo TV220E Specifications
| Maximum range | 5.58 km (Vp=0.93) |
| Basic Accuracy | ±0.01% ±300ps |
| Horizontal Resolution (ns) | 0.05 to 20 ns (varies with range) |
| Display resolution | 1024 x 600 full colour capacitive touchscreen (up to 800 nits bright backlight) |
| Push-button User Interface | 13 mechanical keys, operable with gloves |
| Input Protection | 400 V peak |
| Output Pulse Amplitude | 4V to 6V |
| Output Impedance | 75Ω |
| Pulse Widths | 1, 5, 25, 125, 250, 500 ns. |
| Pulse Shapes | Raised Cosine (1, 5, 25 ns), Digital (125, 250, 500 ns) |
| Velocity Factor (Vp) | Range |
| Event Markers | >6 Connection F-connector with replaceable coupler |
| Test Modes | Standard Test; Intermittent Fault Detection; Test vs. Saved, Test vs. Saved and Difference |
| Report Storage | >100 traces |
| Report Writing Application | Tempo Report Writer for PC (Android and iOS in development) |
| Size | TV220E, 27 x 16 x 5 cm, (10.3 x 6.4 x 2.2 in) TV220EX 32 x 23 x 11 cm (12.6 x 9 x 4.3 in) |
| Weight | TV220E 1200g, (2.6 lbs) TV220EX 2109g, (4.6 lbs) excluding accessories |
| Battery | Four cell, Lithium-ion, 60Wh |
| Battery Run Time | >8 hours at typical backlight brightnessThe EXTREME cable technician’s TDR |
