Tiger TR7CB-0050-15 Description
Tiger TR7 industrial hand chain hoist delivers robust, low-headroom lifting with a 0.5-ton capacity and 15 ft standard lift. Built with a rugged steel body, heat-treated alloy hooks, and calibrated alloy load chain, it is lightweight, portable, and certified for dependable operation.
Tiger TR7CB-0050-15 Includes
- (1) Hand Chain Hoist, TR7 Series
Tiger TR7CB-0050-15 Features
- 0.5-ton working load limit
- 15 ft standard lift
- Rugged steel body; lightweight and portable
- Double cover protection for brake chamber
- Drop forged, heat-treated alloy swivel hooks with heavy-duty latches
- High quality calibrated alloy load chain (Grade 80 or 100)
- Heat-treated alloy steel triple spur gears and pinion shaft
- Operating temperature -40 Degree C to +50 Degree C (-40 Degree F to +122 Degree F)
- Certified 2% light load protection
- Proof tested to 1.5x rated capacity
- Meets BS EN 13157:2004+A1:2009, ANSI/ASME B30.16, AS 1418.2, SANS standards

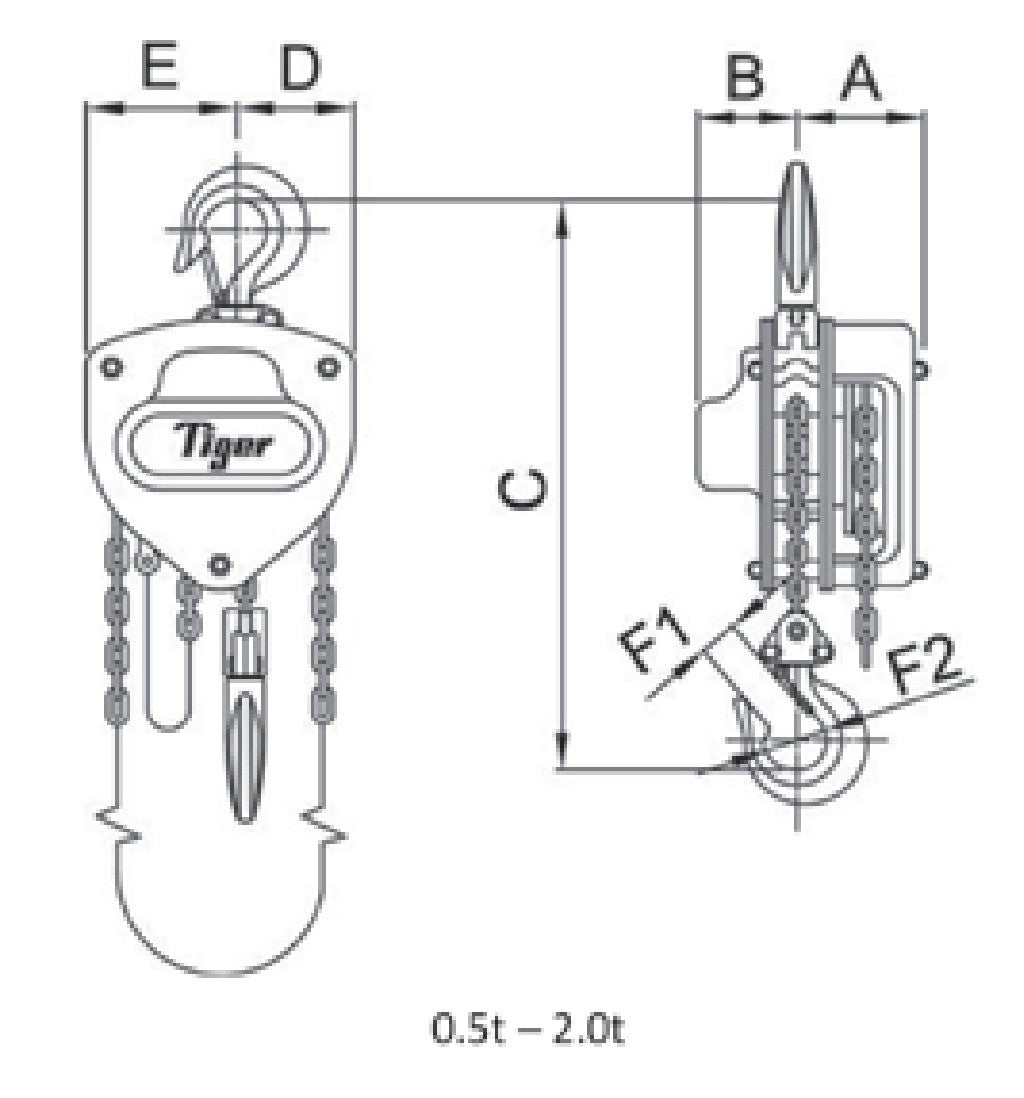

Tiger TR7CB-0050-15 Specifications
| Capacity | 0.5 ton (1/2 Ton) |
| Lift | 15 ft |
| Weight | 30 lb |
| Dimensions A (in) | 3.67 |
| Dimensions B (in) | 2.59 |
| Dimensions C (in) | 12.0 |
| Dimensions D (in) | 2.04 |
| Dimensions E (in) | 3.07 |
| Dimensions F1 (in) | 1.94 |
| Dimensions F2 (in) | 1.49 |
Toolup Part # :
784151
