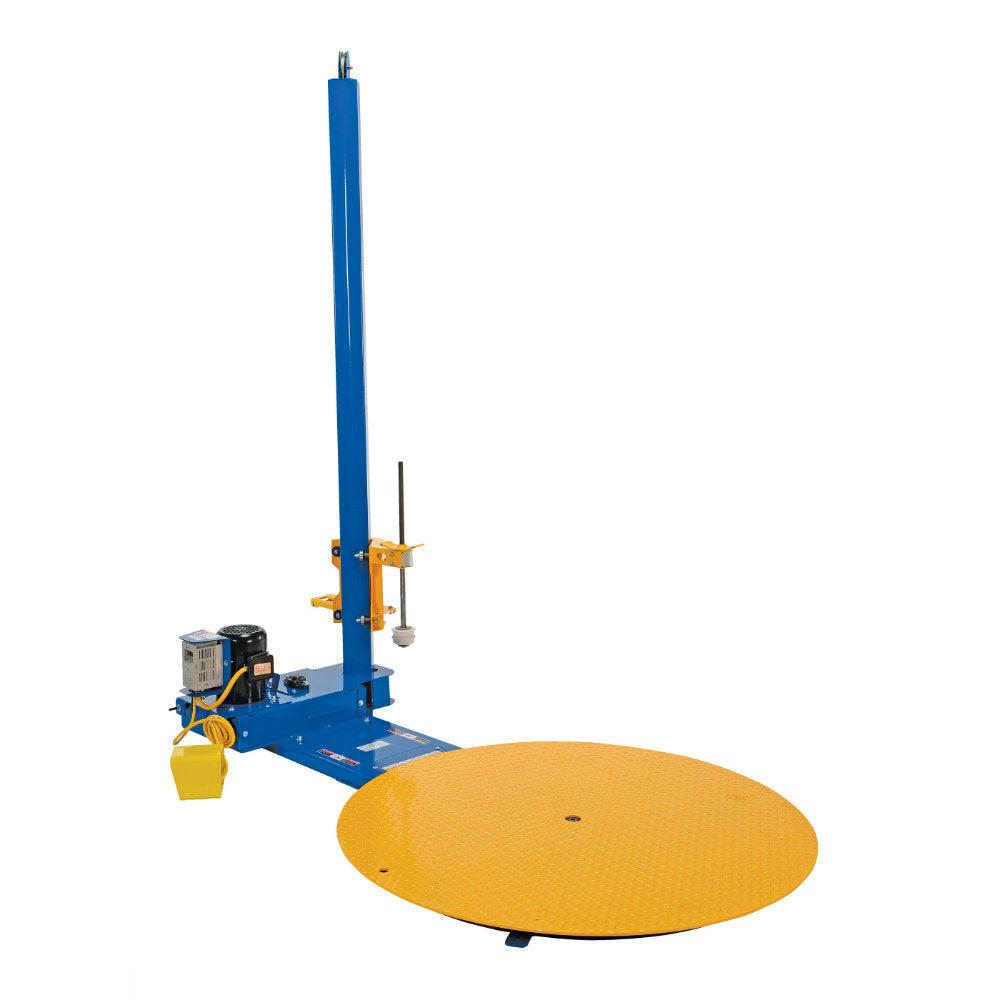

Semi-Automatic Stretch Wrap Machine (4k limit) SWA-50 Description
The Semi-Automatic Stretch Wrap Machine design offers bigger carousel sizes with carousel rotation that is controlled by a foot switch. The power input has variable AC motor that allows adjustable deck speed and includes soft-start/stop. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.
Semi-Automatic Stretch Wrap Machine (4k limit) SWA-50 Specifications
| Uniform Capacity (lbs.) | 4,000 |
| Turntable Diameter (in.) | 50 |
| Wrap Height (in.) | 82 |
| Turntable Height (in.) | 2-1/16 |
| Max Load Diameter (in.) | 64 |
| Voltage/Phase | 115/1 |
| Motor Amperage | 1.8 |
| R.P.M Variables | 3-12 |
| Motor Horsepower | 1/2 |
| Foot Switch Cord Length (in.) | 96 |
| Minimum Compatible Stretch Wrap Core ID (in.) | 3 |
| Maximum Compatible Stretch Wrap OD (in.) | 11 |
