VEVOR DGNVISE6INUS Description

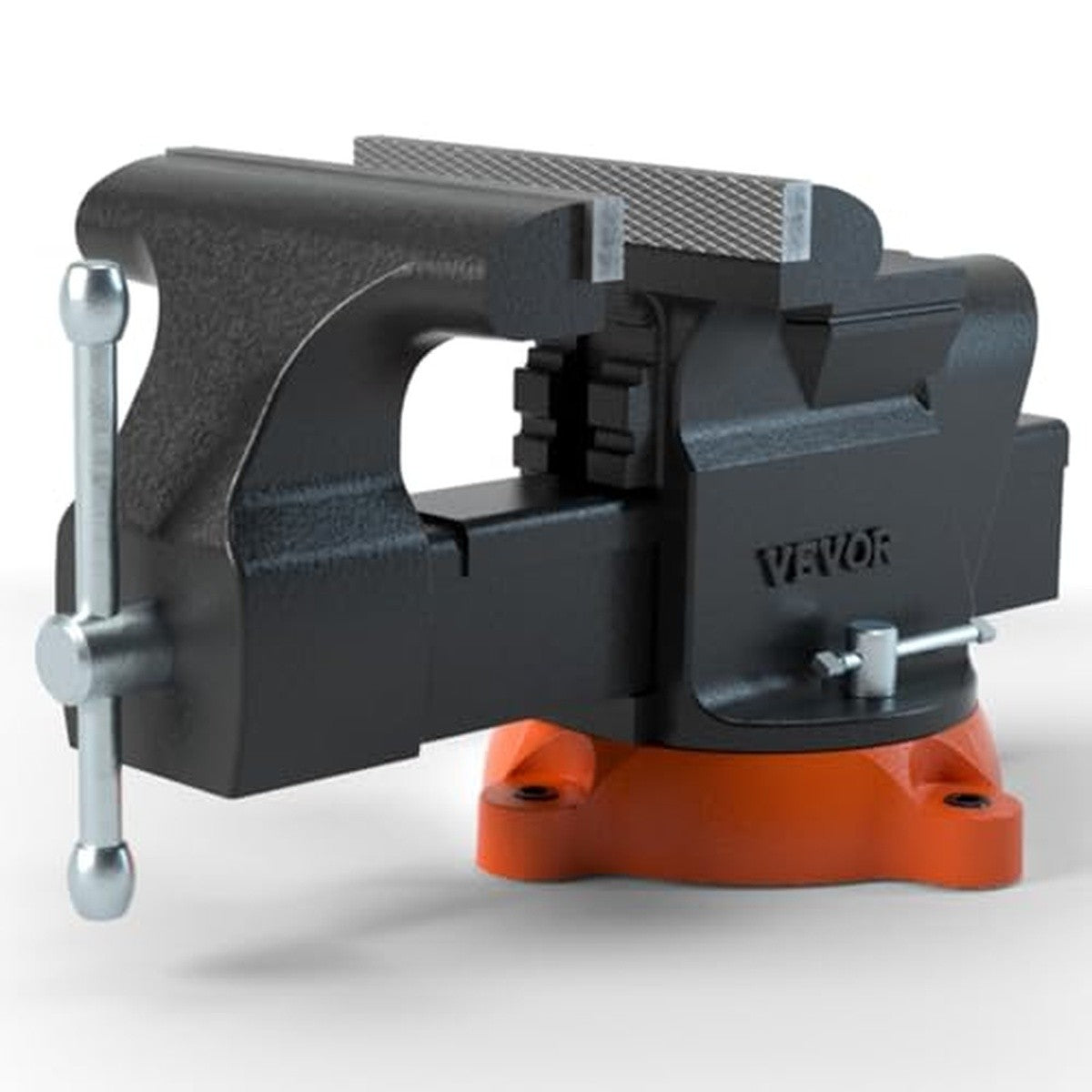

This heavy duty VEVOR bench vise features a 6 inch jaw width and 5.9 inch jaw opening for clamping a wide range of workpieces. Built from ductile iron with a powder-coated finish, it includes a 360 Degree swivel locking base, a built-in anvil surface, and multi-jaws for flat and pipe materials, making it ideal for drilling, cutting, grinding, tapping, and general workshop tasks.
VEVOR DGNVISE6INUS Includes
- (1) Bench Vise
- (1) Set of mounting nuts and screws
- (1) Manual
- (1) Set of magnetic jaw pads
VEVOR DGNVISE6INUS Features
- 6 inch jaw width with 5.9 inch jaw opening for versatile workholding
- 360 Degree swivel locking base helps position work at the desired angle
- Ductile iron construction rated at 60,000 PSI for durability
- Powder-coated surface helps resist rust and corrosion
- Replaceable serrated jaw plates made of carbon steel for strong grip
- Built-in anvil area for shaping and light striking tasks
- Multi-jaw design supports both flat stock and pipe or tube workpieces
- Pipe clamping diameter range of 0.6 inch to 2.9 inch
- Up to 20 kN (4496 lbs) of clamping force
- Includes mounting hardware and magnetic jaw pads for easier setup
VEVOR DGNVISE6INUS Specifications
| Brand | VEVOR |
| Manufacturer Part Number | DGNVISE6INUS |
| Model | 6 Bench Vise |
| Material | Cast Iron |
| Color | Black and Orange |
| Jaw Width | 6 in. |
| Jaw Opening | 5.9 in. |
| Throat Depth | 3.5 in. |
| Anvil Size | 2.9 in. x 3 in. |
| Base Rotation | 360 Degree |
| Pipe Clamping Diameter | 0.6 in. to 2.9 in. |
| Max Clamping Force | 20 kN (4496 lbs) |
| Tensile Strength | 60,000 PSI |
| Item Dimensions (L x W x H) | 36.6 x 15.2 x 18.8 cm |
| Item Weight | 11.34 kg |
| Country of Origin | China |
