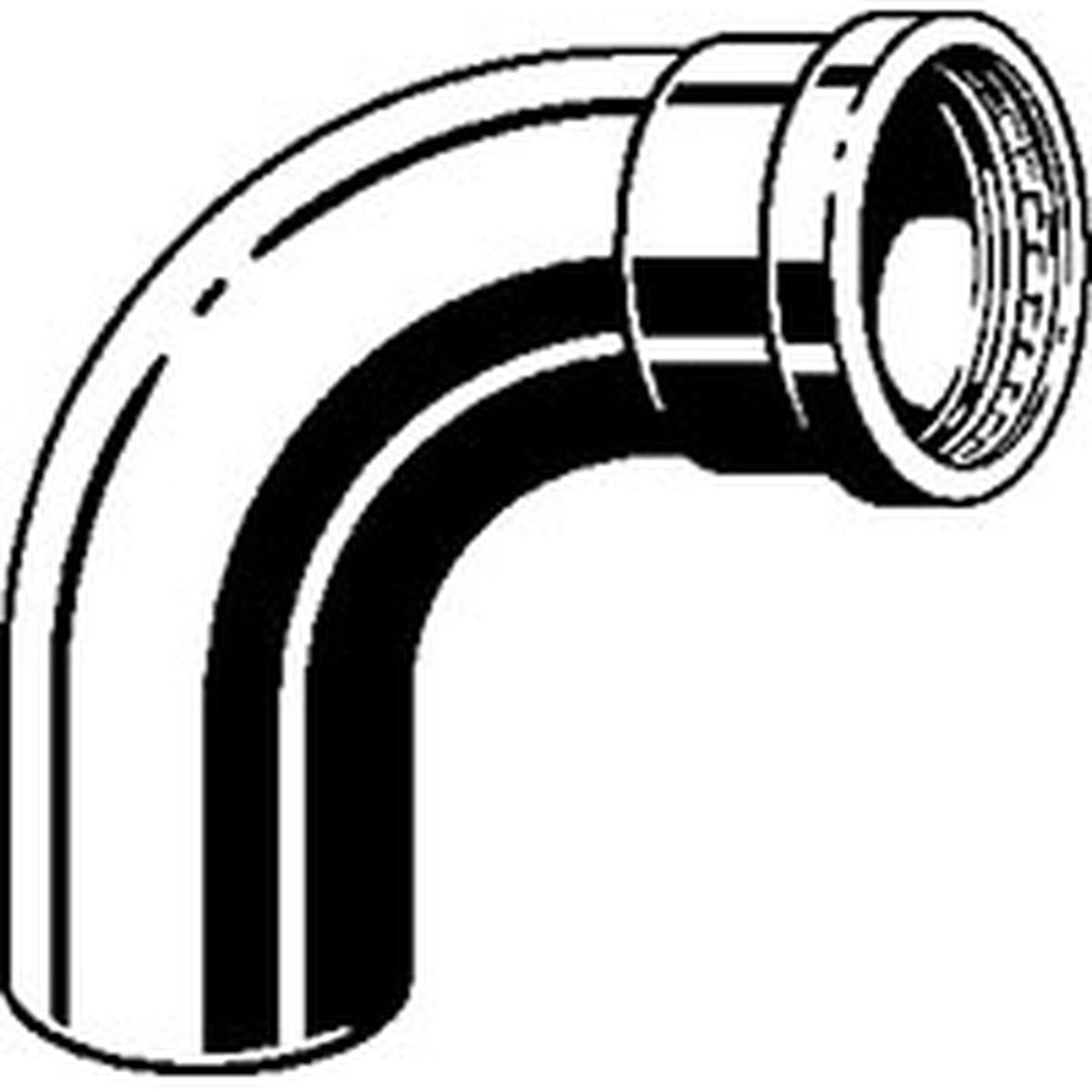

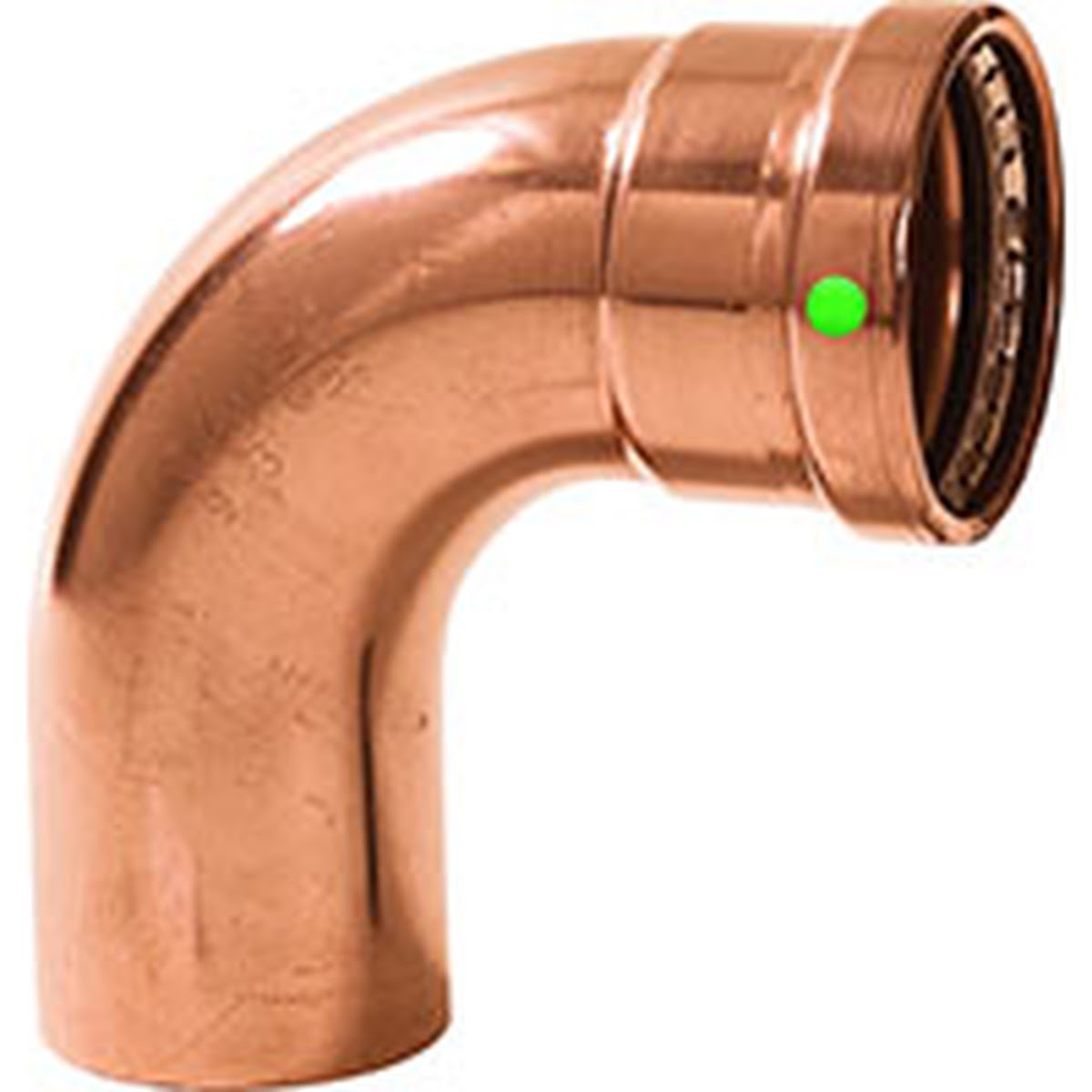

Viega 20643 Description
The Viega ProPress 90 Degree street elbow provides a 90 Degree change of direction with a Press x FTG (CTS) connection for 3 in. copper tube. It features the Smart Connect function, a Zero Lead design, and an EPDM sealing element. Must be installed with Viega ProPress XL-C rings and a V2 actuator.
Viega 20643 Includes
- (1) Viega ProPress 90 Degree Street Elbow, Press x FTG (CTS), 3 in. (20643)
Viega 20643 Features
- 3 in. copper ProPress elbow for changing direction 90 Degree
- Press x FTG (CTS) street connection design
- Smart Connect feature
- Zero Lead
- EPDM sealing element
- Requires Viega ProPress XL-C rings and V2 actuator for installation
Viega 20643 Specifications
| Brand | ProPress |
| Model | 0916.1XL |
| Manufacturer Material Number | 423111 |
| Material | Copper |
| Angle | 90 Degree |
| Connection Type | Press x FTG (CTS) |
| Size | 3 in |
| Sealing Element | EPDM |
| Zero Lead | Yes |
| Smart Connect | Yes |

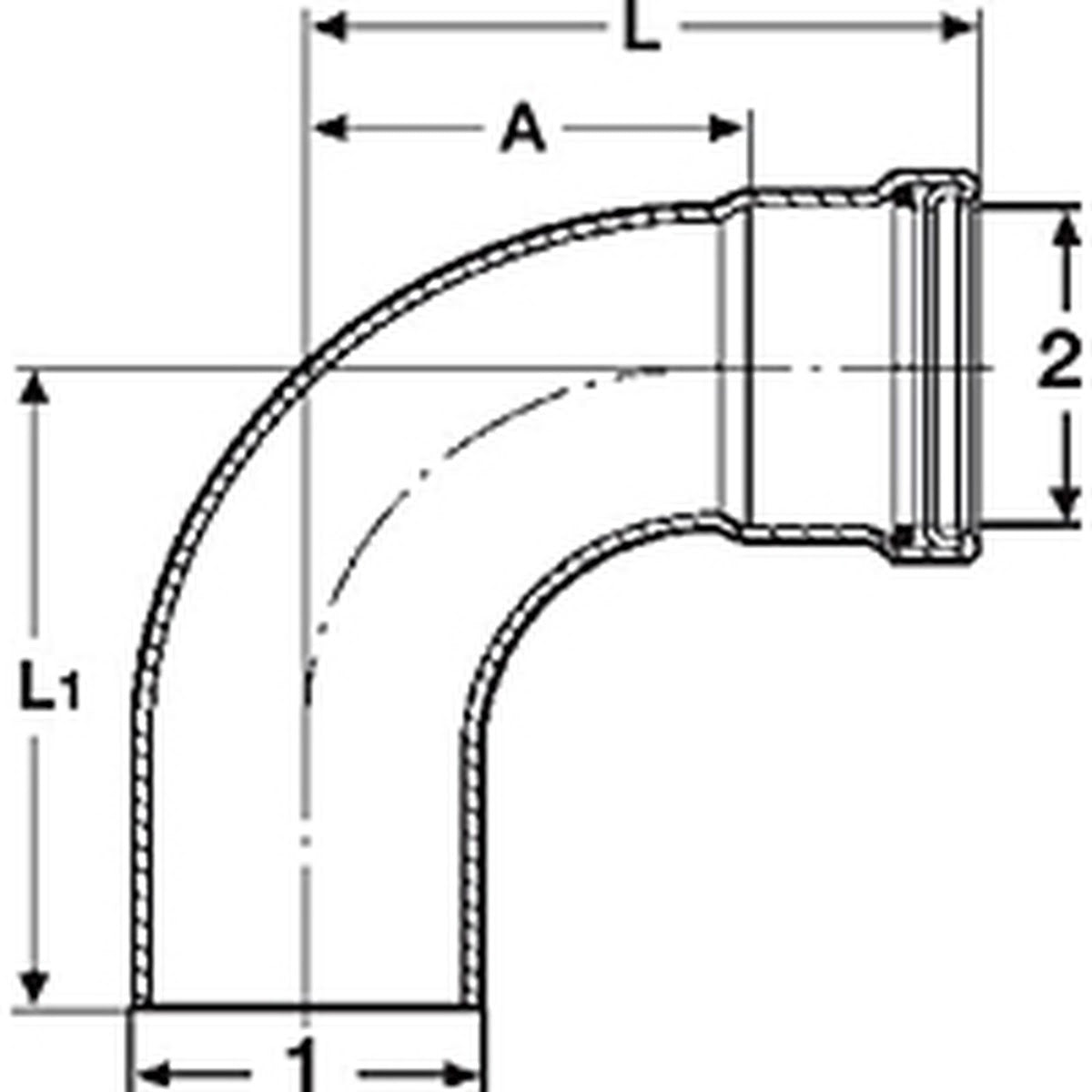

| Dimension A | 3.76 in |
| Dimension L | 5.73 in |
| Dimension L1 | 5.63 in |
| Item Weight | 2.861 lb |
| Country of Origin | US |
