Viega 20853 Description

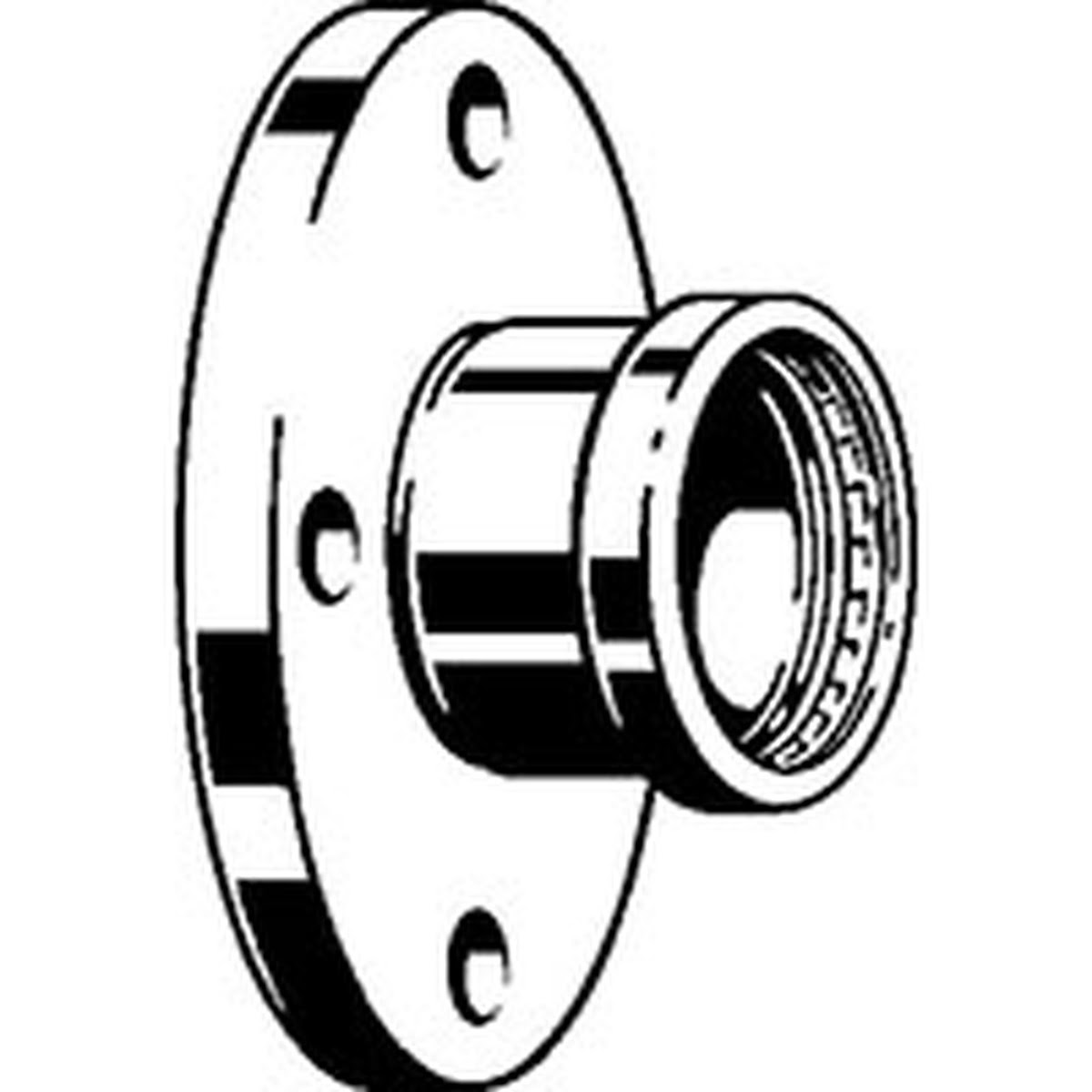

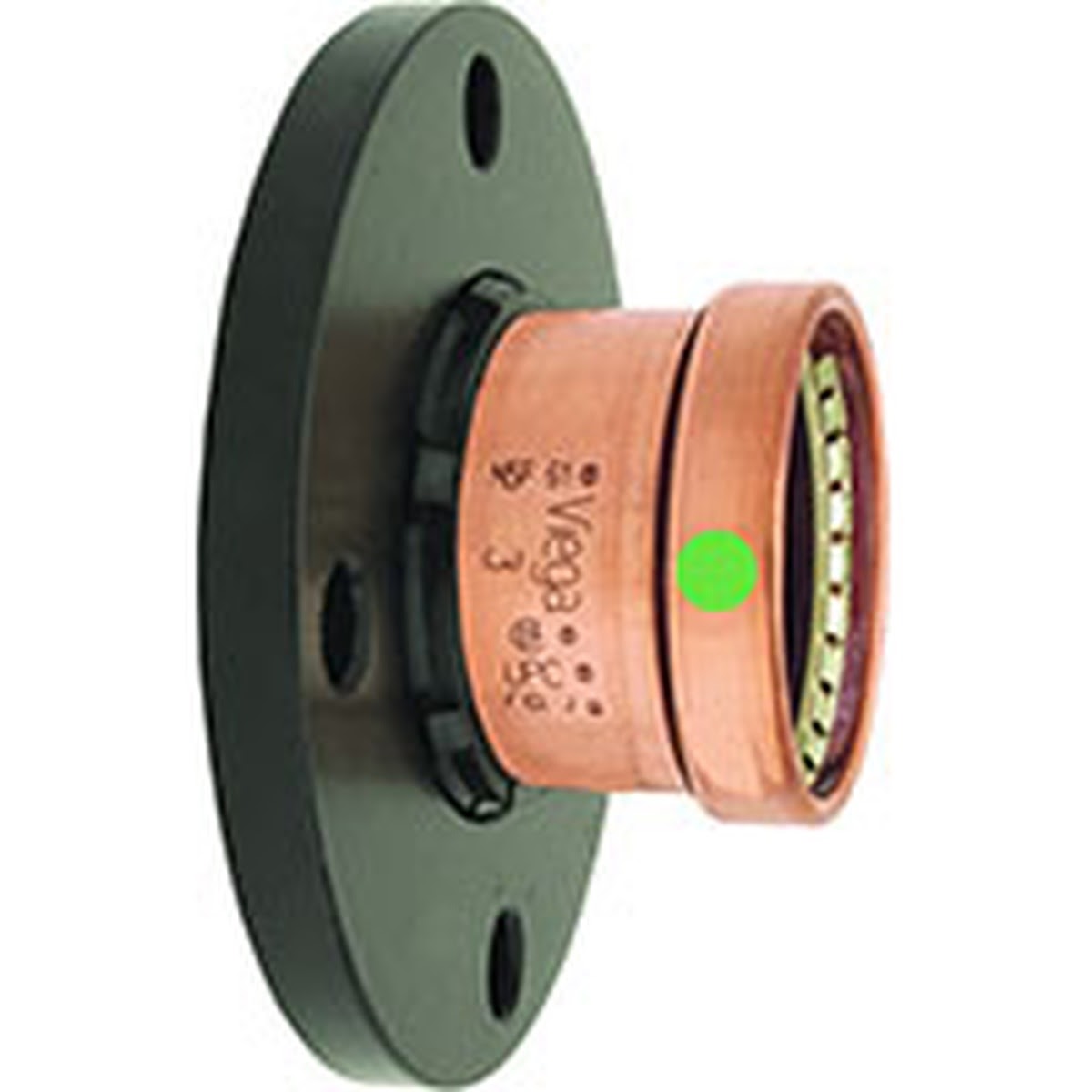

The Viega ProPress flange (Model 0959.5XL) is a 2-piece copper press connection flange designed for connecting ProPress XL piping to a bolt pattern flange. It features Smart Connect technology and a zero lead design and includes an EPDM sealing element. Must be installed with Viega ProPress XL-C rings and V2 actuator.
Viega 20853 Includes
- (1) Viega ProPress adapter flange (2-piece assembly)
- (1) EPDM sealing element
Viega 20853 Features
- Copper ProPress XL press connection
- Smart Connect feature for identification of unpressed connections
- Zero lead design
- Includes EPDM sealing element
- Designed for press-to-bolt-pattern flange connections
- Must be installed with Viega ProPress XL-C rings and V2 actuator
Viega 20853 Specifications
| Brand/Series | ProPress |
| Model | 0959.5XL |
| Material | Copper |
| Connection Type | Press |
| Press Size (P) | 2 1/2 in |
| Bolt Pattern (BP) | 4 |
| Bolt Pattern Diameter (BPd) | 5 1/2 in |
| Sealing Element Material | EPDM |
| Smart Connect | Yes |
| Zero Lead | Yes |

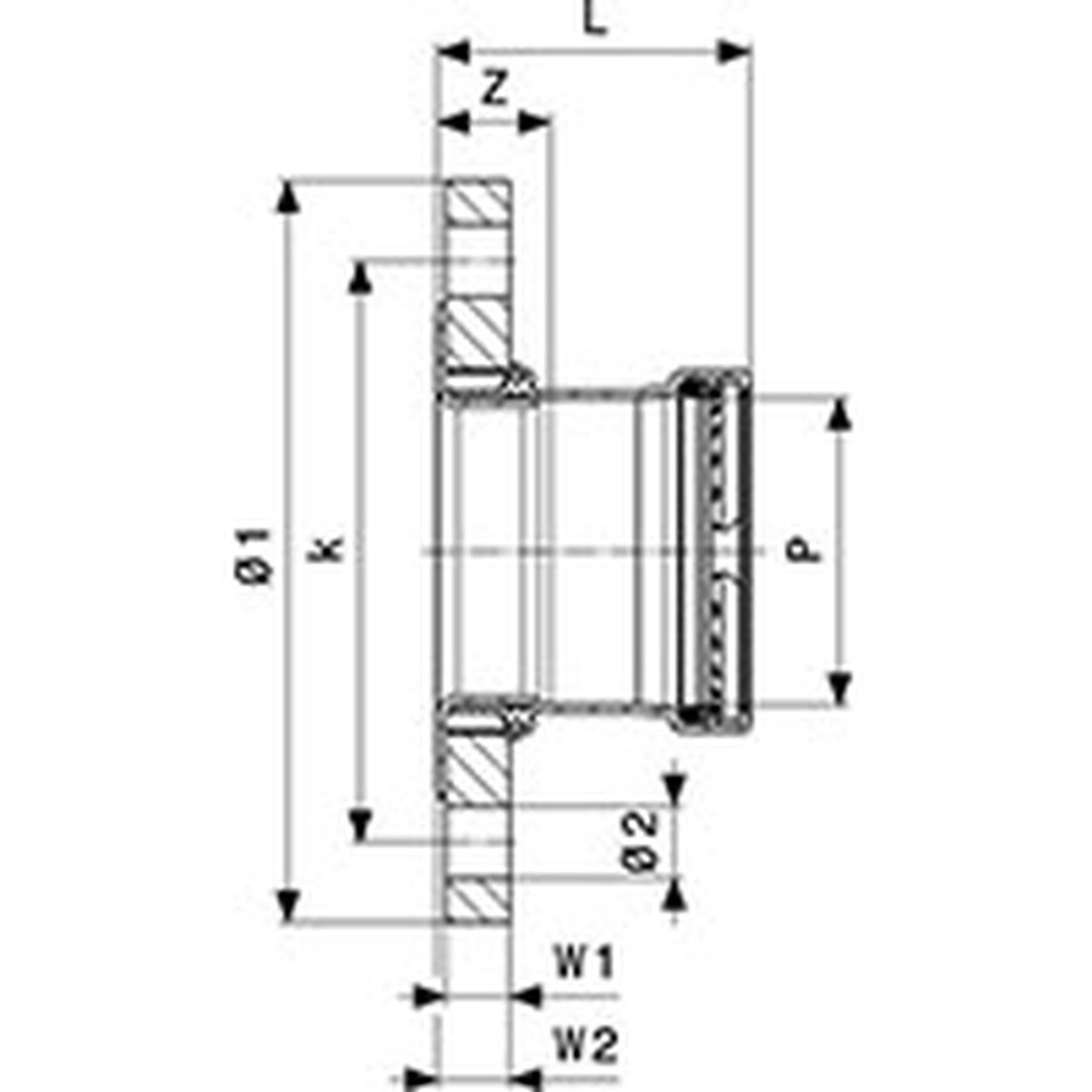

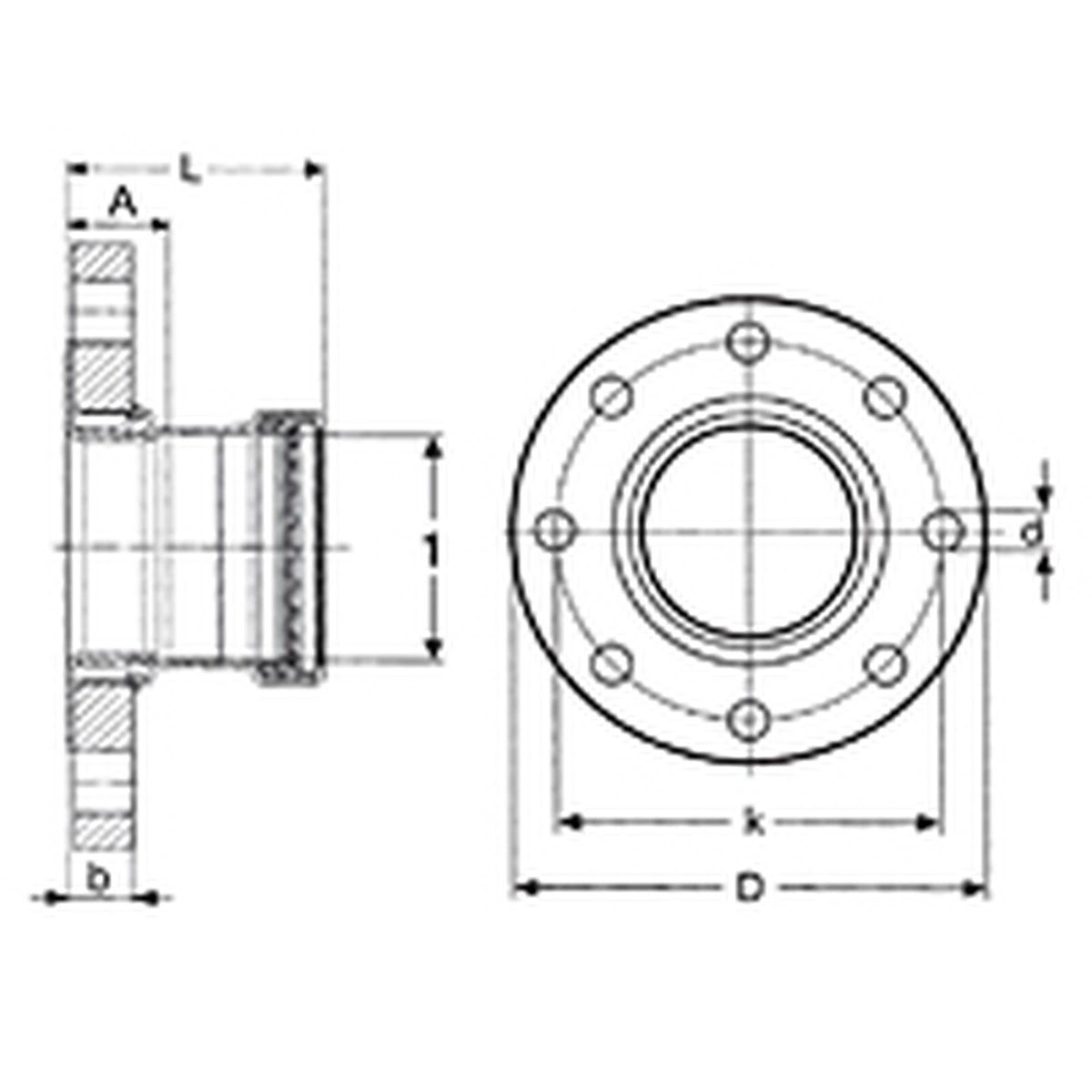

| Dimension A | 1.09 in |
| Dimension B | 0.70 in |
| Dimension L | 2.79 in |
| Dimension K | 5.51 in |
| Dimension D | 7.09 in |
| Item Weight | 6.762 lb |
| Country of Origin | Germany |
Toolup Part # :
887010
