Viega 26525 Description

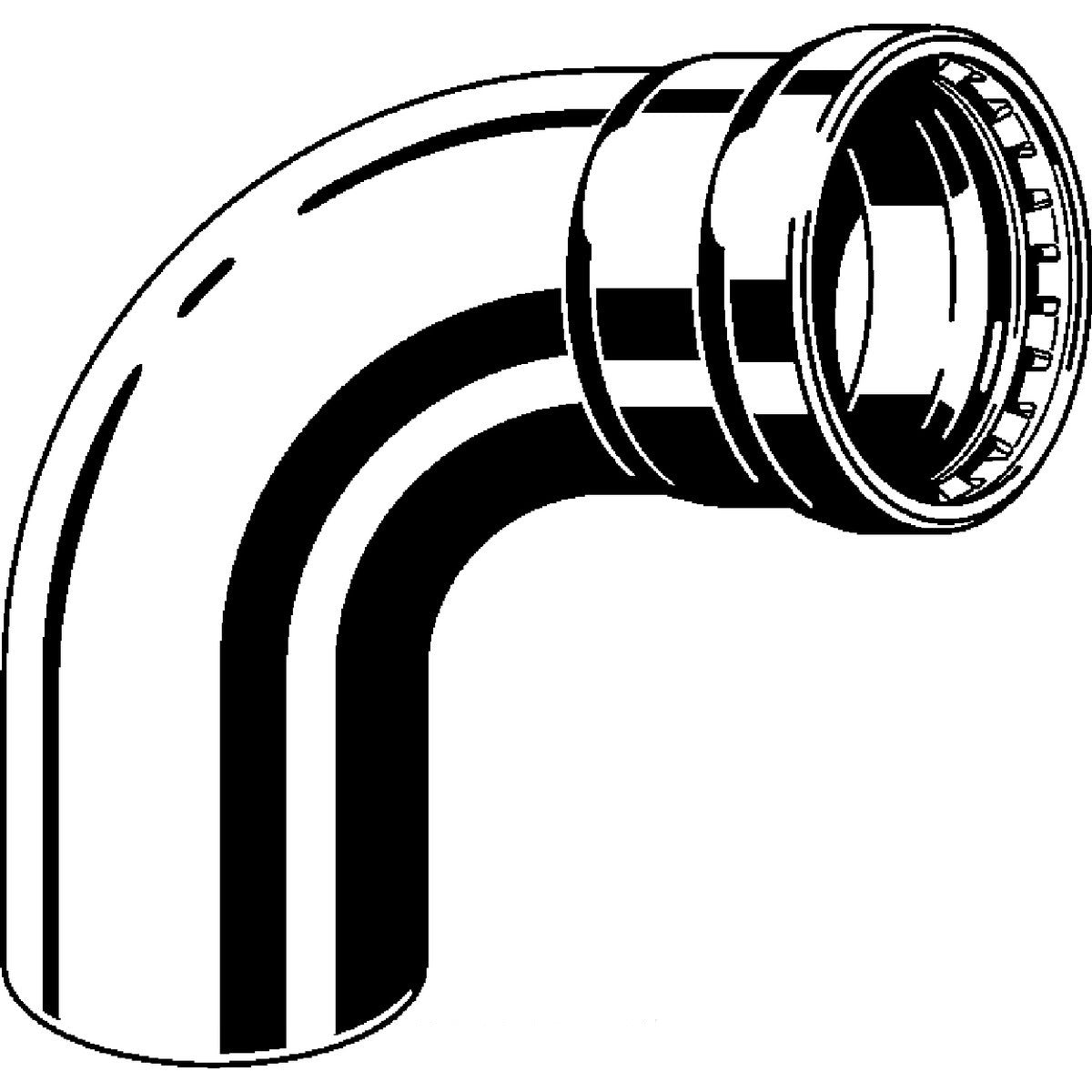

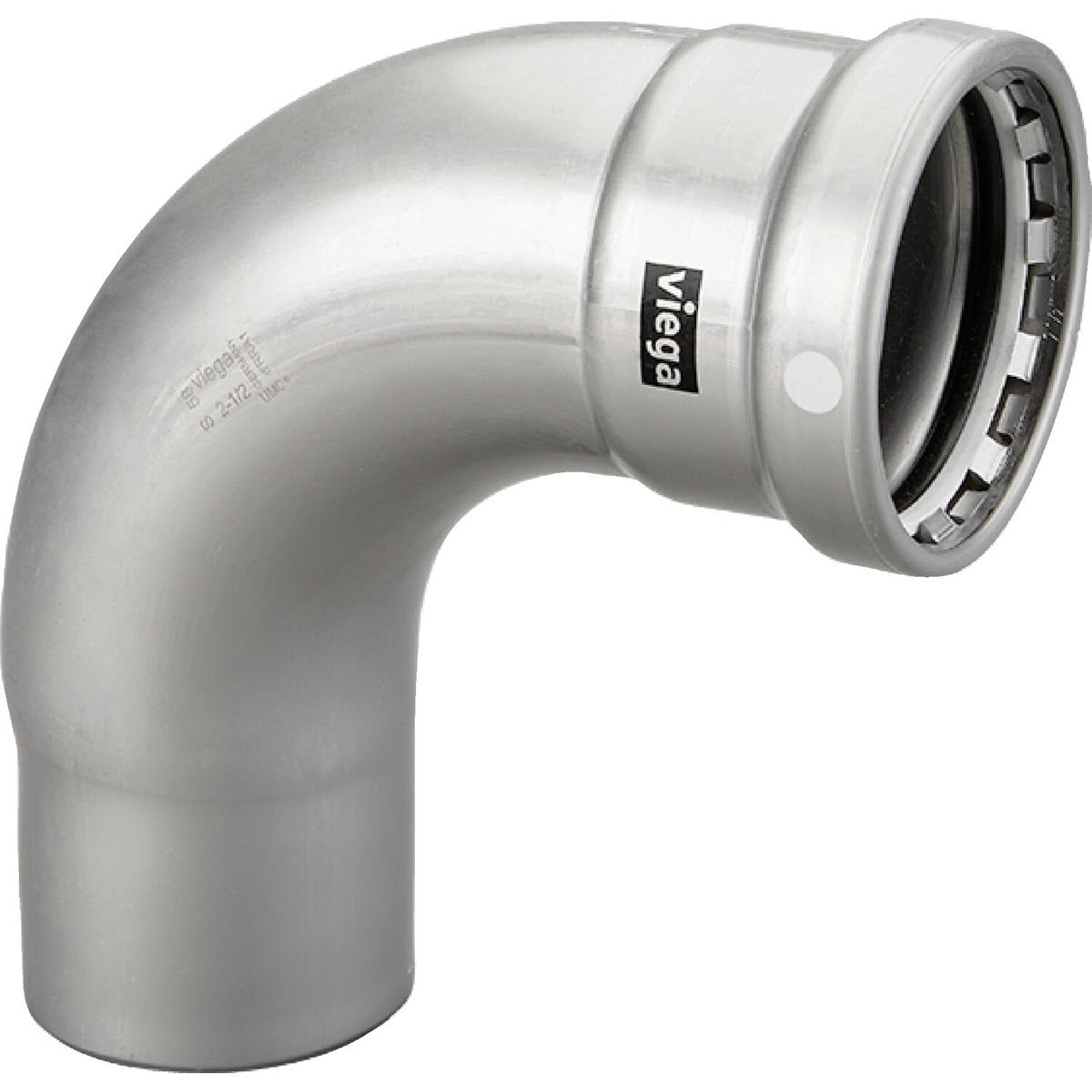

The Viega MegaPress FKM 90 Degree street elbow is a 4 in press fitting designed for use with Schedule 5 to Schedule 40 carbon steel pipe. It features a carbon steel body with a zinc nickel coating and an FKM sealing element for a secure press connection in MegaPress XL installations.
Viega 26525 Includes
- (1) Viega MegaPress FKM 90 Degree Street Elbow, 4 in Press x 4 in FTG (IPS)
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 26525 Features
- 90 Degree street elbow press fitting for MegaPress FKM XL systems
- 4 in press end with 4 in female threaded (IPS) end
- For use with Schedule 5 to Schedule 40 carbon steel pipe
- Carbon steel construction with zinc nickel coating
- Smart Connect Technology
- FKM sealing element
- Must be installed with MegaPress XL rings and PressBooster or Z3 actuator
Viega 26525 Specifications
| Brand | Viega |
| Series | MegaPress FKM |
| Model | 4816.1XL |
| Angle | 90 Degree |
| Size | 4 in |
| Connection 1 | Press |
| Connection 2 | FTG (IPS) |
| Compatible Pipe | Schedule 5 to Schedule 40 carbon steel |
| Material | Carbon steel |
| Finish | Zinc nickel coating |
| Seal Material | FKM |
| Country of Origin | Germany |
| UPC | 691514265254 |
| Product Length (in) | 11.425 |
| Product Width (in) | 11.035 |
| Product Height (in) | 5.193 |
| Product Weight (lb) | 7.189 |
Toolup Part # :
887889
