Viega 26775 Description

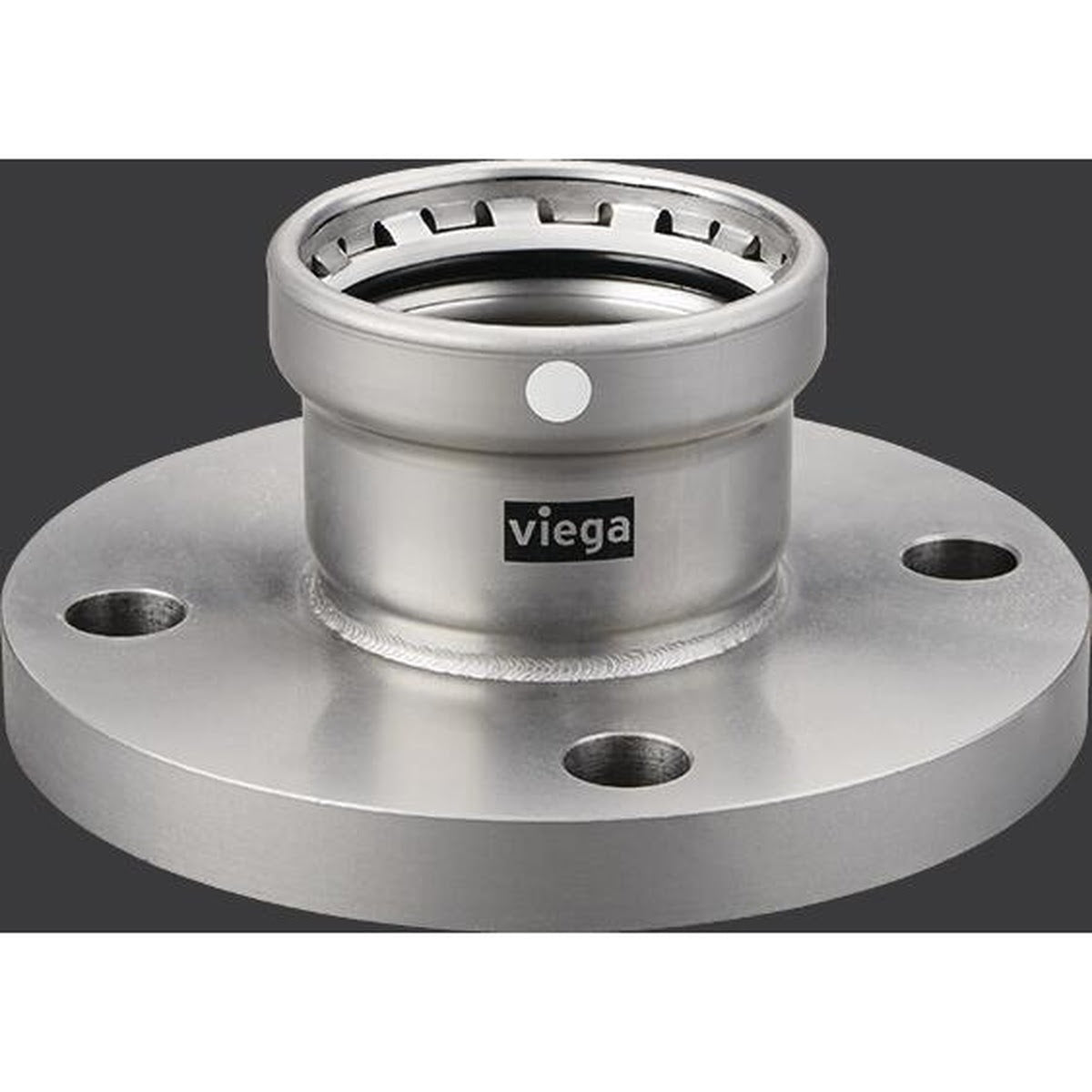

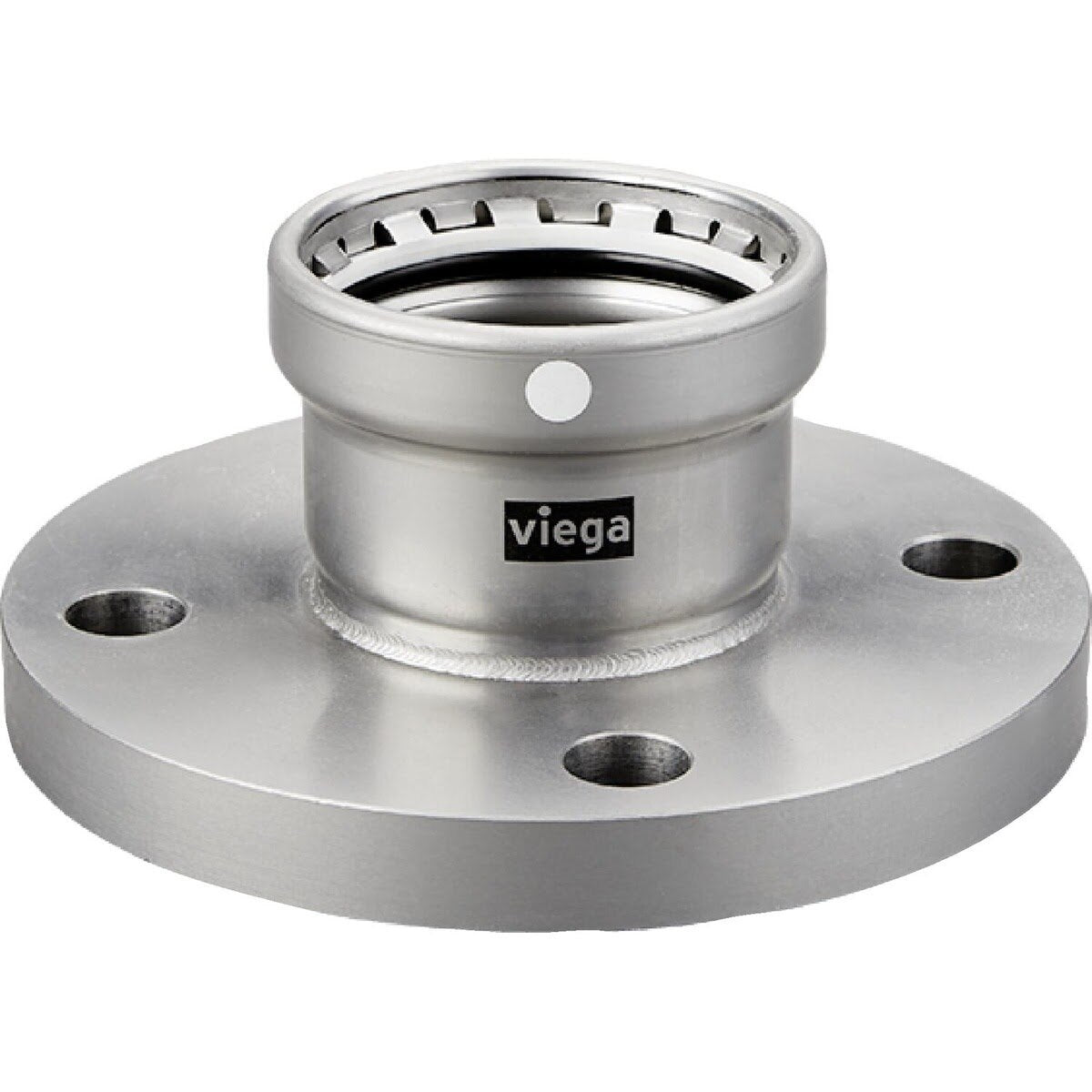

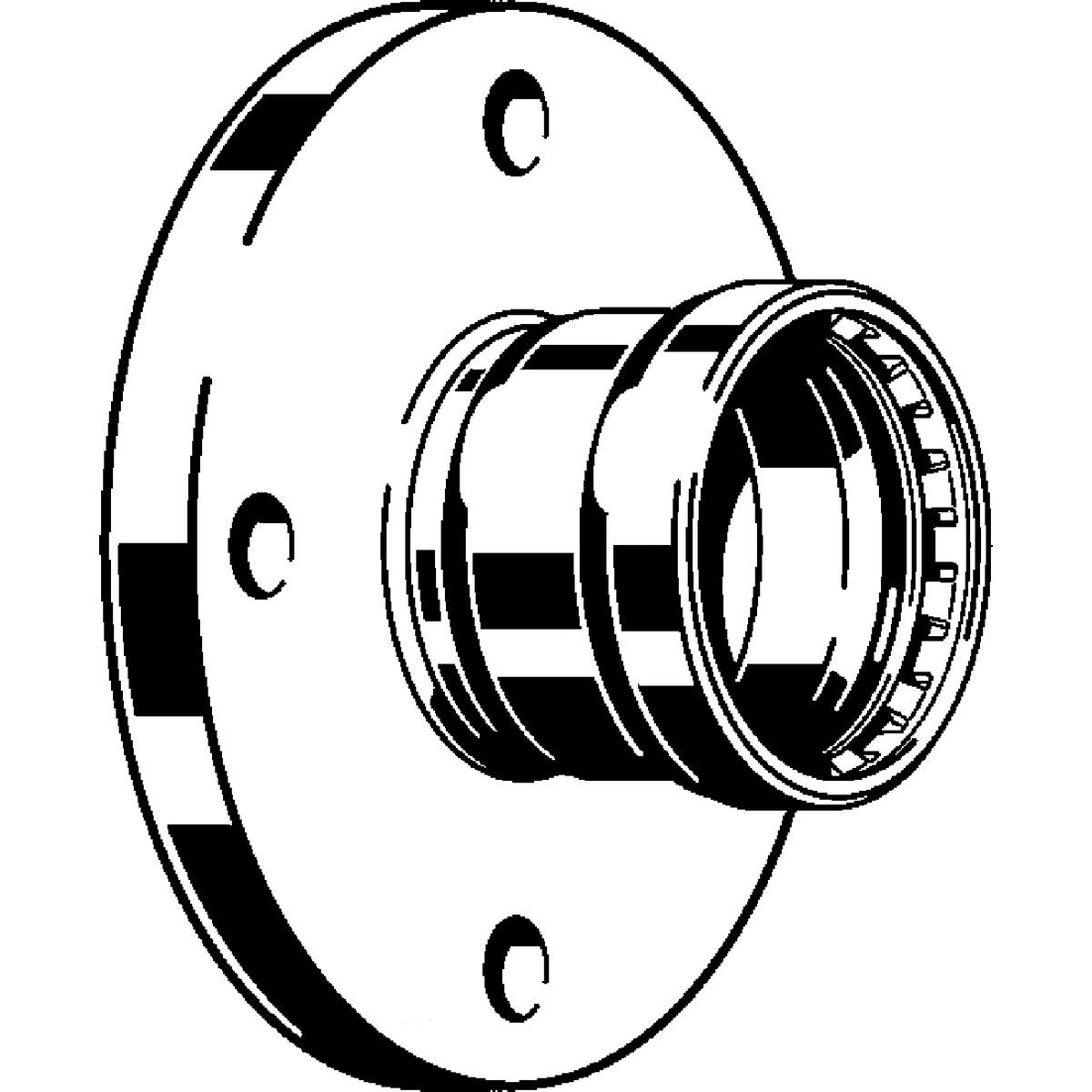

Viega MegaPress FKM flange for press connections to Schedule 5 to Schedule 40 carbon steel pipe. Constructed of carbon steel with a zinc-nickel coating and a Class 150 raised face flange design.
Viega 26775 Includes
- (1) Viega MegaPress FKM flange
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 26775 Features
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Carbon steel construction with zinc-nickel coating
- Press connection design
- Class 150 raised face flange
- Smart Connect Technology
- Requires MegaPress XL rings and PressBooster/Z3 actuator for installation
Viega 26775 Specifications
| Brand | MegaPress FKM |
| Model | 4859.5XL |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Connection Type | Press |
| Flange Class | Class 150 |
| Face Type | Raised face |
| Pipe Size | 2 1/2 in |
| Bolt Pattern | 4 |
| Bolt Pattern Diameter | 5 1/2 in |
| Country of Origin | DE |
| Product Length (in) | 7.126 |
| Product Width (in) | 7.126 |
| Product Height (in) | 3.453 |
| Shipping Weight (lb) | 8.157 |
Toolup Part # :
887960
