Viega 26780 Description

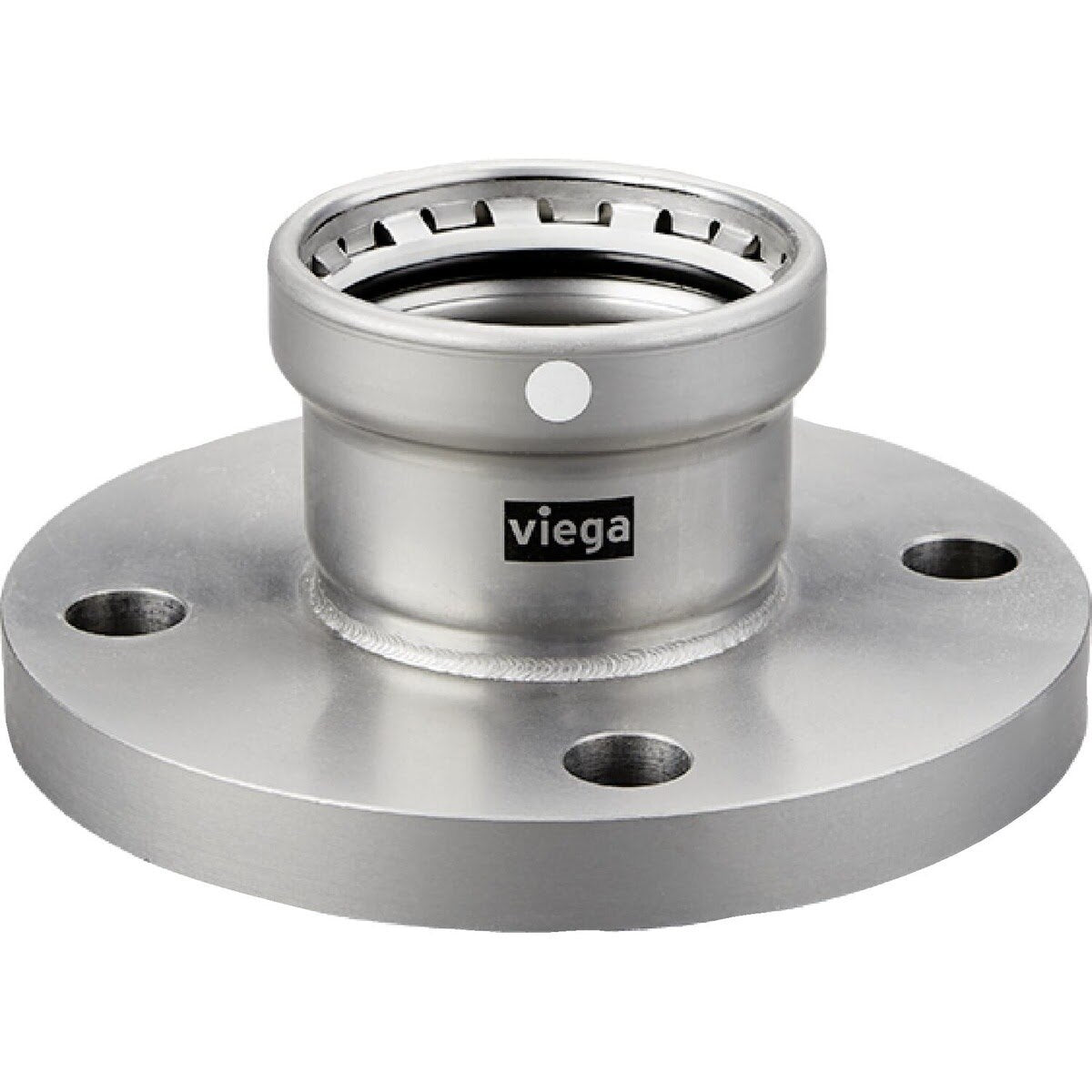

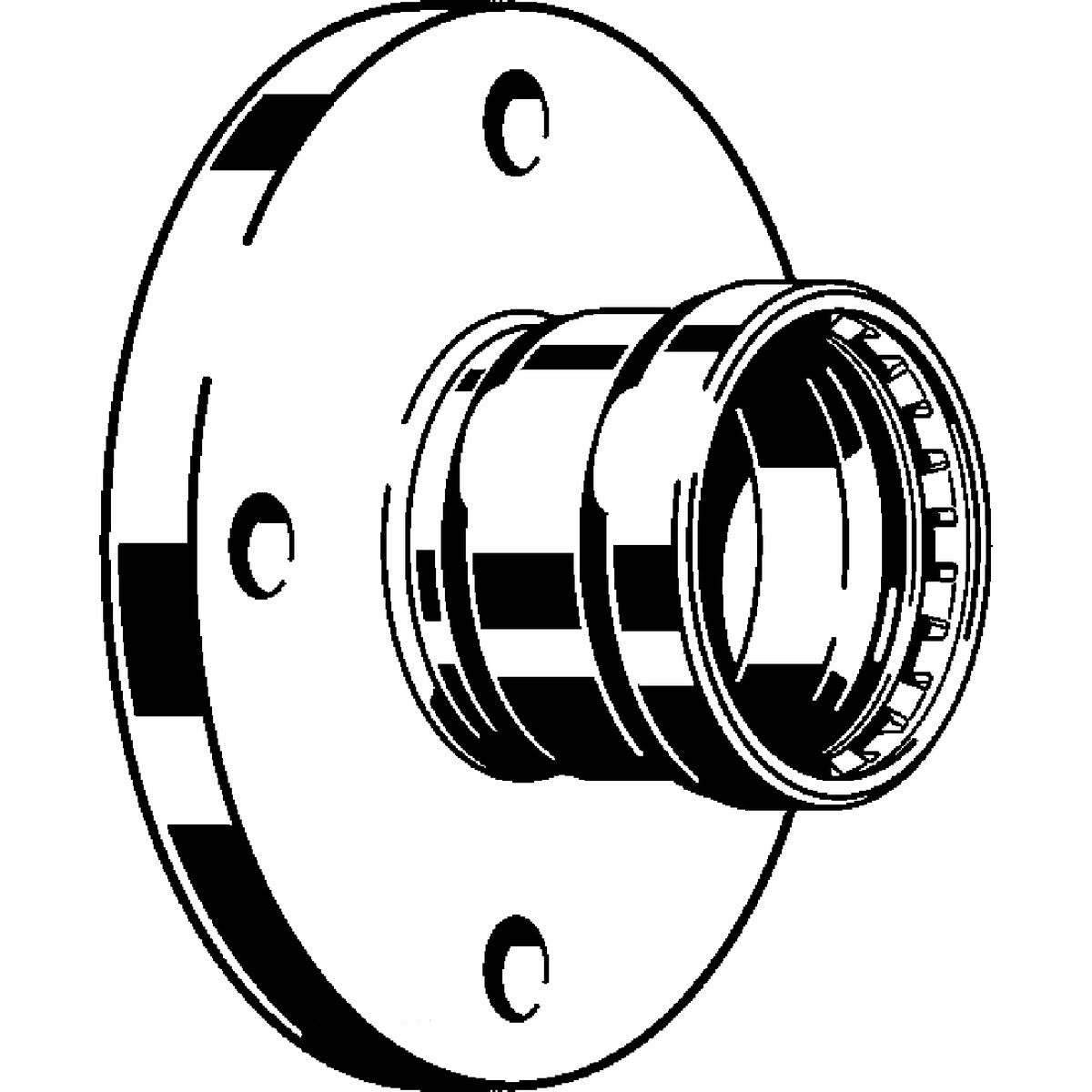

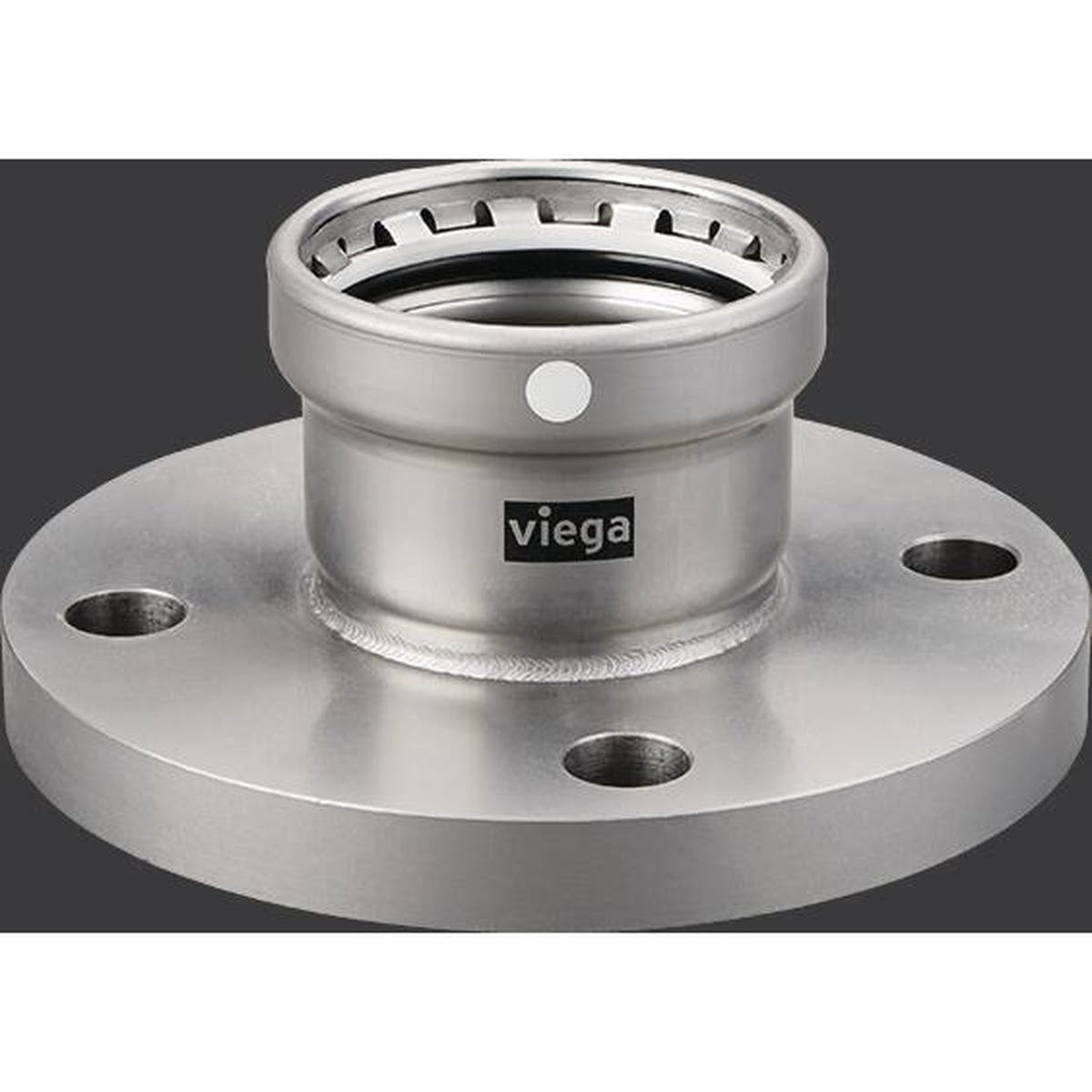

The Viega MegaPress FKM flange provides a press connection to Class 150 raised face flange systems for Sch. 5 to Sch. 40 carbon steel pipe. Constructed from carbon steel with a zinc-nickel coating and includes an FKM sealing element for reliable performance.
Viega 26780 Includes
- (1) Viega MegaPress flange
Viega 26780 Features
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Press connection for MegaPress XL systems
- Class 150 raised face flange design
- Carbon steel construction with zinc-nickel coating
- Includes FKM sealing element
- Includes grip ring and separator ring
- Must be installed with MegaPress XL rings and PressBooster or Z3 actuator
Viega 26780 Specifications
| Series | MegaPress FKM |
| Model | 4859.5XL |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Sealing element material | FKM |
| Connection type | Press |
| Flange rating | Class 150 |
| Flange face | Raised face |
| Compatible pipe | Sch. 5 to Sch. 40 carbon steel pipe |
| Country of origin | Germany |
| Each length (in) | 7.717 |
| Each width (in) | 7.717 |
| Each height (in) | 4.087 |
| Each shipping weight (lb) | 9.814 |
