Viega 26785 Description

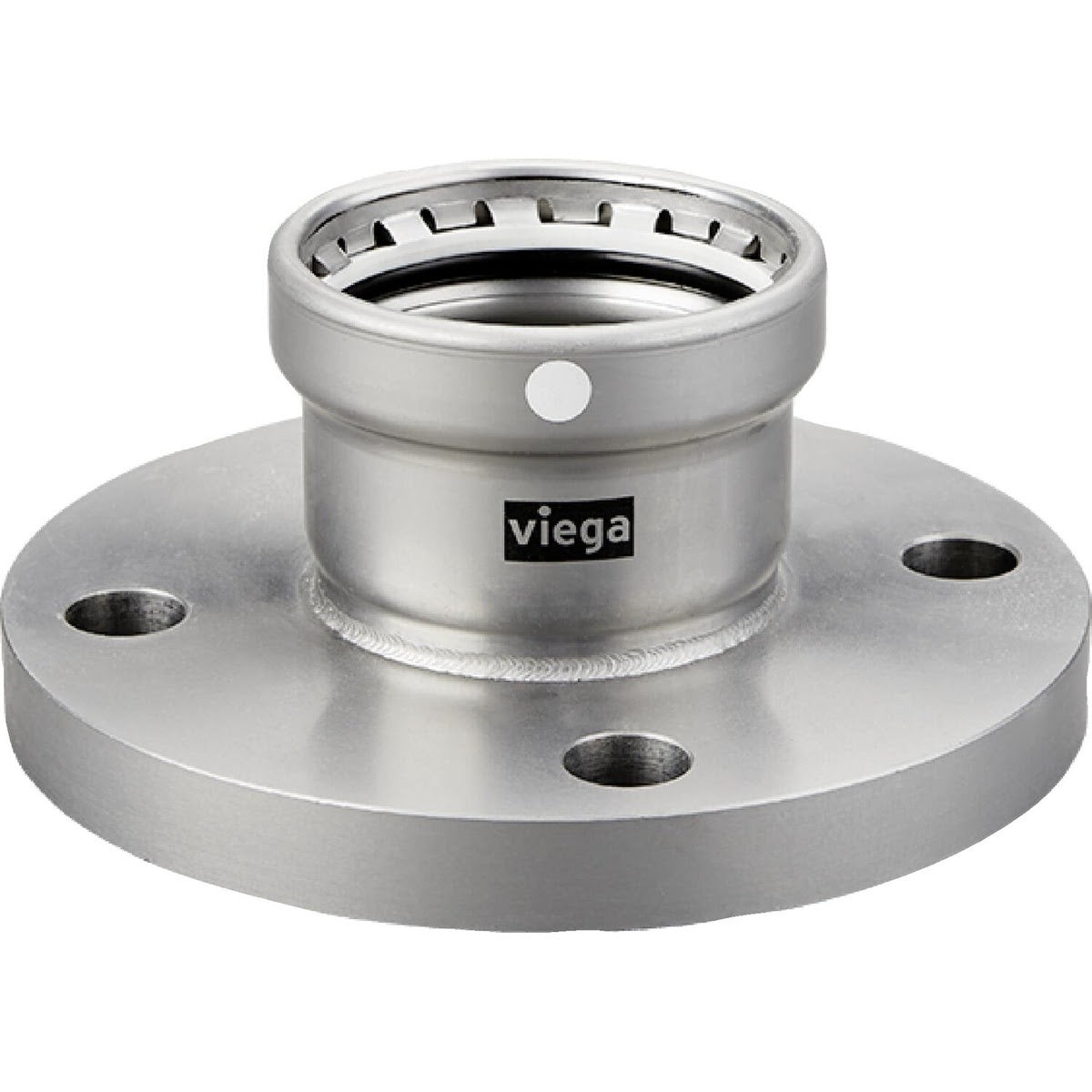

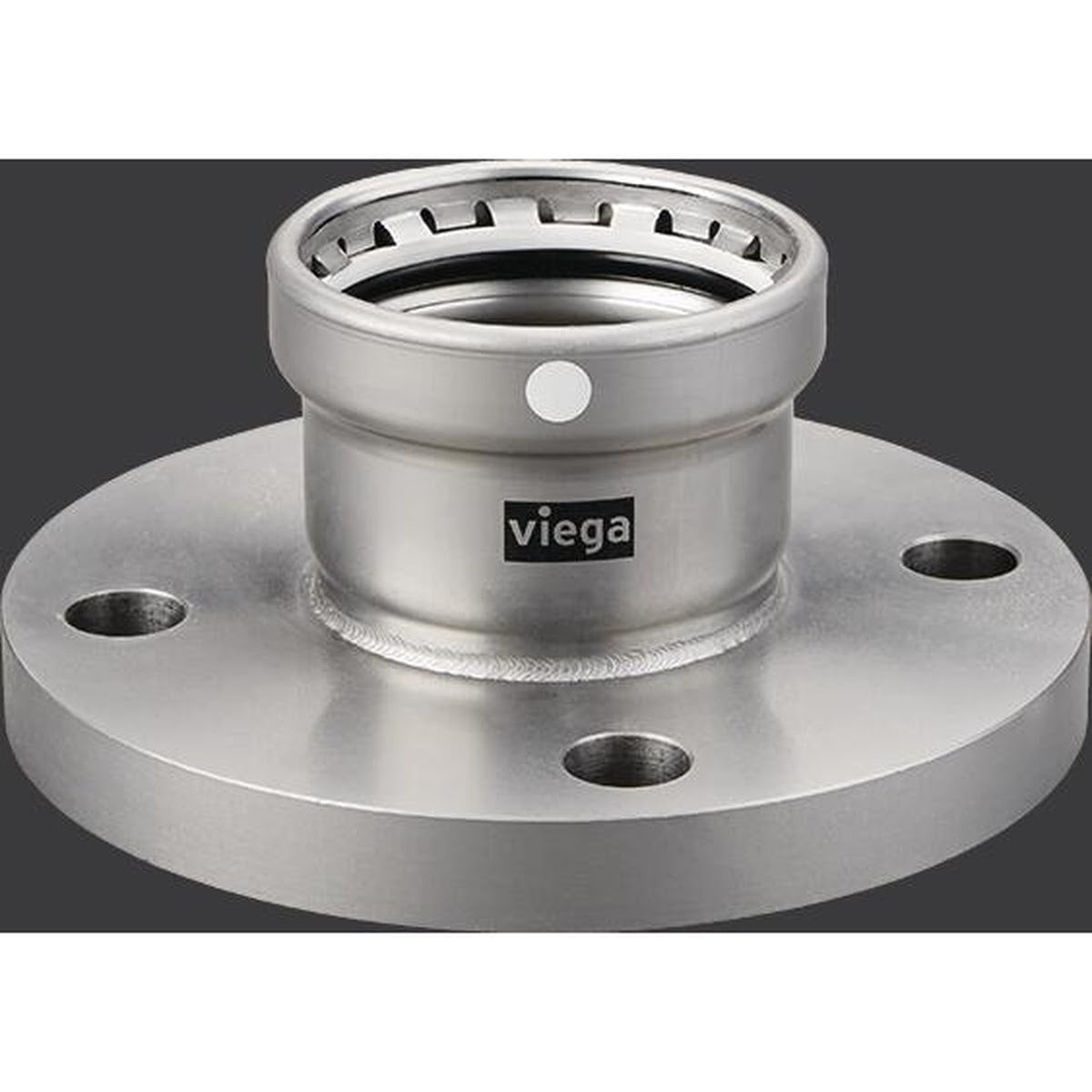

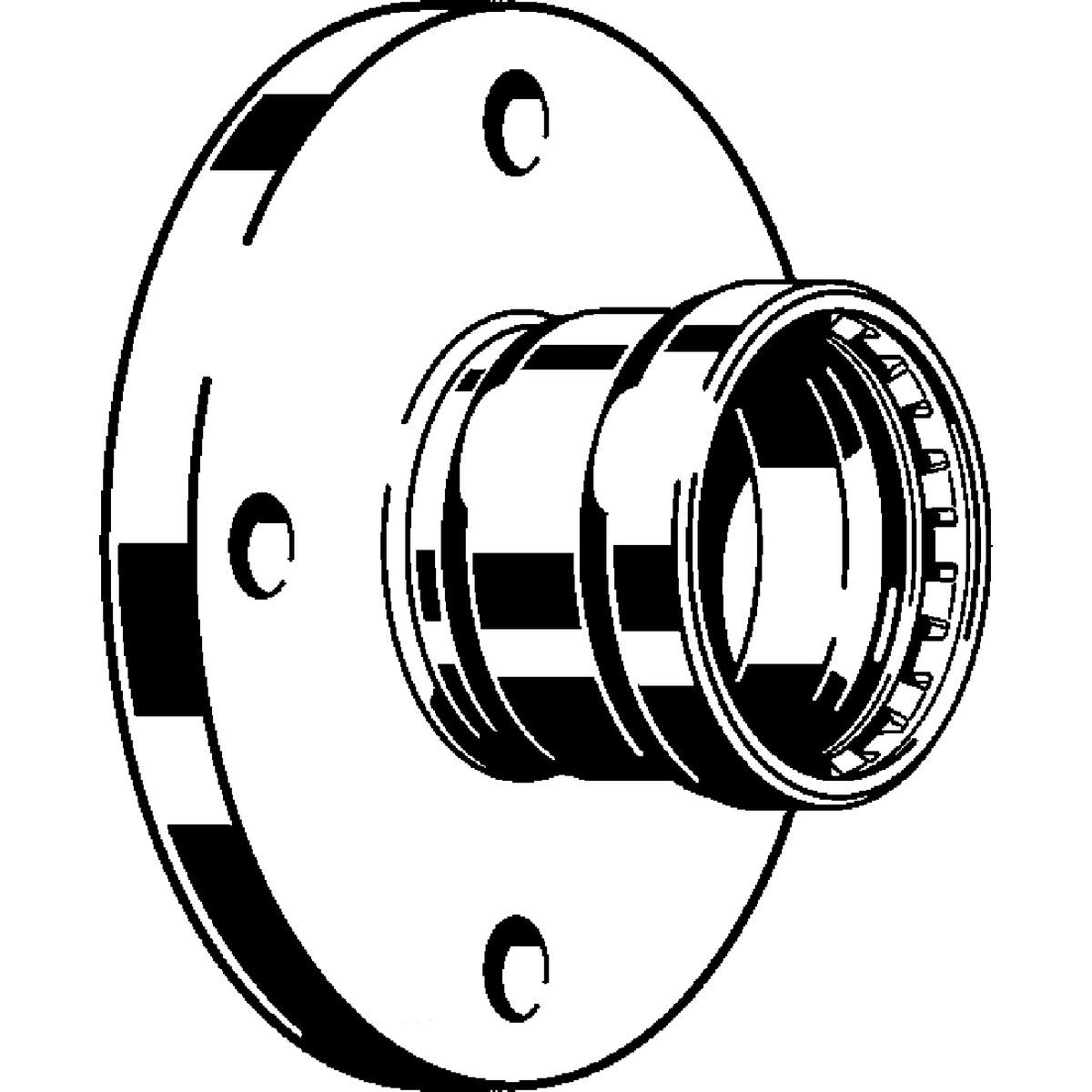

The Viega MegaPress FKM flange provides a press connection to Class 150 raised face flanges for use with Sch. 5 to Sch. 40 carbon steel pipe. Constructed from carbon steel with a zinc-nickel coating, it features Smart Connect Technology for a reliable installation.
Viega 26785 Includes
- (1) Viega MegaPress flange (Model 4859.5XL)
- (1) FKM sealing element
- (1) Grip ring
- (1) Separator ring
Viega 26785 Features
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Carbon steel construction with zinc-nickel coating
- Press connection design
- Class 150 raised face flange
- Smart Connect Technology
- Includes FKM sealing element, grip ring, and separator ring
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 26785 Specifications
| Brand | MegaPress FKM |
| Model | 4859.5XL |
| Product Type | Flange |
| Connection Type | Press |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Pipe Compatibility | Sch. 5 to Sch. 40 carbon steel pipe |
| Flange Class | Class 150 |
| Face Type | Raised Face |
| Sealing Element Material | FKM |
| Part Data | P: 4; BP: 8; BPd: 7 1/2 |
| Country of Origin | DE |
| Base Unit of Measure | PC |
| Each Length | 9.055 |
| Each Width | 9.055 |
| Each Height | 4.953 |
| Each Shipping Weight | 13.879 |
Toolup Part # :
887959
