Viega 28875 Description

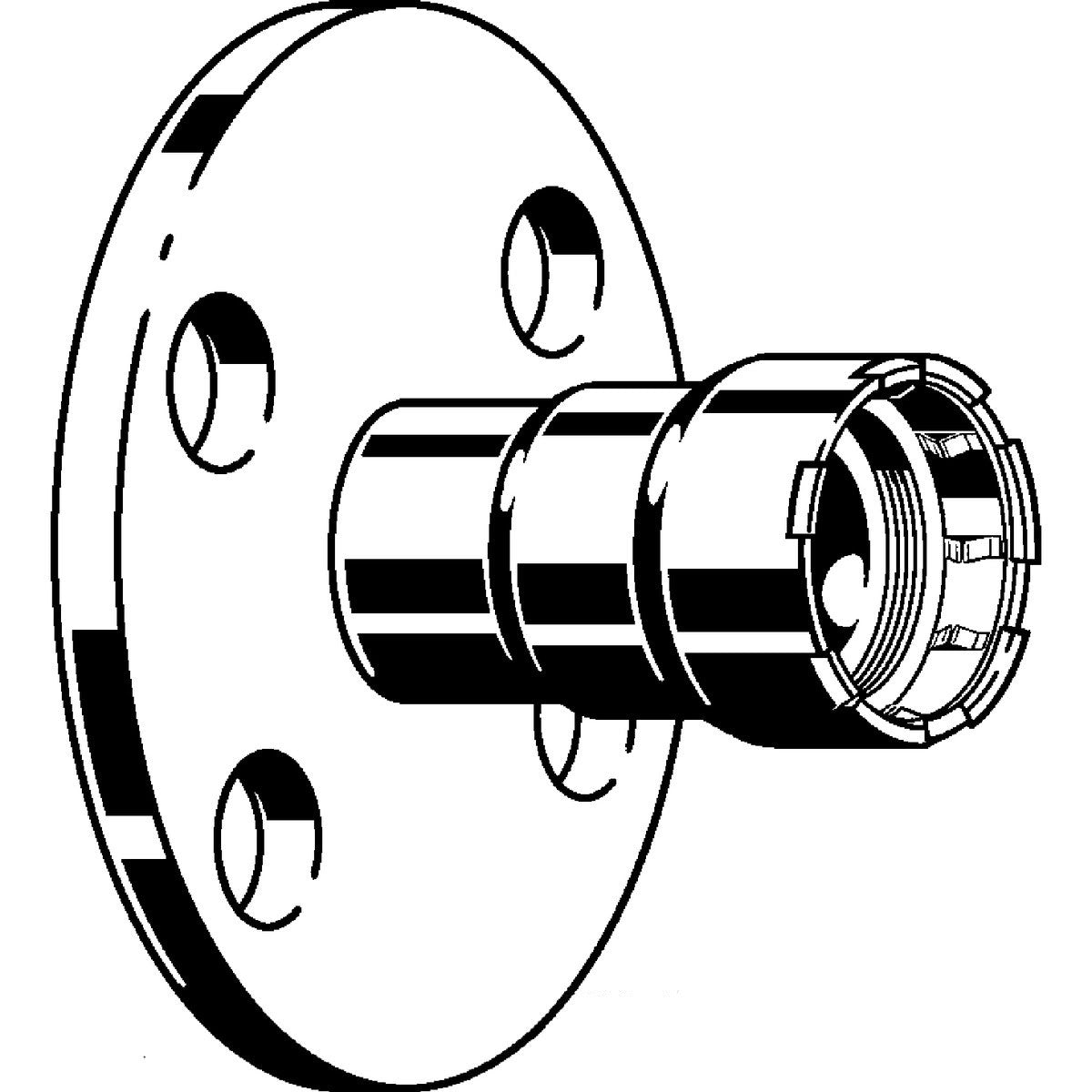

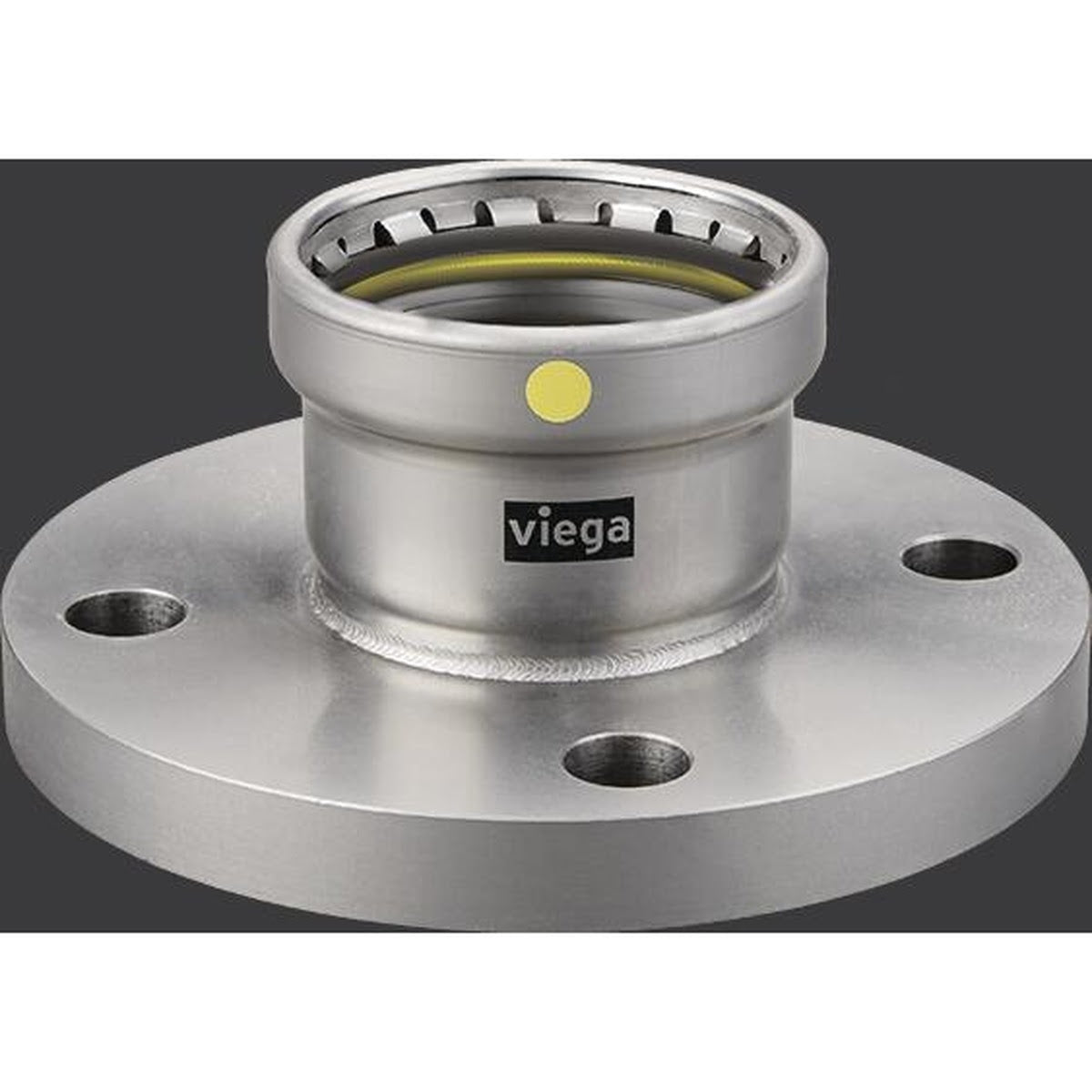

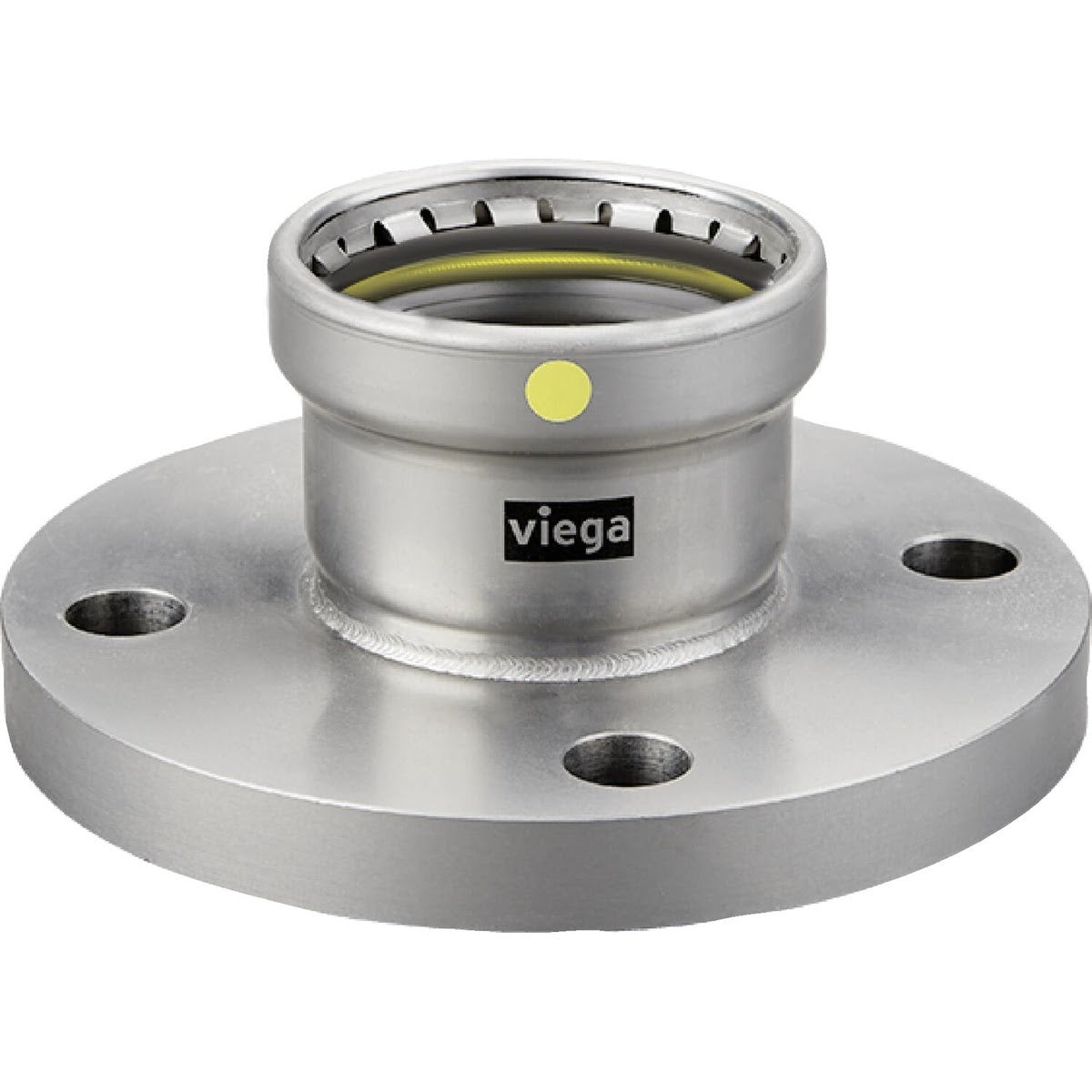

The Viega MegaPressG flange provides a press connection to a Class 125 flat face flange for use with Schedule 10 to Schedule 40 carbon steel pipe. Constructed of carbon steel with a zinc-nickel coating, it is designed for fast, secure installation using MegaPress XL tooling.
Viega 28875 Includes
- (1) MegaPressG flange
- (1) HNBR sealing element
- (1) Grip ring
- (1) Separator ring
Viega 28875 Features
- For use with Schedule 10 to Schedule 40 carbon steel pipe
- Carbon steel construction with zinc-nickel coating
- Press connection with flat faced flange design
- Class 125 flat face flange
- Smart Connect Technology
- Must be installed with MegaPress XL rings and PressBooster/Z3 actuator
Viega 28875 Specifications
| Brand | MegaPress G |
| Model | 6659.5XL |
| Material | Carbon steel |
| Coating | Zinc-nickel |
| Connection Type | Press |
| Flange Face Type | Flat face |
| Flange Class | Class 125 |
| Compatible Pipe | Schedule 10 to Schedule 40 carbon steel pipe |
| Pipe Size | 2 1/2 in |
| BP | 4 in |
| BPd | 5 1/2 in |
| Each Length (in) | 7.126 |
| Each Width (in) | 7.126 |
| Each Height (in) | 3.472 |
| Each Shipping Weight (lb) | 8.426 |
| Country of Origin | DE |
Toolup Part # :
888514
